HP Pavilion dv6000 Hard Drive Replacement

Introduction

If your hard drive is not working or you want to add in a larger hard drive, follow this guide.

What you need

  1. HP Pavilion dv6000 Hard Drive Replacement, HP Pavilion dv6000 Hard Drive Replacement: step 1, image 1 of 2 HP Pavilion dv6000 Hard Drive Replacement, HP Pavilion dv6000 Hard Drive Replacement: step 1, image 2 of 2

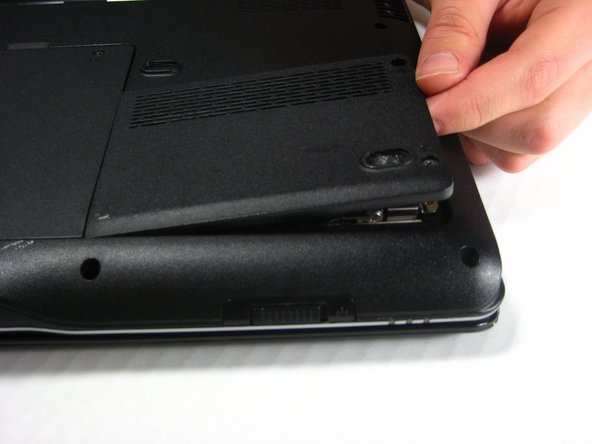

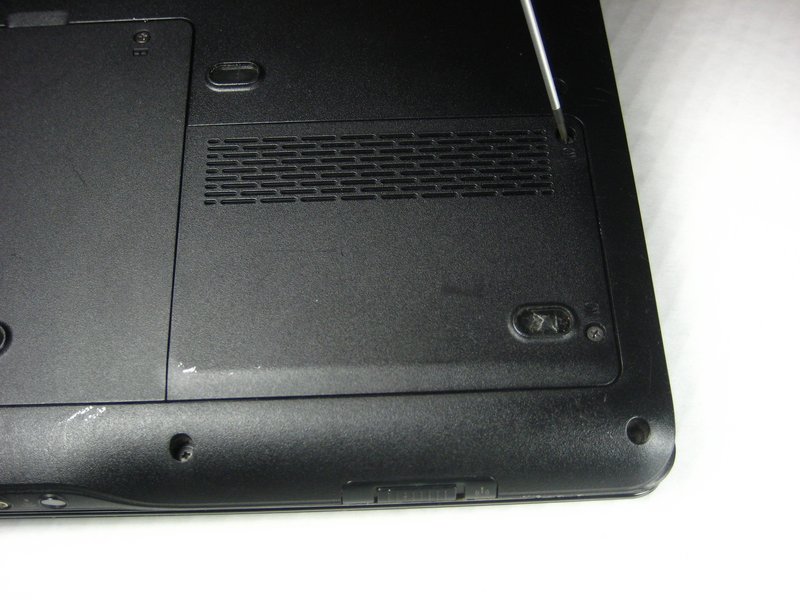

    • Remove the two screws from the hard drive shield and lift it off starting at the right side. The screws will remain in the shield.

  2. HP Pavilion dv6000 Hard Drive Replacement: step 2, image 1 of 2 HP Pavilion dv6000 Hard Drive Replacement: step 2, image 2 of 2

    • Pull the plastic tab attached to the hard drive. The hard drive lifts right out. Pull gently so you don't damage the contacts.

  4. HP Pavilion dv6000 Hard Drive Replacement: step 3, image 1 of 2 HP Pavilion dv6000 Hard Drive Replacement: step 3, image 2 of 2

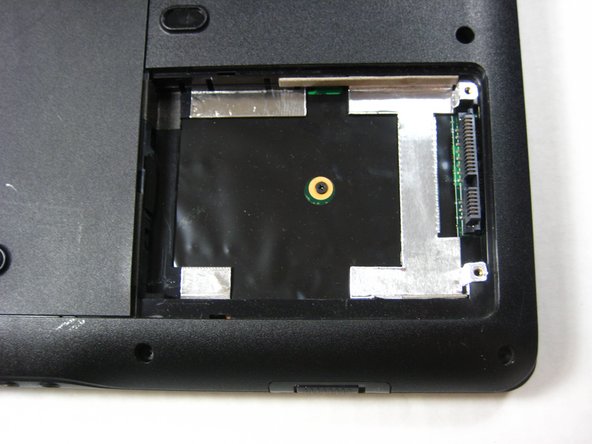

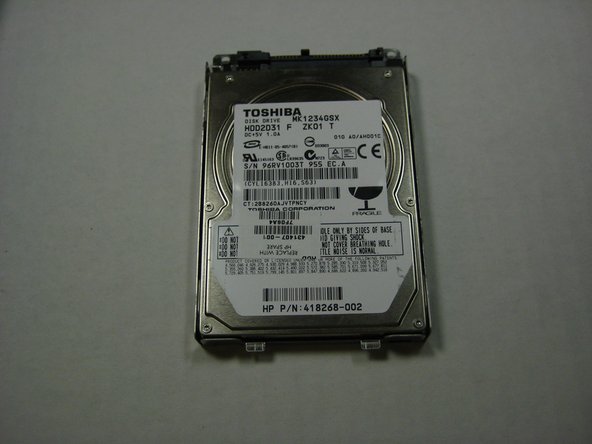

    • Now you have your hard drive out!

  5. HP Pavilion dv6000 Hard Drive Replacement: step 4, image 1 of 2 HP Pavilion dv6000 Hard Drive Replacement: step 4, image 2 of 2

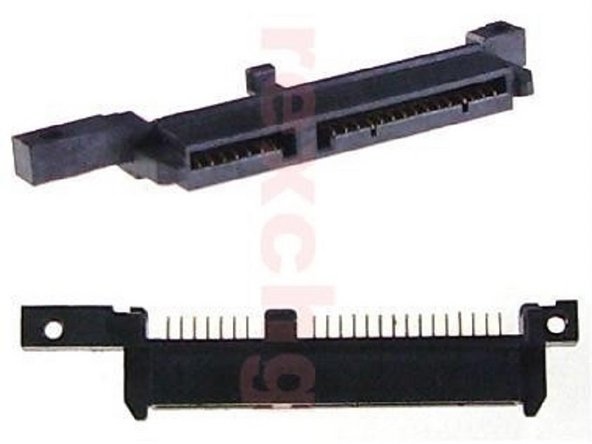

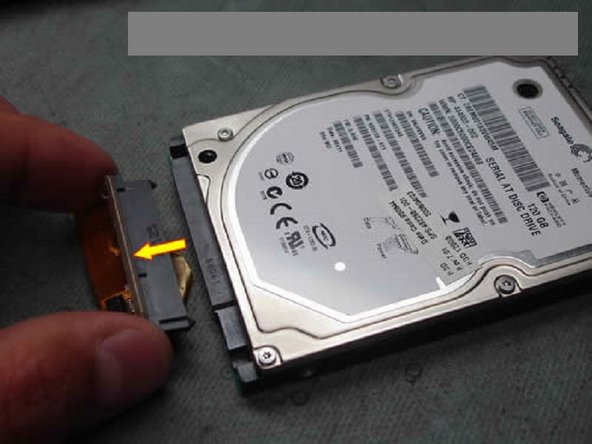

    • Gently pull forward the HP adapter from the top of the hard drive.

    • Insert the adapter onto the new SATA hard drive, to be replaced in the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
