HP Pavilion zd8000 CD/Optical Drive Replacement

Introduction

These steps will allow you to remove your CD/Optical drive with ease.

What you need

  1. HP Pavilion zd8000 CD/Optical Drive Replacement, HP Pavilion zd8000 CD/Optical Drive Replacement: step 1, image 1 of 1

    • Slide the battery release latch towards you.

    Add Comment

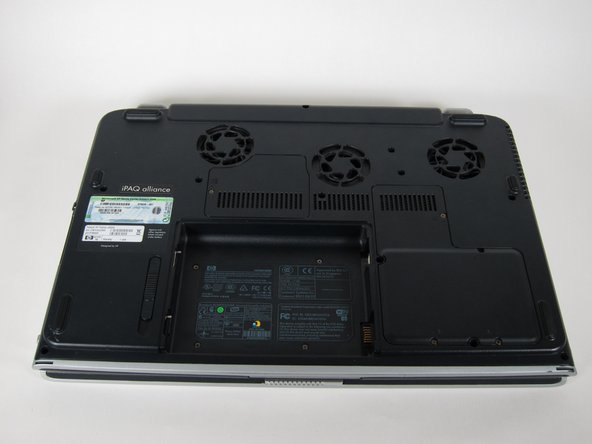

  2. HP Pavilion zd8000 CD/Optical Drive Replacement: step 2, image 1 of 2 HP Pavilion zd8000 CD/Optical Drive Replacement: step 2, image 2 of 2

    • Pull up on the battery to remove it.

    Add Comment

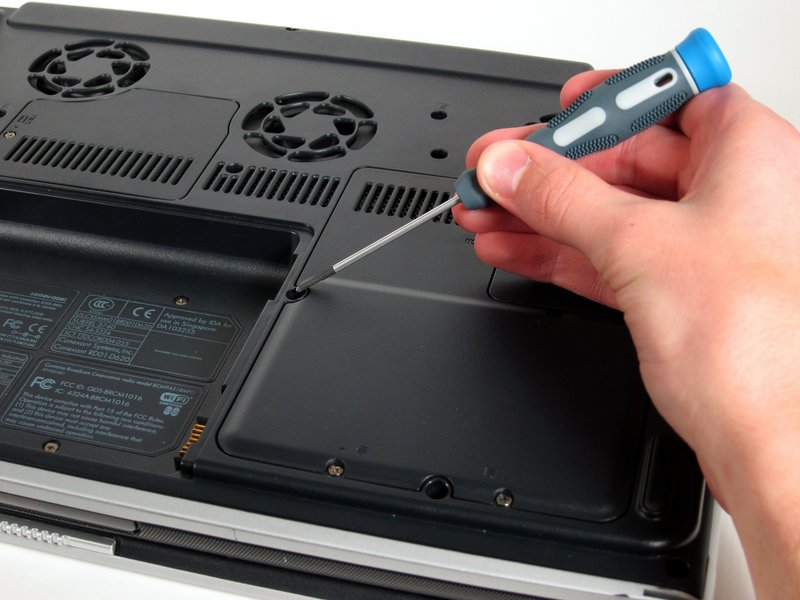

  4. HP Pavilion zd8000 CD/Optical Drive Replacement: step 3, image 1 of 1

    • Remove the 8mm Philips screw located between the hard drive and the WiFi card.

    Add Comment

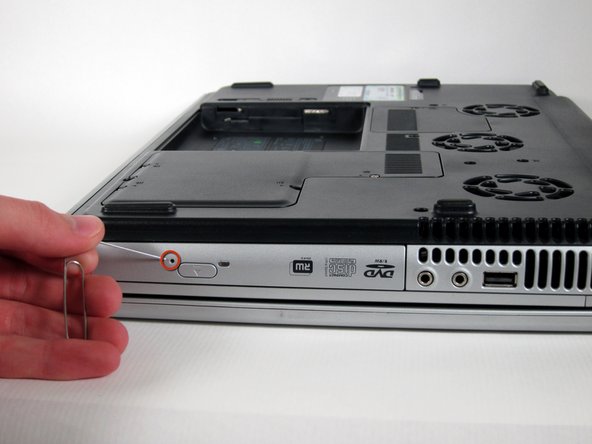

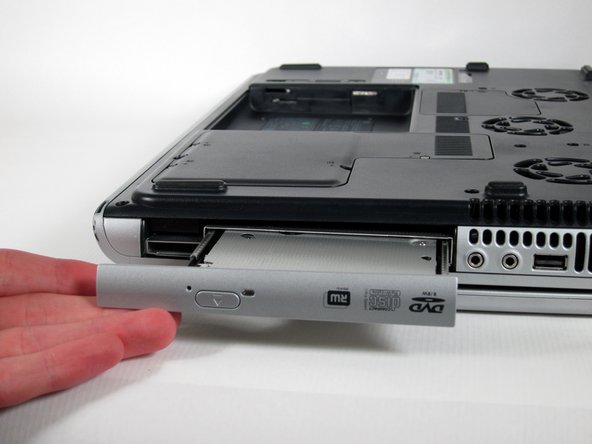

  5. HP Pavilion zd8000 CD/Optical Drive Replacement: step 4, image 1 of 2 HP Pavilion zd8000 CD/Optical Drive Replacement: step 4, image 2 of 2

    • Turn the laptop 90 degrees clockwise so you are facing the CD drive.

    • Unbend a paperclip and insert the end into the small hole by the eject button to cause the tray to pop out towards you.

    Add Comment

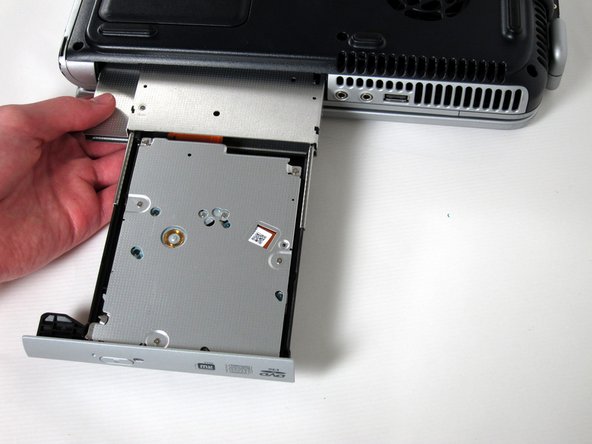

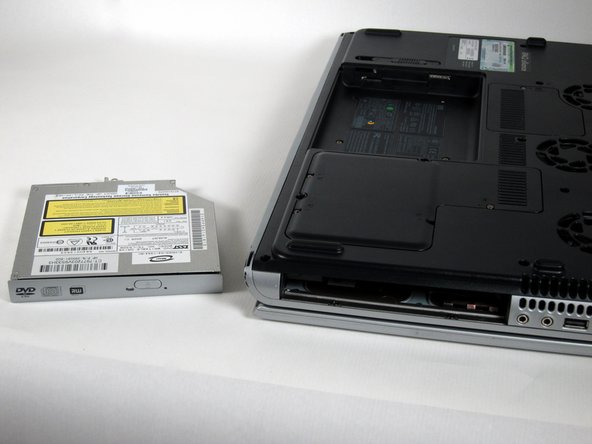

  6. HP Pavilion zd8000 CD/Optical Drive Replacement: step 5, image 1 of 2 HP Pavilion zd8000 CD/Optical Drive Replacement: step 5, image 2 of 2

    • Gently pull the tray away from the laptop and the rest of the optical drive will follow.

    Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
