Introduction
Use this guide to remove or replace your current MicroSD card.
What you need
-
-
Gently insert an iPod opening tool between the rear panel and the inner rear frame near the headphone jack.
-
Use your iPod opening tool to pry up the rear case around the perimeter of the Evo.
-
-
-

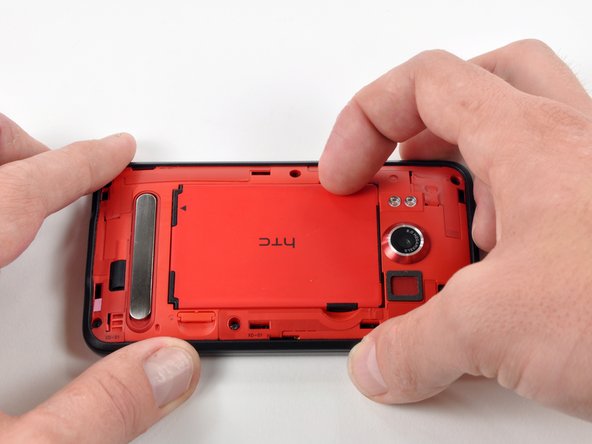

Using the tip of your finger, lift the battery from the end closest to the camera.
-

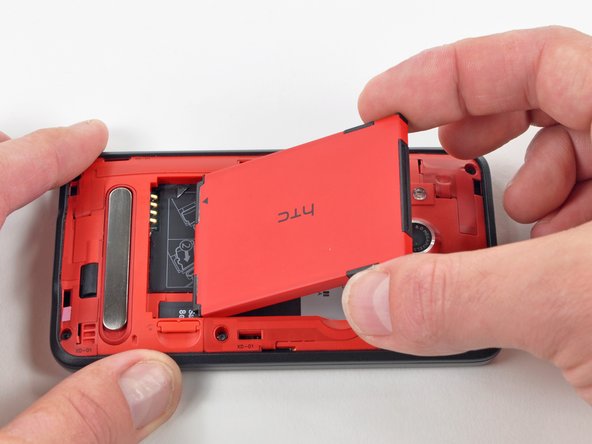

Remove the battery from the rear inner frame.
-
-
-

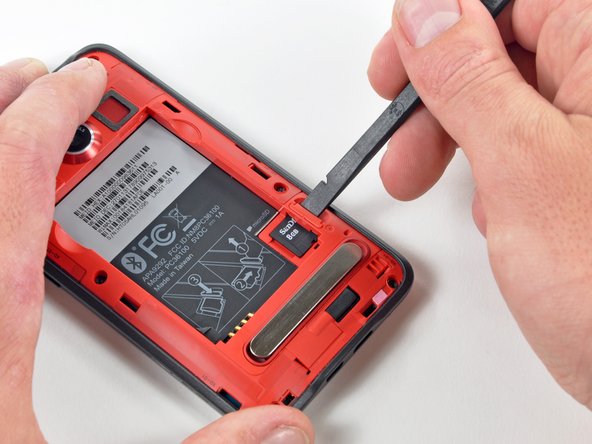

Use the flat end of a spudger to pry up the red MicroSD retainer attached to the inner frame.
-
-
-

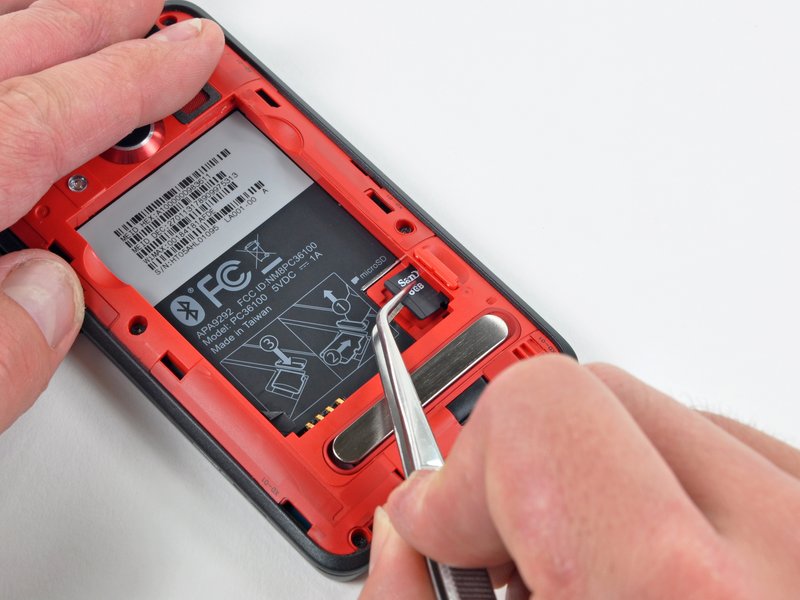

Use a pair of tweezers to carefully pull the MicroSD card out of its slot in the inner rear frame.
-
Almost done!
To reassemble your device, follow these instructions in reverse order.
Conclusion
To reassemble your device, follow these instructions in reverse order.
