Introduction

Use this guide to replace the earpiece speaker in the HTC HD2. This is a fairly easy repair, once the rear cover is removed.

What you need

1. Step 1 HTC HD2 Earpiece Speaker Replacement
  Carefully pull the rear cover from the back of the phone.

  Place a finger beneath the small lip on the left side of the battery.
  Add Comment

  1024
2. Step 2
  Lay the phone down on it's screen.

  Lift up on the lip and pull the battery from the phone.
  Add Comment

  1024
4. Step 3

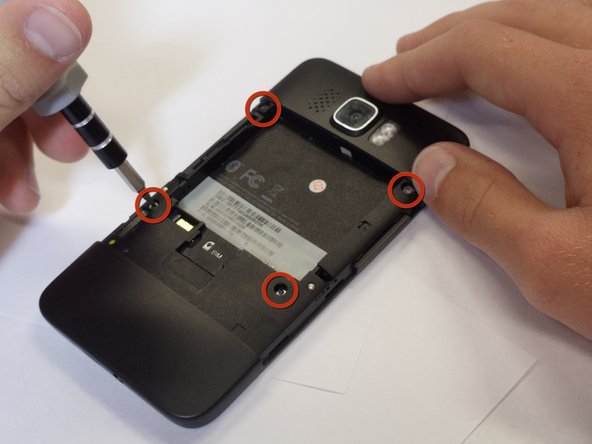

  Remove the four black 3.5mm T5 screws from the back of the phone.
  Add Comment

  1024
5. Step 4

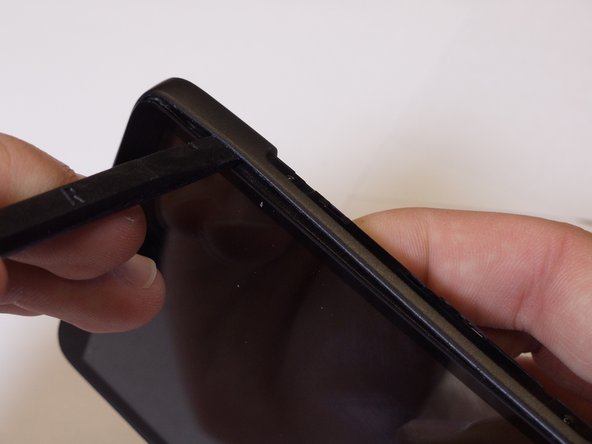

  Insert the flat end of a spudger between the midframe and the display.

  Slide the spudger along the seam between the frame and the display.

  Using the spudger for leverage, carefully pry the midframe away from the display assembly.

  This process will take some effort. Continue to pry slowly and carefully until the frame begins to detach.

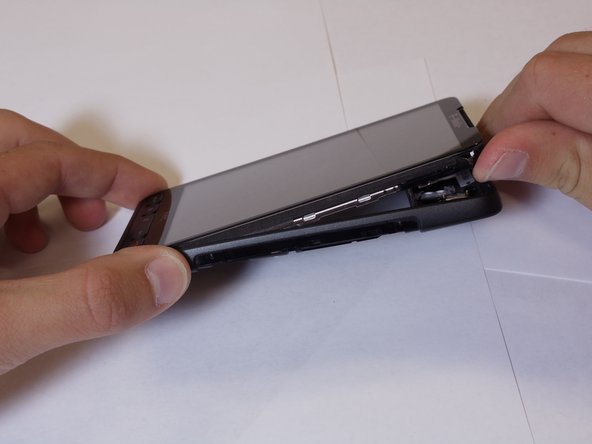

  As it releases, pull the midframe away from the phone.

  The volume control tab may fall off during removal. It can be easily reattached.
  Add Comment

  1024
6. Step 5

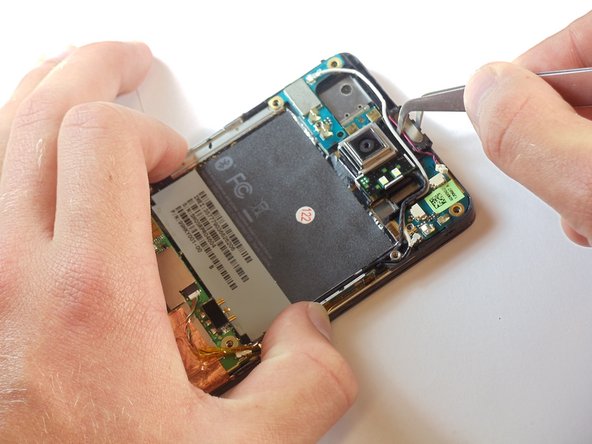

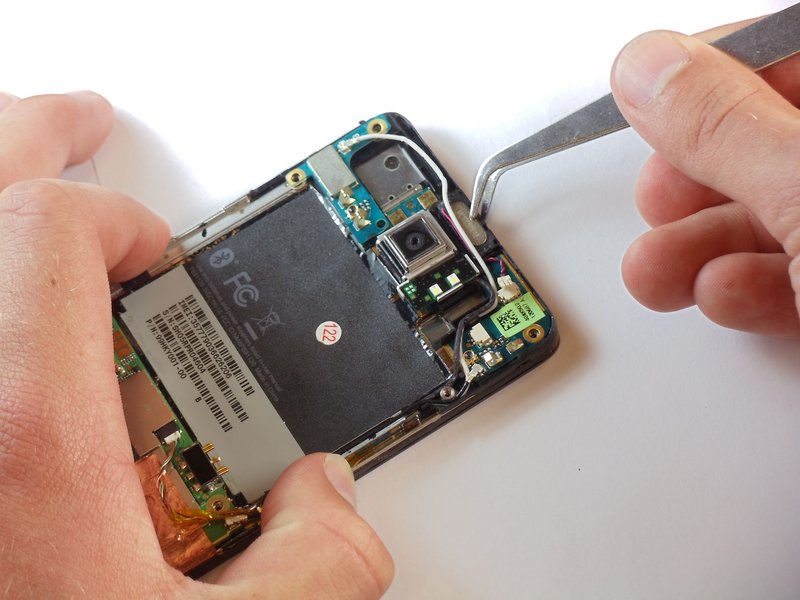

  Disconnect the small speaker cable from its socket on the motherboard.

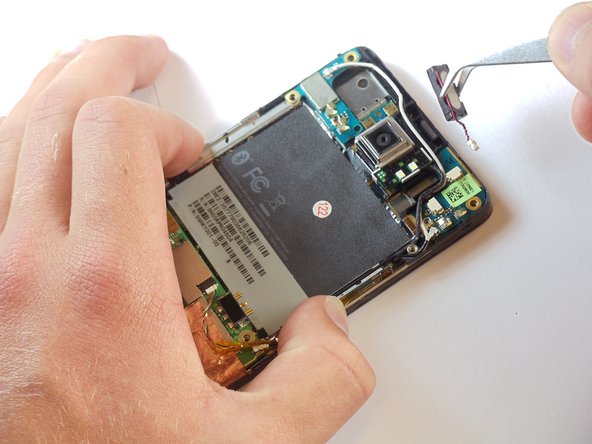

  Remove the earpiece speaker from the phone.
  Add Comment

  1024

Conclusion

To reassemble your device, follow these instructions in reverse order.
