HTC Maple 100 Internal Ear Speaker Replacement

What you need

  1. HTC Maple 100 Internal Ear Speaker Replacement, HTC Maple 100 Internal Ear Speaker Replacement: step 1, image 1 of 1
    • First remove the back cover of your phone to expose the battery.

  2. HTC Maple 100 Internal Ear Speaker Replacement: step 2, image 1 of 1
    • Turn the phone over and remove the battery by using your thumb to push forward on the battery and then lift it.

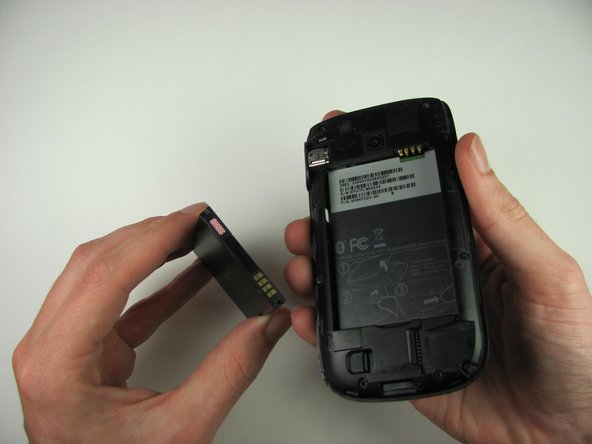

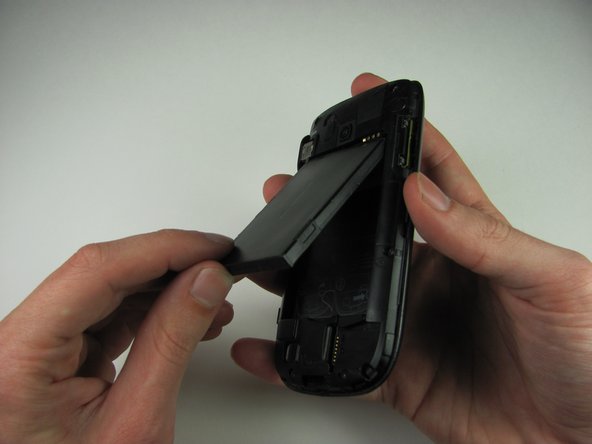

  3. HTC Maple 100 Internal Ear Speaker Replacement: step 3, image 1 of 2 HTC Maple 100 Internal Ear Speaker Replacement: step 3, image 2 of 2
    • Take the battery out

    • When reassembling, make sure that the battery contacts match up.

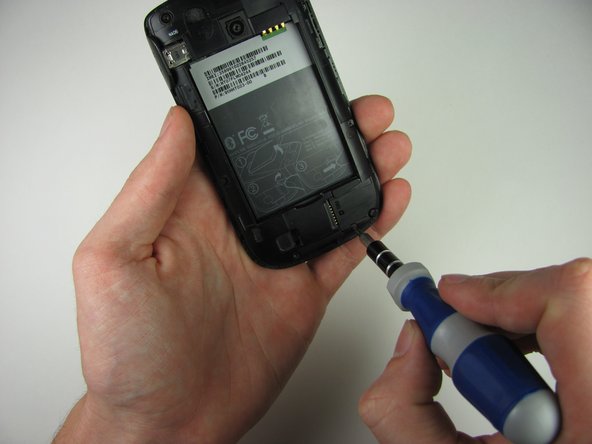

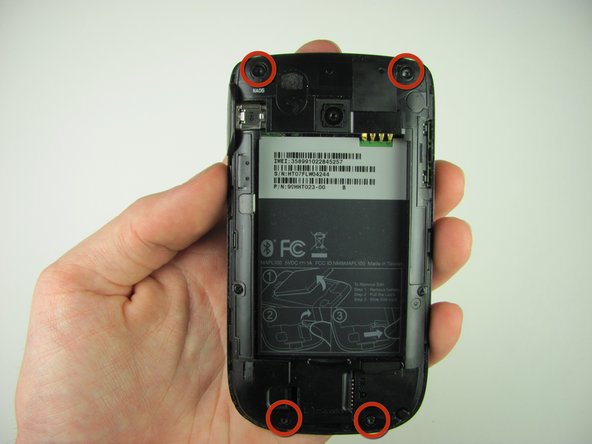

  4. HTC Maple 100 Internal Ear Speaker Replacement: step 4, image 1 of 2 HTC Maple 100 Internal Ear Speaker Replacement: step 4, image 2 of 2
    • Remove the four 4.9mm T6 Torx screws that secure the back panel to the rest of the phone

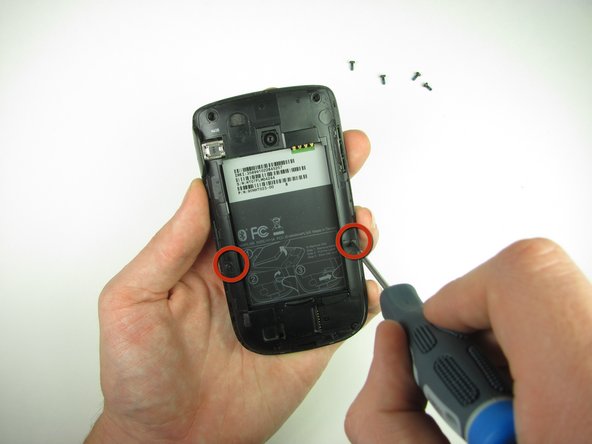

  5. HTC Maple 100 Internal Ear Speaker Replacement: step 5, image 1 of 1
    • Remove the two 4.3mm #00 Phillips screws that secure the back panel to the rest of the phone

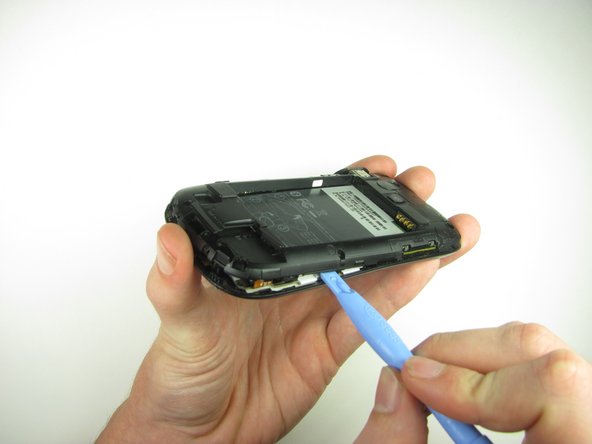

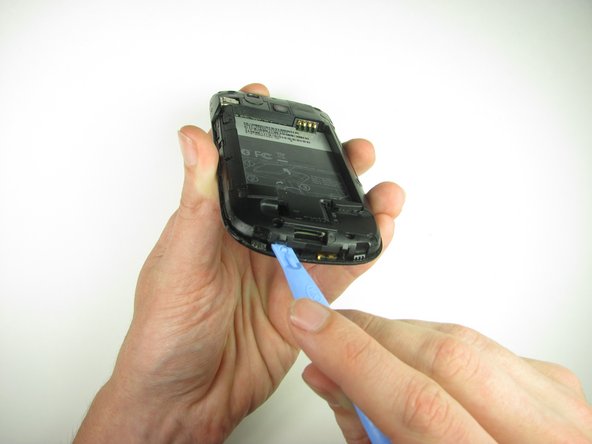

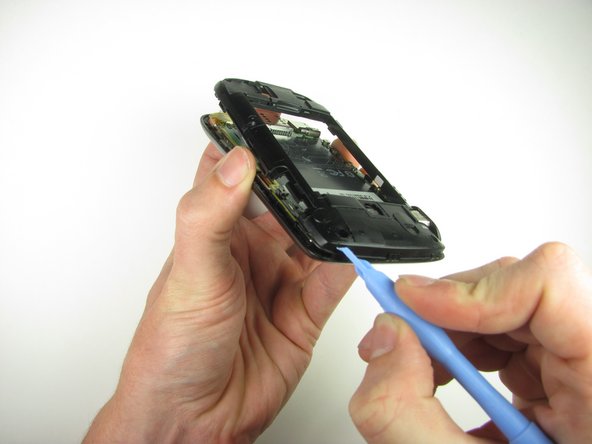

  6. HTC Maple 100 Internal Ear Speaker Replacement: step 6, image 1 of 3 HTC Maple 100 Internal Ear Speaker Replacement: step 6, image 2 of 3 HTC Maple 100 Internal Ear Speaker Replacement: step 6, image 3 of 3
    • Use the plastic opening tool to pry the clips off

    • Insert the plastic opening tool along the seams at different points to it pry up

    • This may require a bit of force. The USB port cover may fall off in this step.

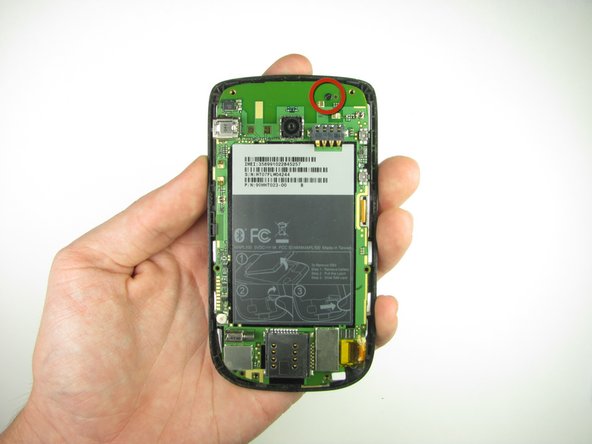

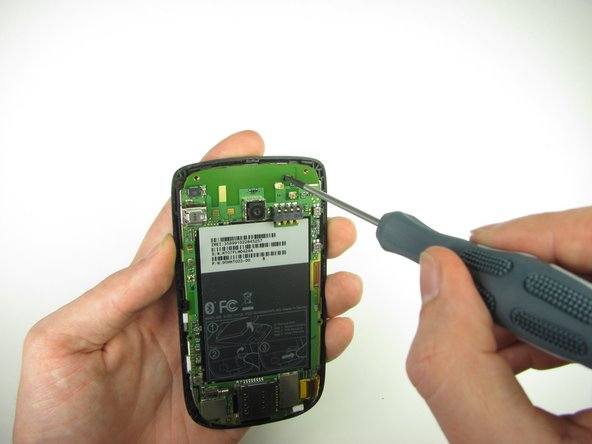

  7. HTC Maple 100 Internal Ear Speaker Replacement: step 7, image 1 of 2 HTC Maple 100 Internal Ear Speaker Replacement: step 7, image 2 of 2
    • Remove the one 3.3mm #00 screw.

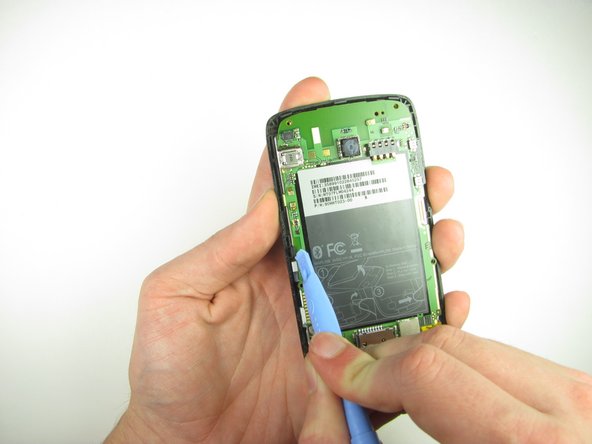

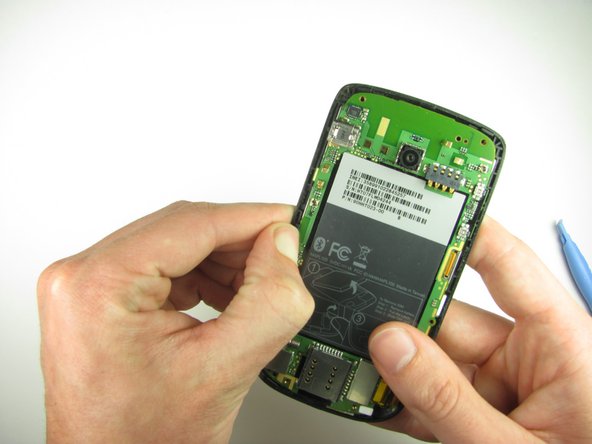

  8. HTC Maple 100 Internal Ear Speaker Replacement: step 8, image 1 of 2 HTC Maple 100 Internal Ear Speaker Replacement: step 8, image 2 of 2
    • Use your finger or the plastic opening tool to unclip the board.

    • Be aware of the ribbon cable connected to the motherboard inside the phone.

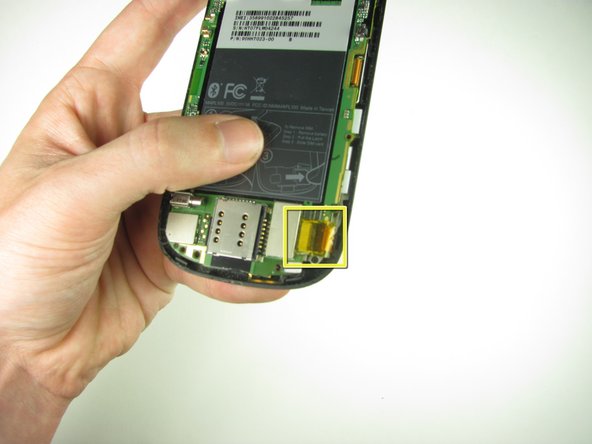

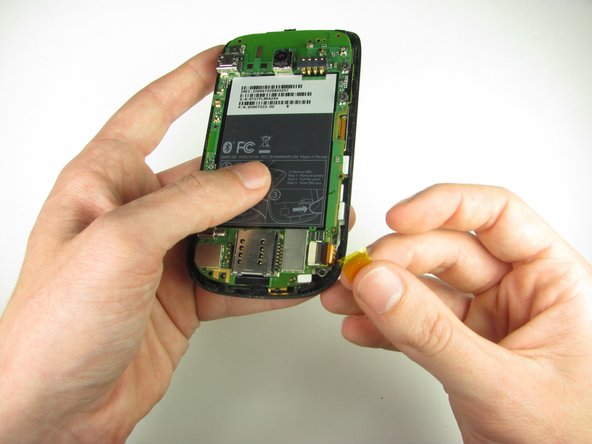

  9. HTC Maple 100 Internal Ear Speaker Replacement: step 9, image 1 of 2 HTC Maple 100 Internal Ear Speaker Replacement: step 9, image 2 of 2
    • Peel off the yellow piece of tape from the phone

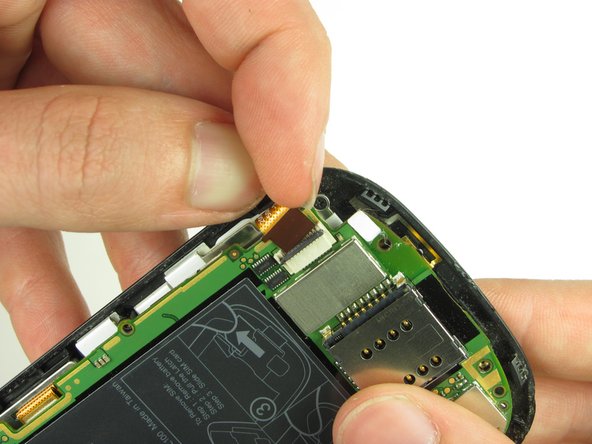

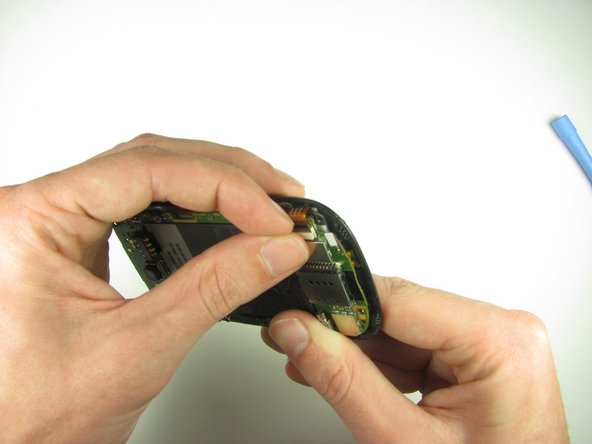

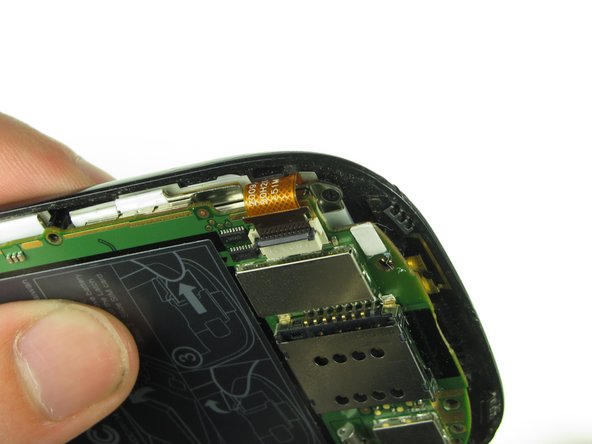

  10. HTC Maple 100 Internal Ear Speaker Replacement: step 10, image 1 of 3 HTC Maple 100 Internal Ear Speaker Replacement: step 10, image 2 of 3 HTC Maple 100 Internal Ear Speaker Replacement: step 10, image 3 of 3
    • First flip up the retaining flap with your fingernail or a plastic opening tool.

    • Pull on the ribbon cable gently with your fingers

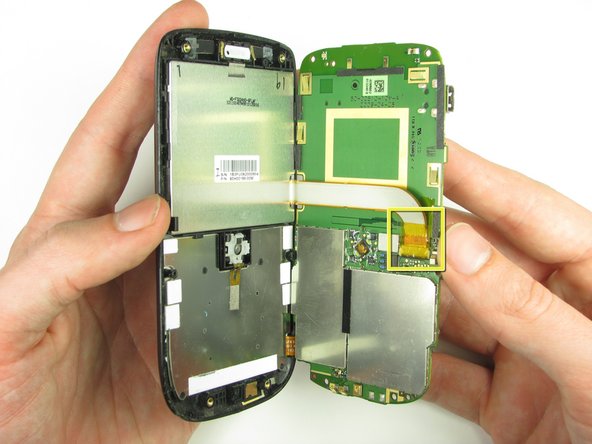

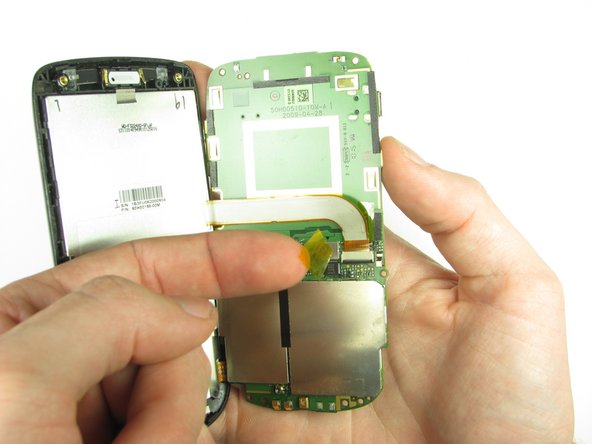

  11. HTC Maple 100 Internal Ear Speaker Replacement: step 11, image 1 of 2 HTC Maple 100 Internal Ear Speaker Replacement: step 11, image 2 of 2
    • Split apart the motherboard and front panel. Remove the other yellow piece of tape off of the end of the ribbon cable.

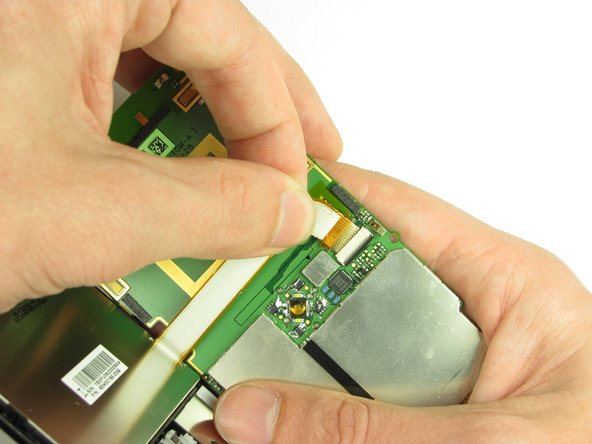

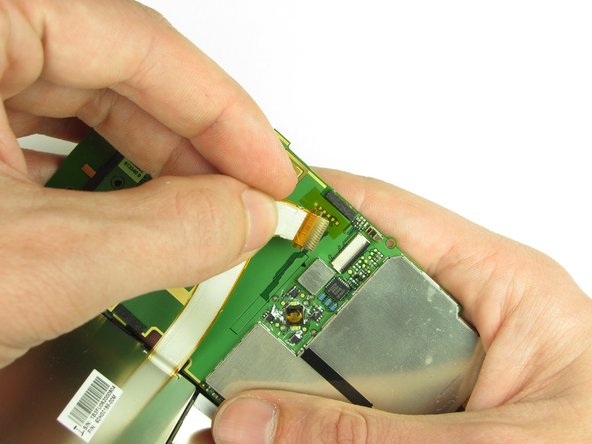

  12. HTC Maple 100 Internal Ear Speaker Replacement: step 12, image 1 of 2 HTC Maple 100 Internal Ear Speaker Replacement: step 12, image 2 of 2
    • Gently pull on the ribbon cable to separate the motherboard.

  13. HTC Maple 100 Internal Ear Speaker Replacement: step 13, image 1 of 1

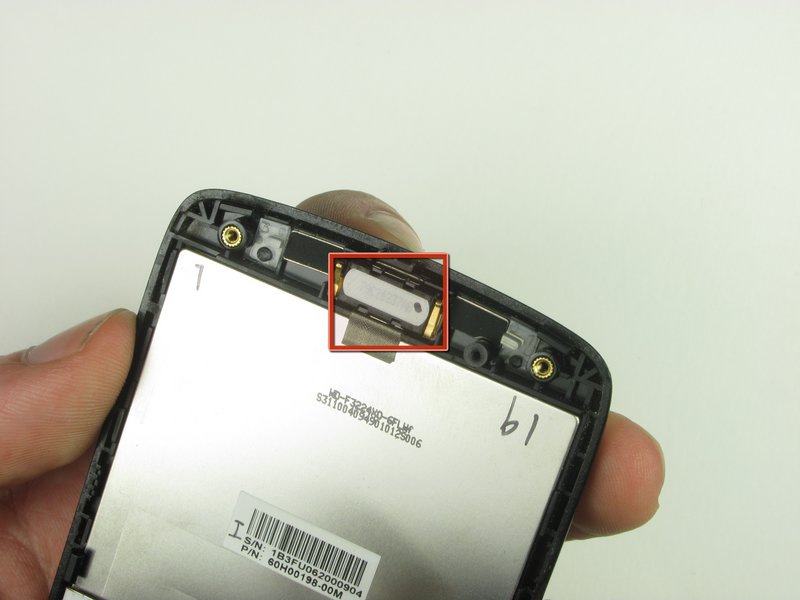

    • The internal speaker is located at the top center of the phone.

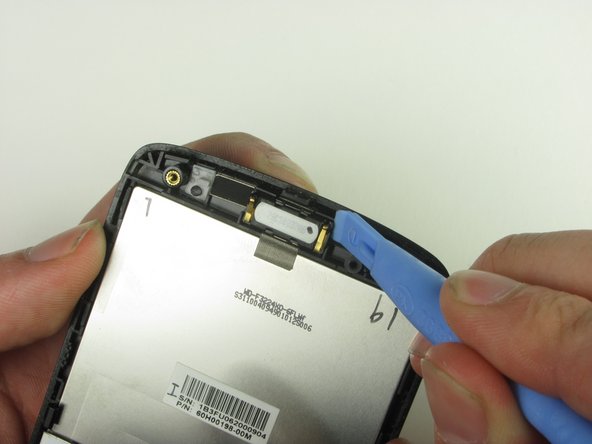

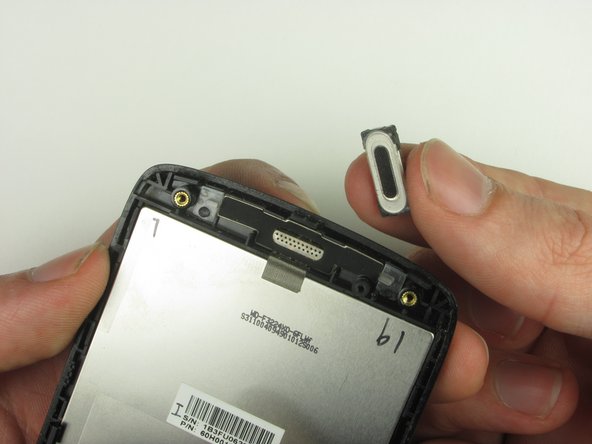

  14. HTC Maple 100 Internal Ear Speaker Replacement: step 14, image 1 of 2 HTC Maple 100 Internal Ear Speaker Replacement: step 14, image 2 of 2
    • Using the plastic opening tool, carefully pry out the internal speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
