HTC Ozone Keyboard Replacement

What you need

  1. HTC Ozone Keyboard Replacement, HTC Ozone Keyboard Replacement: step 1, image 1 of 1

    • Flip phone over to have rear cover facing up.

    • Camera lens should be towards top of phone.

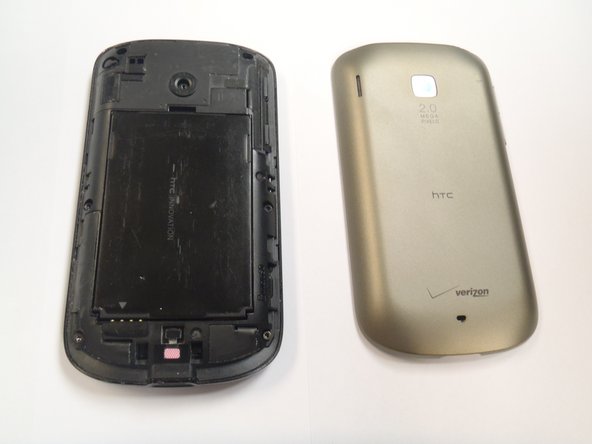

  2. HTC Ozone Keyboard Replacement: step 2, image 1 of 2 HTC Ozone Keyboard Replacement: step 2, image 2 of 2

    • Slide cover up towards top of phone to unlock battery cover.

    • Lift cover off phone and remove.

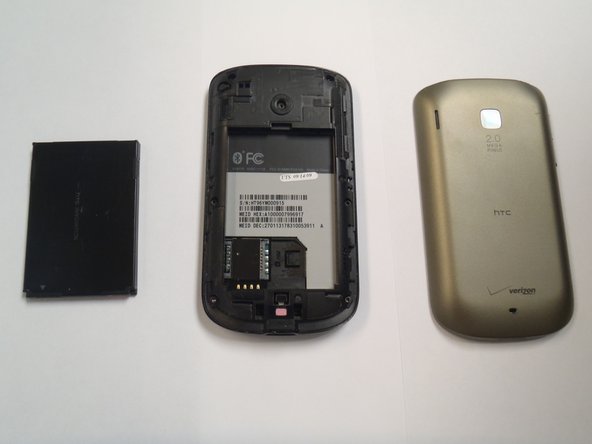

  3. HTC Ozone Keyboard Replacement: step 3, image 1 of 3 HTC Ozone Keyboard Replacement: step 3, image 2 of 3 HTC Ozone Keyboard Replacement: step 3, image 3 of 3

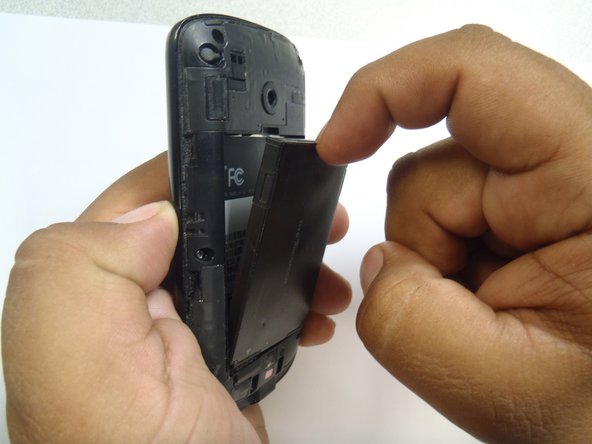

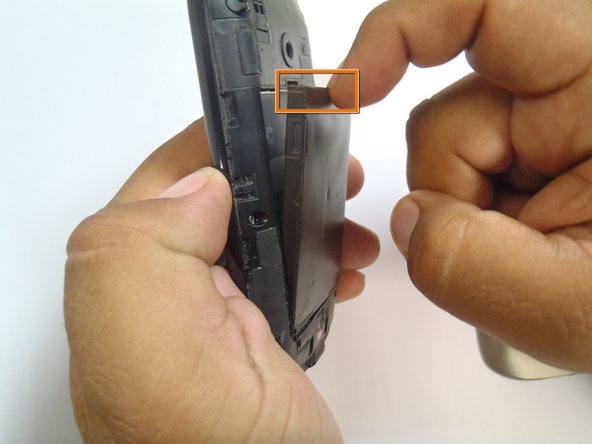

    • Use finger to push top of battery downwards and lift battery out of phone.

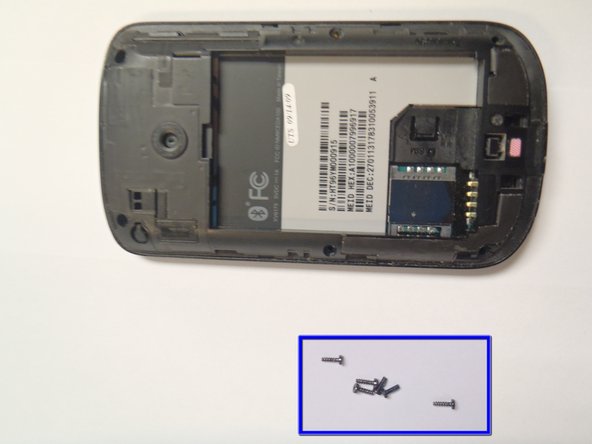

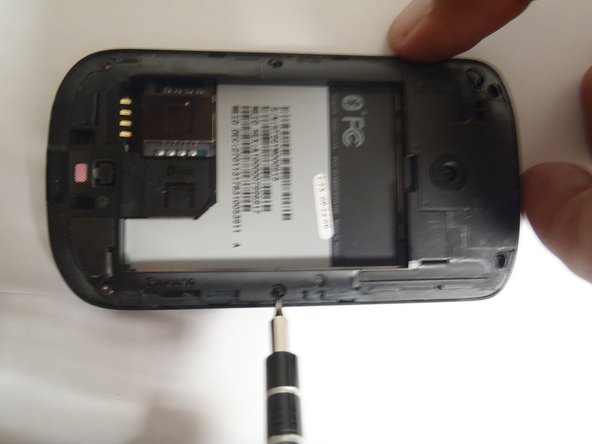

  4. HTC Ozone Keyboard Replacement: step 4, image 1 of 3 HTC Ozone Keyboard Replacement: step 4, image 2 of 3 HTC Ozone Keyboard Replacement: step 4, image 3 of 3

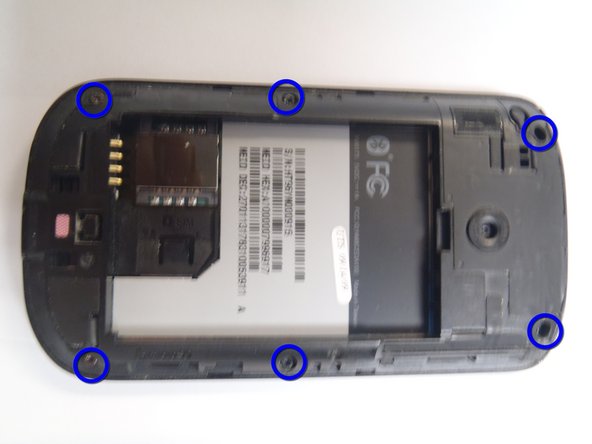

    • Remove six torx #5 screws securing rear frame.

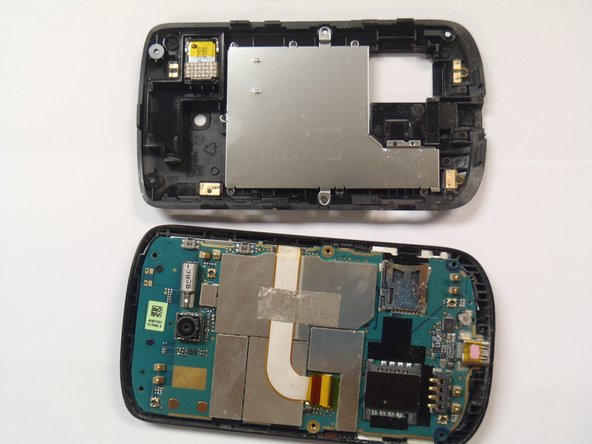

  5. HTC Ozone Keyboard Replacement: step 5, image 1 of 3 HTC Ozone Keyboard Replacement: step 5, image 2 of 3 HTC Ozone Keyboard Replacement: step 5, image 3 of 3

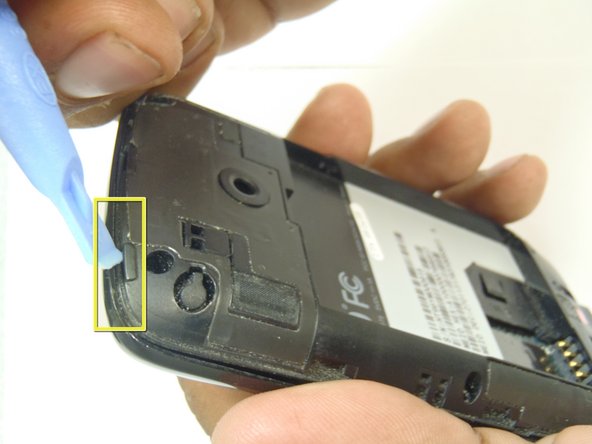

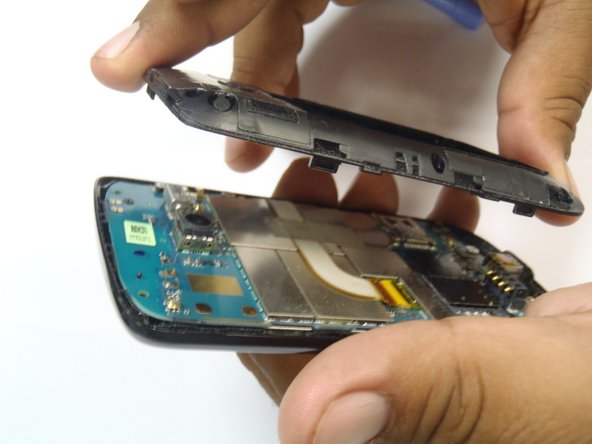

    • Pry frame open releasing eight plastic tabs around edge of frame using plastic opening tool.

    • A plastic card can be used instead of plastic opening tool.

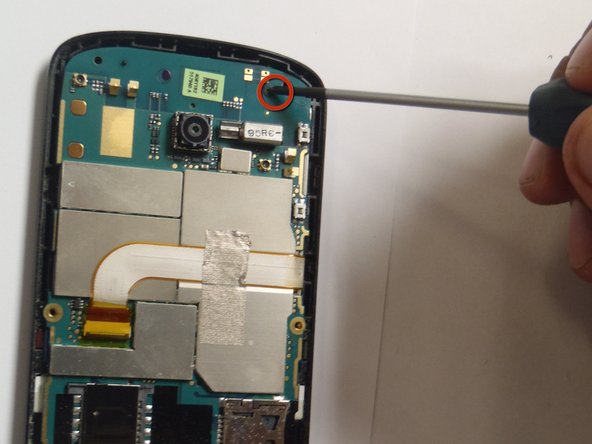

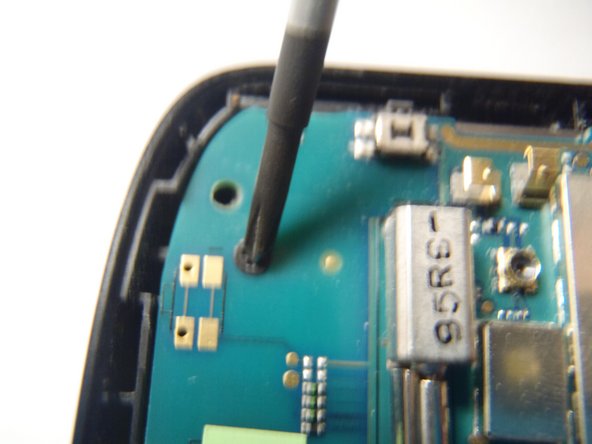

  6. HTC Ozone Keyboard Replacement: step 6, image 1 of 2 HTC Ozone Keyboard Replacement: step 6, image 2 of 2

    • Remove single Phillips #0 screw securing motherboard to front case of phone.

  8. HTC Ozone Keyboard Replacement: step 7, image 1 of 2 HTC Ozone Keyboard Replacement: step 7, image 2 of 2

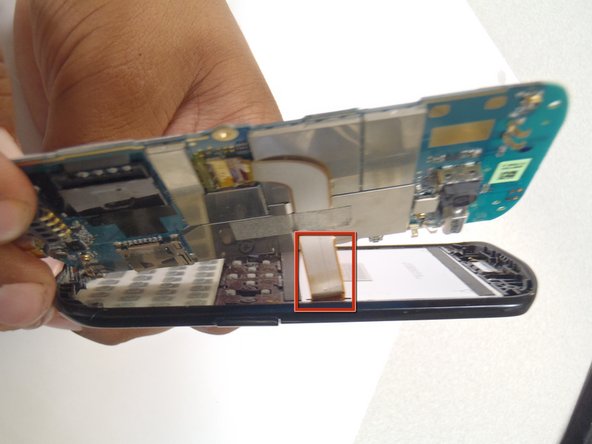

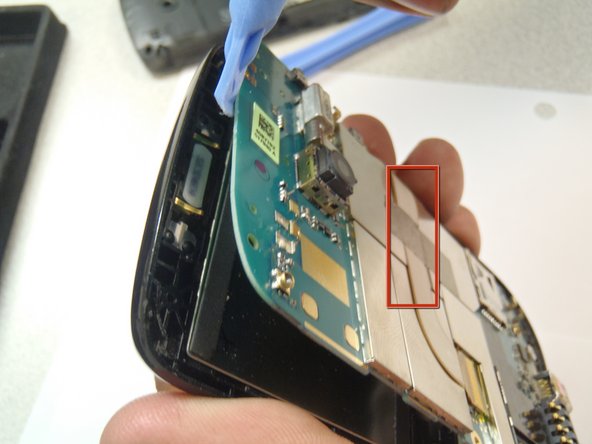

    • Pry motherboard away from front plastic case using plastic opening tool.

    • Be careful not to break ribbon cable when prying away motherboard.

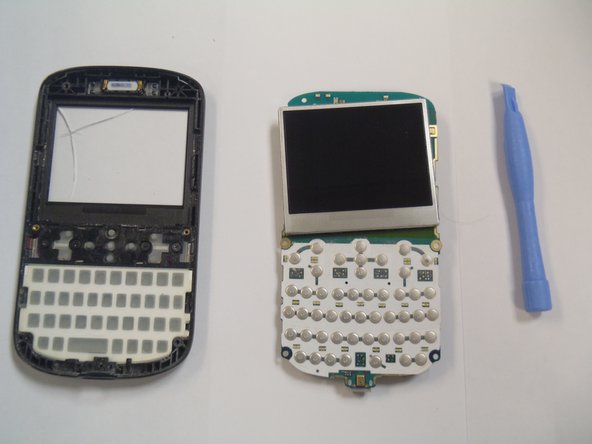

  9. HTC Ozone Keyboard Replacement: step 8, image 1 of 3 HTC Ozone Keyboard Replacement: step 8, image 2 of 3 HTC Ozone Keyboard Replacement: step 8, image 3 of 3

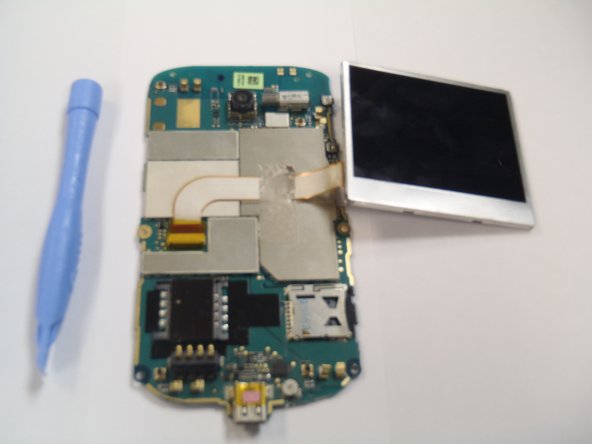

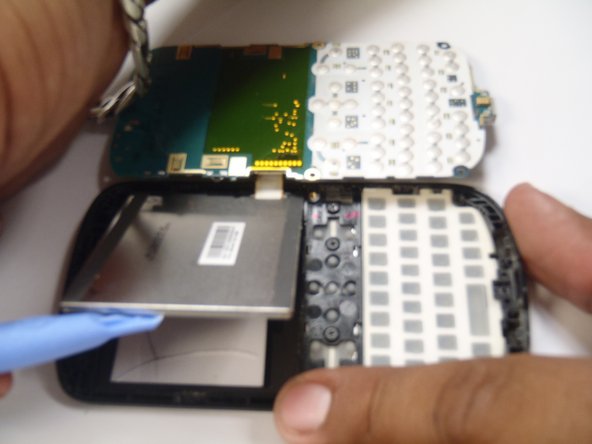

    • Remove plastic cover from LCD display and motherboard.

    • Motherboard and LCD are still attached together.

  10. HTC Ozone Keyboard Replacement: step 9, image 1 of 2 HTC Ozone Keyboard Replacement: step 9, image 2 of 2

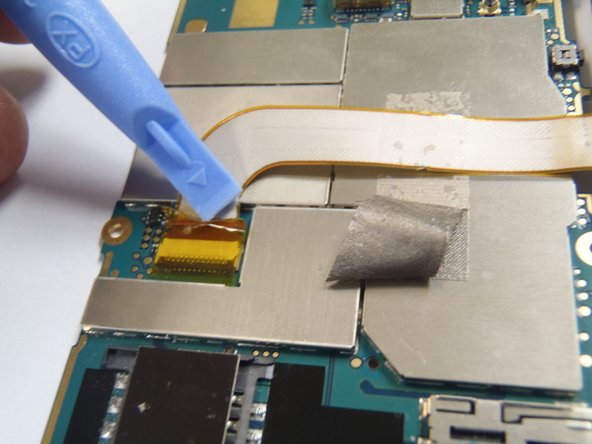

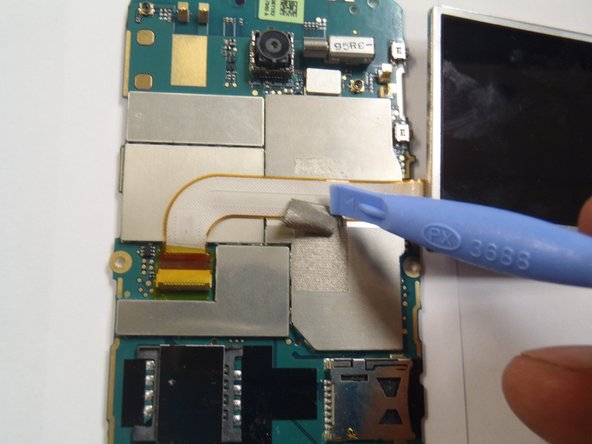

    • Remove grey tape securing ribbon cable.

  11. HTC Ozone Keyboard Replacement: step 10, image 1 of 1

    • Remove yellow tape securing connector lock.

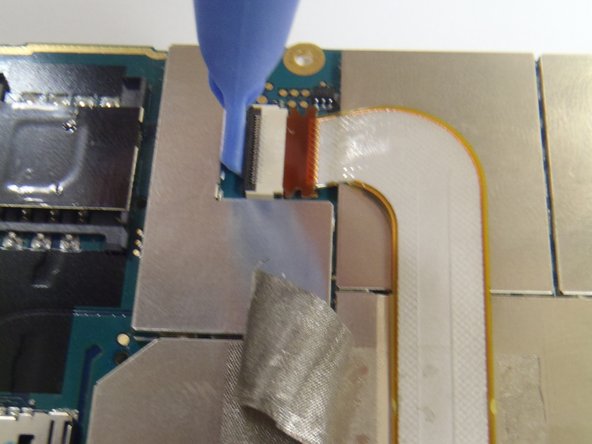

  12. HTC Ozone Keyboard Replacement: step 11, image 1 of 2 HTC Ozone Keyboard Replacement: step 11, image 2 of 2

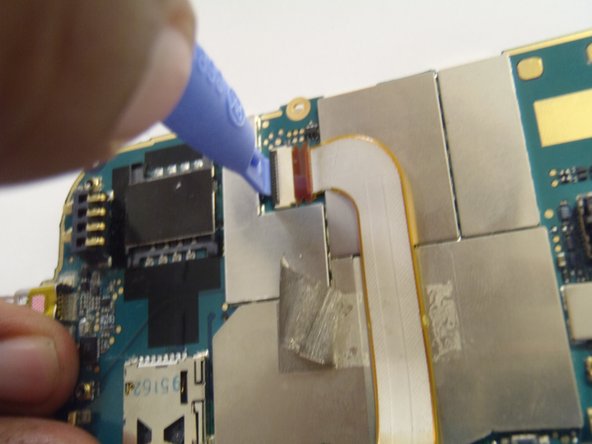

    • Carefully lift black lock to release ribbon cable, using plastic opening tool.

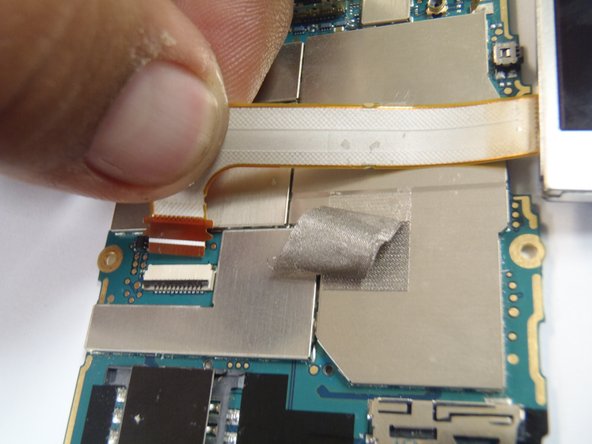

  13. HTC Ozone Keyboard Replacement: step 12, image 1 of 1

    • Pull ribbon cable upwards, disconnecting it from motherboard.

  14. HTC Ozone Keyboard Replacement: step 13, image 1 of 1

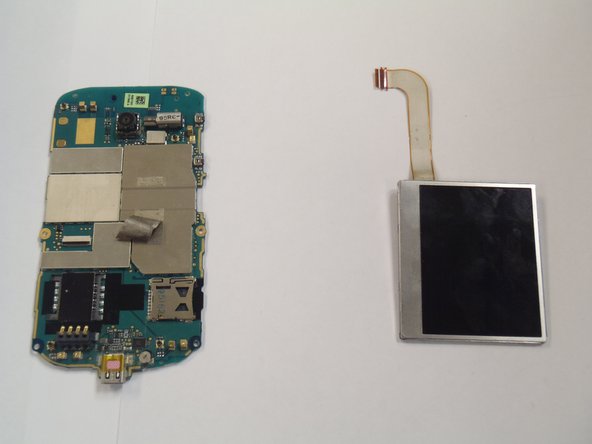

    • Lift motherboard away from LCD display.

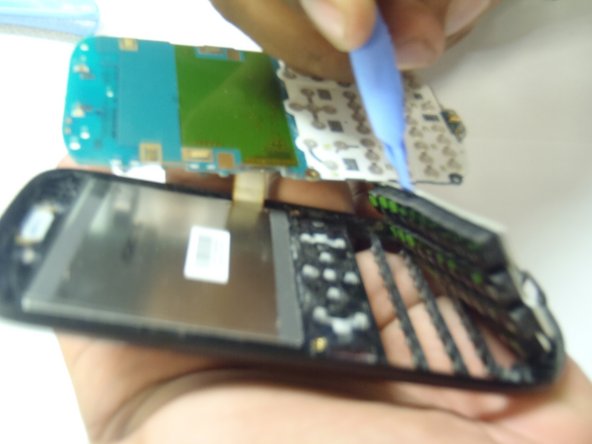

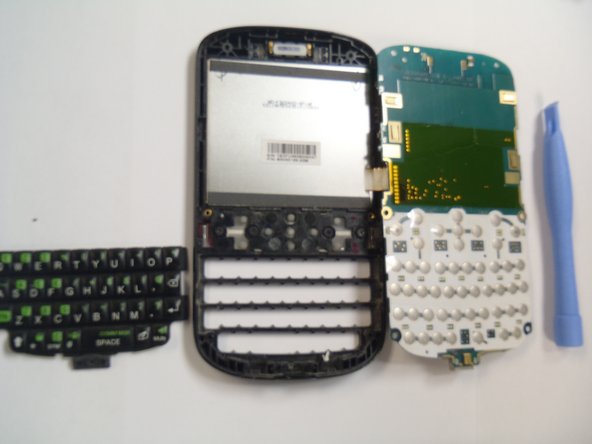

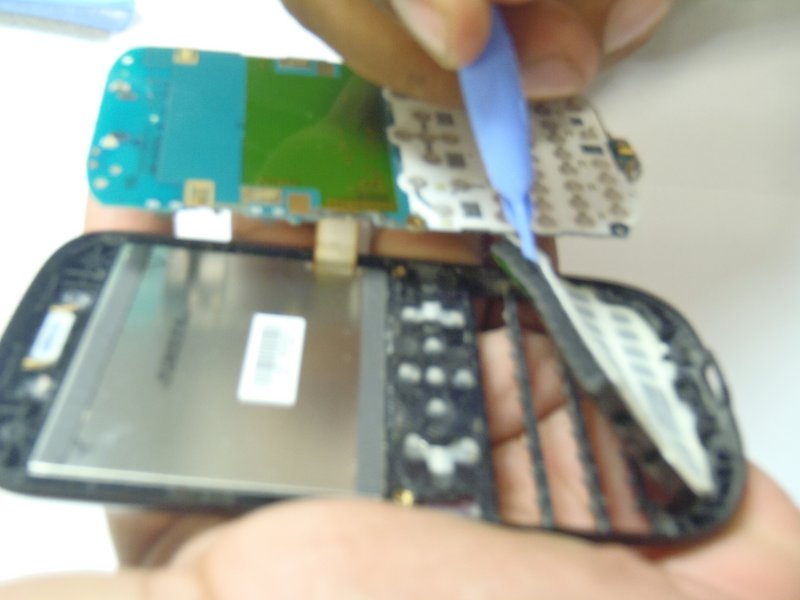

  15. HTC Ozone Keyboard Replacement: step 14, image 1 of 2 HTC Ozone Keyboard Replacement: step 14, image 2 of 2

    • Lift off main keyboard from front plastic case using plastic opening tool.

  16. HTC Ozone Keyboard Replacement: step 15, image 1 of 2 HTC Ozone Keyboard Replacement: step 15, image 2 of 2

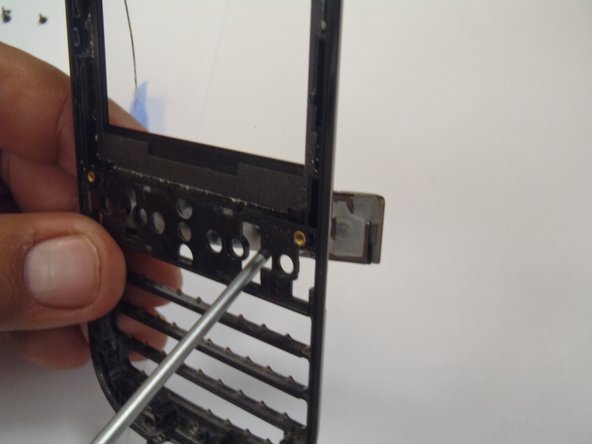

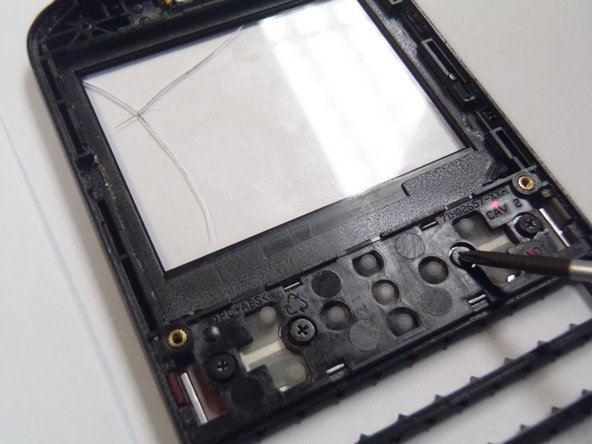

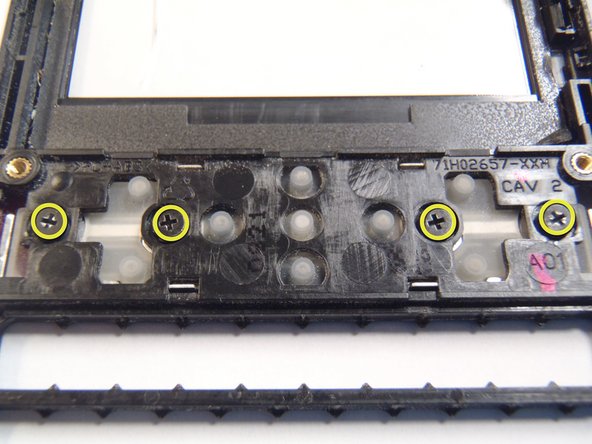

    • Remove four Phillips #00 screws securing function keys.

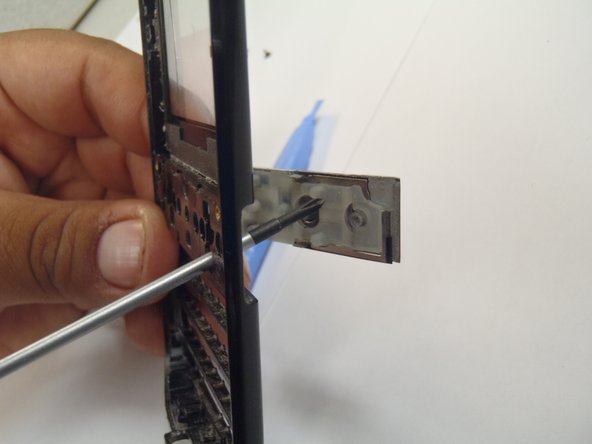

  17. HTC Ozone Keyboard Replacement: step 16, image 1 of 2 HTC Ozone Keyboard Replacement: step 16, image 2 of 2

    • Pop keys out by pushing keys from back of the phone.

Conclusion

To reassemble your device, follow these instructions in reverse order.
