HTC SMT 6175 Battery Replacement

  1. HTC SMT 6175 Battery Replacement, Back Case: step 1, image 1 of 1
    • Flip the phone around so that the camera and back face you.

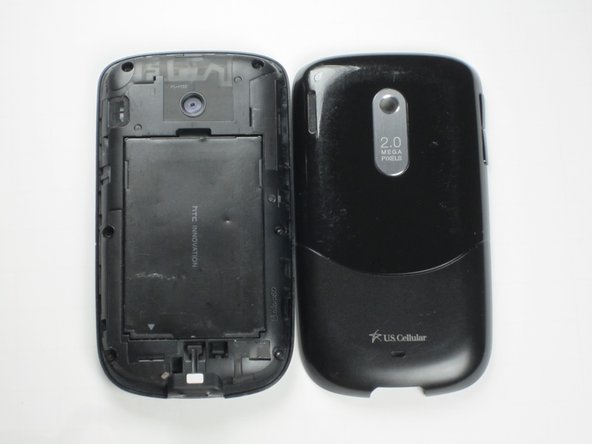

  2. HTC SMT 6175 Battery Replacement: step 2, image 1 of 2 HTC SMT 6175 Battery Replacement: step 2, image 2 of 2
    • With both thumbs, push the back case down and away from yourself.

    • Lift the case away from the rest of the phone.

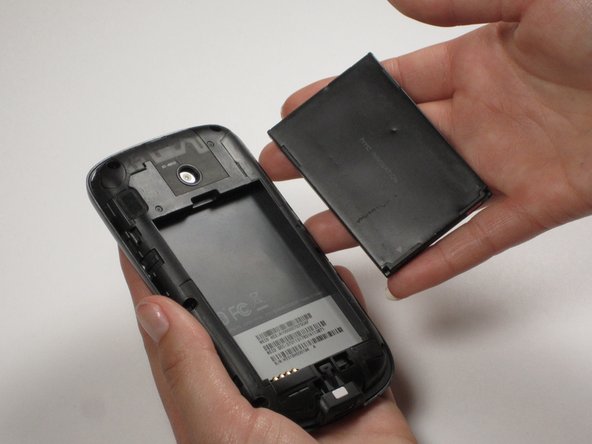

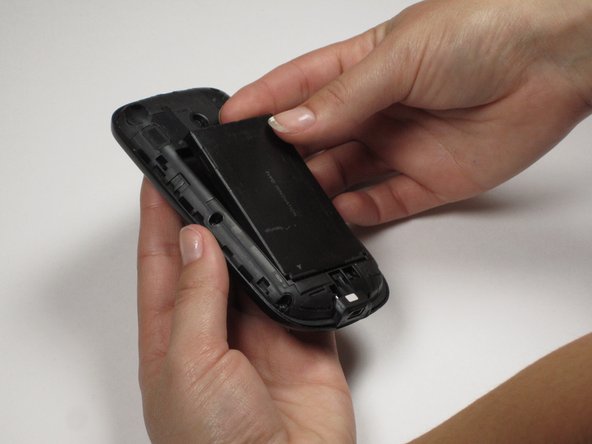

  3. HTC SMT 6175 Battery Replacement, Battery: step 3, image 1 of 2 HTC SMT 6175 Battery Replacement, Battery: step 3, image 2 of 2
    • Insert a thumb or finger of choice into the notch above the battery. Pull the battery away from the rest of the phone.

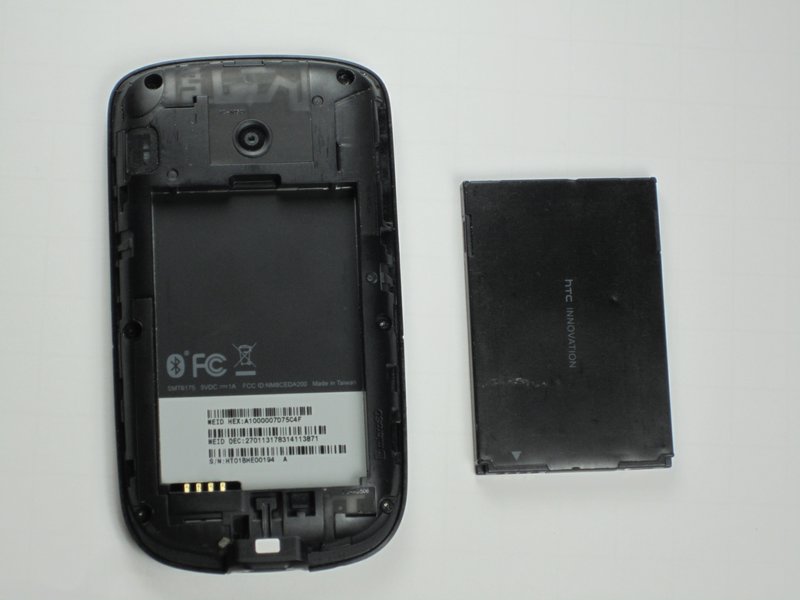

Conclusion

To reassemble your device, follow these instructions in reverse order.
