Introduction
This guide will explain how to install / remove the LCD screen from the HTC Wizard 200.
What you need
-
-
Remove the back case with your fingernail to expose the battery. (Not shown in picture)
-

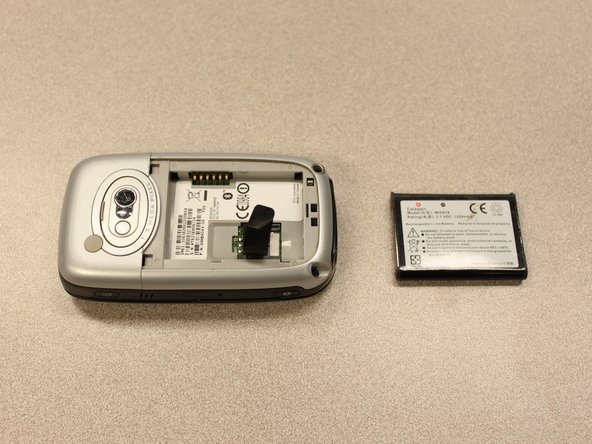

Pull the black tab to remove the battery.
-
-
-

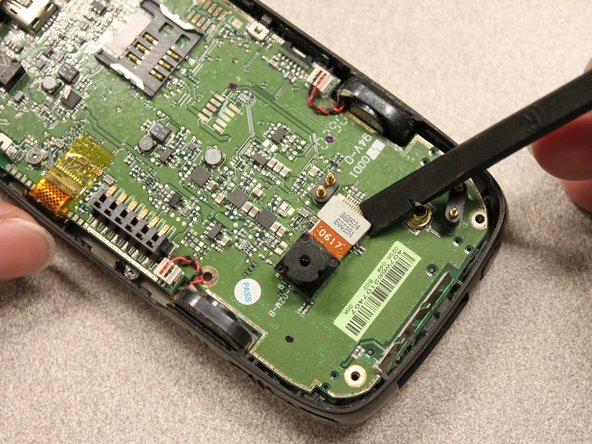

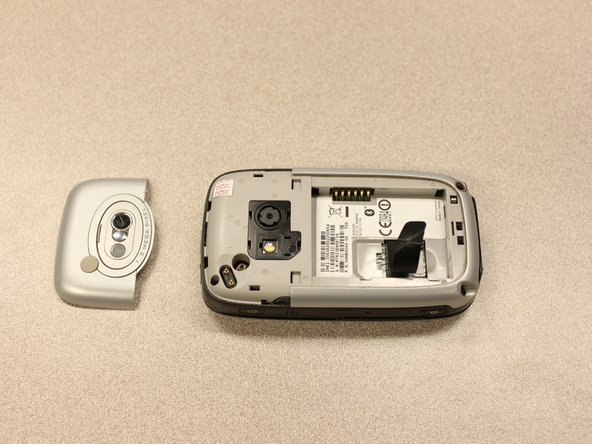

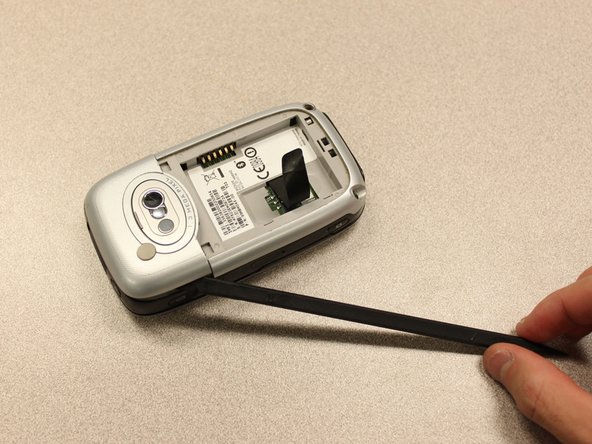

Use a spudger to begin removal of the camera cover by inserting the flat end into the two notches and gently pry them up one at a time.
-
-
-

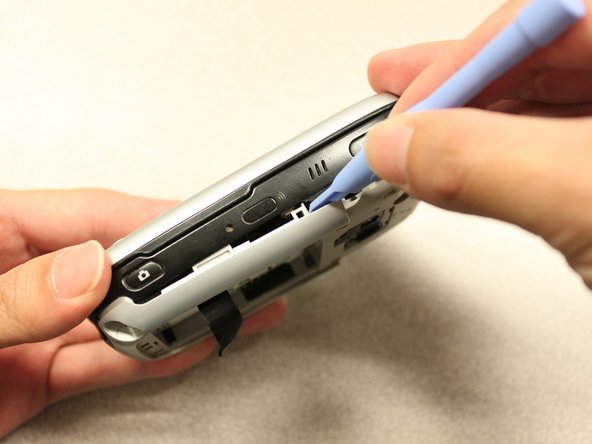

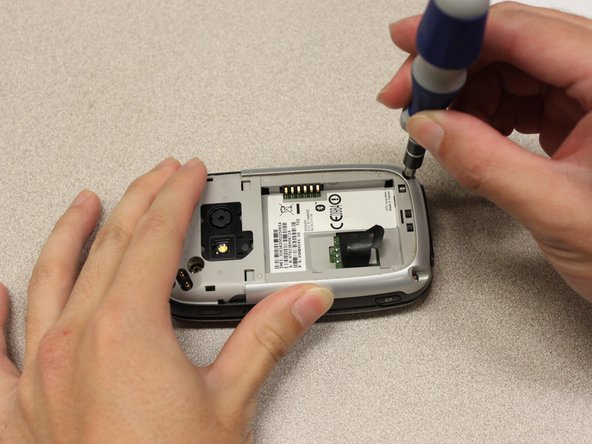

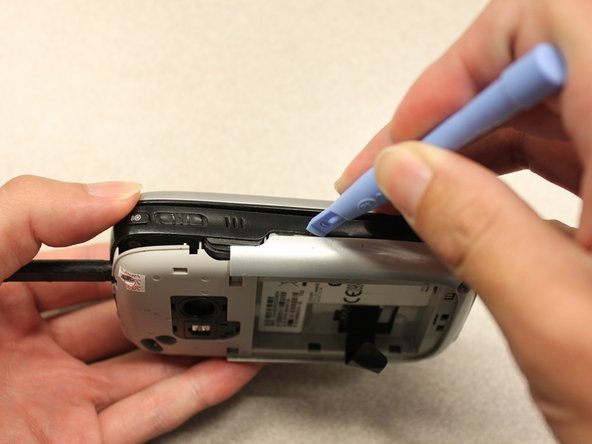

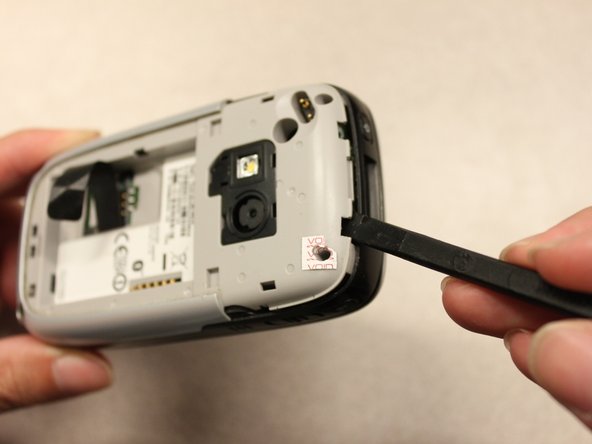

Insert the flat end of a spudger into the crack between the front and rear cover.
-
Once you have enough of a gap to fit a plastic opening tool into it, use the opening tool to release the clips.
-
-
-

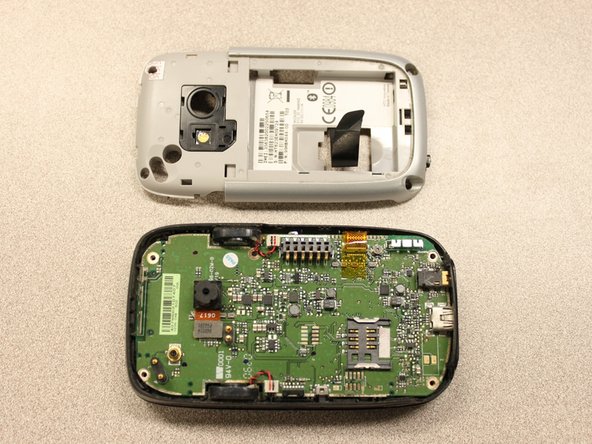

Use the plastic opening tool to continue releasing the clips until you have worked your way around the edge.
-
-
-

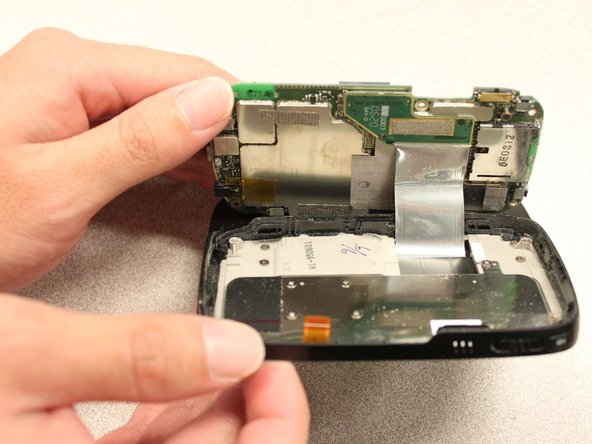

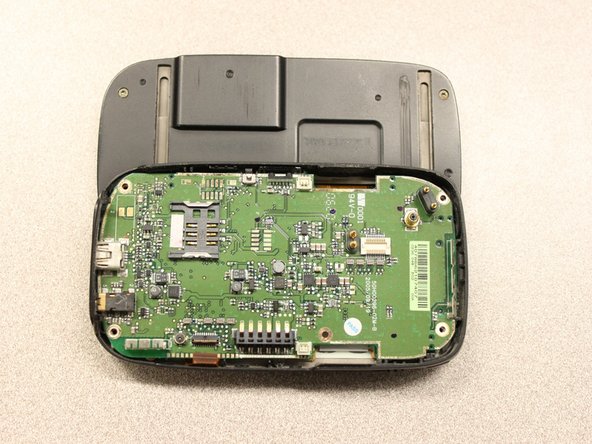

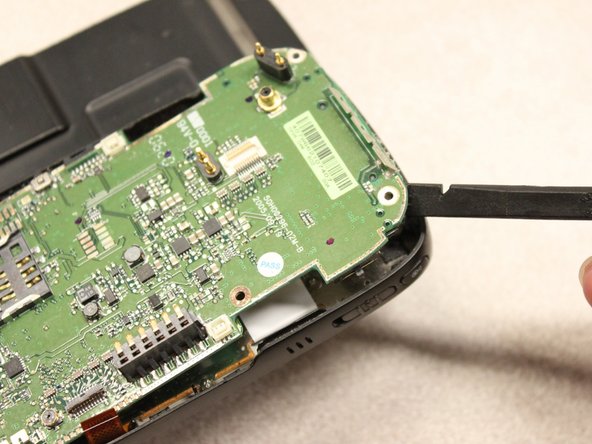

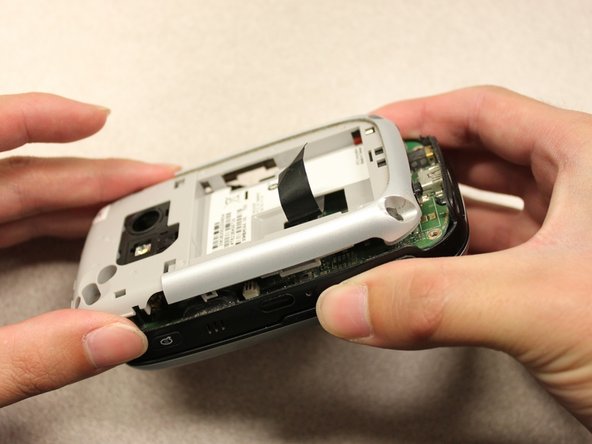

Use your hands to gently expose the underside of the motherboard.
-

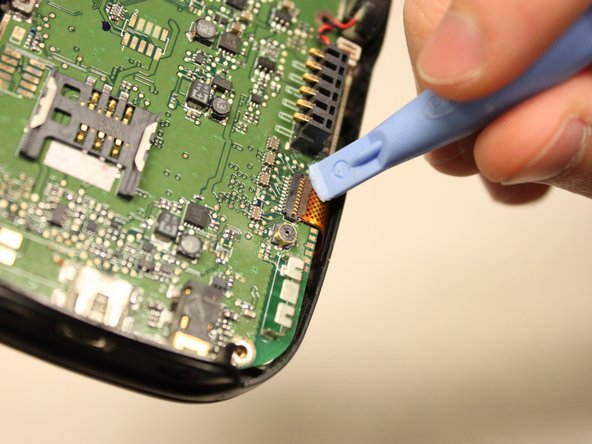

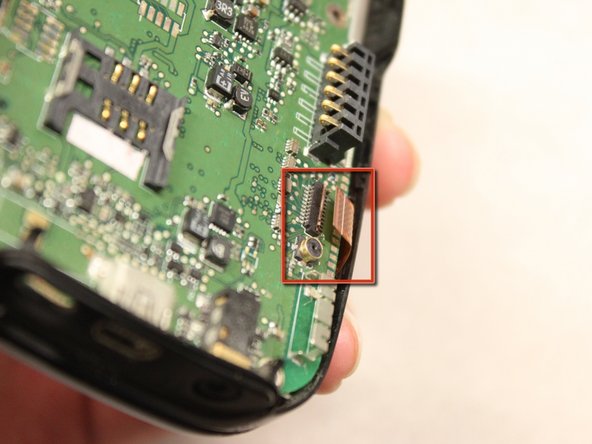

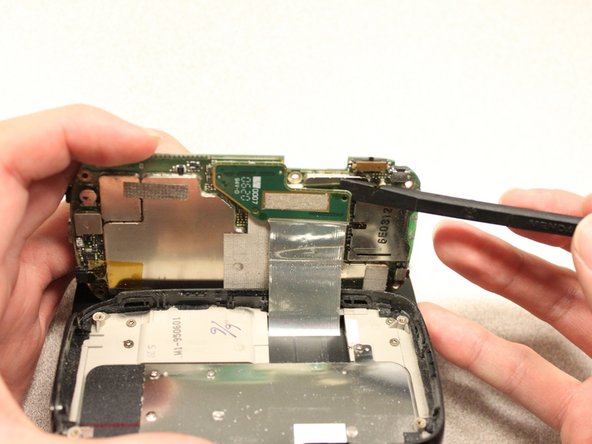

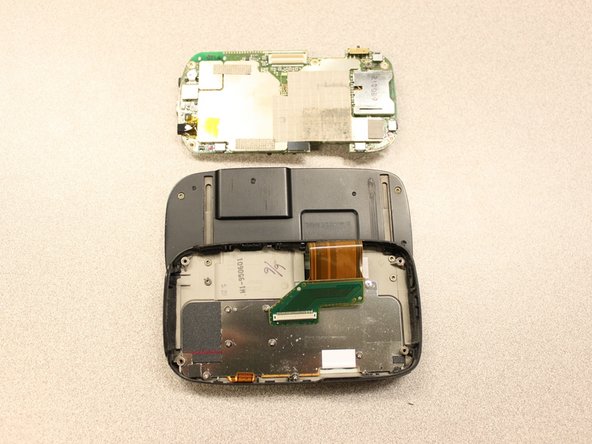

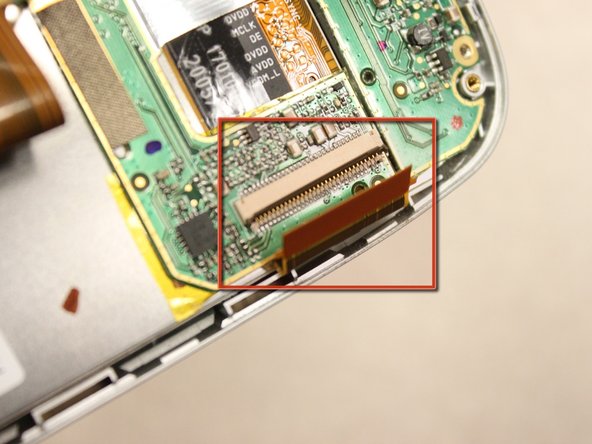

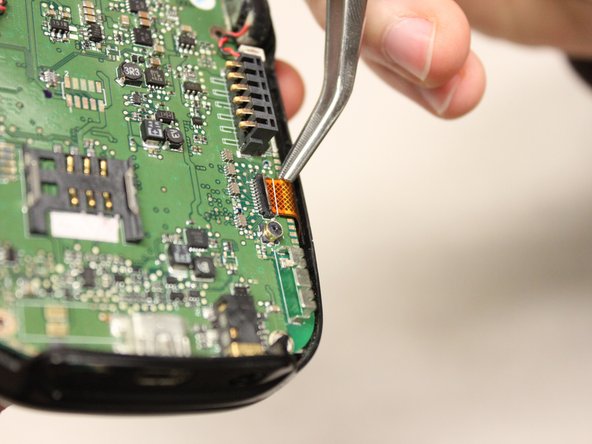

Use the spudger to pull off the flexible connection.
-
-
-

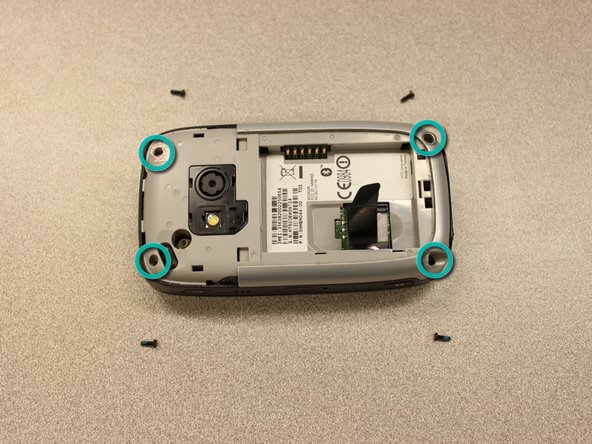

Use the T5 Torx screwdriver to remove four 5mm screws that secure the keyboard slider to the main body.
-
-
-

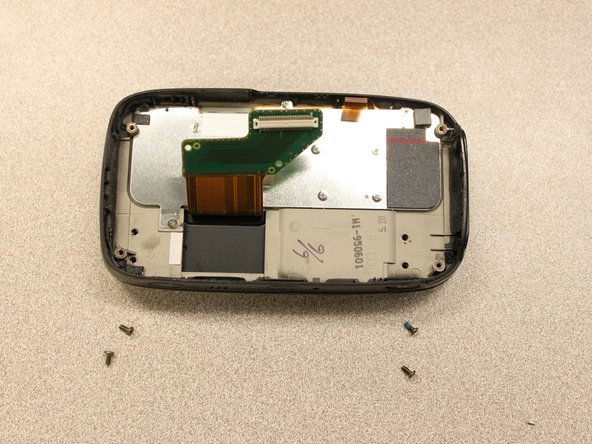

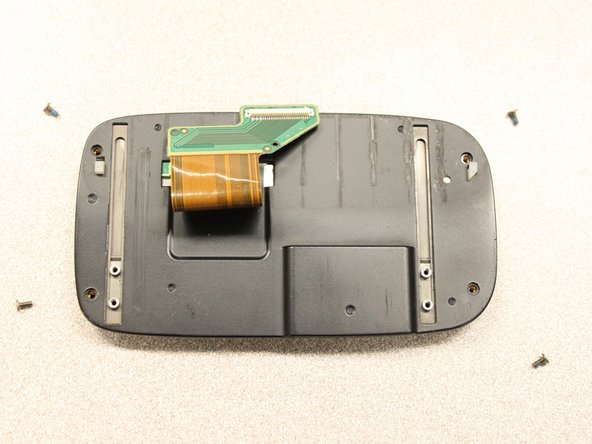

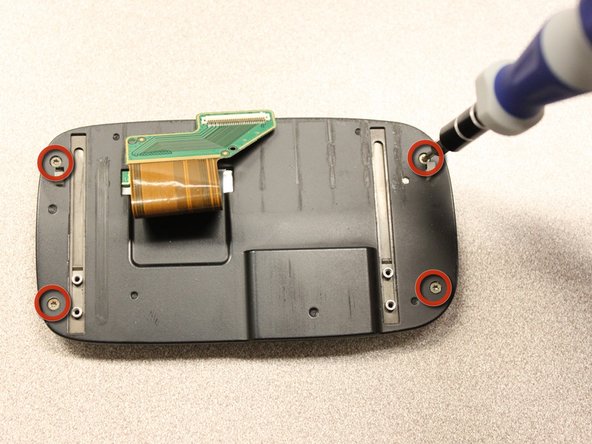

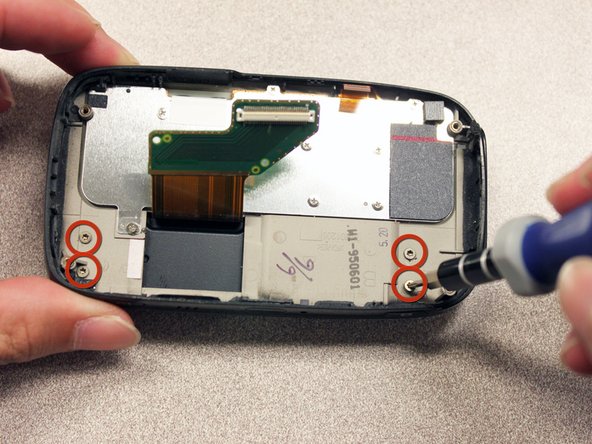

Use the T5 Torx screwdriver to remove four 5mm screws that secure the back of the screen casing.
-
-
-

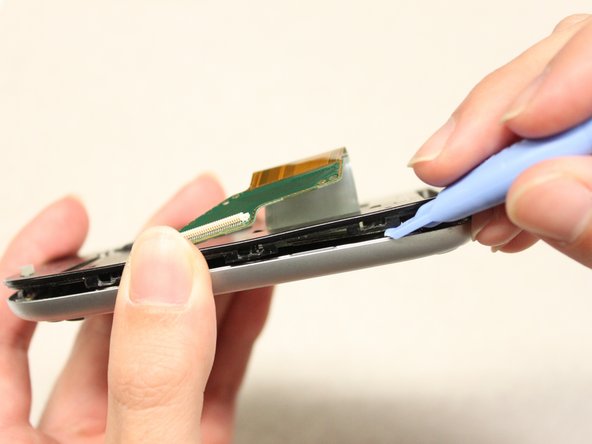

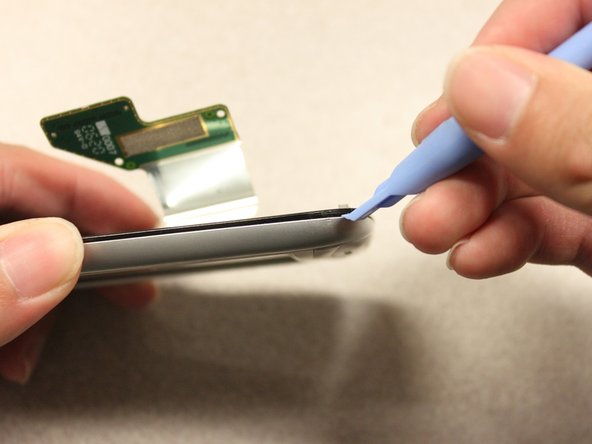

Insert the plastic opening tool between the front panel and the rear panel and pry open to reach the screen.
-
-
-

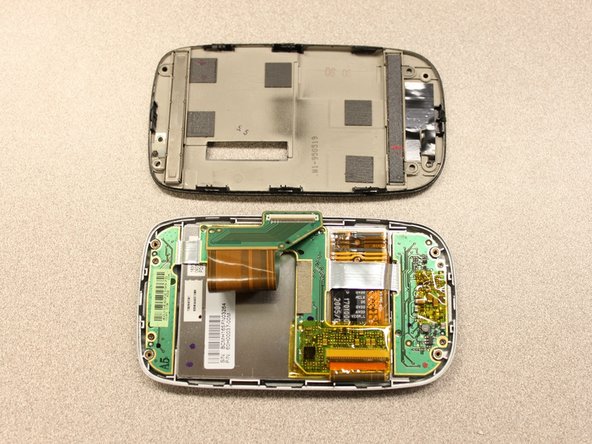

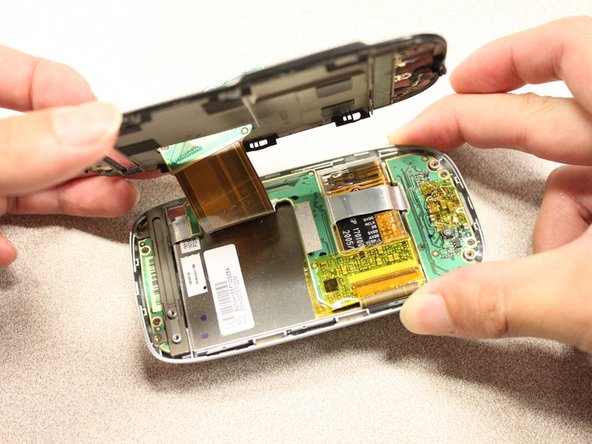

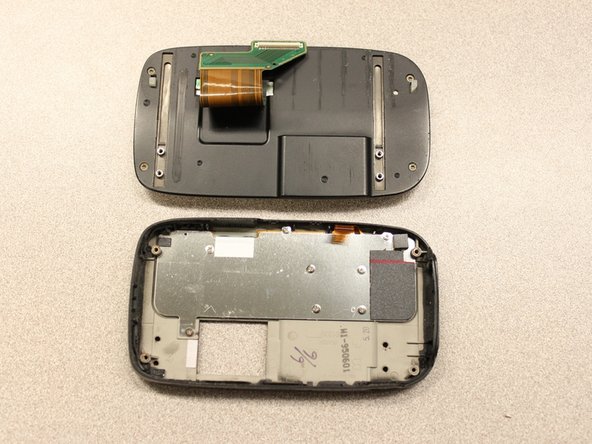

Once the rear panel is loose, lift it off of the front panel.
-
The flexible connection will pop loose.
-
-
-

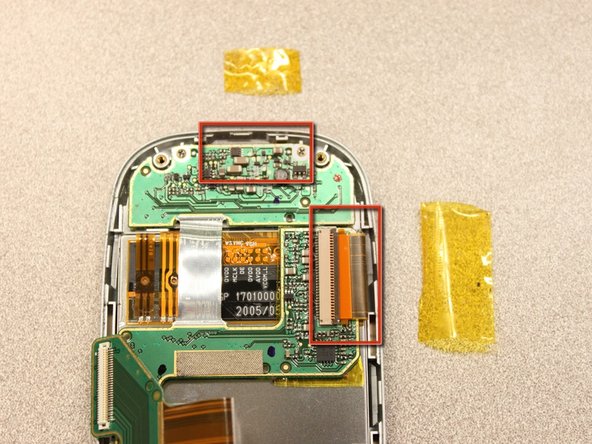

Unscrew the two 3mm phillips #0 screws from the bottom of the device that secure the rigid flex board to the screen panel.
-
-
-

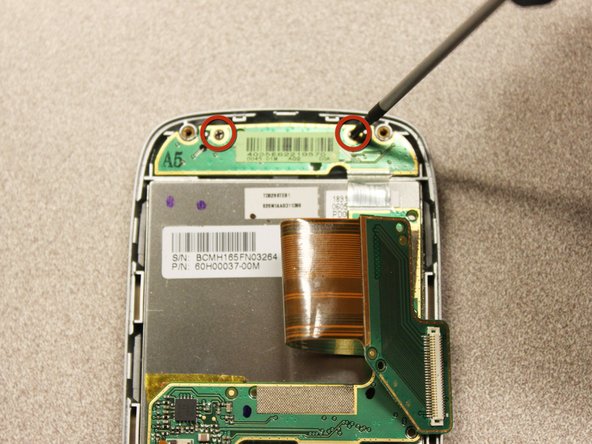

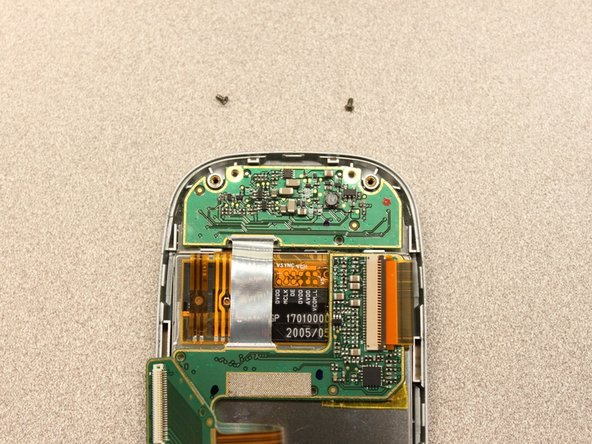

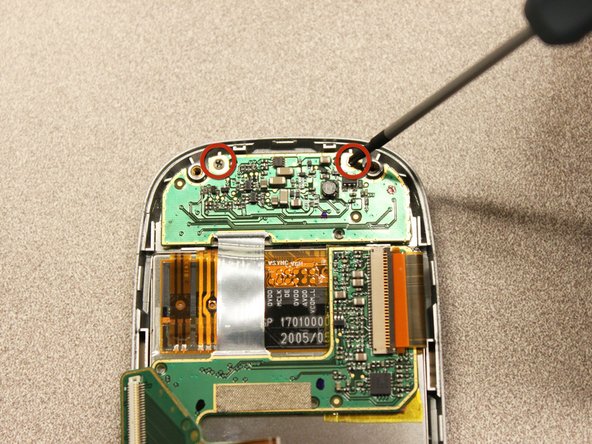

Unscrew the two 3mm phillips #0 screws from the top of the device that secure the rigid flex board to the screen panel.
-

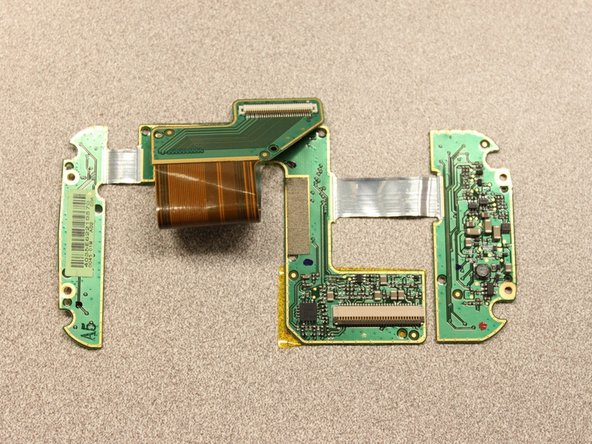

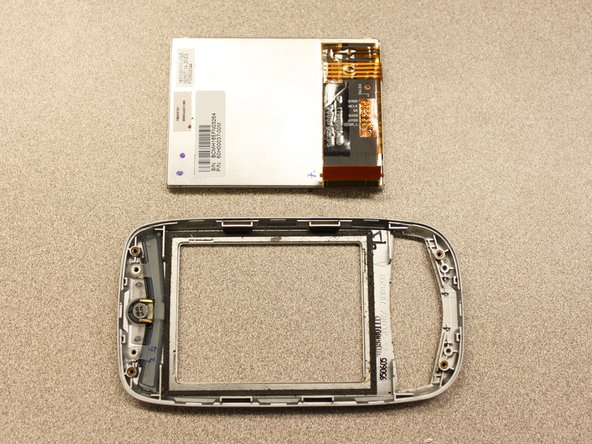

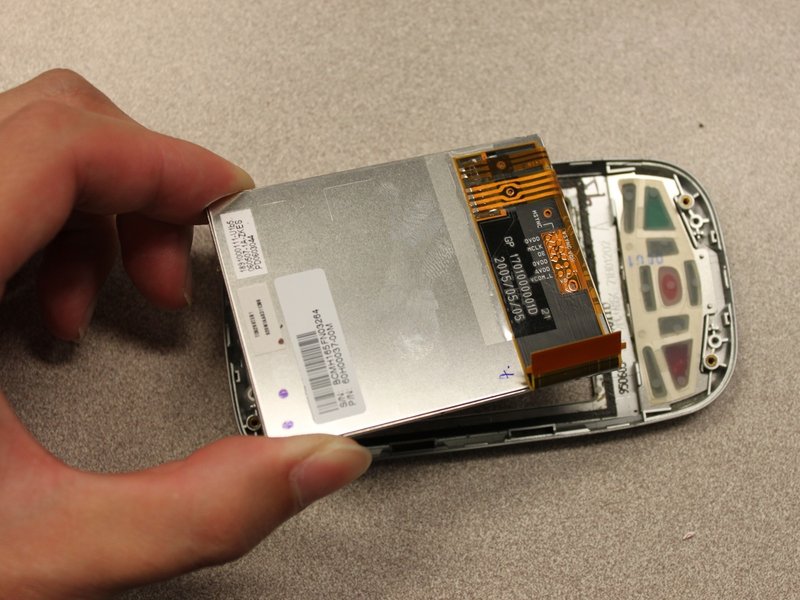

To reassemble your device, follow these instructions in reverse order.
To reassemble your device, follow these instructions in reverse order.
