Introduction
Go to step 1 ↓Takes you through the steps to install the speakers.
-
-
-
Remove the back case with your fingernail to expose the battery. (Not shown in picture)
-

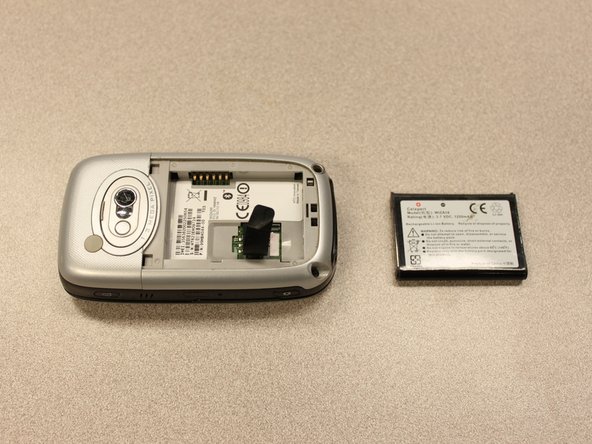

Pull the black tab to remove the battery.
-
-
-

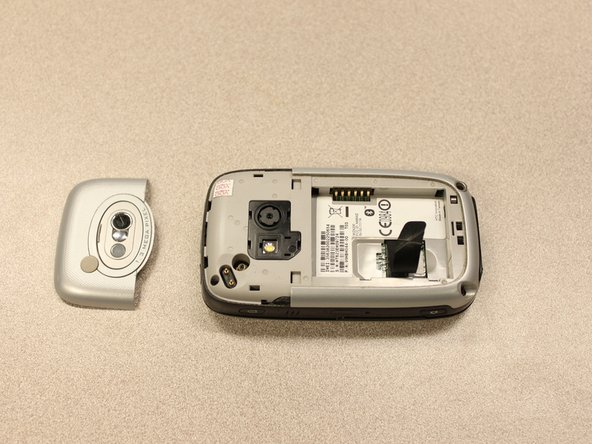

Use a spudger to begin removal of the camera cover by inserting the flat end into the two notches and gently pry them up one at a time.
-
-
-

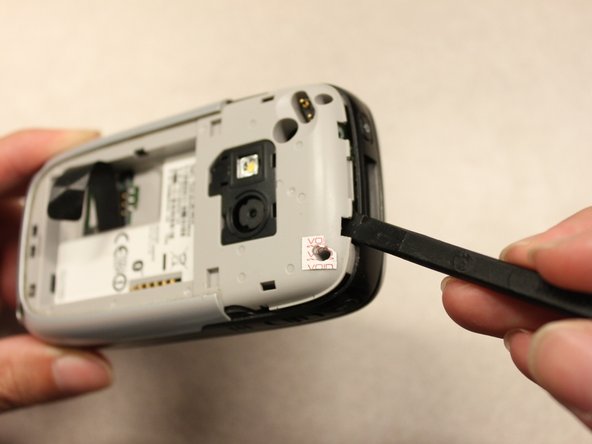

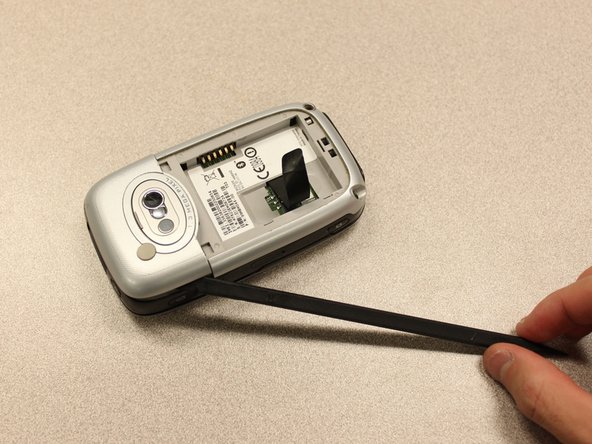

Insert the flat end of a spudger into the crack between the front and rear cover.
-

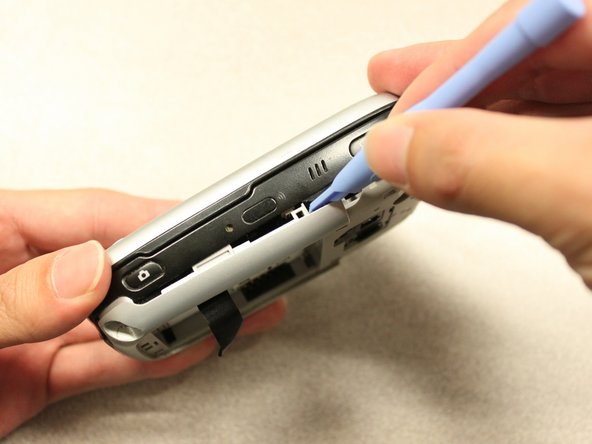

Once you have enough of a gap to fit a plastic opening tool into it, use the opening tool to release the clips.
-
-
-

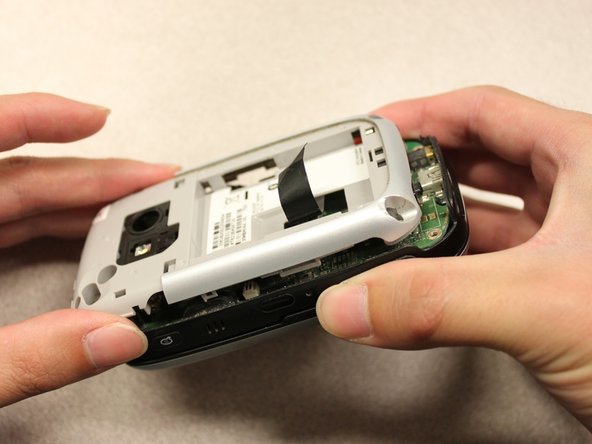

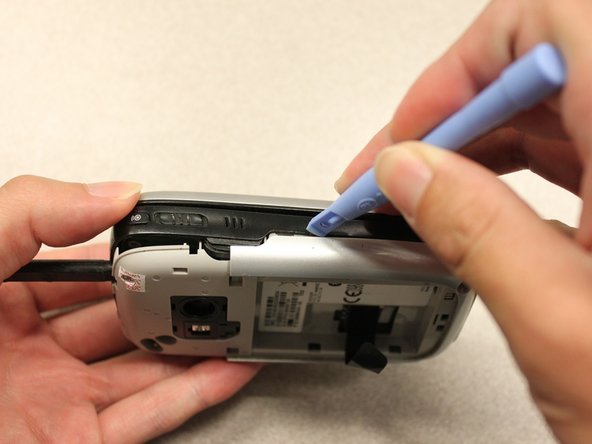

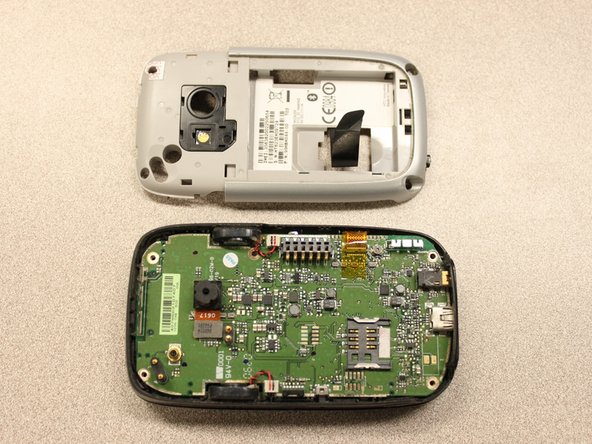

Use the plastic opening tool to continue releasing the clips until you have worked your way around the edge.
-
-
To reassemble your device, follow these instructions in reverse order.
