Introduction

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most hedge trimmers. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

1. Step 1 Hedge Trimmer
  Remove the safety cover from the blade.

  Cut the power cable. Dispose of the plug separately (mixed waste).
  Add Comment

  1024

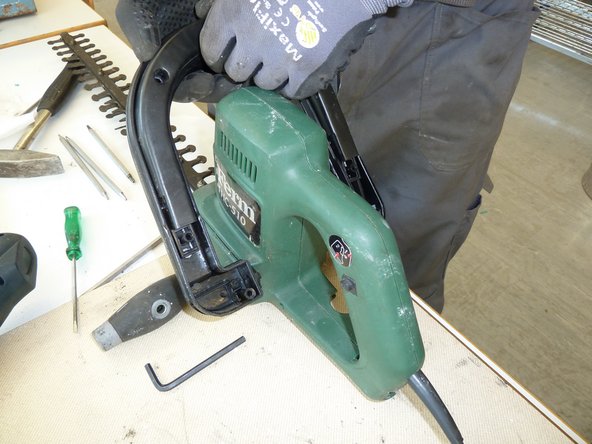

2. Step 2
  Unscrew and remove the handle.
  Add Comment

  1024

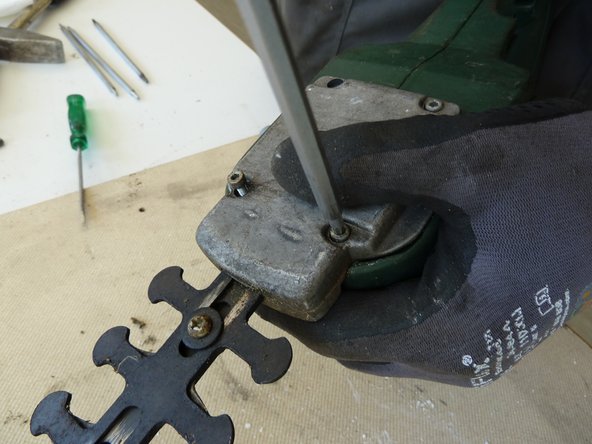

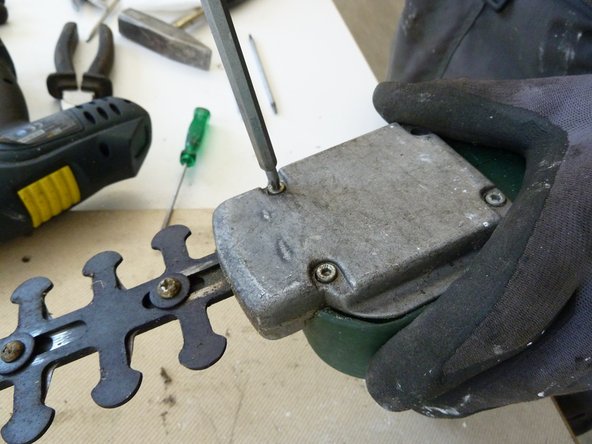

3. Step 3
  Unscrew the safety sheet.
  Add Comment

  1024

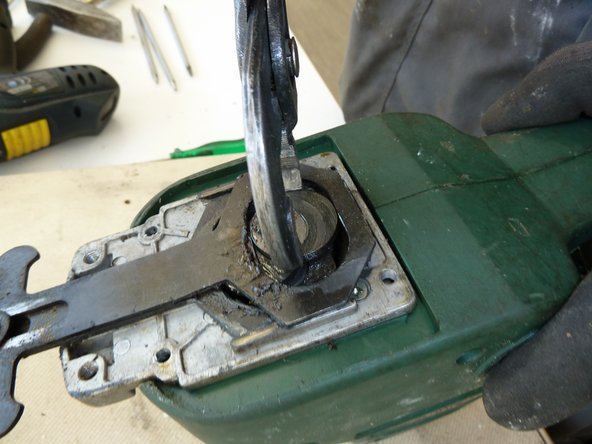

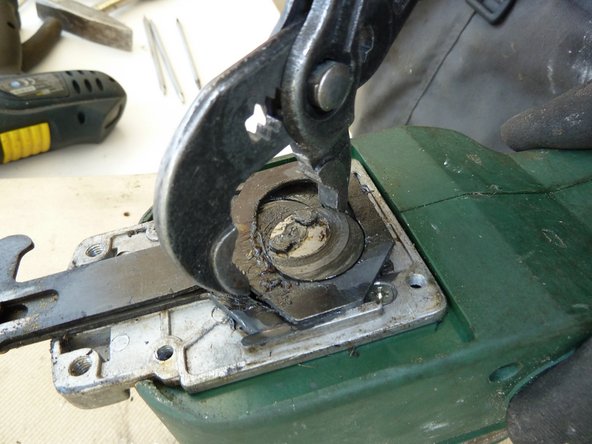

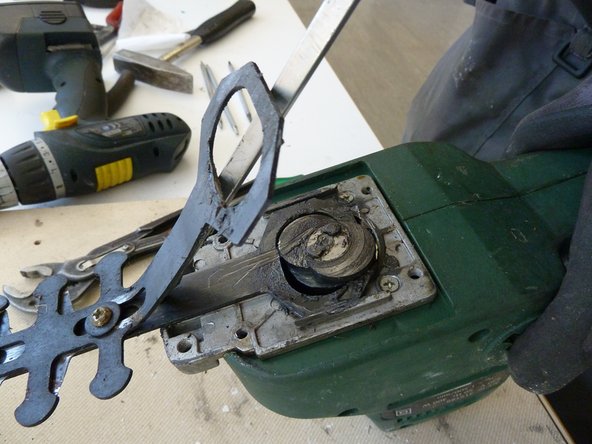

4. Step 4
  Remove the eccentric drive.

  Lift off the moving blade.
  Add Comment

  1024

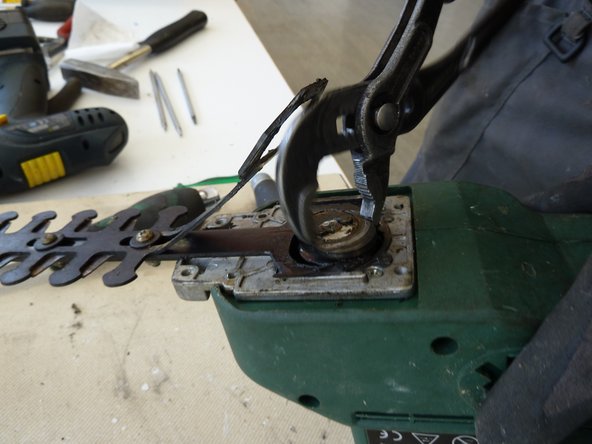

5. Step 5
  Remove the eccentric drive.
  Add Comment

  1024

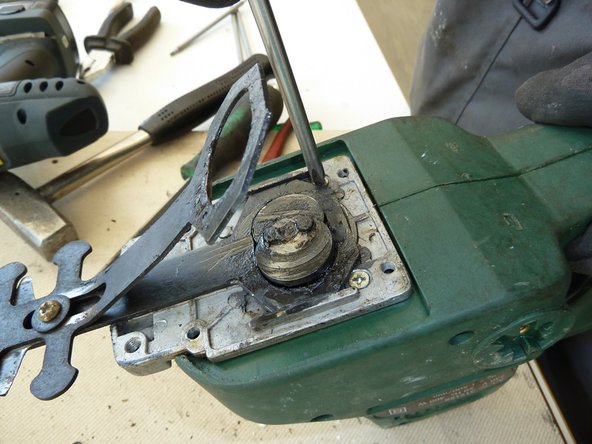

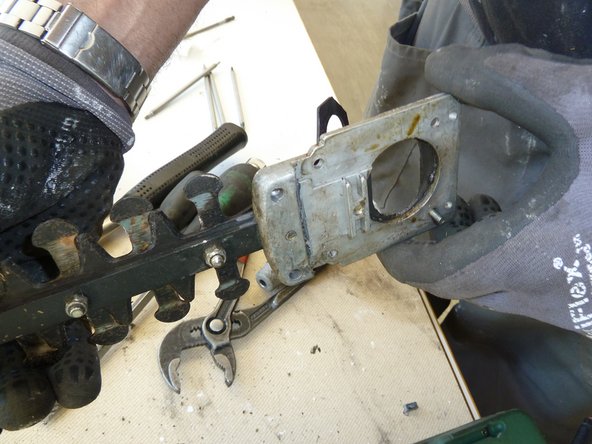

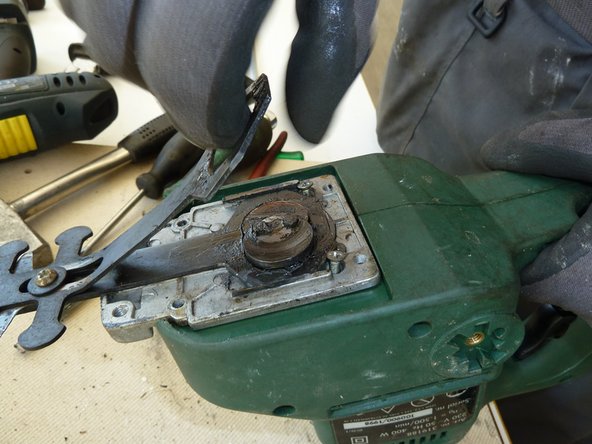

7. Step 6
  Unscrew the safety casing.

  Remove the blade.
  Add Comment

  1024

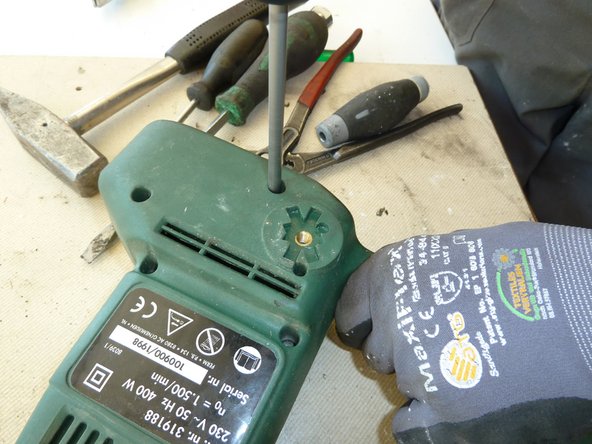

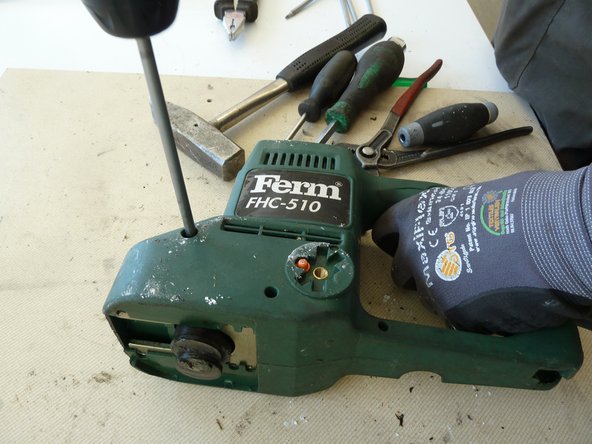

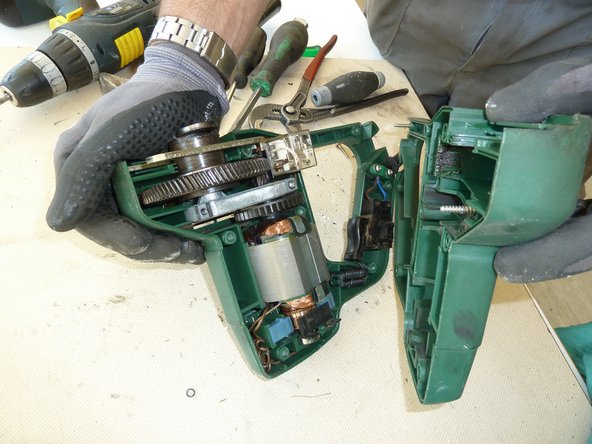

8. Step 7
  Unscrew and open the case.
  Add Comment

  1024

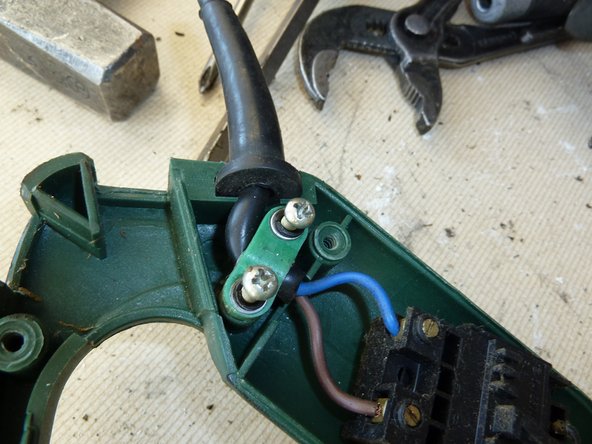

9. Step 8
  Unscrew and remove the power cable.
  Add Comment

  1024

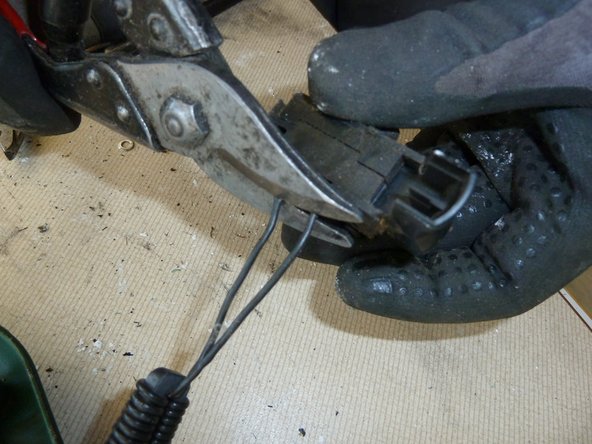

10. Step 9
  Remove the switch by cutting all wires.
  Add Comment

  1024

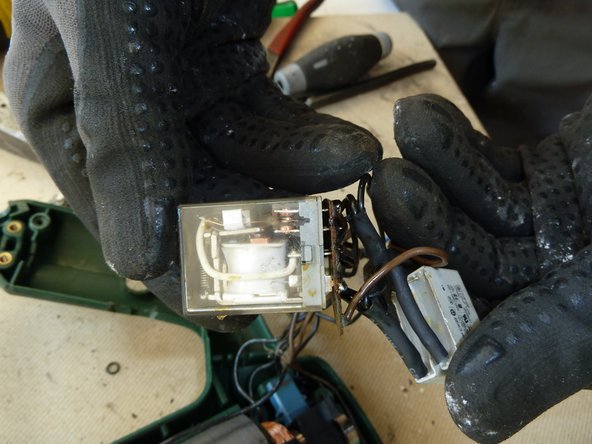

11. Step 10
  Remove the relay.
  Add Comment

  1024

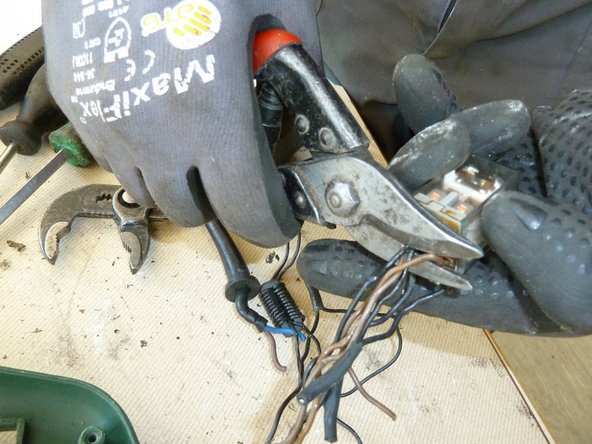

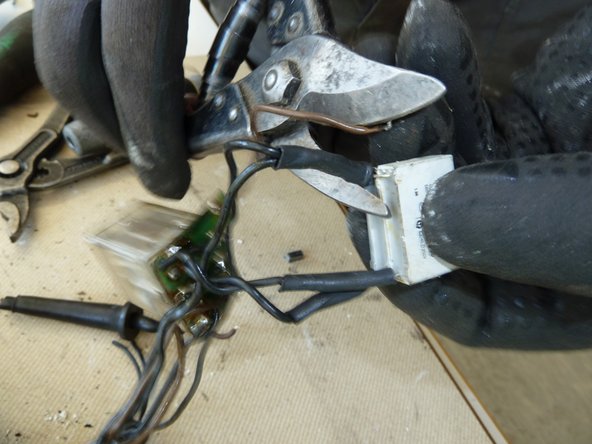

12. Step 11
  Cut all wires connected to the capacitor and the relay.
  Add Comment

  1024

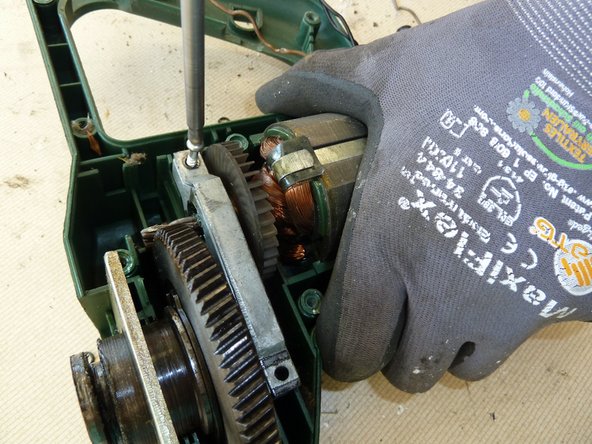

13. Step 12
  Unscrew the gear fixture.
  Add Comment

  1024

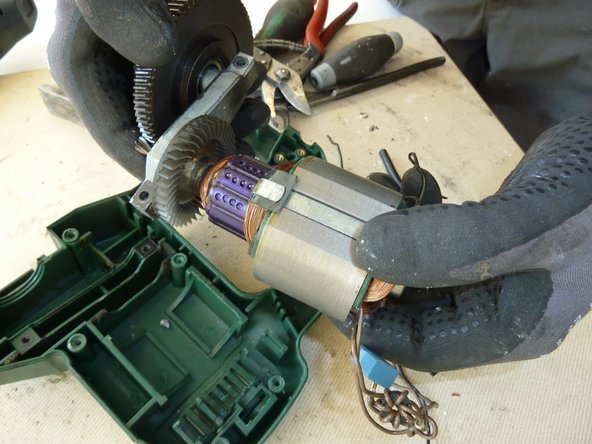

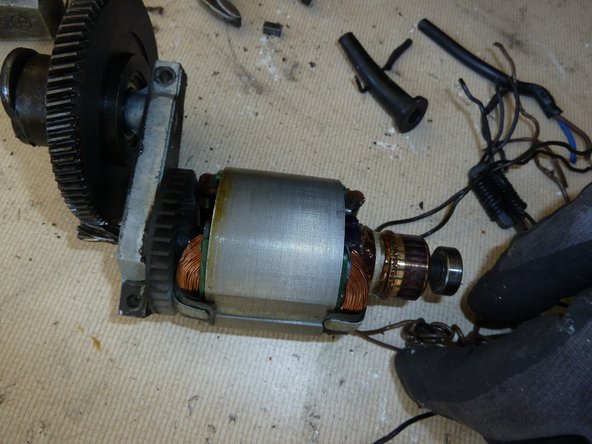

14. Step 13
  Remove the motor.
  Add Comment

  1024

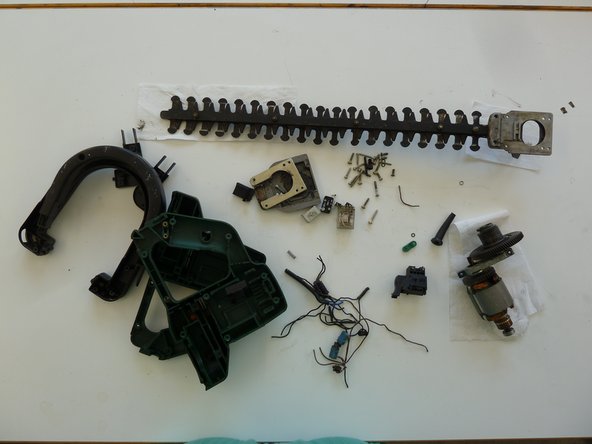

15. Step 14
  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

  Make sure the plastic parts are completely free of metal pieces.
  Add Comment

  1024
