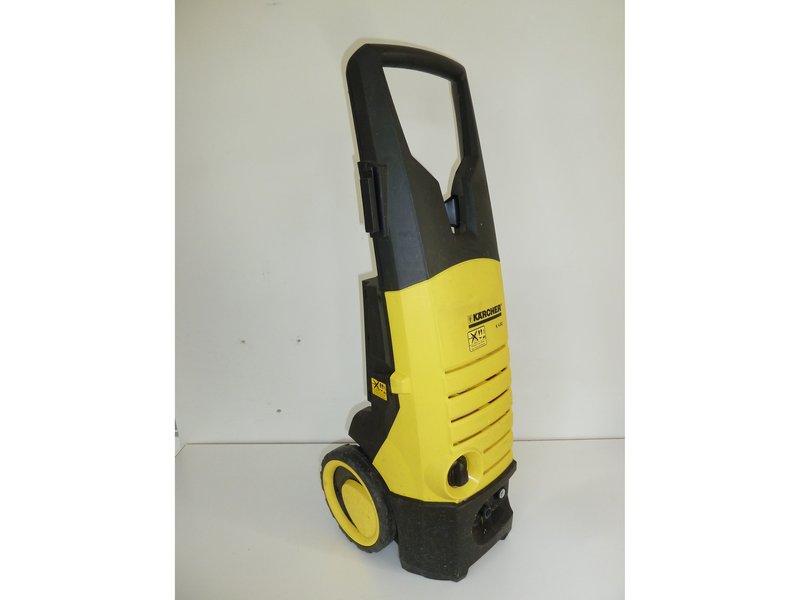

High Pressure Cleaner

What you need

  1. High Pressure Cleaner, High Pressure Cleaner: step 1, image 1 of 3 High Pressure Cleaner, High Pressure Cleaner: step 1, image 2 of 3 High Pressure Cleaner, High Pressure Cleaner: step 1, image 3 of 3

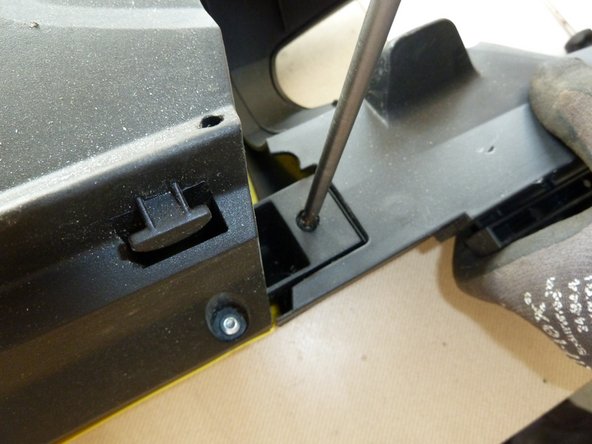

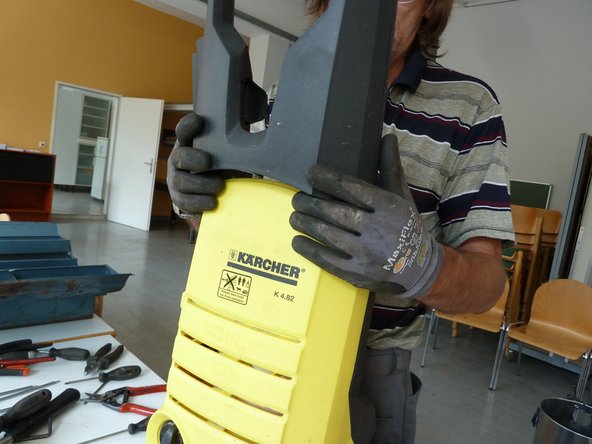

    • Place the high pressure cleaner front down.

    • Unscrew and remove the cover.

    Add Comment

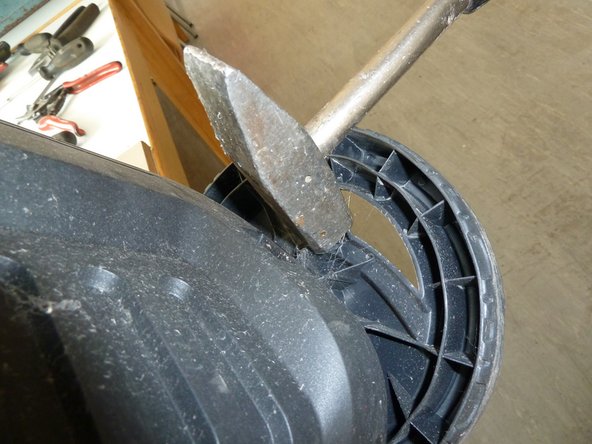

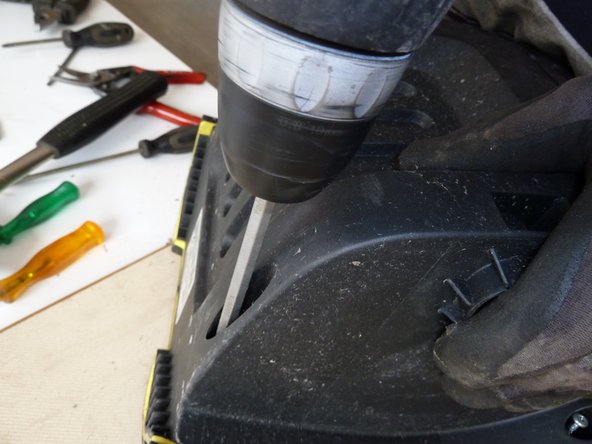

  2. High Pressure Cleaner: step 2, image 1 of 3 High Pressure Cleaner: step 2, image 2 of 3 High Pressure Cleaner: step 2, image 3 of 3
    • Unscrew the case.

    • If necessary, hammer off the wheels.

    Add Comment

  3. High Pressure Cleaner: step 3, image 1 of 1

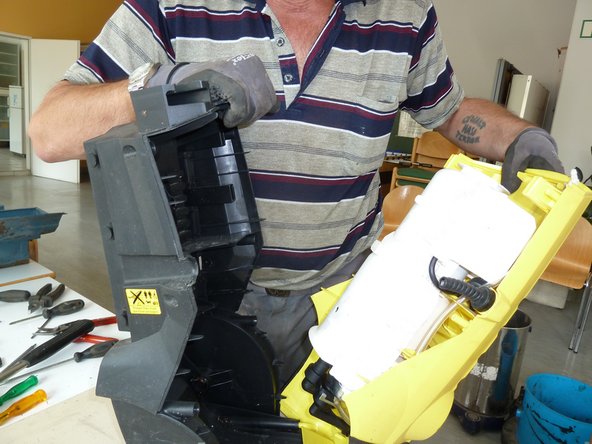

    • Open the case.

    Add Comment

  4. High Pressure Cleaner: step 4, image 1 of 1

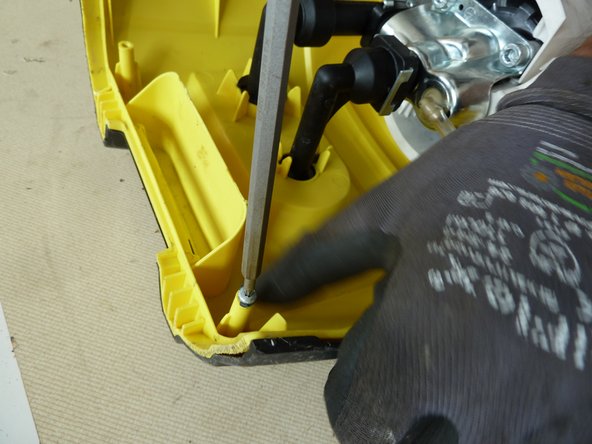

    • Keep unscrewing the case.

    • Remove the water hose.

    Add Comment

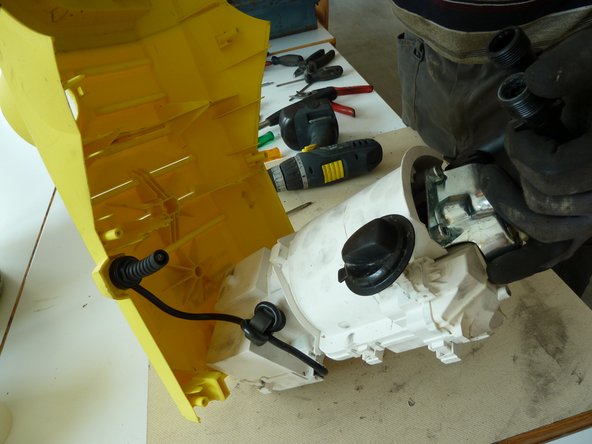

  5. High Pressure Cleaner: step 5, image 1 of 2 High Pressure Cleaner: step 5, image 2 of 2

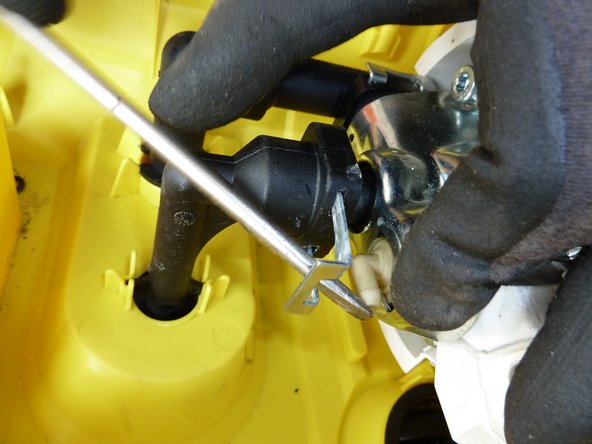

    • Open the mounting splint.

    • Remove the water container.

    Add Comment

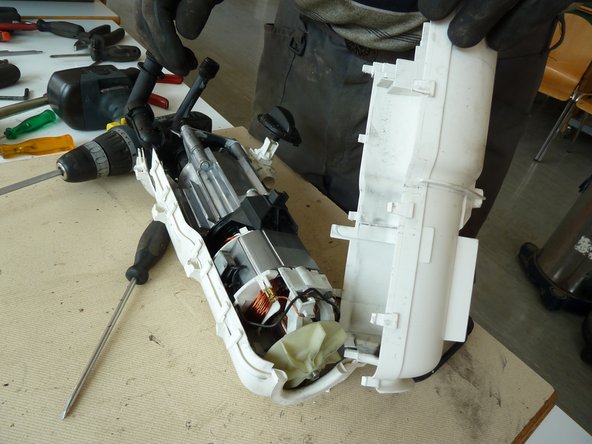

  6. High Pressure Cleaner: step 6, image 1 of 3 High Pressure Cleaner: step 6, image 2 of 3 High Pressure Cleaner: step 6, image 3 of 3

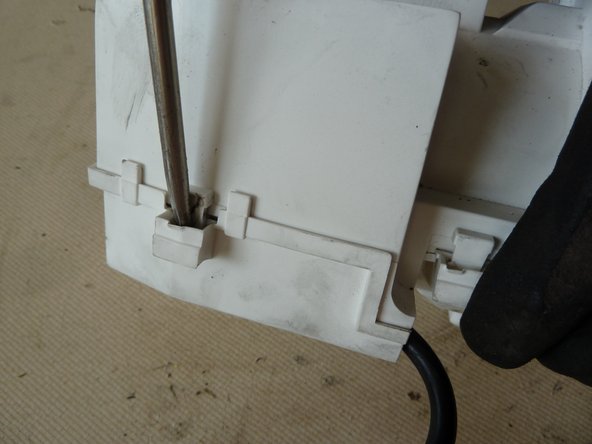

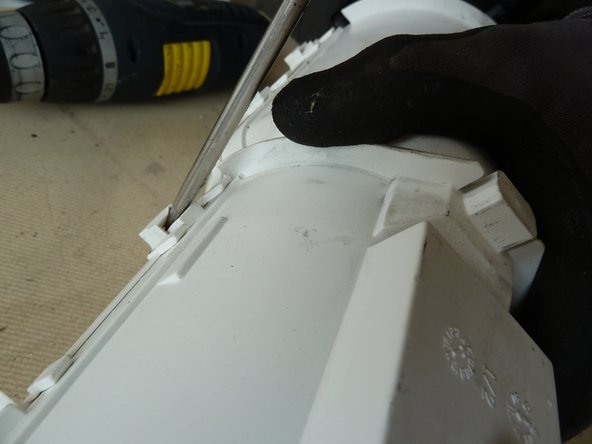

    • Open the snap-on attachments.

    • Open the motor case.

    Add Comment

  7. High Pressure Cleaner: step 7, image 1 of 3 High Pressure Cleaner: step 7, image 2 of 3 High Pressure Cleaner: step 7, image 3 of 3

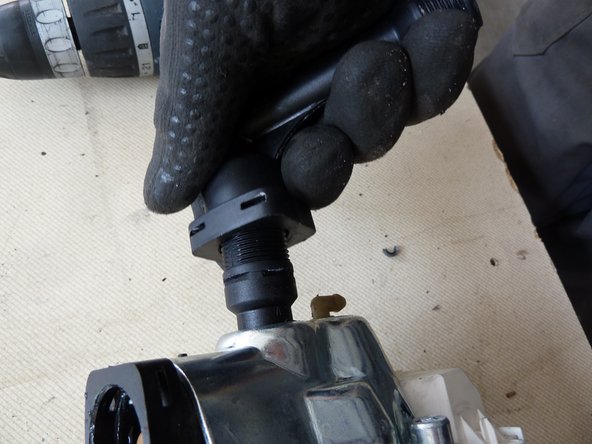

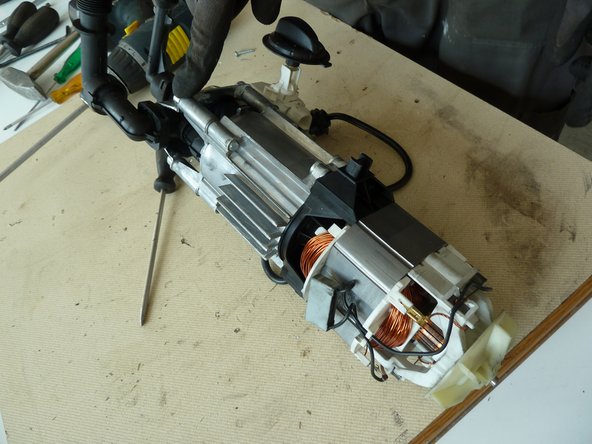

    • Remove the motor.

    • Remove the water tubes.

    Add Comment

  8. High Pressure Cleaner: step 8, image 1 of 3 High Pressure Cleaner: step 8, image 2 of 3 High Pressure Cleaner: step 8, image 3 of 3

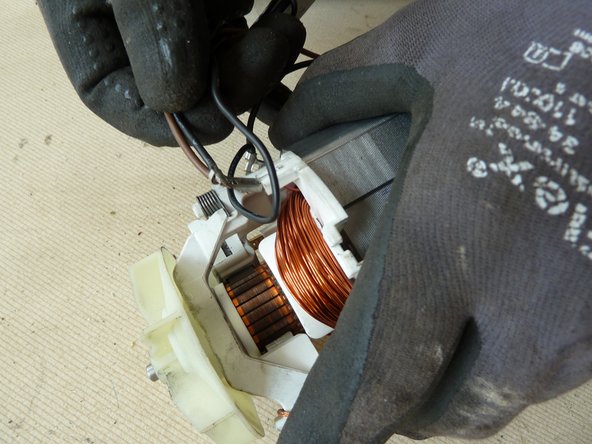

    • Remove the wires.

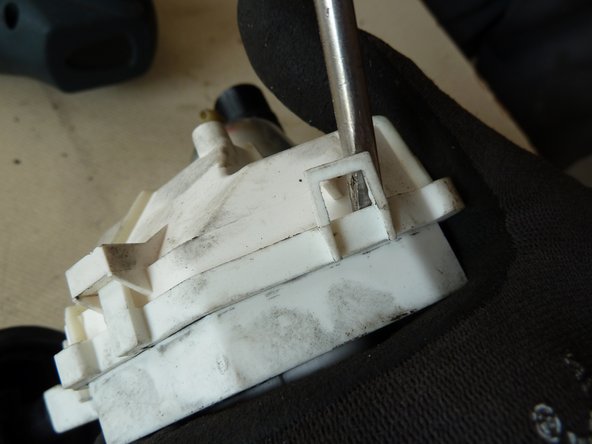

    • Open the snap on attachment.

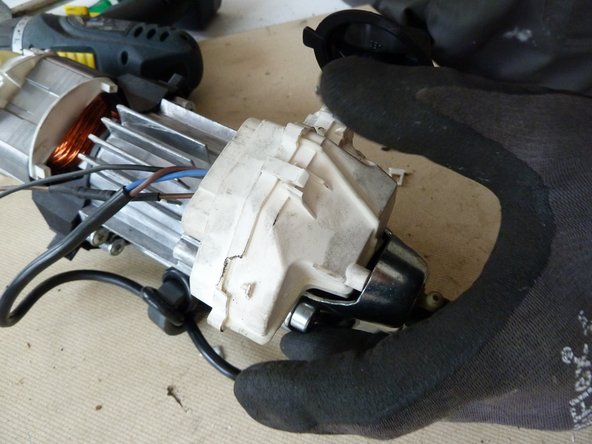

    • Open the motor.

    Add Comment

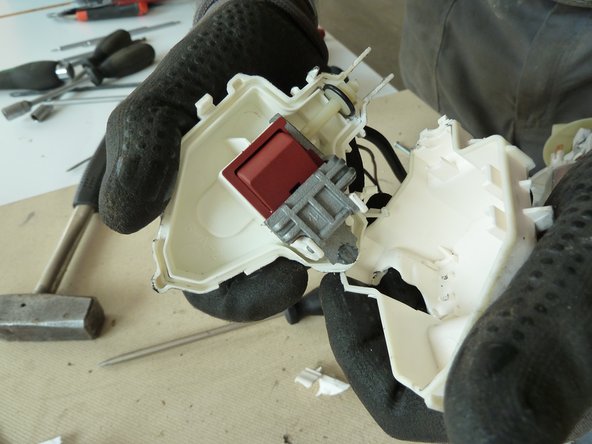

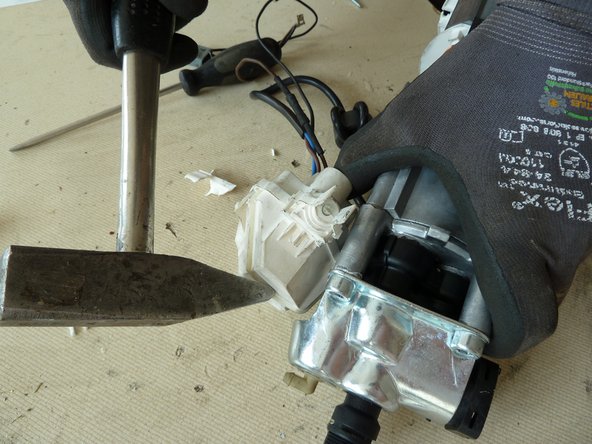

  9. High Pressure Cleaner: step 9, image 1 of 2 High Pressure Cleaner: step 9, image 2 of 2
    • Hammer open the pump case.

    • Open the pump case.

    Add Comment

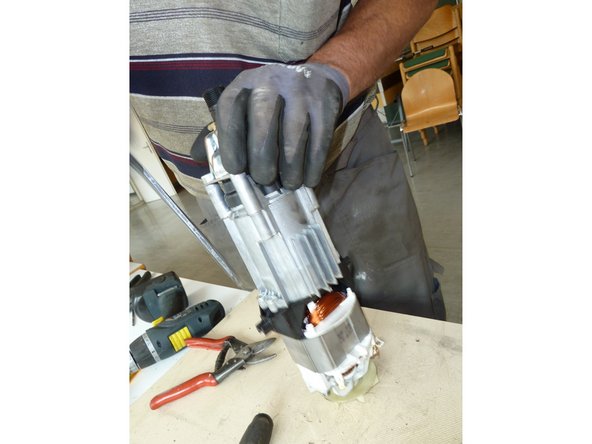

  10. High Pressure Cleaner: step 10, image 1 of 2 High Pressure Cleaner: step 10, image 2 of 2

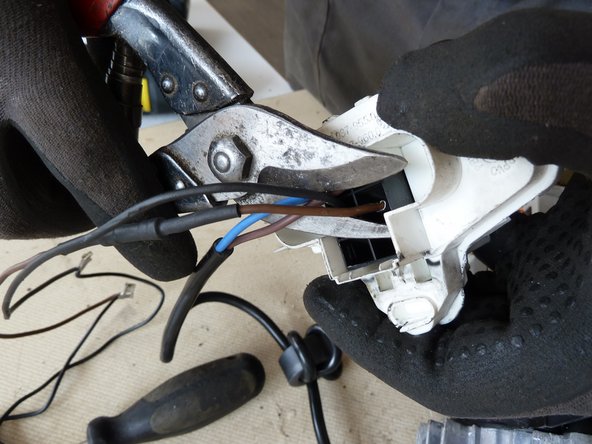

    • Cut the wires.

    • Unscrew the compressor case.

    Add Comment

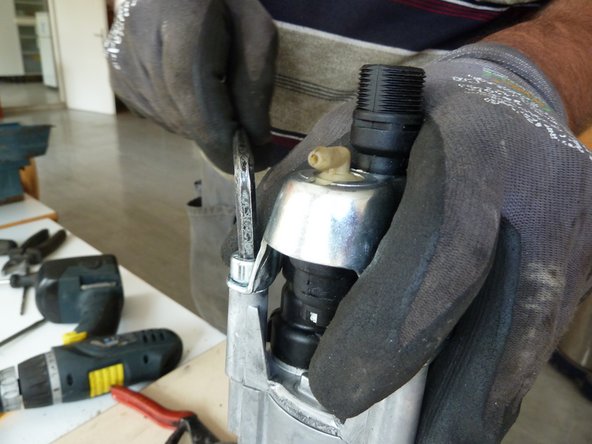

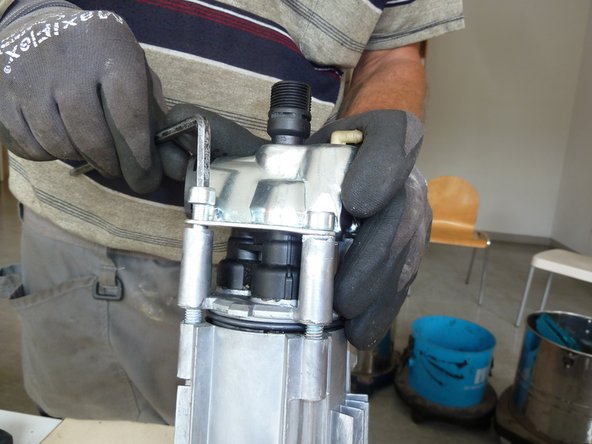

  11. High Pressure Cleaner: step 11, image 1 of 2 High Pressure Cleaner: step 11, image 2 of 2
    • Unscrew the compressor.

    Add Comment

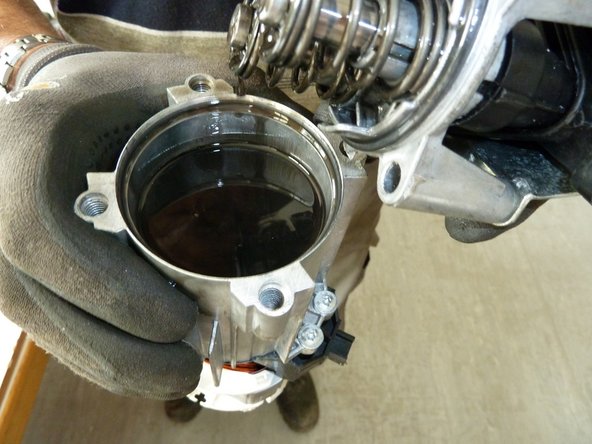

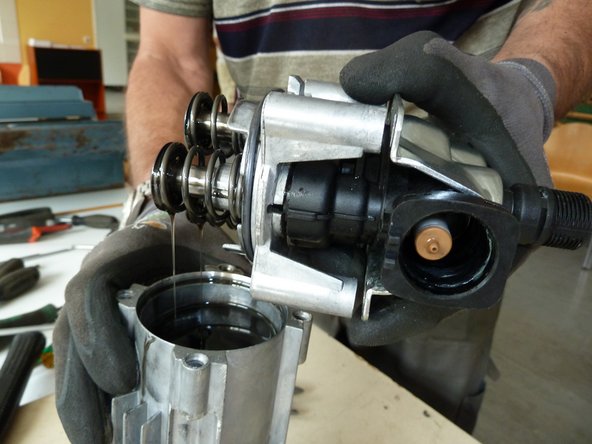

  12. High Pressure Cleaner: step 12, image 1 of 2 High Pressure Cleaner: step 12, image 2 of 2
    • Lift off the compressor.

    Add Comment

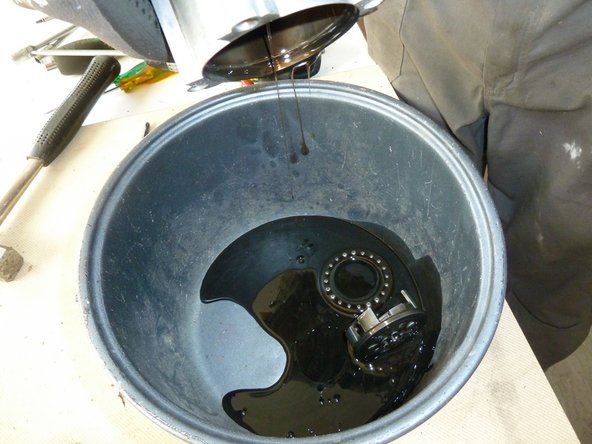

  13. High Pressure Cleaner: step 13, image 1 of 1
    • Remove the compressor oil by pouring into a safe container.

    Add Comment

  14. High Pressure Cleaner: step 14, image 1 of 2 High Pressure Cleaner: step 14, image 2 of 2

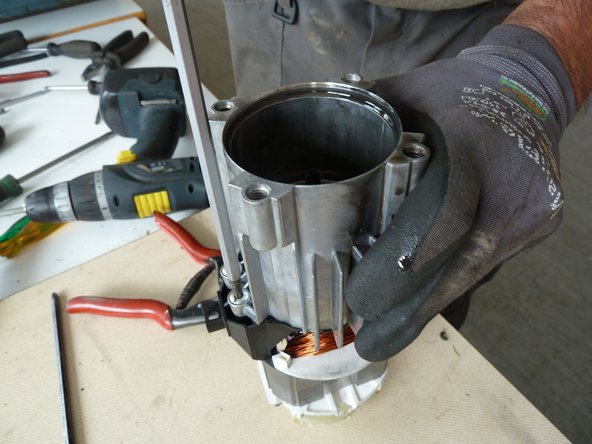

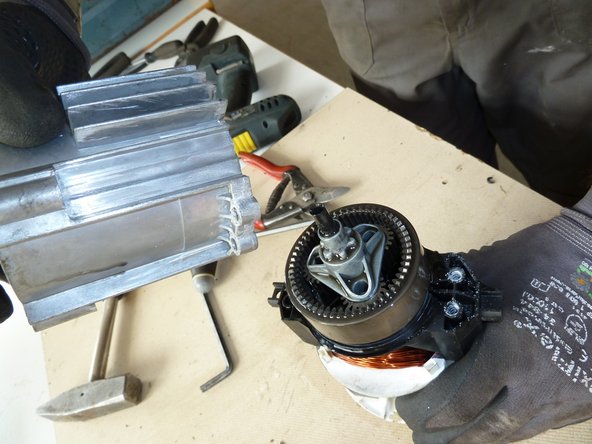

    • Unscrew the compressor case.

    Add Comment

  15. High Pressure Cleaner: step 15, image 1 of 1
    • Remove the gear.

    Add Comment

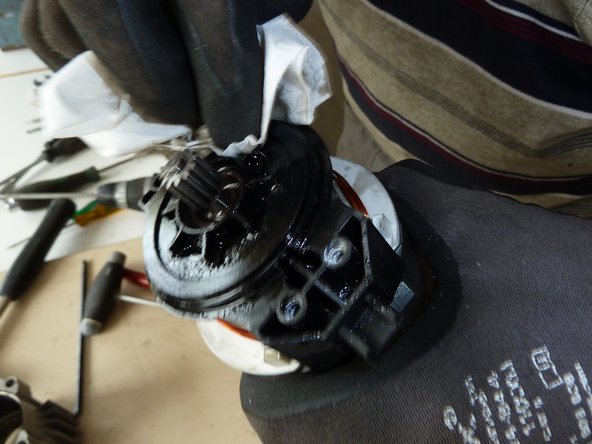

  16. High Pressure Cleaner: step 16, image 1 of 1
    • Clean the motor shaft.

    Add Comment

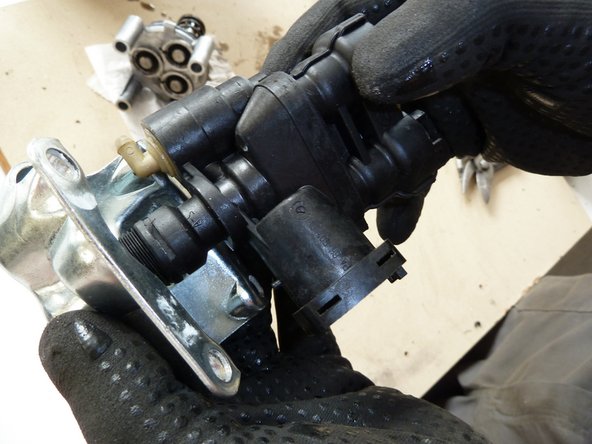

  17. High Pressure Cleaner: step 17, image 1 of 1
    • Remove the water pipes.

    Add Comment

  18. High Pressure Cleaner: step 18, image 1 of 1

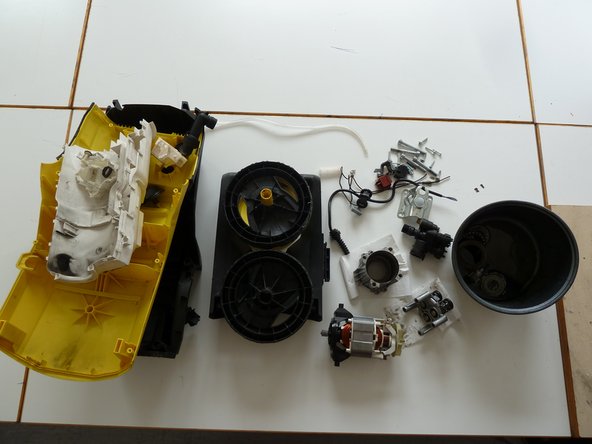

    • Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

    • Make sure the plastic parts are completely free of metal pieces.

    Add Comment
