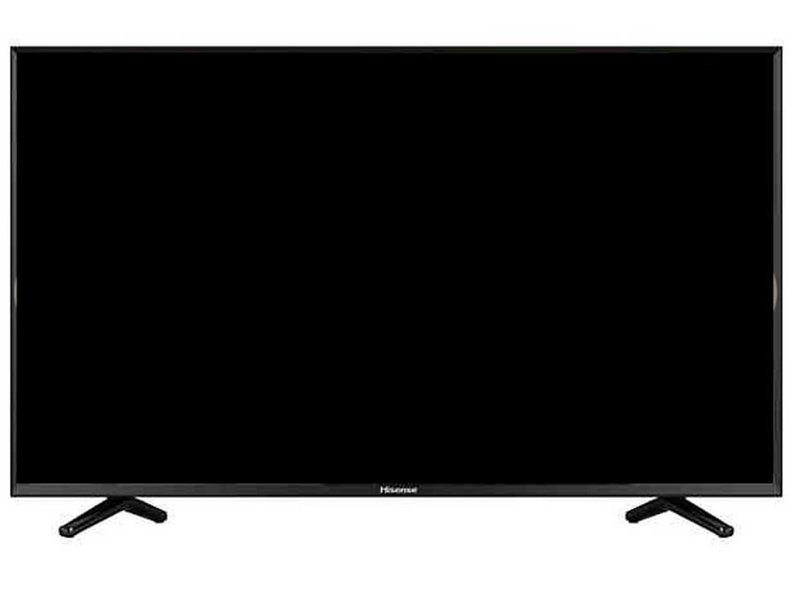

Hisense LTDN40K220WSEU TV set

What you need

  1. Hisense LTDN40K220WSEU TV set, Opening: step 1, image 1 of 2 Hisense LTDN40K220WSEU TV set, Opening: step 1, image 2 of 2
    • Start the TV opening from the back side.

    • Using PH#2 screwdriver, begin to loose the twenty-seven screws distributed all over the back-casing.

    • Manually pry the sides and the bottom part of the TV to detach the fifthteen clips.

    • Remove the plastic back cover.

  2. Hisense LTDN40K220WSEU TV set, Removal of Printed Circuit Boards (PCB): step 2, image 1 of 3 Hisense LTDN40K220WSEU TV set, Removal of Printed Circuit Boards (PCB): step 2, image 2 of 3 Hisense LTDN40K220WSEU TV set, Removal of Printed Circuit Boards (PCB): step 2, image 3 of 3
    • Remove cables: Remove all twelve connectors (highlighted in red boxes) and rip off the tapes used to fix the cables to the metal frame.

    • Remove Printed Circuit Boards (PCBs): Using PH#2 screwdriver, begin to loose the eight screws (highlighted in green boxes) which fix the PCBs to the metal casing.

    • Then, lever two clips (highlighted in blue boxes) and remove the PCBs.

  3. Hisense LTDN40K220WSEU TV set, Removal of Speakers: step 3, image 1 of 1
    • Remove the Speakers by extracting them manually from their mountings (blue boxes).

  4. Hisense LTDN40K220WSEU TV set, Removal of Liquid Crystal Display (LCD): step 4, image 1 of 3 Hisense LTDN40K220WSEU TV set, Removal of Liquid Crystal Display (LCD): step 4, image 2 of 3 Hisense LTDN40K220WSEU TV set, Removal of Liquid Crystal Display (LCD): step 4, image 3 of 3
    • Using PH#1 screwdriver, loose the seventeen screws from the front frame (highlighted in green boxes).

    • Using slotted screwdriver, pry twelve clips and remove the second frame.

    • Rip off the adhesives in order to remove the LCD PCBs (marked in blue).

  5. Hisense LTDN40K220WSEU TV set, Removal of Polarized Foils: step 5, image 1 of 2 Hisense LTDN40K220WSEU TV set, Removal of Polarized Foils: step 5, image 2 of 2
    • Using slotted screwdriver, begin to lever the twenty-seven clips (highlighted in blue boxes) of the inner frame.

    • Continue to work your way around the frame until you can pull the frame off.

    • Next, remove the polarized foils.

  6. Hisense LTDN40K220WSEU TV set, Removal of Backlights (LED): step 6, image 1 of 3 Hisense LTDN40K220WSEU TV set, Removal of Backlights (LED): step 6, image 2 of 3 Hisense LTDN40K220WSEU TV set, Removal of Backlights (LED): step 6, image 3 of 3
    • Using slotted screwdriver, loose the four clips (marked in blue).

    • Rip off the protective foil and access the backlight unit.

    • Using PH#1 screwdriver, begin to loose the twenty screws that fix the PCBs to the metal casing (marked in Green).

    • Manually lever the four connectors and separate all PCBs.

  7. Hisense LTDN40K220WSEU TV set, TV Dismantling Fractions: step 7, image 1 of 1
    • All fractions obtained after TV dismantling.
