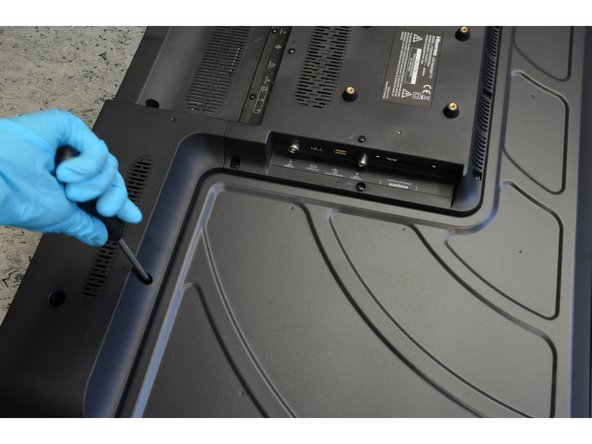

  1. Start the TV opening from the back side. Using PH#2 screwdriver, begin to loose the twenty-seven screws distributed all over the back-casing.
    • Start the TV opening from the back side.

    • Using PH#2 screwdriver, begin to loose the twenty-seven screws distributed all over the back-casing.

    • Manually pry the sides and the bottom part of the TV to detach the fifthteen clips.

    • Remove the plastic back cover.

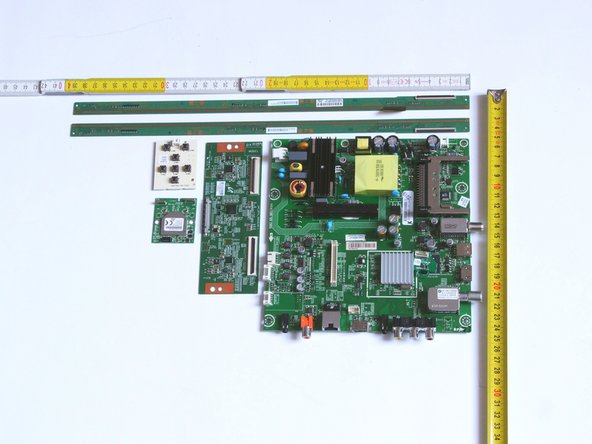

  2. Remove cables: Remove all twelve connectors (highlighted in red boxes) and rip off the tapes used to fix the cables to the metal frame. Remove Printed Circuit Boards (PCBs): Using PH#2 screwdriver, begin to loose the eight screws (highlighted in green boxes) which fix the PCBs to the metal casing. Then, lever two clips (highlighted in blue boxes) and remove the PCBs.
    • Remove cables: Remove all twelve connectors (highlighted in red boxes) and rip off the tapes used to fix the cables to the metal frame.

    • Remove Printed Circuit Boards (PCBs): Using PH#2 screwdriver, begin to loose the eight screws (highlighted in green boxes) which fix the PCBs to the metal casing.

    • Then, lever two clips (highlighted in blue boxes) and remove the PCBs.

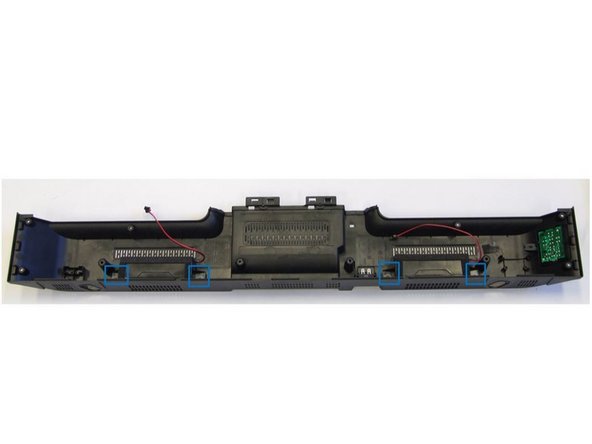

  3. Remove the Speakers by extracting them manually from their mountings (blue boxes).
    • Remove the Speakers by extracting them manually from their mountings (blue boxes).

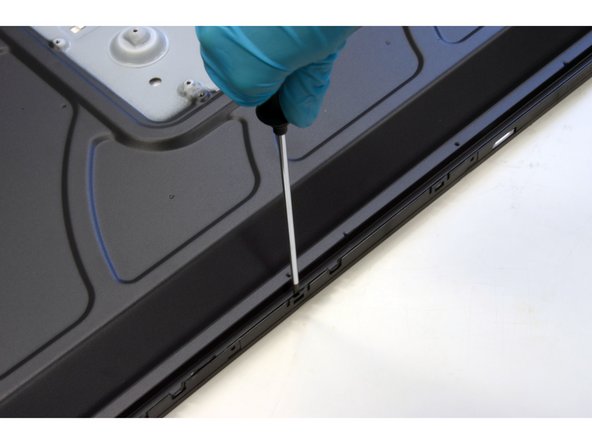

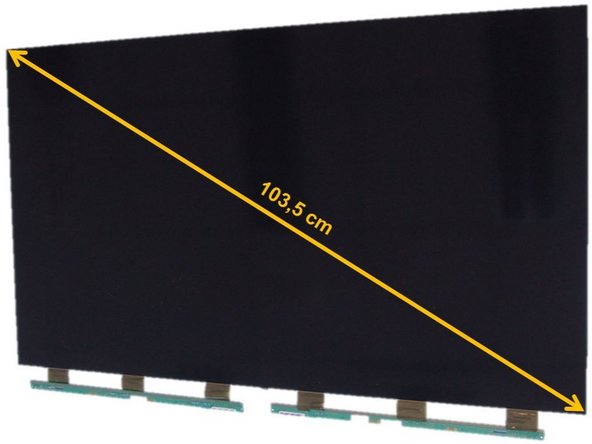

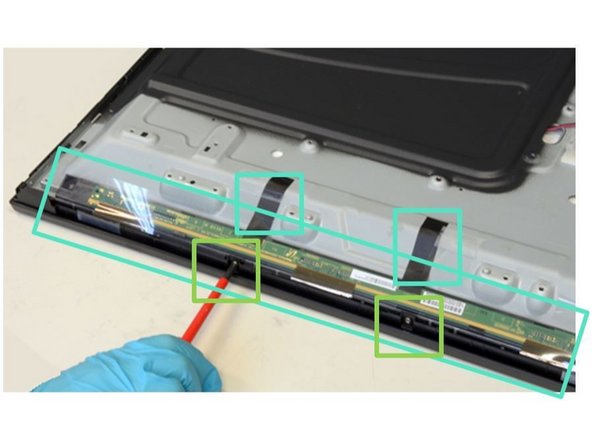

  4. Using PH#1 screwdriver, loose the seventeen screws from the front frame (highlighted in green boxes). Using slotted screwdriver, pry twelve clips and remove the second frame. Rip off the adhesives in order to remove the LCD PCBs (marked in blue).
    • Using PH#1 screwdriver, loose the seventeen screws from the front frame (highlighted in green boxes).

    • Using slotted screwdriver, pry twelve clips and remove the second frame.

    • Rip off the adhesives in order to remove the LCD PCBs (marked in blue).

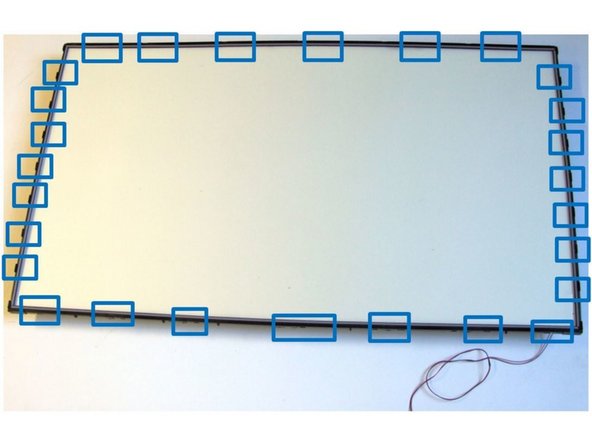

  5. Using slotted screwdriver, begin to lever the twenty-seven clips (highlighted in blue boxes) of the inner frame. Continue to work your way around the frame until you can pull the frame off.
    • Using slotted screwdriver, begin to lever the twenty-seven clips (highlighted in blue boxes) of the inner frame.

    • Continue to work your way around the frame until you can pull the frame off.

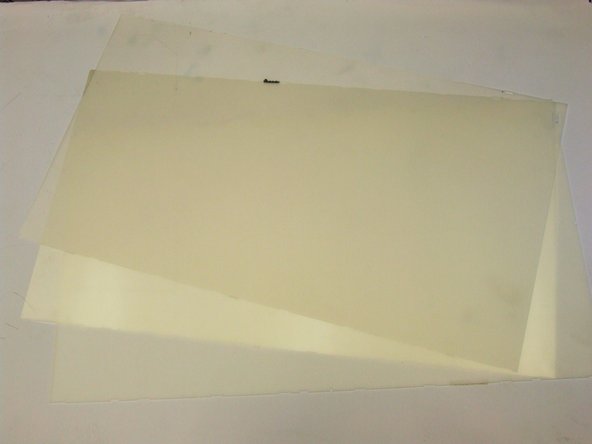

    • Next, remove the polarized foils.

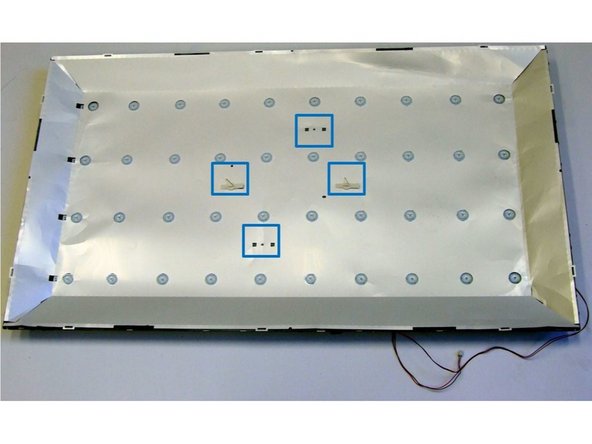

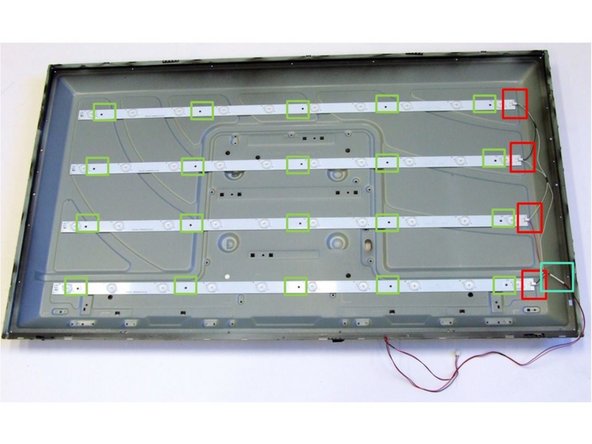

  6. Using slotted screwdriver, loose the four clips (marked in blue). Rip off the protective foil and access the backlight unit. Using PH#1 screwdriver, begin to loose the twenty screws that fix the PCBs to the metal casing (marked in Green).
    • Using slotted screwdriver, loose the four clips (marked in blue).

    • Rip off the protective foil and access the backlight unit.

    • Using PH#1 screwdriver, begin to loose the twenty screws that fix the PCBs to the metal casing (marked in Green).

    • Manually lever the four connectors and separate all PCBs.

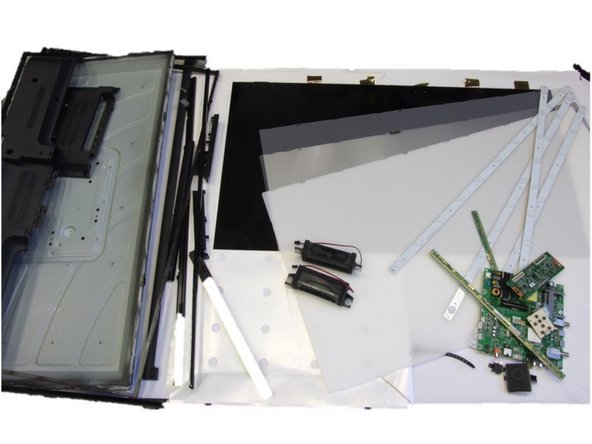

  7. All fractions obtained after TV dismantling.
    • All fractions obtained after TV dismantling.
