How to get neodymium from a smartphone speaker

Step 1 How to get neodymium from a smartphone speaker



• You see here the front and the back of the Samsung Galaxy S3 Mini
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2



• Remove the back cover
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

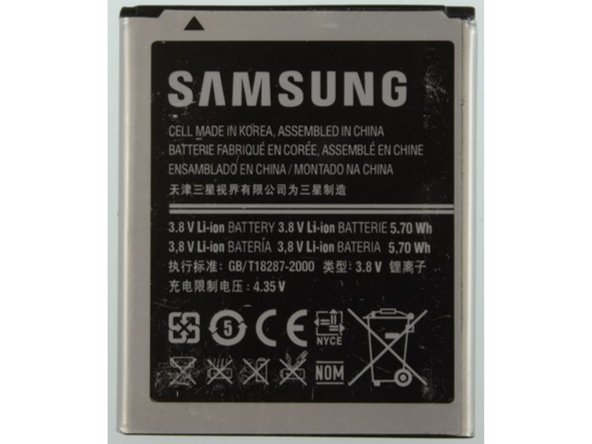

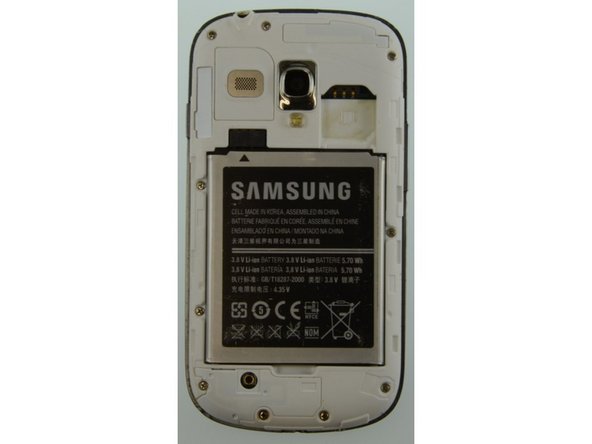

• Remove the battery
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

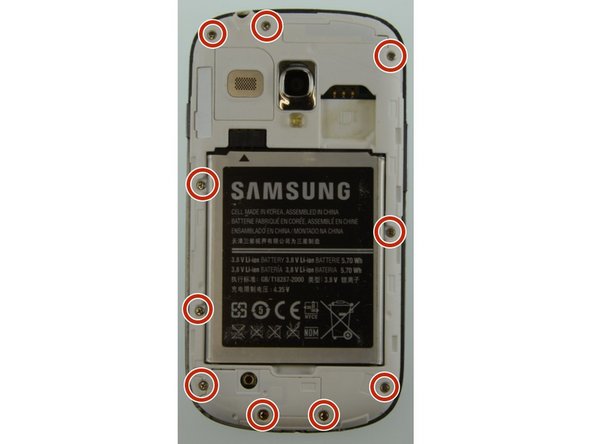

• Loose the 10 screws

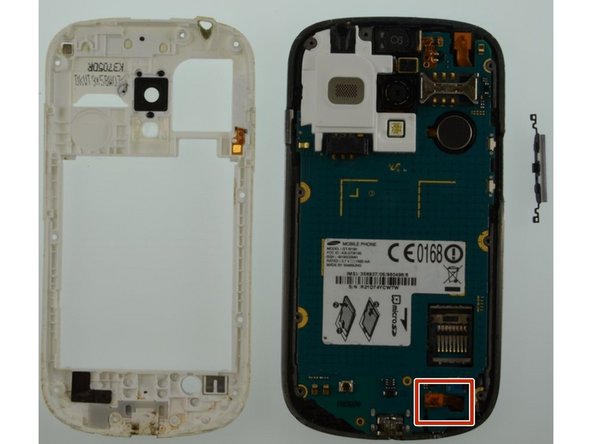

• Take off the mid frame and the buttons
• Disconnect the flex cable
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

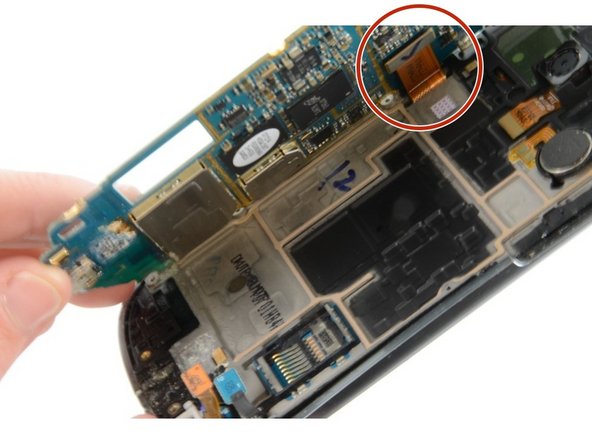

• Lift up the motherboard and disconnect the flex cable from the display
• Remove the motherboard

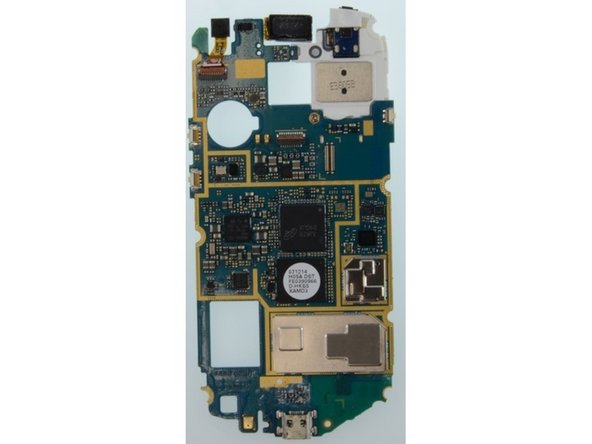

• You can see the motherboard from the front and from the back
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

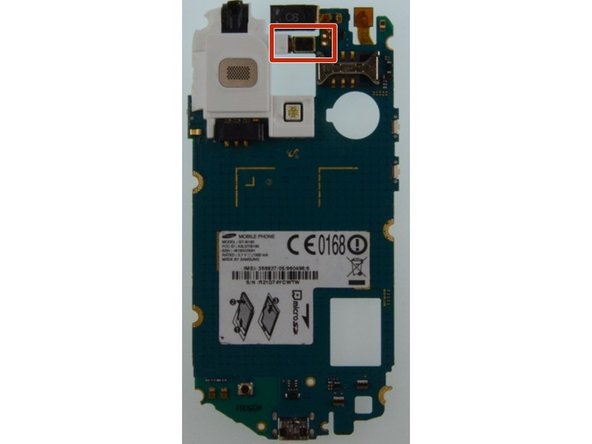

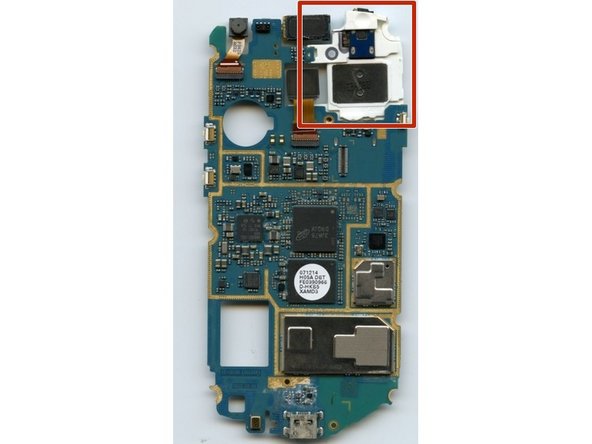

• Disconnect the speaker
• Remove the whole speaker module
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

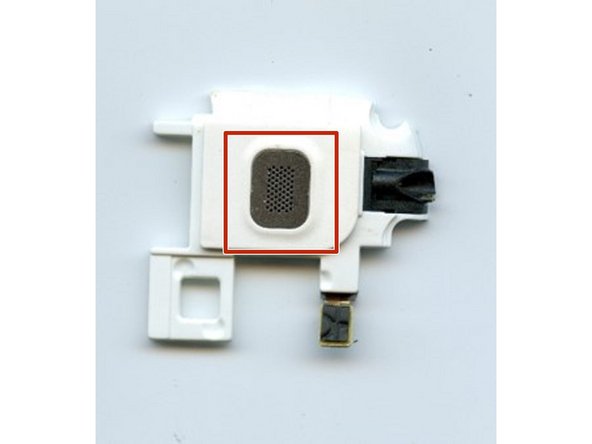

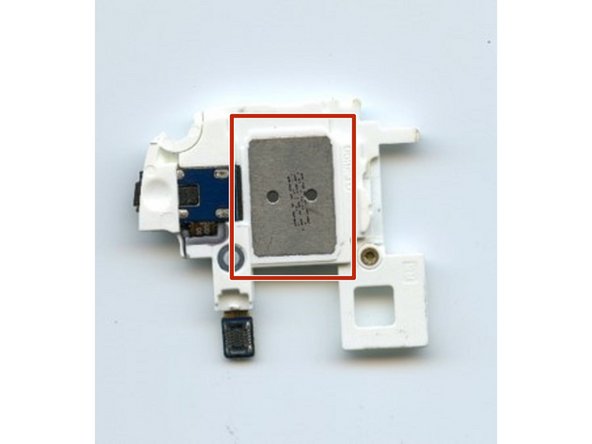

• Here you see the speaker module from the front and from the back
• Use a thin tool to remove the metal part from the speaker

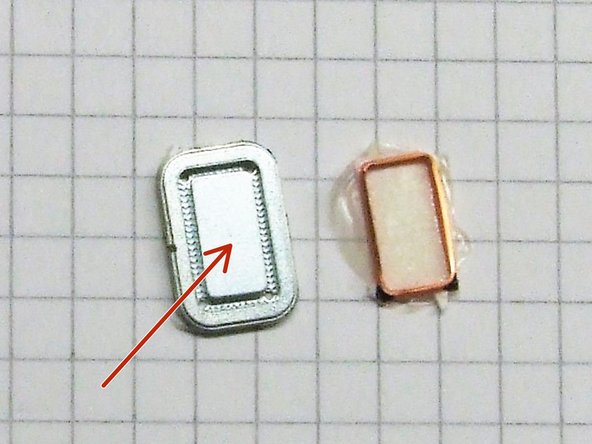

• The metal part usually is composed of two parts - a copper part (orange) and the neodymium part (silver like).
• Use a sharp tool to seperate the two metal components
• NOTE: The last picture of the metal parts was taken from another sample, so the actual metal parts of the Samsung Galaxy S3 Mini may differ!
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
