Introduction
Go to step 1 ↓Use this guide to remove and replace the battery door.
What you need
-
-
-
Use your finger tip to slide battery cover door away from the center of the camera.
-
The battery door should spring open.
-
If this does not happen, gently open the door lifting from the outer bottom side of the camera.
-
-
-
Remove 7 screws from the outer case with a Phillips #00.
-
All screws are 4.45mm.
-

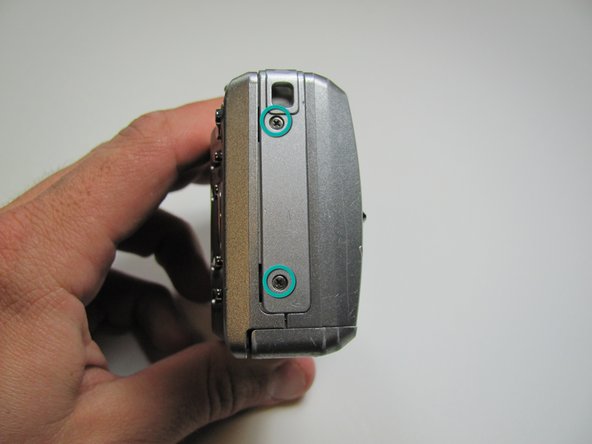

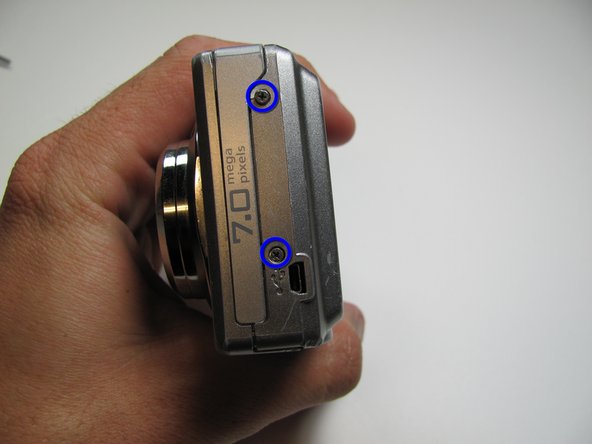

There are 2 screws on the port side.
-
There are 2 screws on starboard side.
-

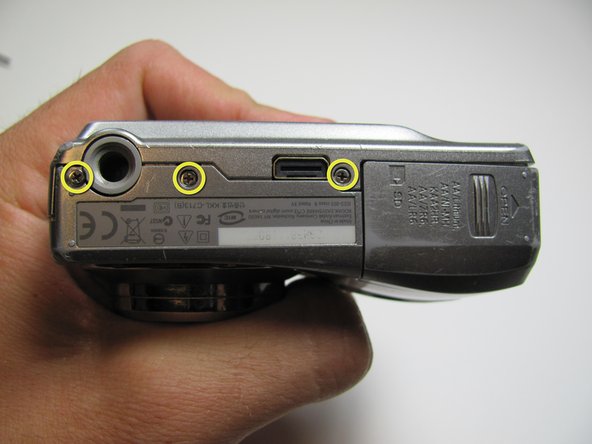

There are 3 screws on the bottom.
-
-
-

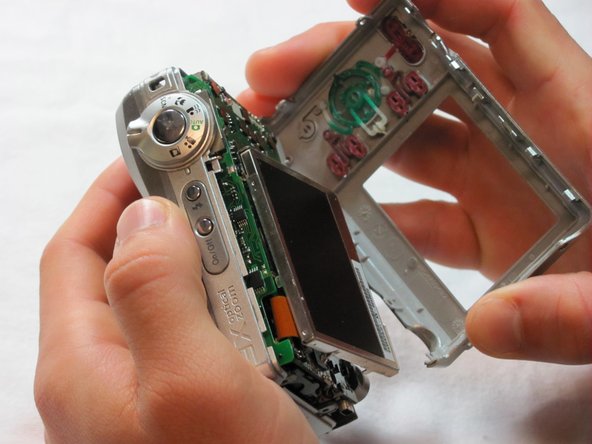

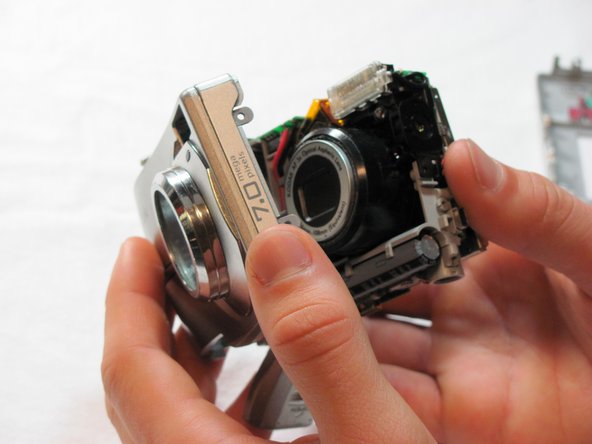

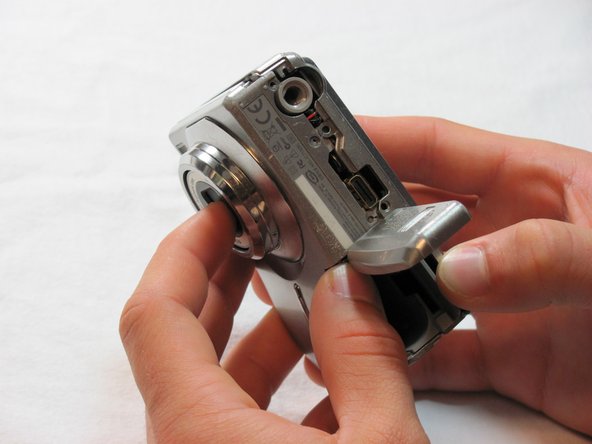

Make sure the battery door is open.
-

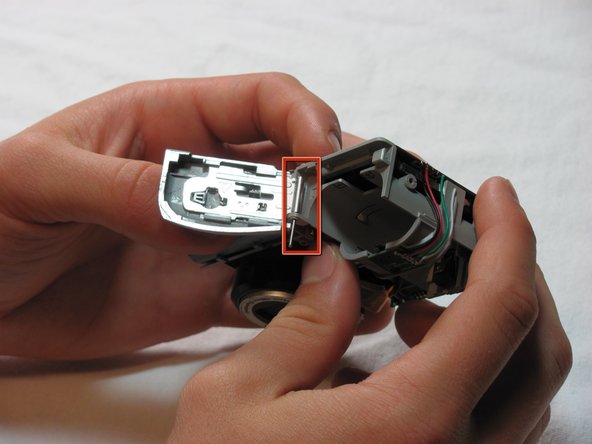

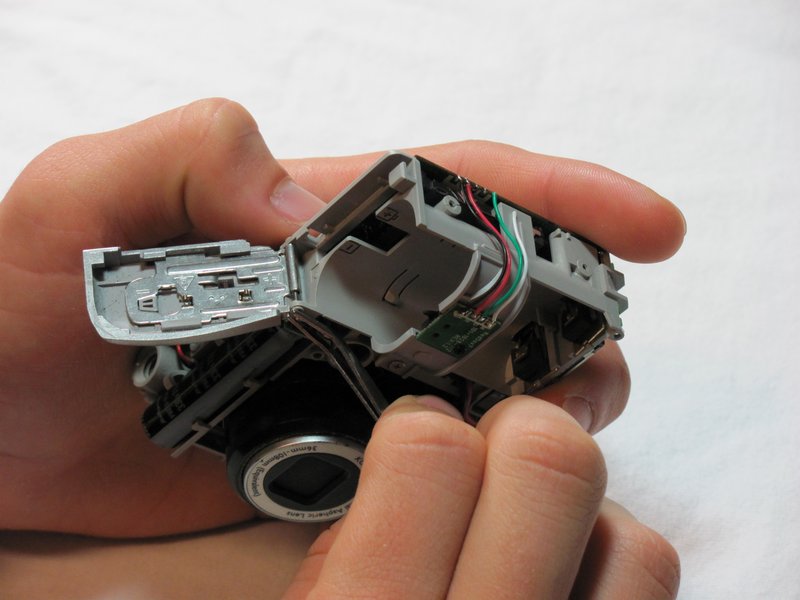

Using a pair of tweezers, remove the metal rod at the junction of the battery door and the inner camera case.
-
-
To reassemble your device, follow these instructions in reverse order.
