Step 1 Kodak EasyShare C713 Capacitor Replacement

• Use your finger tip to slide battery cover door away from the center of the camera.
• The battery door should spring open.
• If this does not happen, gently open the door lifting from the outer bottom side of the camera.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Remove the old batteries.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

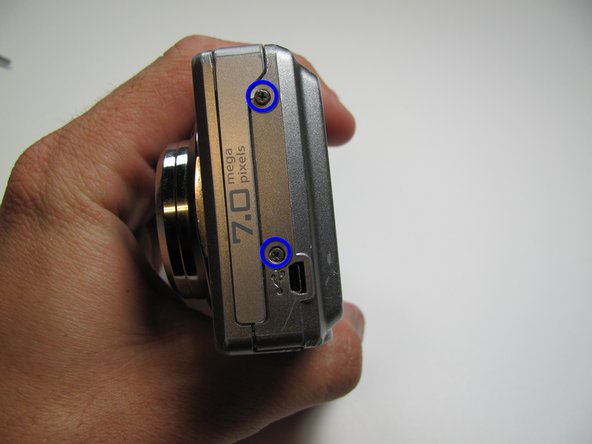

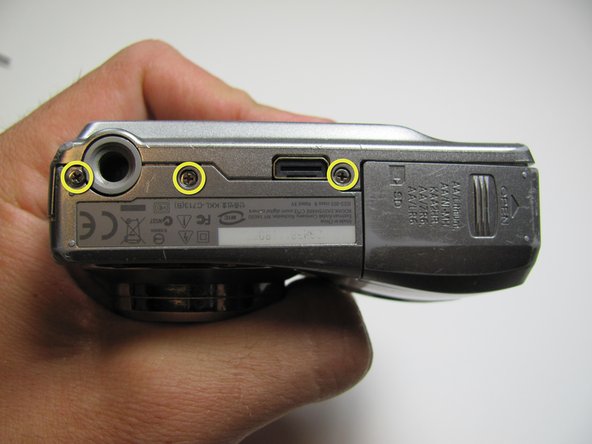

Step 3

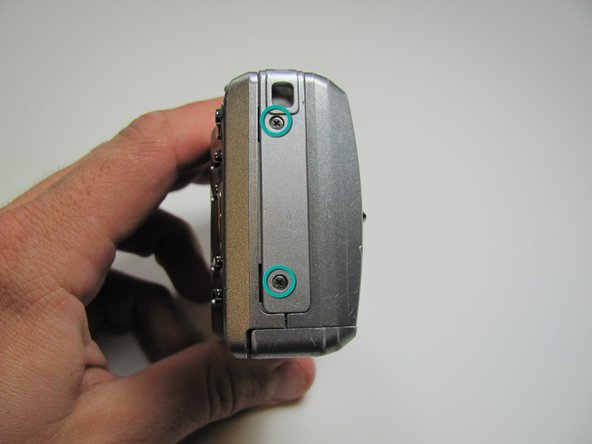

• Remove 7 screws from the outer case with a Phillips #00.
• All screws are 4.45mm.
• There are 2 screws on the port side.
• There are 2 screws on starboard side.
• There are 3 screws on the bottom.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

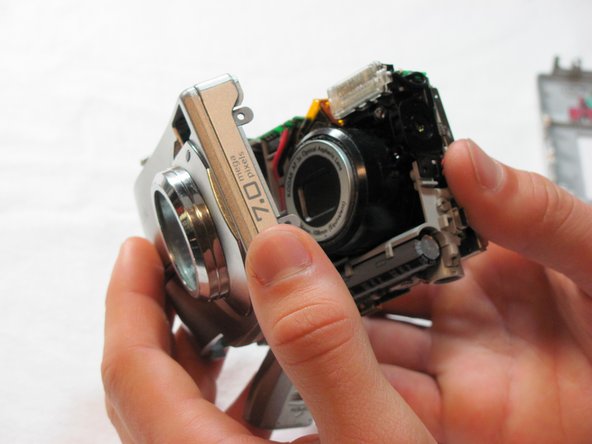

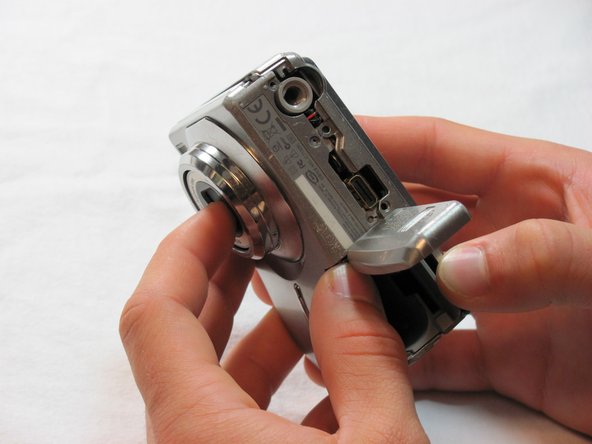

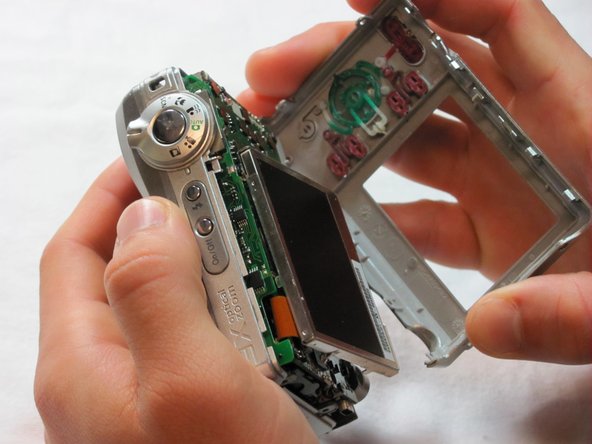

Step 4
• Make sure the battery cap is "up".
• Pull the outer case off with your hands.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

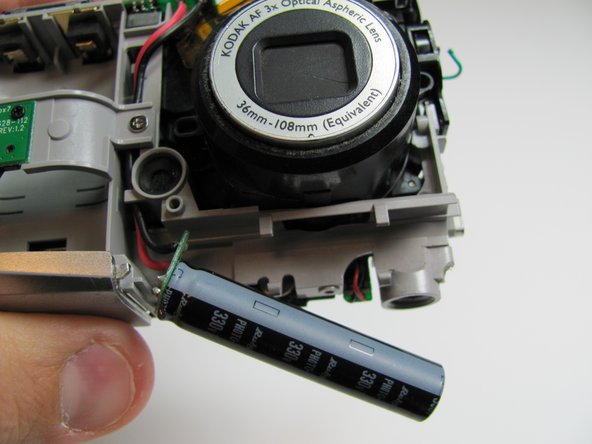

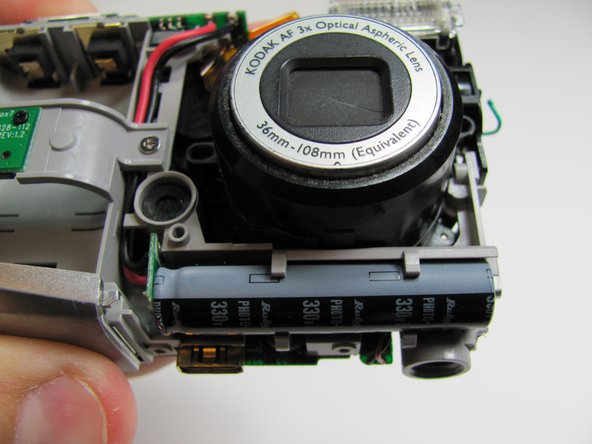

Step 5
• To avoid an electric shock, do not to touch capacitor.
• The capacitor is located underneath the lens.
• It is held in place by 4 plastic snaps; it can be easily removed by pulling outward with your fingers.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

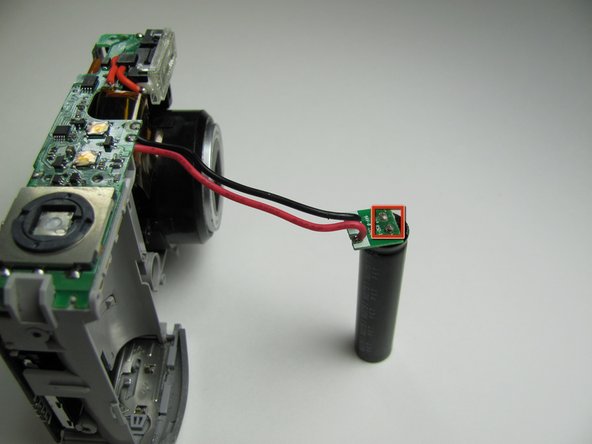

Step 6
• Desolder points connecting capacitor to circuit board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
