Kodak EasyShare C913 Capacitor Replacement

Introduction

Use this guide to remove the capacitor.

What you need

  1. Kodak EasyShare C913 Capacitor Replacement, Kodak EasyShare C913 Capacitor Replacement: step 1, image 1 of 3 Kodak EasyShare C913 Capacitor Replacement, Kodak EasyShare C913 Capacitor Replacement: step 1, image 2 of 3 Kodak EasyShare C913 Capacitor Replacement, Kodak EasyShare C913 Capacitor Replacement: step 1, image 3 of 3

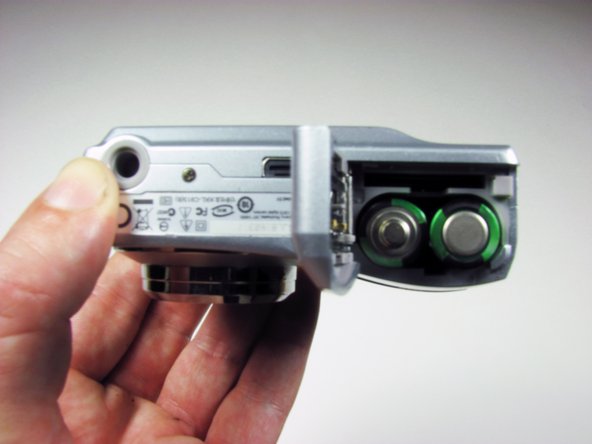

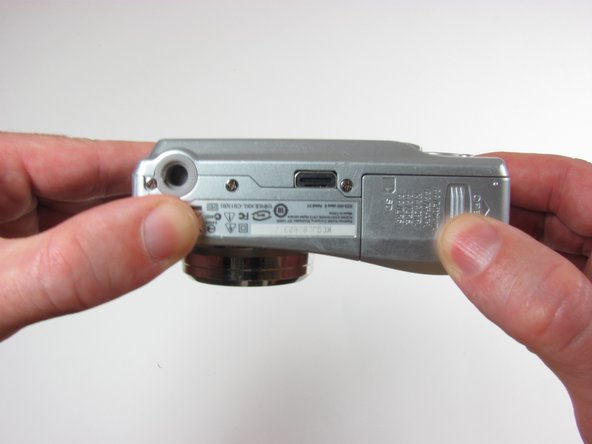

    • Position the camera with the bottom facing up.

    • With your finger, slide the battery cover in the direction of open arrow.

    • The battery cover will spring open, so be careful to lift it up gently.

  2. Kodak EasyShare C913 Capacitor Replacement: step 2, image 1 of 3 Kodak EasyShare C913 Capacitor Replacement: step 2, image 2 of 3 Kodak EasyShare C913 Capacitor Replacement: step 2, image 3 of 3

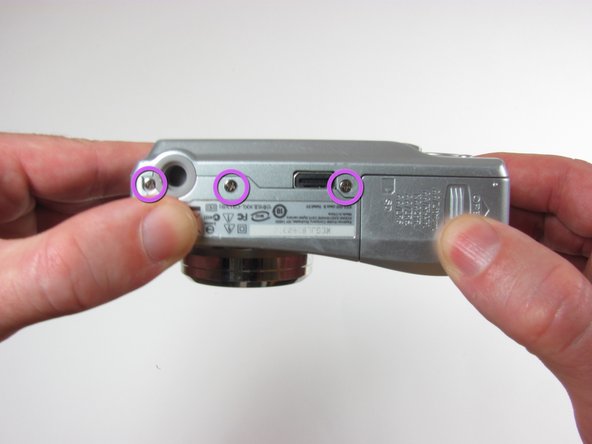

    • Use a Phillips #00 screwdriver to remove the seven 4.5mm screws.

    • There are 2 on the left

    • There are 2 on the right

    • There are 3 on the bottom

  3. Kodak EasyShare C913 Capacitor Replacement: step 3, image 1 of 3 Kodak EasyShare C913 Capacitor Replacement: step 3, image 2 of 3 Kodak EasyShare C913 Capacitor Replacement: step 3, image 3 of 3

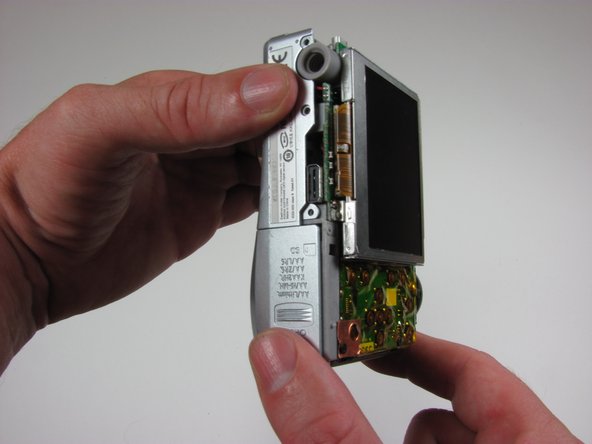

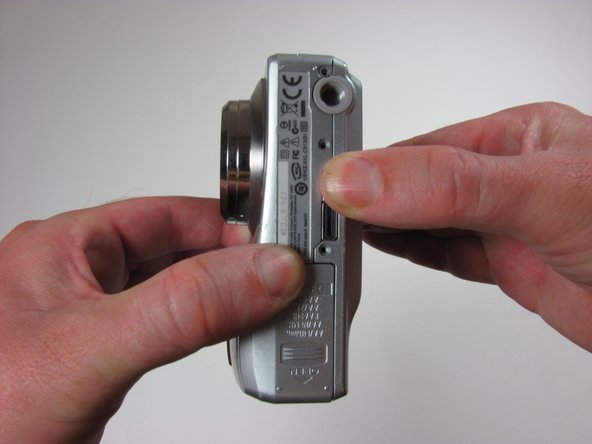

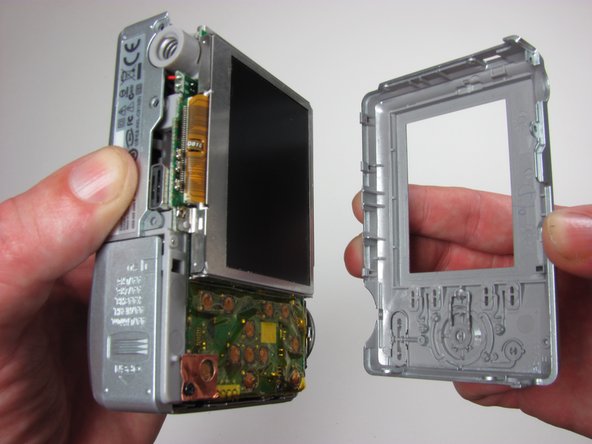

    • Firmly grasp and pull back casing off.

  5. Kodak EasyShare C913 Capacitor Replacement: step 4, image 1 of 3 Kodak EasyShare C913 Capacitor Replacement: step 4, image 2 of 3 Kodak EasyShare C913 Capacitor Replacement: step 4, image 3 of 3

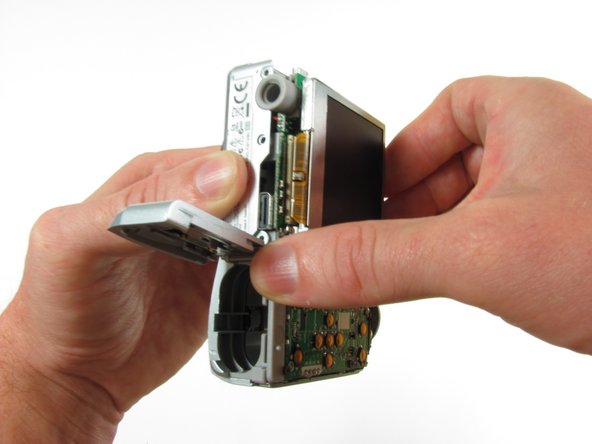

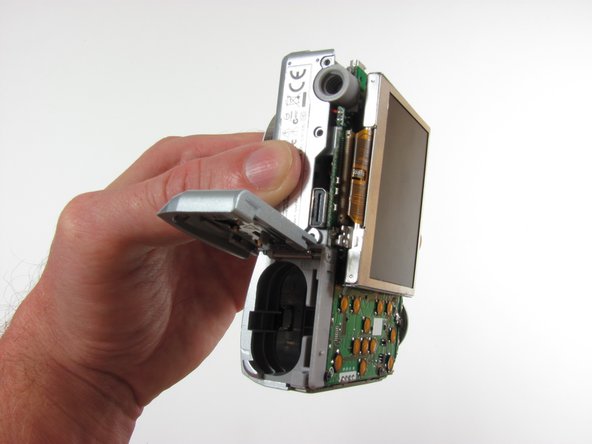

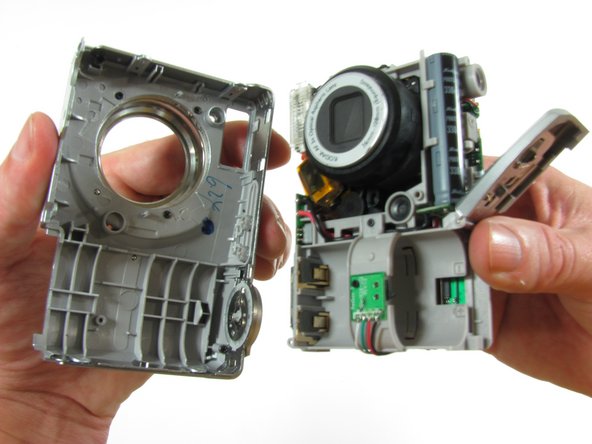

    • With battery door open, grasp the front case and remove it from the camera.

  6. Kodak EasyShare C913 Capacitor Replacement: step 5, image 1 of 2 Kodak EasyShare C913 Capacitor Replacement: step 5, image 2 of 2

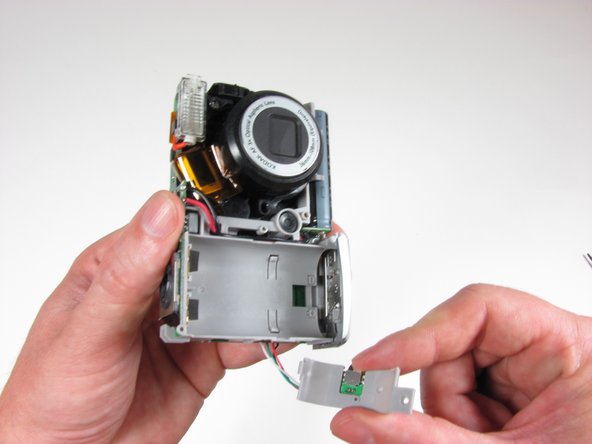

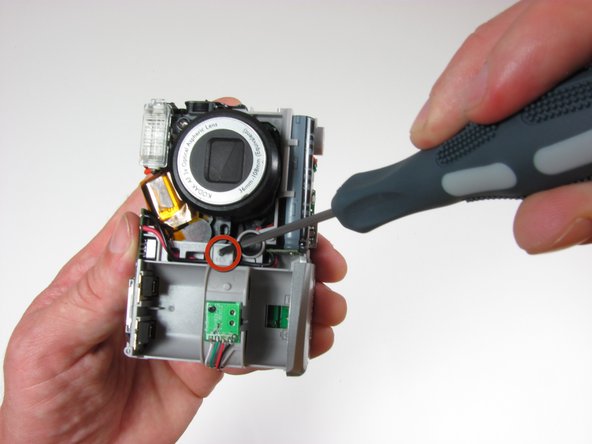

    • Orient the camera with the lens facing you.

    • Use a Phillips #00 screwdriver to remove the one 2.2mm screw on the plastic bridge.

    • Lift the plastic bridge off and place it to the side.

  7. Kodak EasyShare C913 Capacitor Replacement: step 6, image 1 of 1

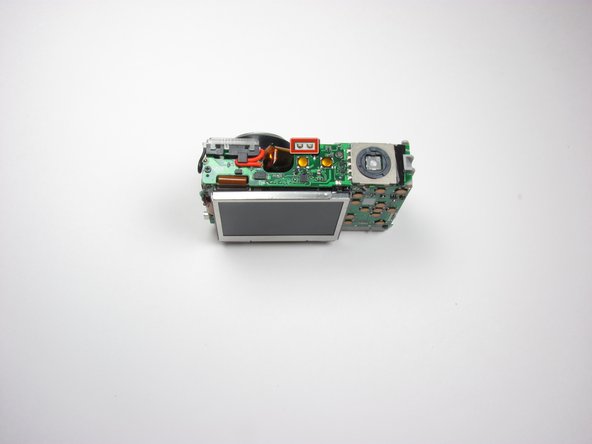

    • Do not touch the capacitor contact points for any reason. This will result in a severe shock.

  8. Kodak EasyShare C913 Capacitor Replacement: step 7, image 1 of 3 Kodak EasyShare C913 Capacitor Replacement: step 7, image 2 of 3 Kodak EasyShare C913 Capacitor Replacement: step 7, image 3 of 3

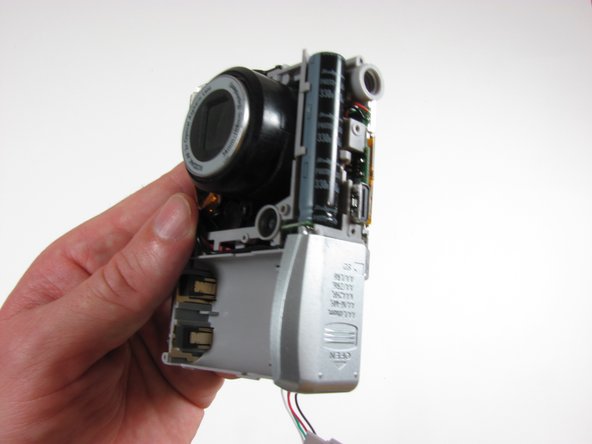

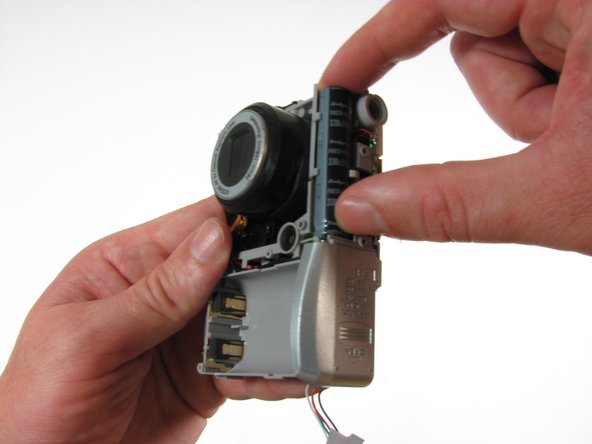

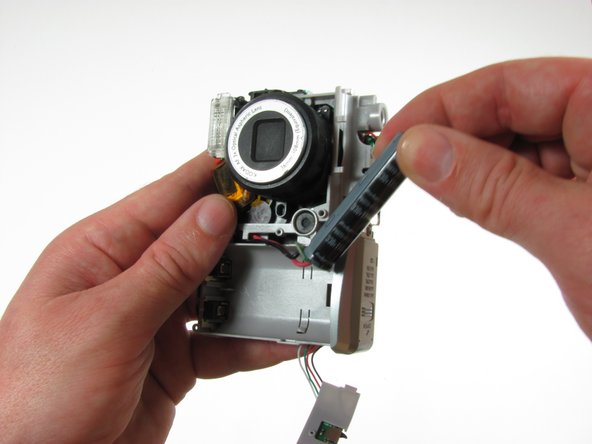

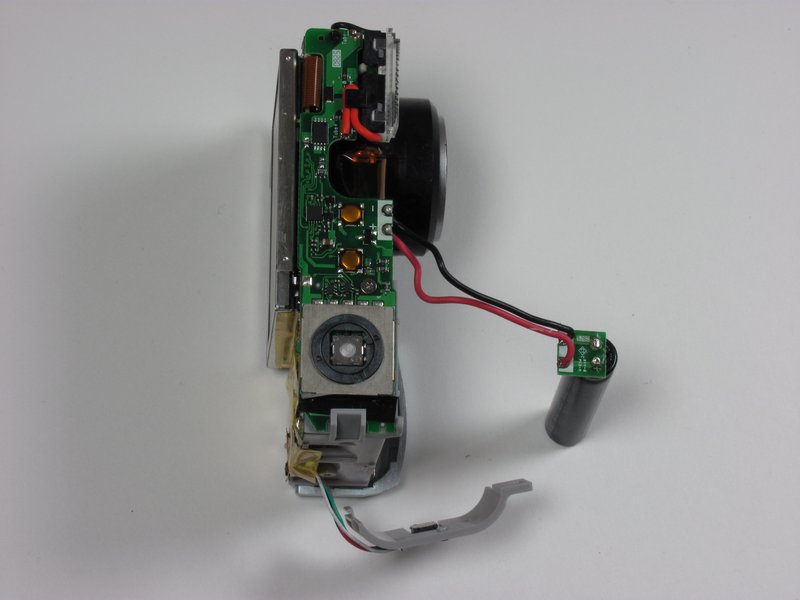

    • Grasp the capacitor, carefully remove it from its holder, and place it off to the side.

  9. Kodak EasyShare C913 Capacitor Replacement: step 8, image 1 of 1

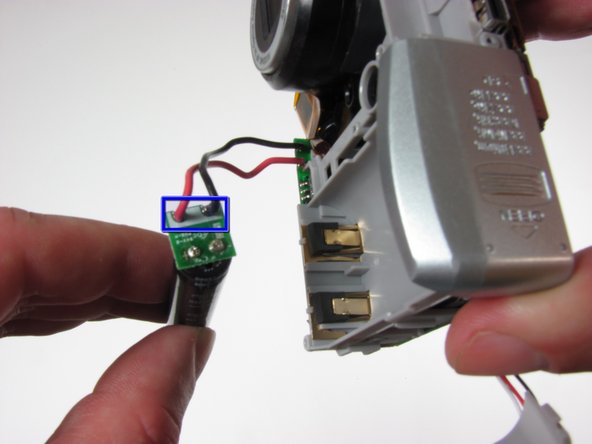

    • De-solder the connections at the base of the capacitor

Conclusion

To reassemble your device, follow these instructions in reverse order.
