Kodak EasyShare LS743 Battery Door Replacement

Introduction

This is a step-by-step guide in replacing the battery door

What you need

  1. Kodak EasyShare LS743 Battery Door Replacement, Kodak EasyShare LS743 Battery Door Replacement: step 1, image 1 of 1

    • Open the battery cover.

  2. Kodak EasyShare LS743 Battery Door Replacement: step 2, image 1 of 1

    • Slide the orange latch sideways to eject the battery.

    • Remove the battery.

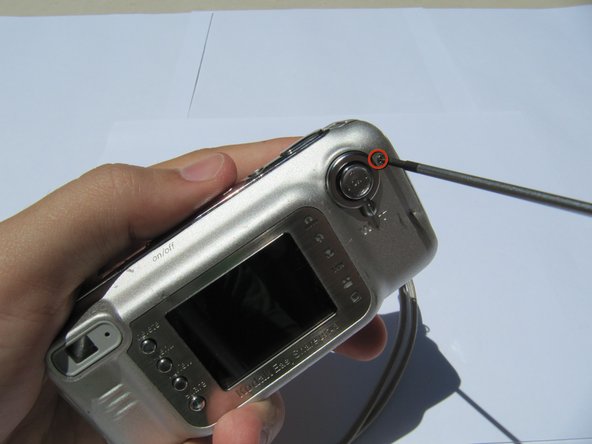

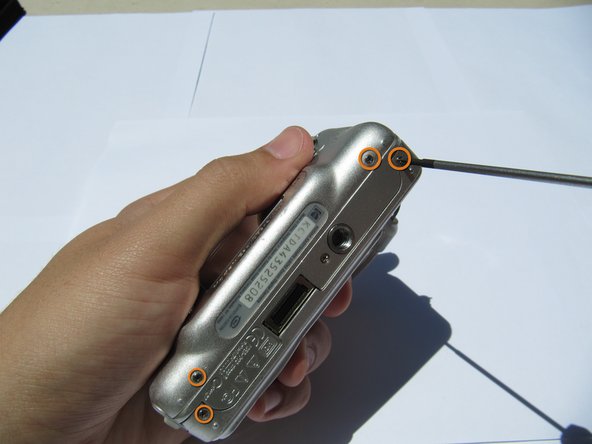

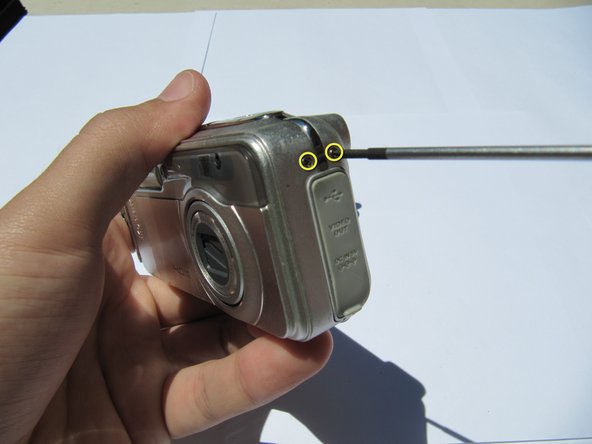

  4. Kodak EasyShare LS743 Battery Door Replacement: step 3, image 1 of 3 Kodak EasyShare LS743 Battery Door Replacement: step 3, image 2 of 3 Kodak EasyShare LS743 Battery Door Replacement: step 3, image 3 of 3

    • Remove 7 screws.

    • 1 (6.25 mm) screw located on the top right corner, next to the view screen.

    • 4 (4.45mm) screws on the bottom of the camera.

    • 2 (2.95mm) screws on the left side of the camera.

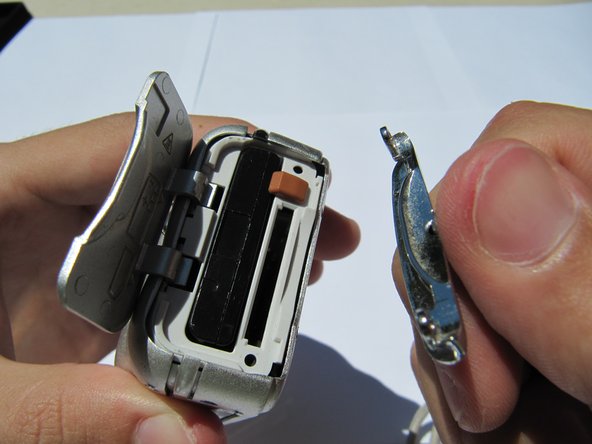

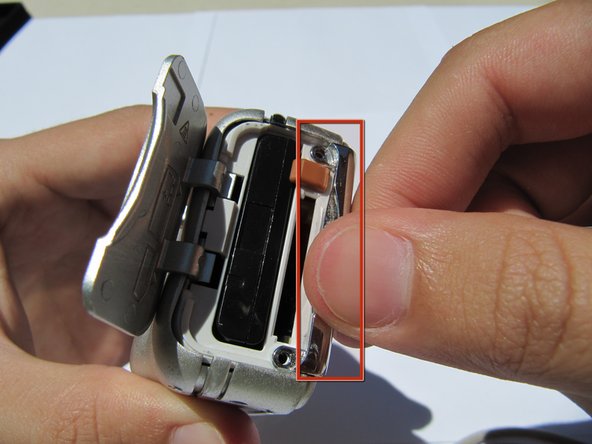

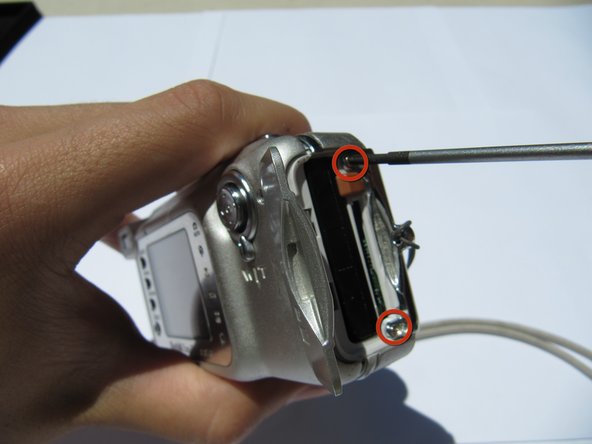

  5. Kodak EasyShare LS743 Battery Door Replacement: step 4, image 1 of 3 Kodak EasyShare LS743 Battery Door Replacement: step 4, image 2 of 3 Kodak EasyShare LS743 Battery Door Replacement: step 4, image 3 of 3

    • There will be 2 (5.39mm) screws. Remove the screws in order to remove the lanyard.

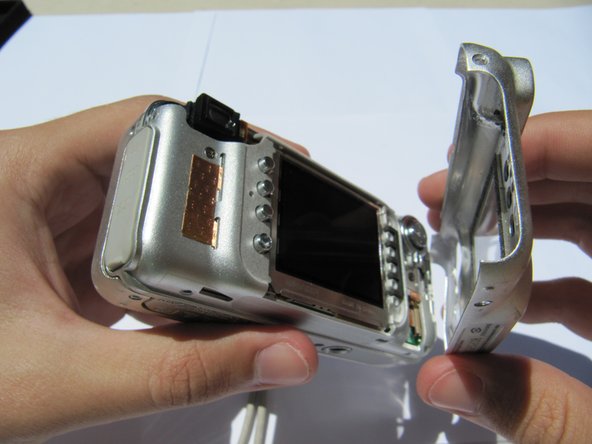

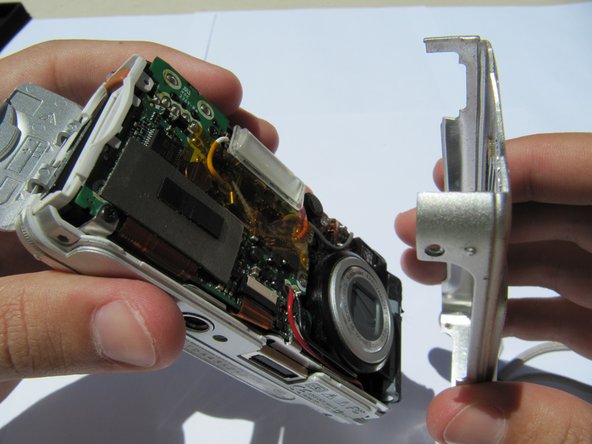

  6. Kodak EasyShare LS743 Battery Door Replacement: step 5, image 1 of 2 Kodak EasyShare LS743 Battery Door Replacement: step 5, image 2 of 2

    • Remove the rear camera casing.

    • Remove the front casing.

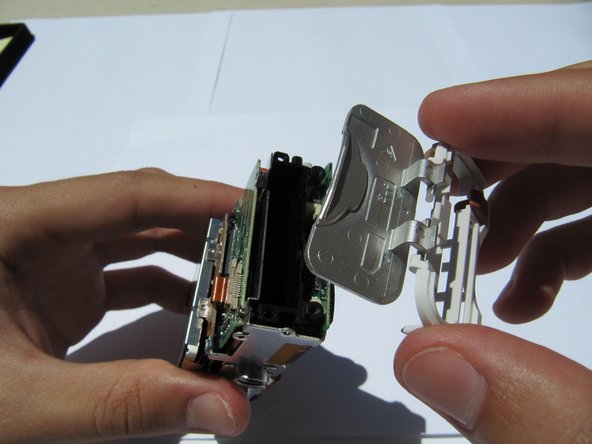

  7. Kodak EasyShare LS743 Battery Door Replacement: step 6, image 1 of 2 Kodak EasyShare LS743 Battery Door Replacement: step 6, image 2 of 2

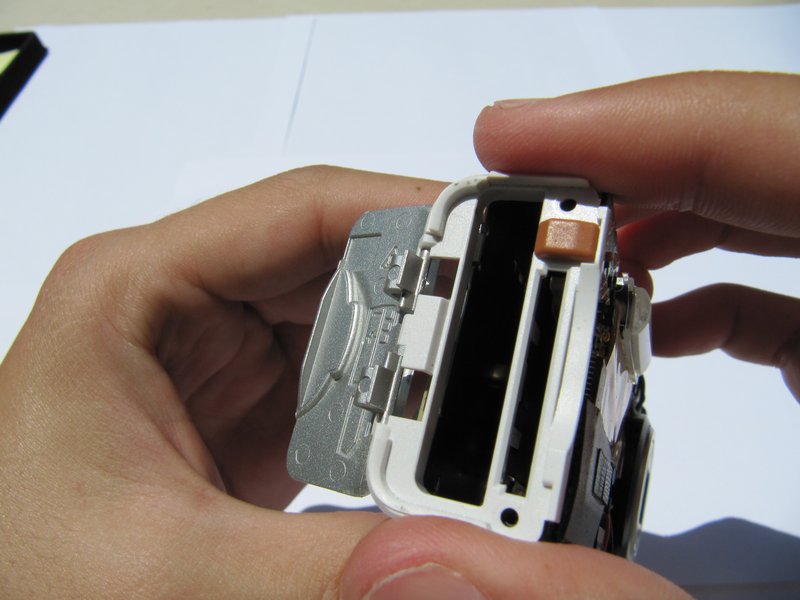

    • Remove loose battery door.

Conclusion

To reassemble your device, follow these instructions in reverse order.
