Laser Printer

Introduction

Due to the large variety of printers available on the market it is impossible to give a specific manual how to dismantle a printer. Therefore, the dismantling steps for laser printers indicated below have to be adapted from case to case. No dismantling time and average weight can be indicated.

What you need

1. Step 1 Laser Printer

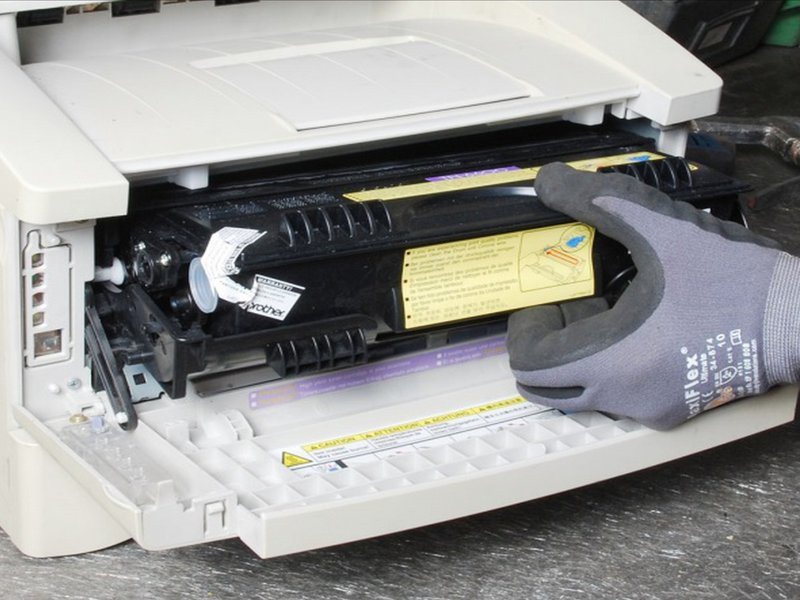

  Remove the toner cartridge.

  Cartridges can be refilled and reused! In case they are broken, they need to be disposed of as hazardous waste.
  Add Comment

  1024
2. Step 2

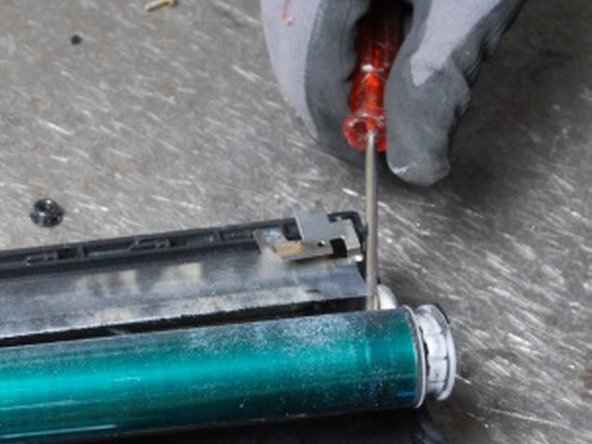

  The photoconductive drum is usually located within the cartridge.

  Drums from older copy and fax machines may be coated with the toxic substances cadmium-sulfid or selen and should therefore be segregated and supplied to an adequate treatment.

  To segregate the drum, remove the axis and store the photoconductive drum separately.

  Avoid exposure to the coatings of the Cd- and Se-drums! Selenium-coated drums should be stored without exposure to light (barrel with cover)!
  Add Comment

  1024
3. Step 3

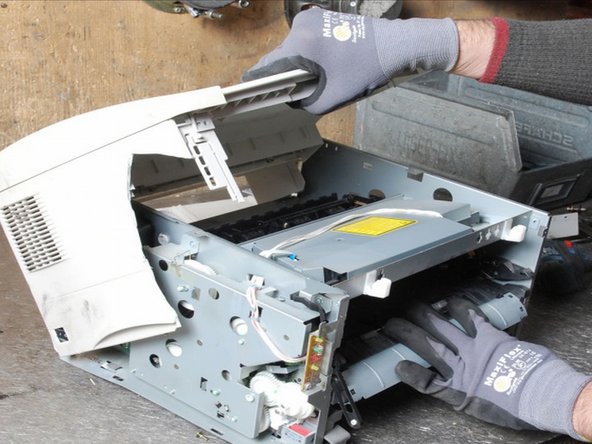

  Open the plastic casing by unscrewing all screws and removing clips. Clean the casing properly by removing all the foreign materials in the plastic such as labels, rubber mountains etc.

  Make sure the plastic parts are completely free of metal pieces.
  Add Comment

  1024
5. Step 4

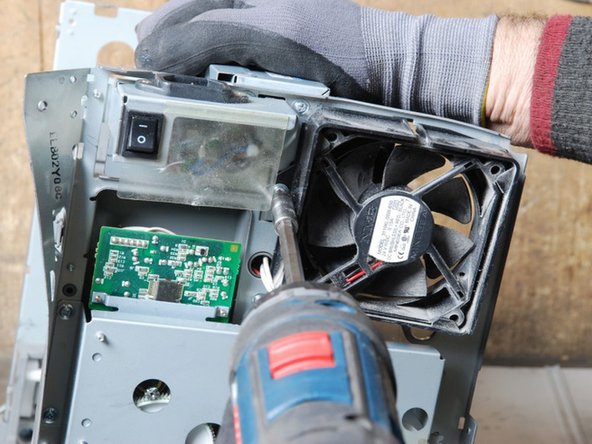

  Remove all screws and segregate the PWBs.
  Add Comment

  1024
6. Step 5

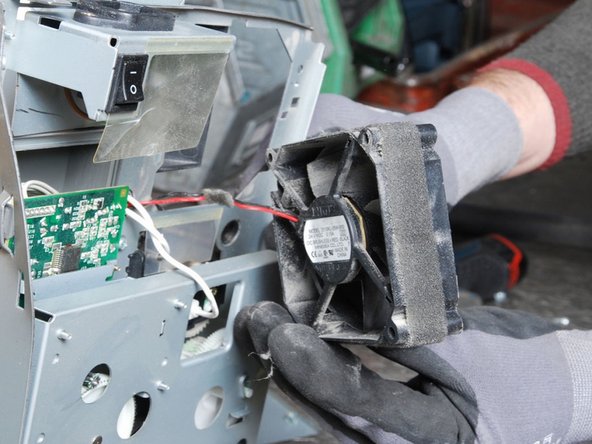

  Remove the fan.
  Add Comment

  1024
7. Step 6

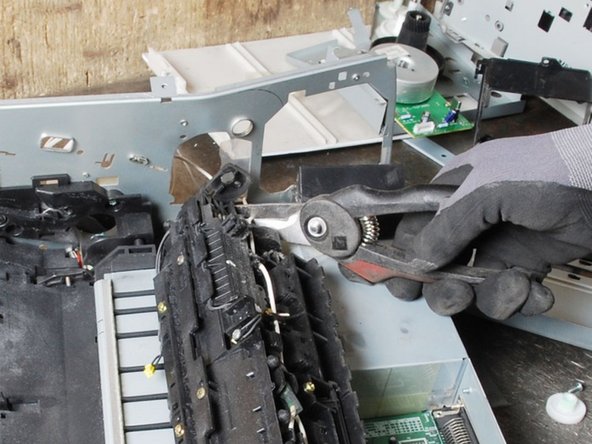

  Cut off and remove the heating unit, including (brown) heated roller.
  Add Comment

  1024
8. Step 7

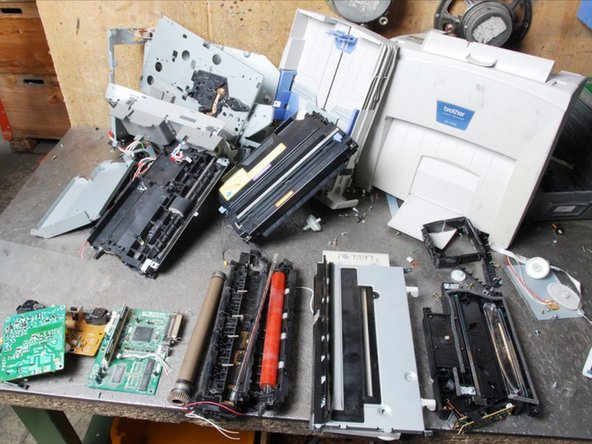

  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

  Make sure the plastic parts are completely free of metal pieces.
  Add Comment

  1024
