Introduction

Go to step 1 ↓

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most lawn trimmers. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

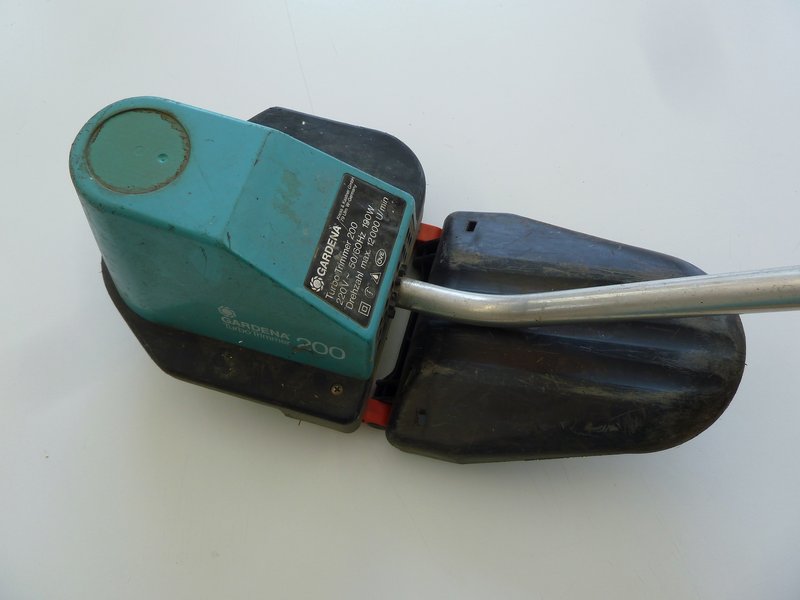

1. Step 1 Lawn Trimmer
  Place the lawn trimmer on your working bench.
  Add Comment

  1024
2. Step 2
  Unscrew the protective cover.

  Remove the collection basket.
  Add Comment

  1024

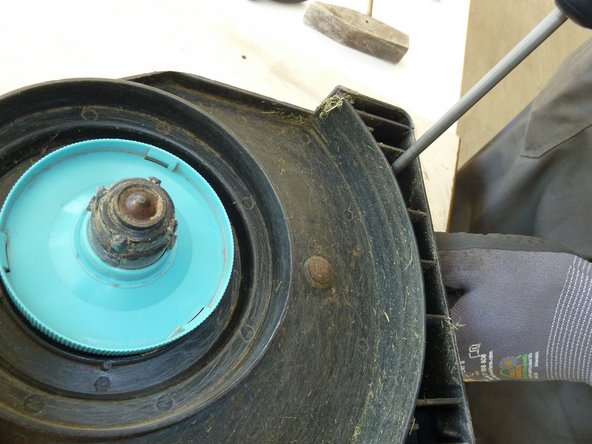

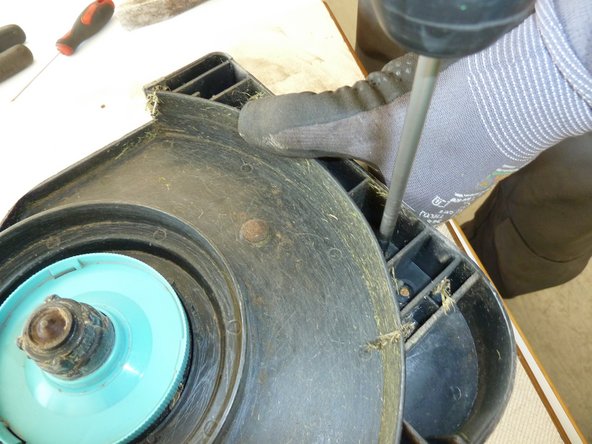

3. Step 3
  Flip the lawn trimmer over and unscrew the case.

  Flip it back to its upright position to remove the cover.
  Add Comment

  1024

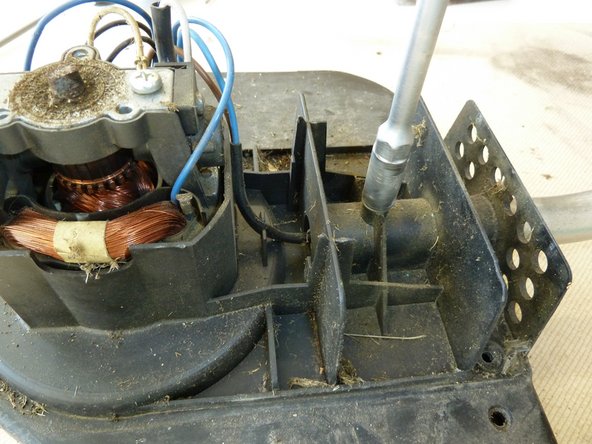

4. Step 4
  Unscrew the handle mount.
  Add Comment

  1024
5. Step 5
  Remove the handle.
  Add Comment

  1024

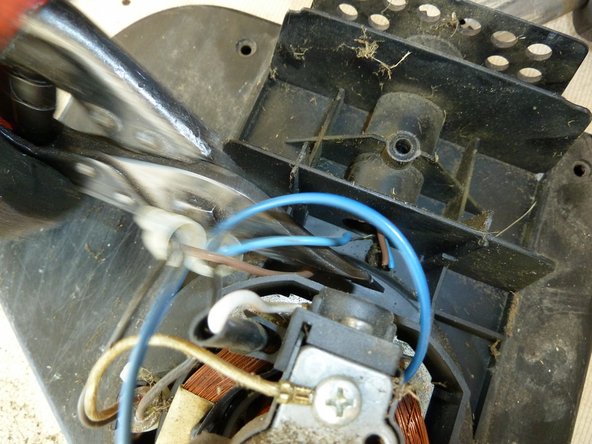

6. Step 6
  Cut the wires.
  Add Comment

  1024

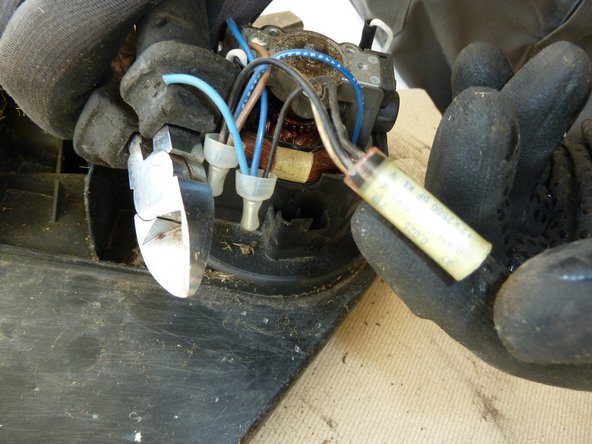

8. Step 7
  Remove the capacitor.
  Add Comment

  1024

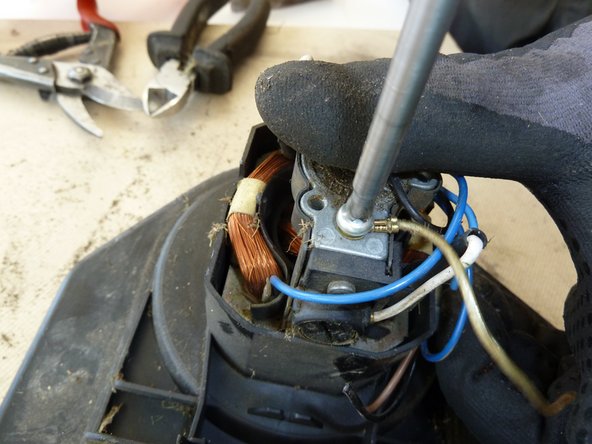

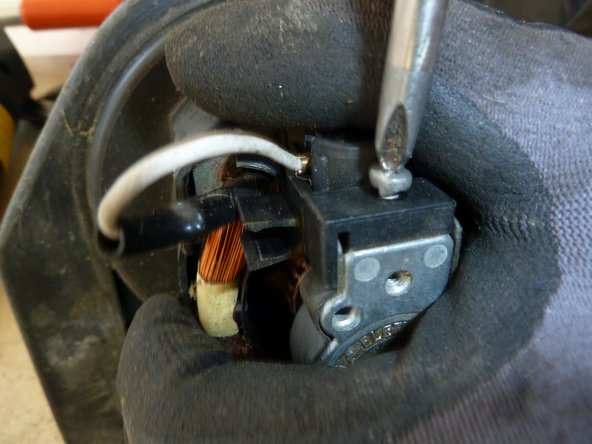

9. Step 8
  Unscrew the motor.
  Add Comment

  1024

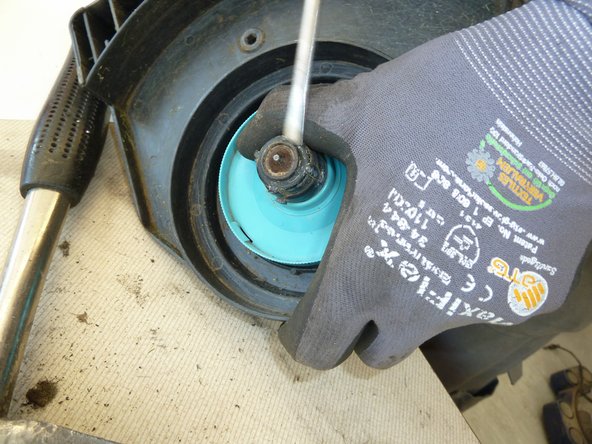

10. Step 9
  Flip the trimmer over to remove the drive shaft.
  Add Comment

  1024

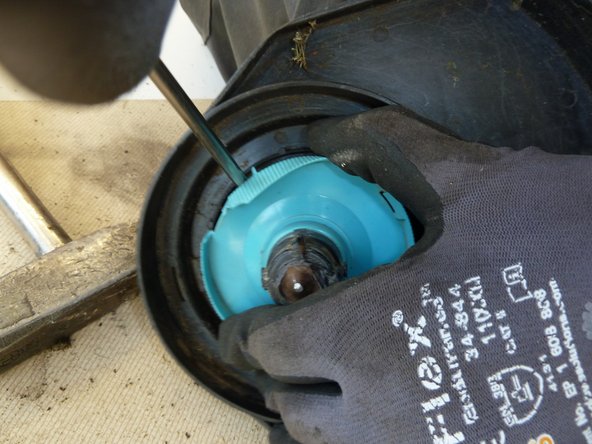

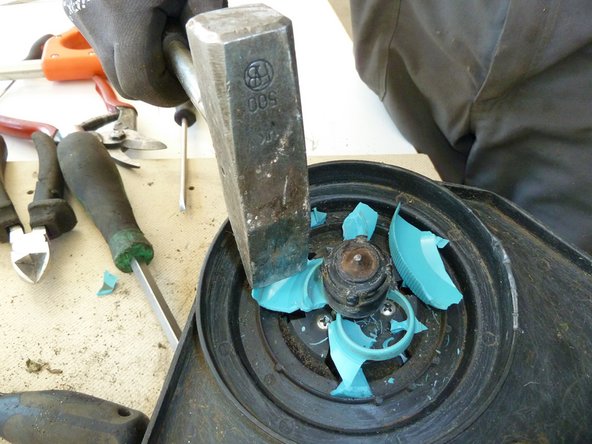

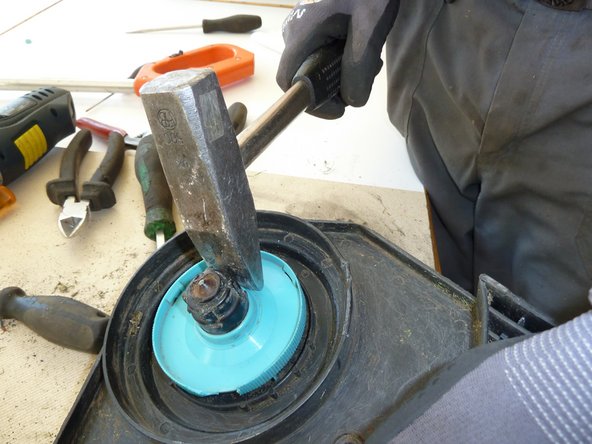

11. Step 10
  Lift off the drive shaft cover.

  If necessary, destroy the drive shaft cover with a hammer.
  Add Comment

  1024

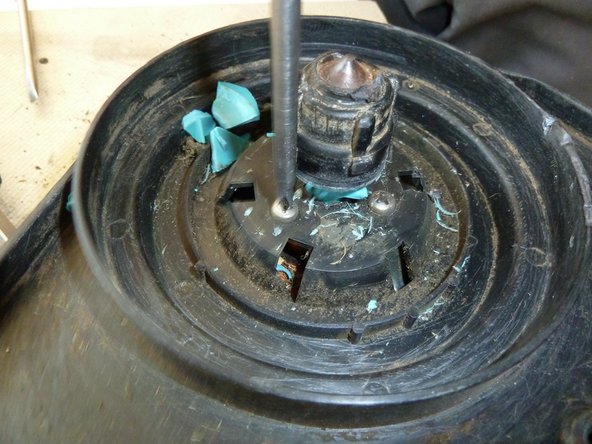

12. Step 11
  Unscrew the case.
  Add Comment

  1024

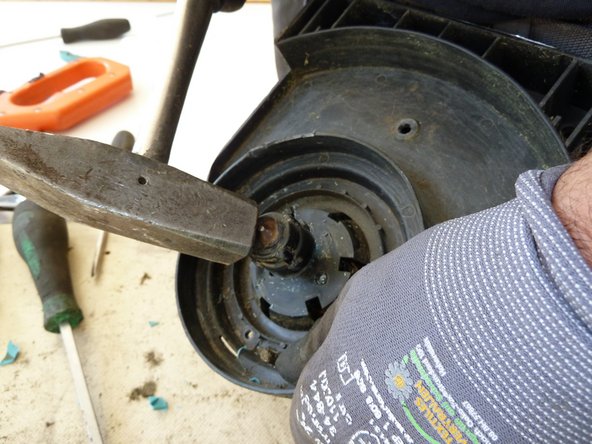

14. Step 12
  Remove the drive shaft by hitting it with a hammer.
  Add Comment

  1024

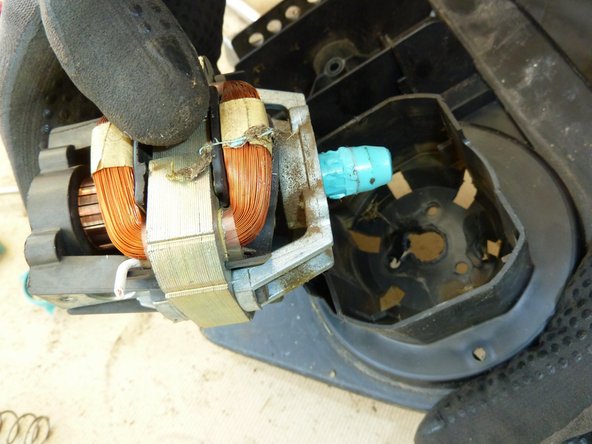

15. Step 13
  Remove the motor.
  Add Comment

  1024

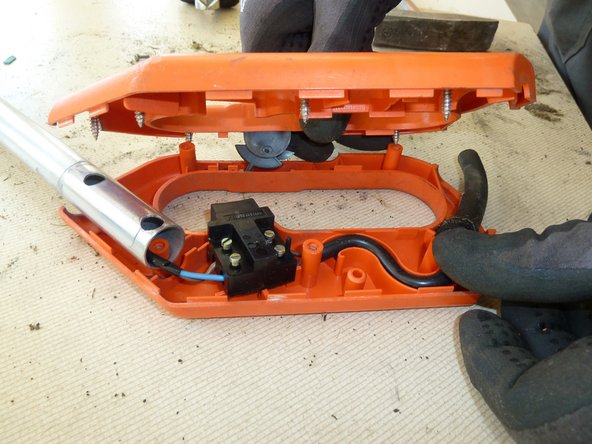

16. Step 14

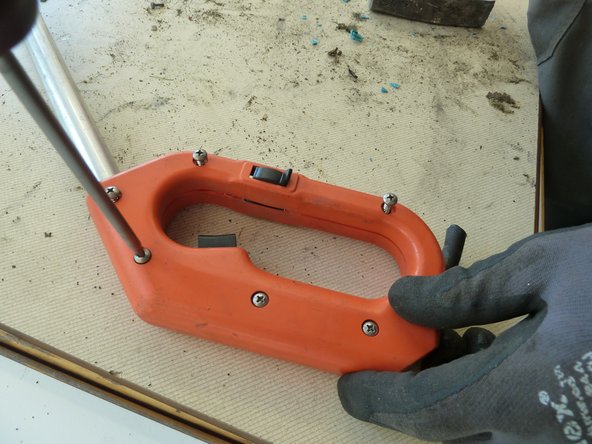

  At the end of the handle, unscrew and open the plastic handle.
  Add Comment

  1024
17. Step 15

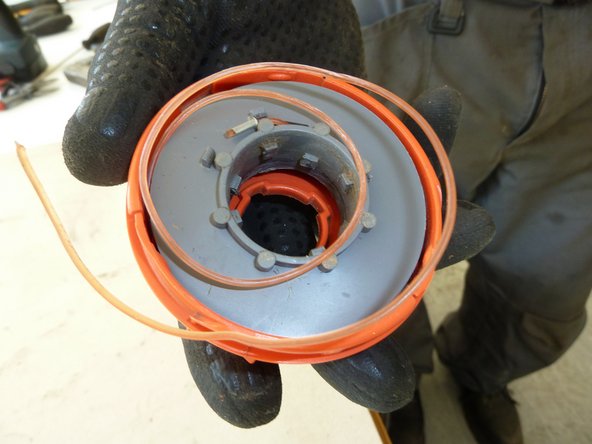

  Remove the string holder.
  Add Comment

  1024

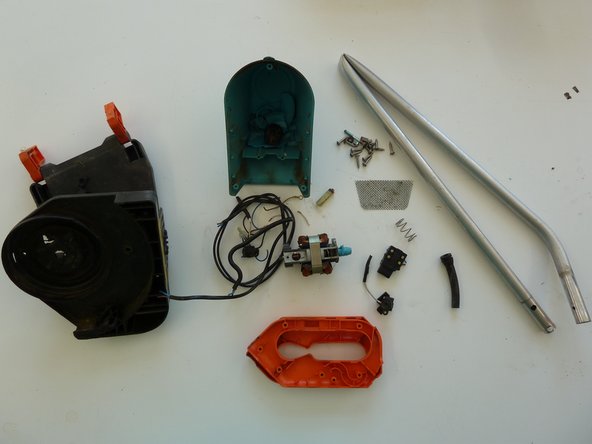

18. Step 16
  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

  Make sure the plastic parts are completely free of metal pieces.
