Mac Mini Mid 2011 Heat Sink Replacement

Step 1 Mac Mini Mid 2011 Heat Sink Replacement

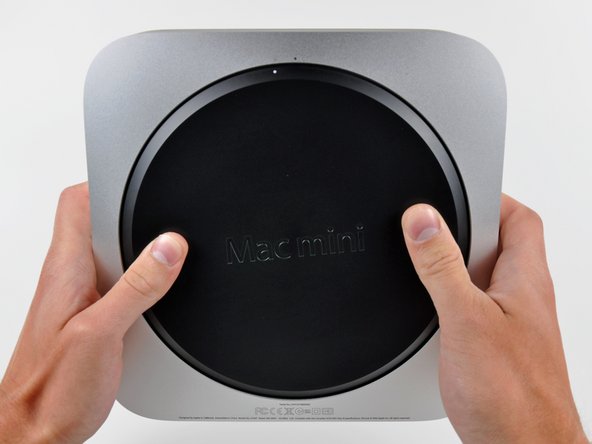

• Place your thumbs in the depressions cut into the bottom cover.
• Rotate the bottom cover counter-clockwise until the white dot painted on the bottom cover is aligned with the ring inscribed on the outer case.
• You do not need to apply much downward pressure while turning.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Tilt the mini enough to allow the bottom cover to fall away from the outer case.
• Remove the bottom cover and set it aside.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3
• Remove the two 11.3 mm T6 Torx screws securing the fan to the logic board near the antenna plate.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

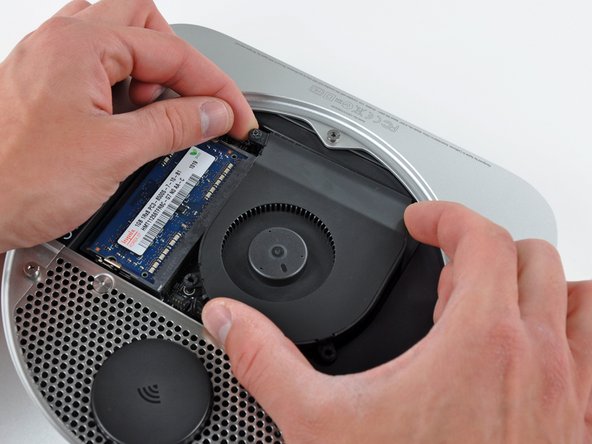

• Lift the ear of the fan nearest the RAM up off the standoff secured to the outer case.
• Removing the standoff screw is not necessary to remove the fan. You need only raise the fan enough to lift it off the standoff screw.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

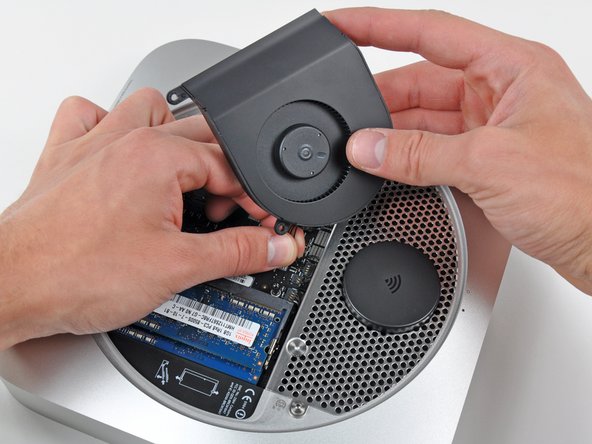

• Lift the fan out of the mini for enough clearance to access its connector.
• Carefully pull the fan cables upward to lift the fan connector up out of its socket on the logic board.
• Remove the fan.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

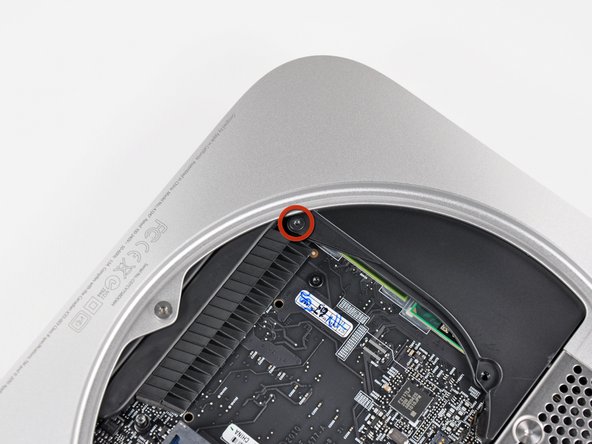

• Remove the single 3.5 mm T6 Torx screw securing the cowling to the heat sink.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

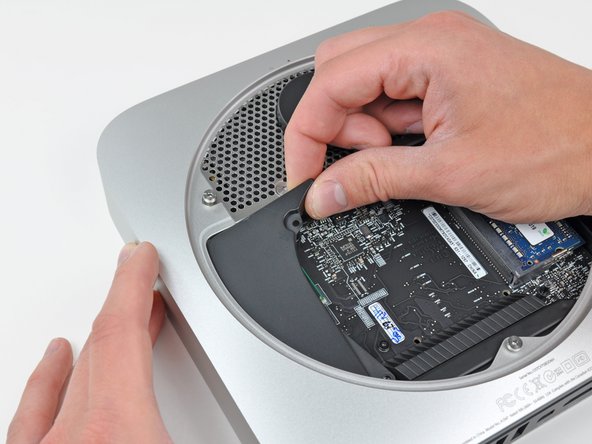

• Lift the cowling from the end nearest the antenna plate.
• Rotate the cowling away from the outer case and remove it from the mini.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 8

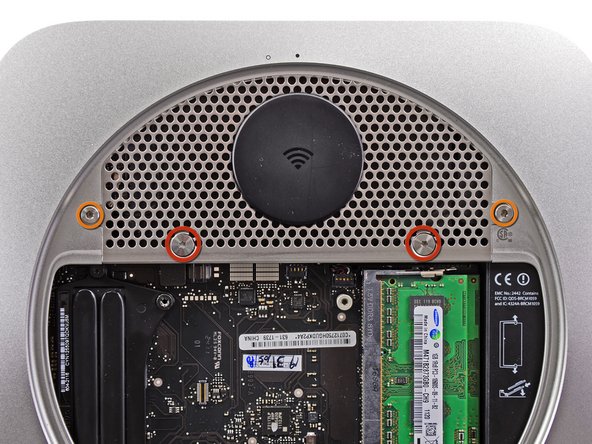

• Remove the following screws securing the antenna plate to the mini:
• Two 6.6 mm T8 Torx screws
• Two 5.0 mm T8 Torx or 2.0 mm Hex screws (either screwdriver will work)
• When putting back together:
• It can be difficult to get the hard drive seated correctly such that the antenna plate fits in place correctly. If the screw holes don't line up with those on the hard drive, make sure that the two pins that are in the back of the hard drive are properly seated in the holes at the back of the case, above the housing for the second hard drive.
• The antenna attaches directly to the hard drive (red markers), therefore attaching the antenna can move the hard drive around and loosen the connection of the hard drive cable to the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 9

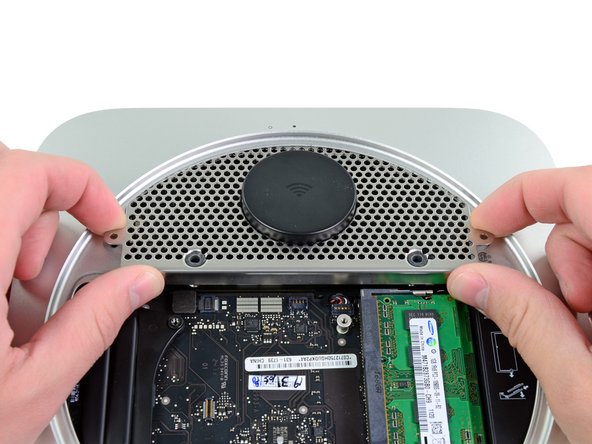

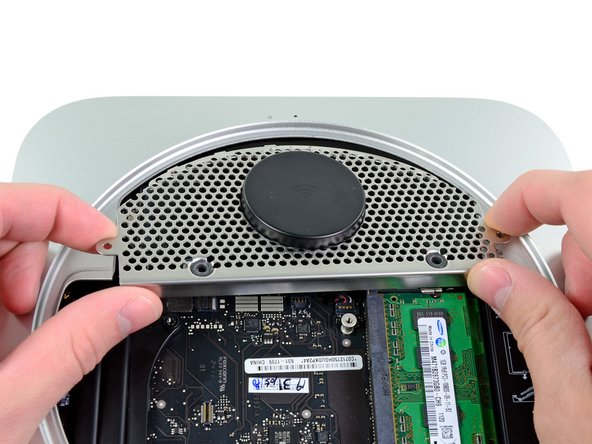

• Slightly lift the antenna plate from the end closest to the RAM.
• Carefully pull the antenna plate away from the circular rim of the outer case.
• Do not remove the antenna plate yet. It is still attached to the AirPort/ Bluetooth board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 10

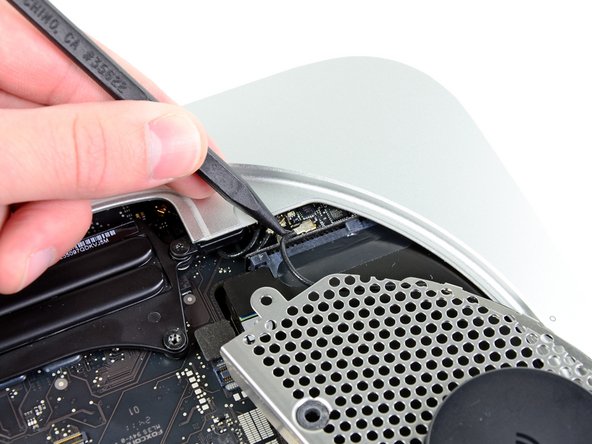

• Use the tip of a spudger to carefully pry the antenna connector up from its socket on the AirPort/Bluetooth board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 11

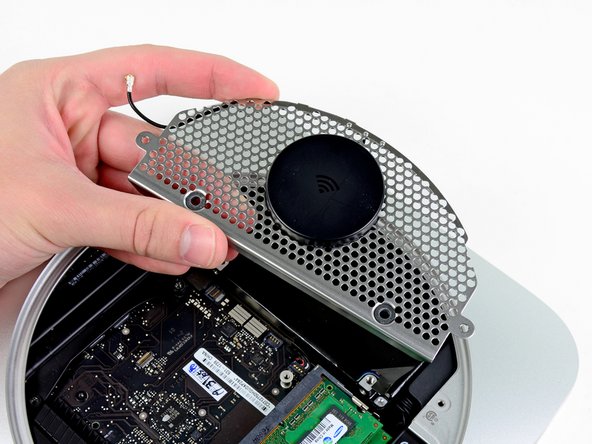

• Remove the antenna plate from the mini.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 12

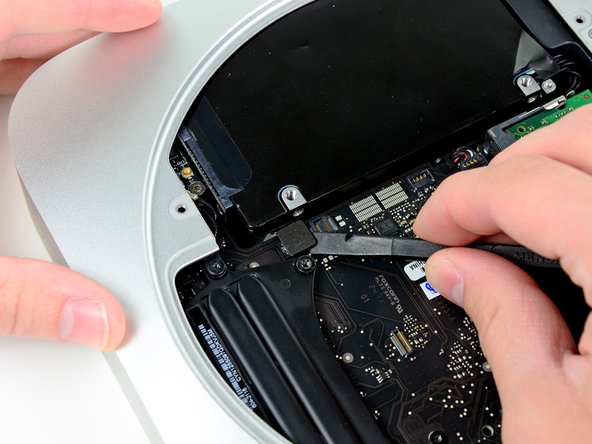

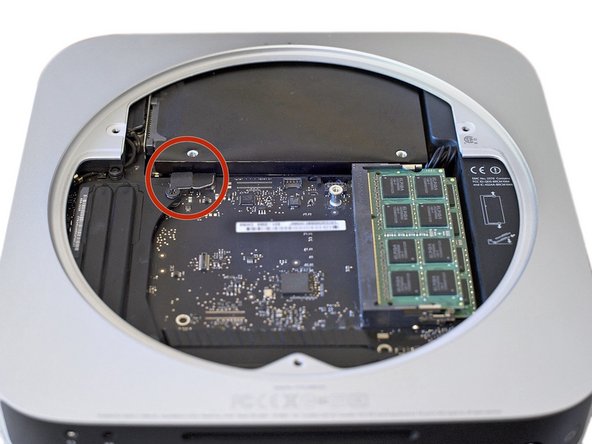

• Use the flat end of a spudger to pry the hard drive connector up from its socket on the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 13

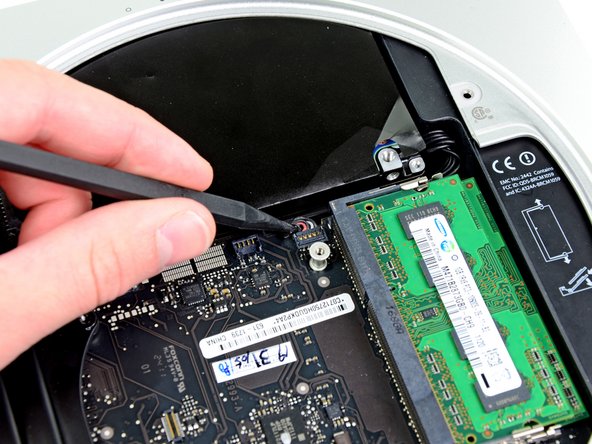

• Use the tip of a spudger to lift the IR sensor connector up and out of its socket on the logic board.
• Make sure to pry up from beneath the wires and not underneath the socket.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 14

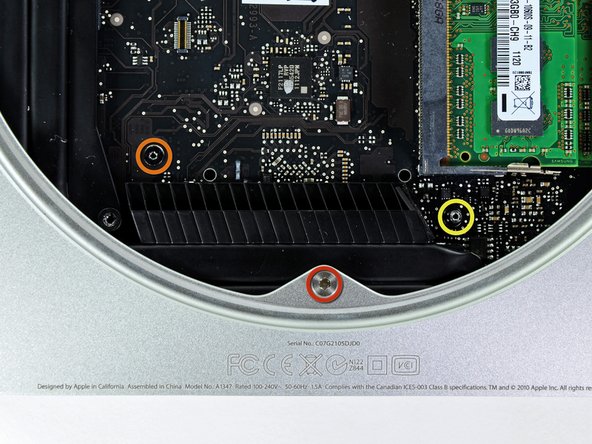

• Remove the following three screws:
• One 5.0 mm T8 Torx or 2.0 mm Hex screw (either screwdriver will work)
• One 16.2 mm T6 Torx screw
• One 26 mm T6 Torx standoff
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 15

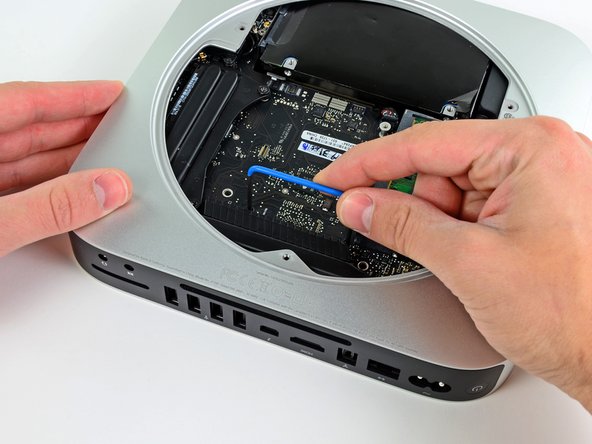

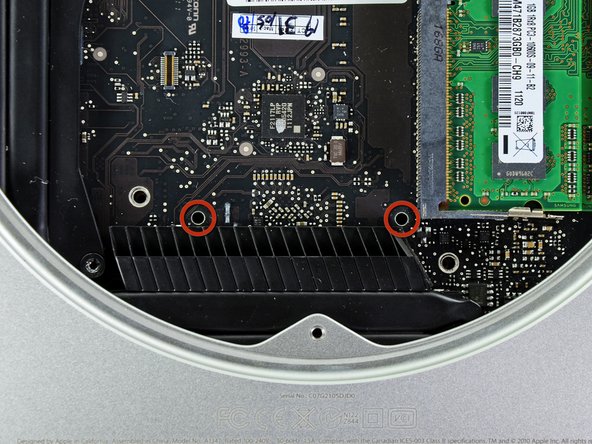

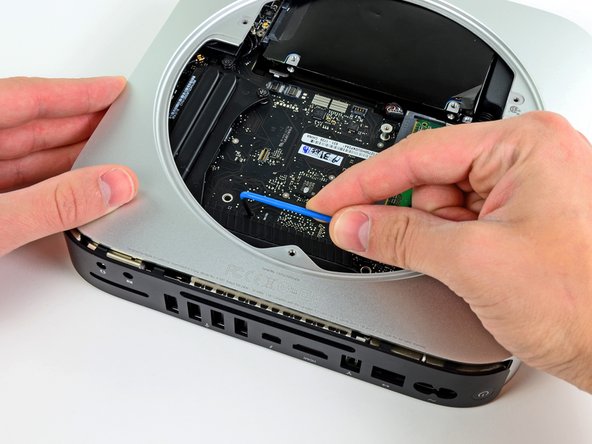

• To remove the logic board, the two cylindrical rods of the Mac Mini Logic Board Removal Tool must be inserted into the holes highlighted in red. Inserting instruments into any logic board holes other than the ones highlighted in red may destroy the logic board.
• Insert the into the two holes highlighted in red. Be sure it makes contact with the top side of outer case below the logic board before proceeding.
• Carefully pull the tool toward the I/O board. The logic board and I/O board assembly should slightly slide out of the outer case.
• Cease prying when the I/O board is visibly separated from the outer case.
• Remove the Mac Mini Logic Board Removal tool.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 16

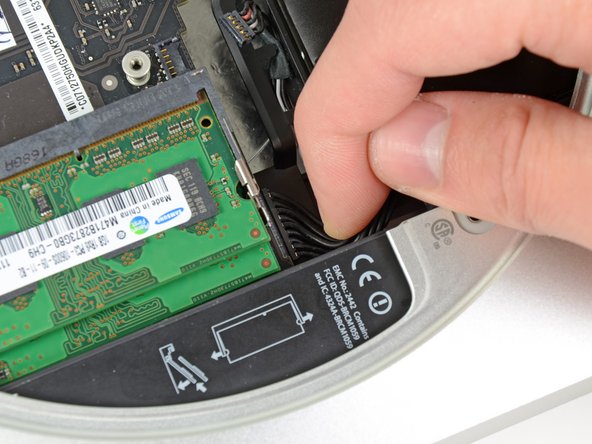

• Pull the I/O board/logic board assembly out of the outer case enough to access the power connector.
• Use your fingers to disconnect the DC-In cable from the logic board.
• Pull the power cable connector toward the front side of the mini.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 17

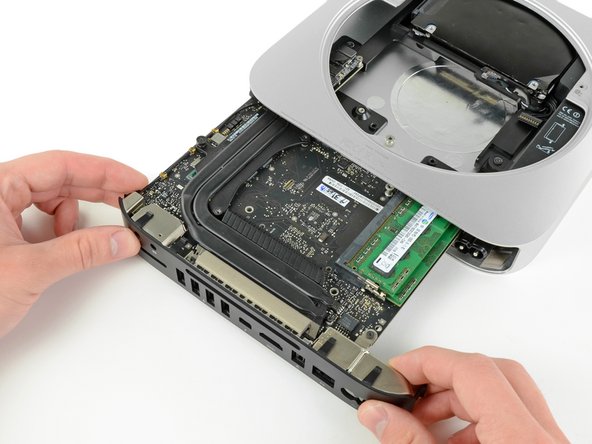

• Carefully slide the logic board assembly out of the mini, minding any cables that may get caught.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 18

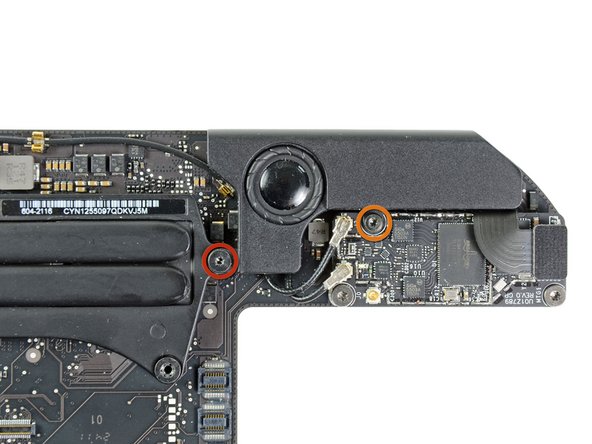

• Remove the following two screws securing the speaker to the logic board assembly:
• One 3.5 mm T6 Torx screw
• One 3.7 mm T6 Torx screw
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 19

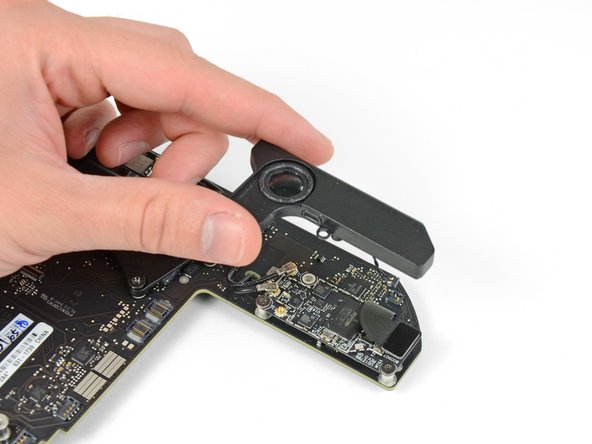

• Lift but do not remove the speaker assembly, as it still remains connected to the logic board via the speaker connector.

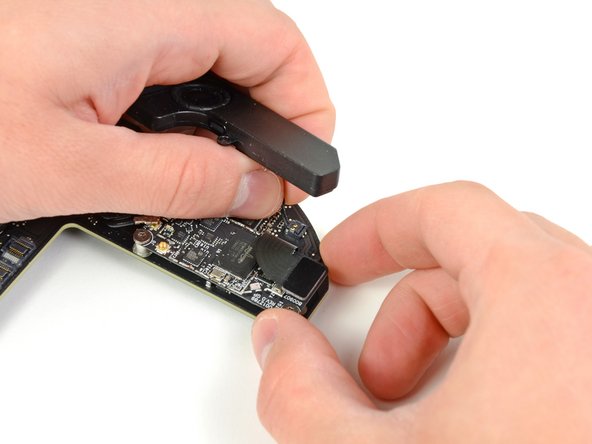

• Carefully lift the speaker wires upward to lift the speaker connector up and out of its socket on the logic board.
• Lift and remove the speaker away from the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 20

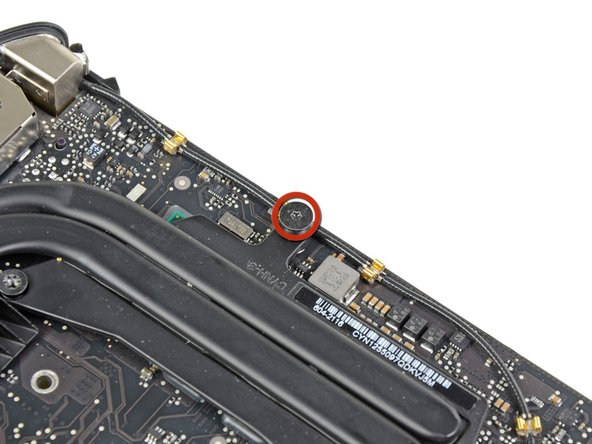

• Remove the single 5 mm T6 Torx standoff from the heat sink near the edge of the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 21

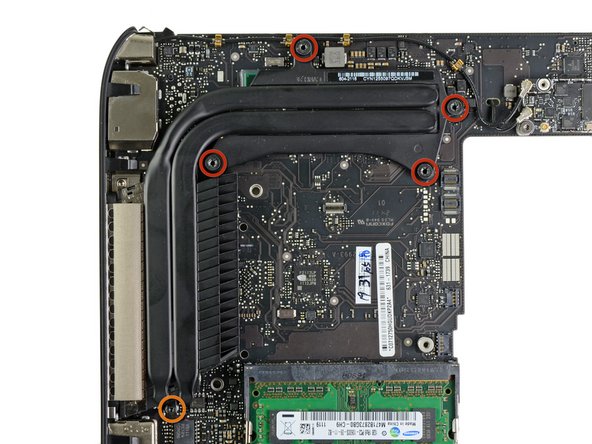

• Remove the following screws securing the heat sink to the logic board:
• Four 8.6 mm T8 Torx screws
• One 2.6 mm T6 Torx screw
• Keep track of the springs held beneath each of the T8 heat sink screws.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 22

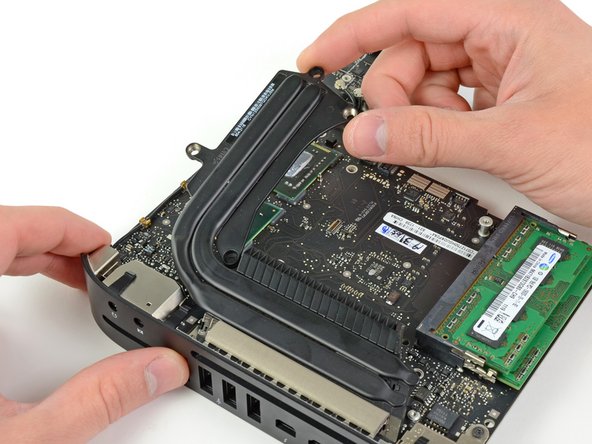

• Remove the heat sink from the logic board, minding any cables that may get caught.
• If the heat sink appears to be stuck to the logic board after removing all screws, it may be helpful to use a spudger to separate the two components.
• If you need to mount the heat sink back onto the logic board, we have a thermal paste guide that makes replacing the thermal compound easy.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
