Introduction
Remove the top housing to access your mini's internals.
What you need
-
-
You'll need a putty knife in order to open the case. A 1.5 inch thin putty knife will work well, but you'll want to grind the edge down. Rub the putty knife's short edge back and forth on a sheet of all purpose rough grit sandpaper (100 grit will work fine) until it attains a beveled edge.
-
-
-

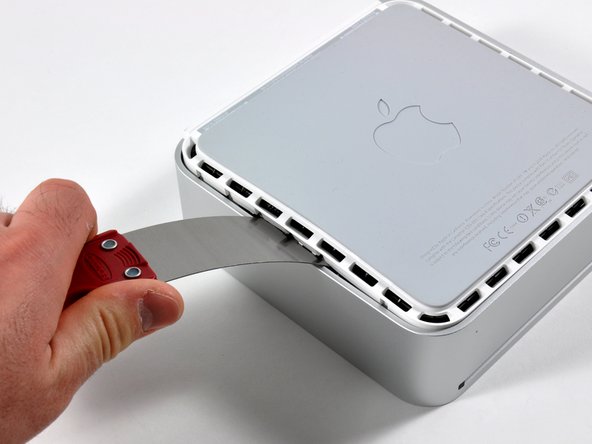

Carefully insert a putty knife into the crevice in between the top cover and bottom housing. Start on the left side first. Push the blade down until you meet firm resistance (roughly 3/8 of an inch).
-
Gently enlarge the existing crevice by rotating the putty knife downward and away from the mini.
-

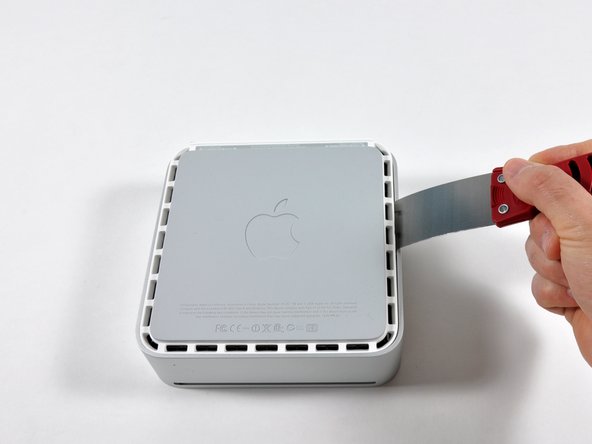

This is easier if you use two putty knives. Insert the first putty knife at the point on the left side where the gap is largest, press the handle of the knife downward and away from the mini.
-
Then insert the second knife next to it and push that knife down and out.
-
Take the first knife out of the mini and put it back in on the other side of the second knife, push down and out.
-
Repeat this process all the way around the mini.
-
-
-
The top cover should now be marginally separated from the bottom housing. Use your fingers to completely separate the two, starting with the I/O side of the mini.
-
To reassemble your device, follow these instructions in reverse order.
