MacBook Air 11" Mid 2011 Fan Replacement
Introduction
Go to step 1Use this guide to replace a noisy fan.
-
-
Remove the following ten screws:
-
Two 8 mm 5-point Pentalobe screws
-
Eight 2.5 mm 5-point Pentalobe screws
-
-
-

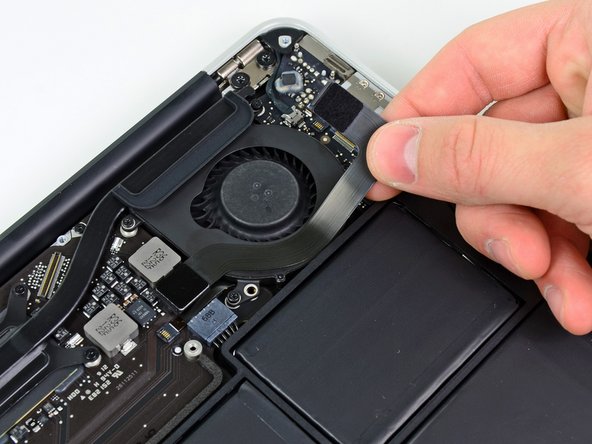

Wedge your fingers between the display and the lower case and pull upward to pop the lower case off the Air.
-
-
-

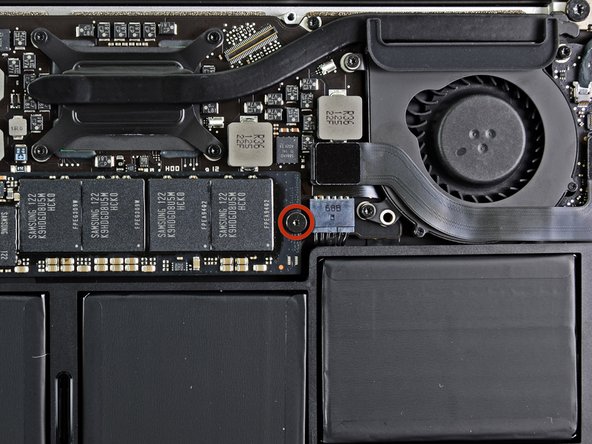

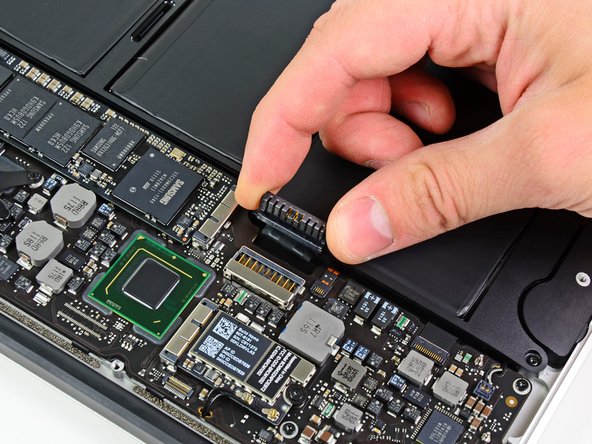

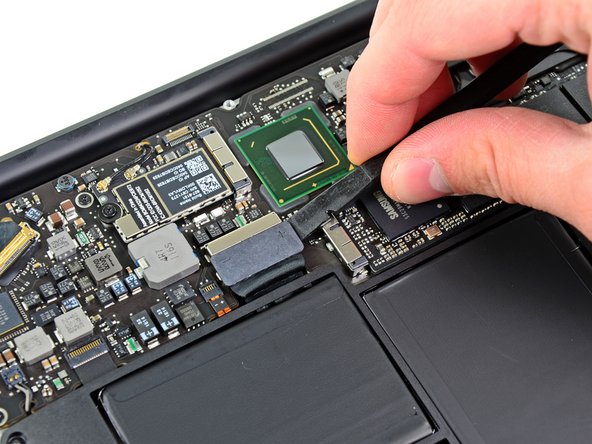

Use the flat end of a spudger to pry both short sides of the battery connector upward to disconnect it from its socket on the logic board.
-
Bend the battery cable slightly away from the logic board so the connector will not accidentally contact its socket.
-
-
-
Use a spudger to help lift the free end of the SSD just enough to grab it with your other hand.
-

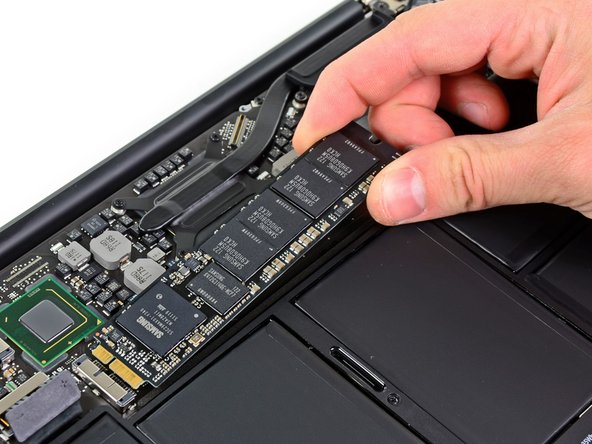

Pull the drive straight out of its socket and remove it from the logic board.
-
-
-

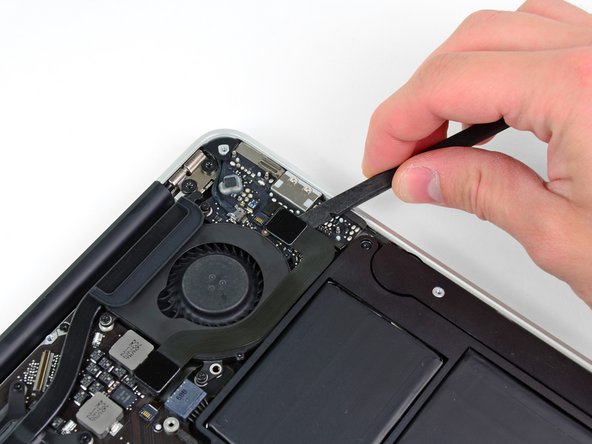

Use the flat end of a spudger to pry the I/O board cable up from its socket on the I/O board.
-
-
-

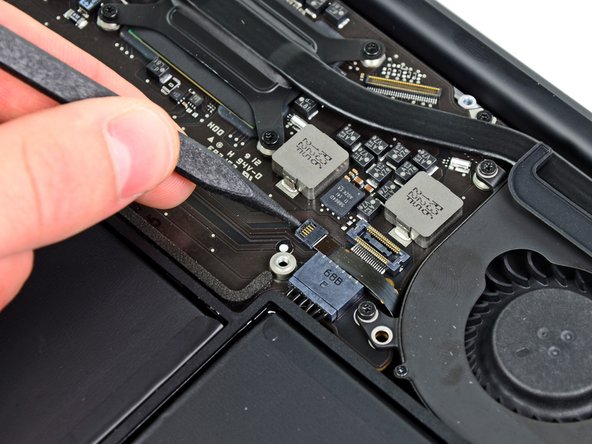

Use the flat end of a spudger to lift the I/O board connector up and out of its socket on the logic board
-
Remove the I/O board cable.
-
-
-

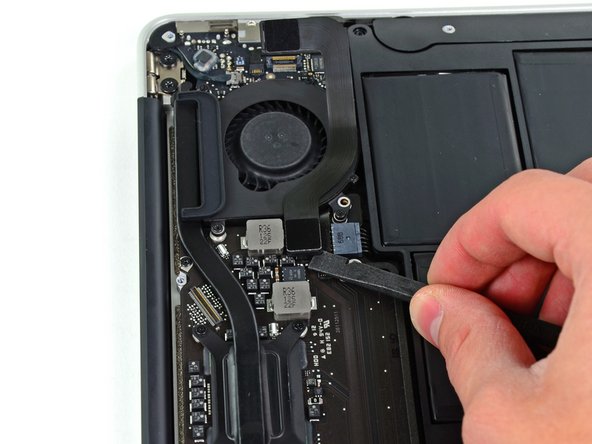

Use the tip of a spudger to carefully flip up the retaining flap on the fan cable ZIF socket.
-
-
-

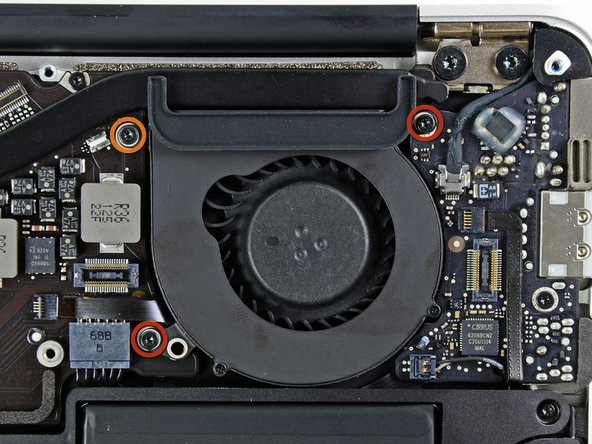

Remove the following three screws securing the fan to the upper case:
-
Two 5.2 mm T5 Torx screws
-
One 3.6 mm T5 Torx screw
-
-
-

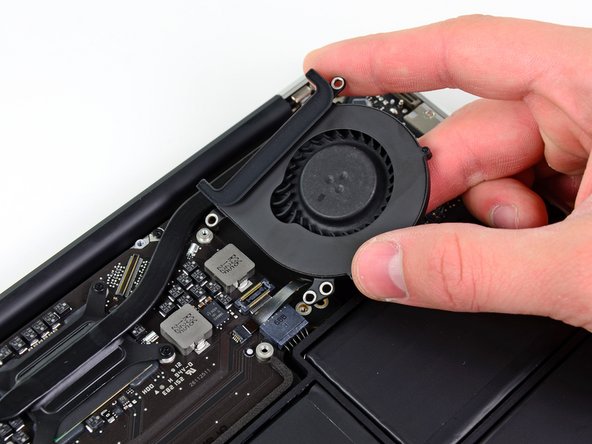

Lift the fan out of the upper case and carefully pull the fan ribbon cable out of its socket as you remove it from the Air.
-
To reassemble your device, follow these instructions in reverse order.
To reassemble your device, follow these instructions in reverse order.
