MacBook Air 13" Late 2010 Right Speaker Replacement

Introduction

Use this guide to replace a blown-out right speaker.

What you need

  1. MacBook Air 13" Late 2010 Right Speaker Replacement, MacBook Air 13" Late 2010 Right Speaker Replacement: step 1, image 1 of 1

    • Before proceeding, close your computer and lay it on a soft surface top-side down.

    • Remove the following ten screws:

    • Two 9 mm 5-point Pentalobe screws

    • Eight 2.6 mm 5-point Pentalobe screws

    • The special screwdriver needed to remove the eight 5-point Pentalobe screws can be found .

  2. MacBook Air 13" Late 2010 Right Speaker Replacement: step 2, image 1 of 1

    • Wedge your fingers between the display and the lower case and pull upward to pop the lower case off the Air.

    • Remove the lower case and set it aside.

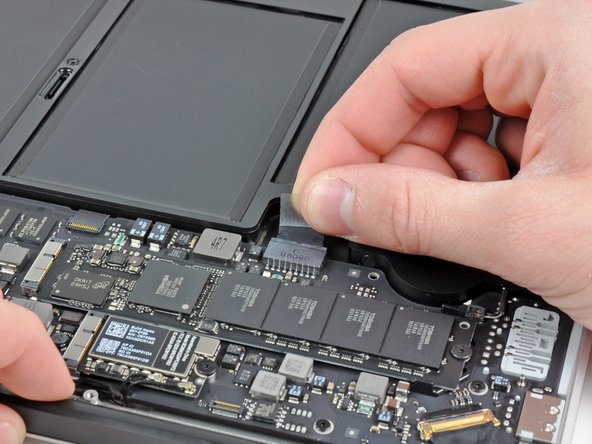

  3. MacBook Air 13" Late 2010 Right Speaker Replacement: step 3, image 1 of 1

    • Grab the clear plastic pull tab attached to the battery connector and pull it toward the front edge of the Air to disconnect the battery from the logic board.

    • Do not lift upward on the connector as you disconnect it.

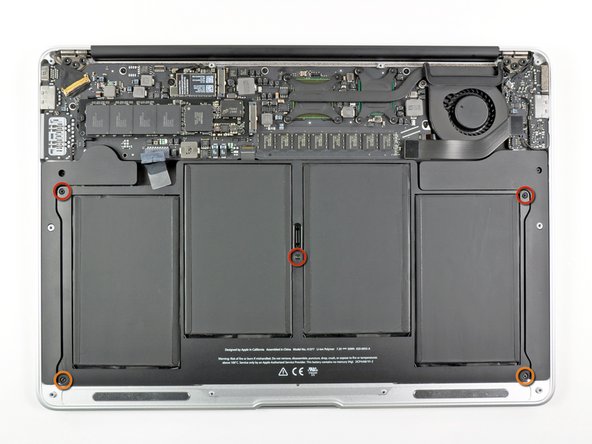

  5. MacBook Air 13" Late 2010 Right Speaker Replacement: step 4, image 1 of 1

    • Remove the following five screws securing the battery to the upper case:

    • Three 6.3 mm T5 Torx screws

    • Two 2.4 mm T5 Torx screws

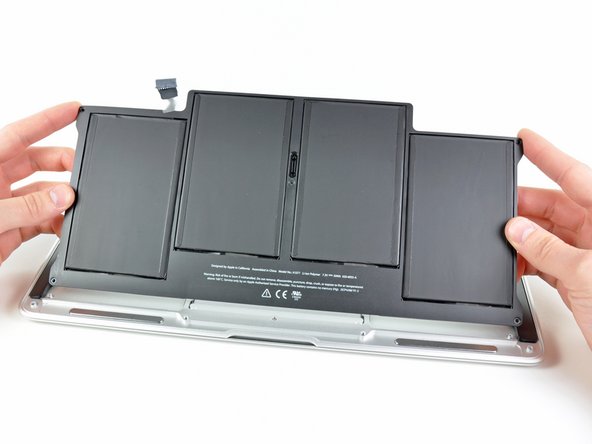

  6. MacBook Air 13" Late 2010 Right Speaker Replacement: step 5, image 1 of 1

    • When handling the battery, avoid squeezing or touching the four exposed lithium polymer cells.

    • Lift the battery from its edge nearest the logic board and remove it from the upper case.

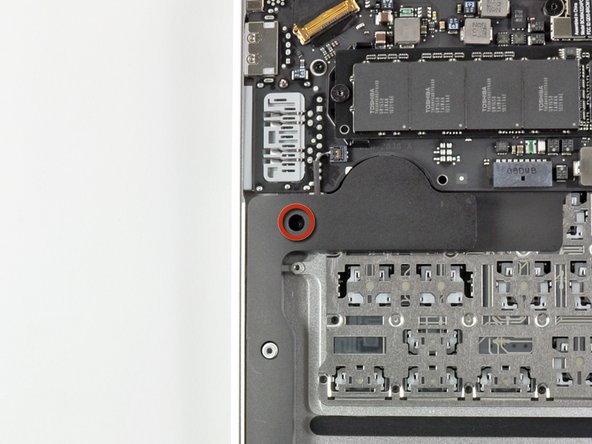

  7. MacBook Air 13" Late 2010 Right Speaker Replacement: step 6, image 1 of 1

    • Remove the single 2.7 mm T5 Torx screw securing the right speaker to the upper case.

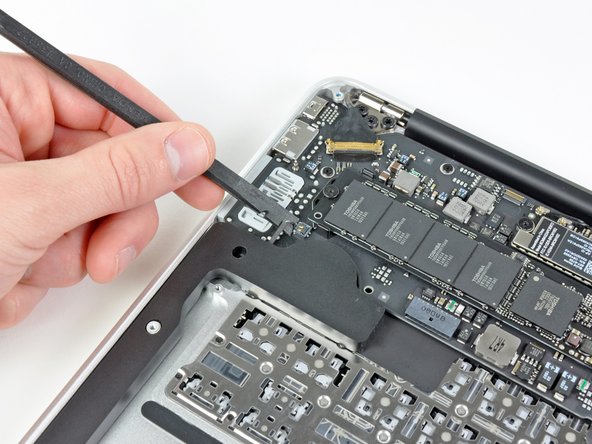

  8. MacBook Air 13" Late 2010 Right Speaker Replacement: step 7, image 1 of 1

    • Use the flat end of a spudger to pry the right speaker connector up and out of its socket on the logic board.

    • Pry up from beneath the wires.

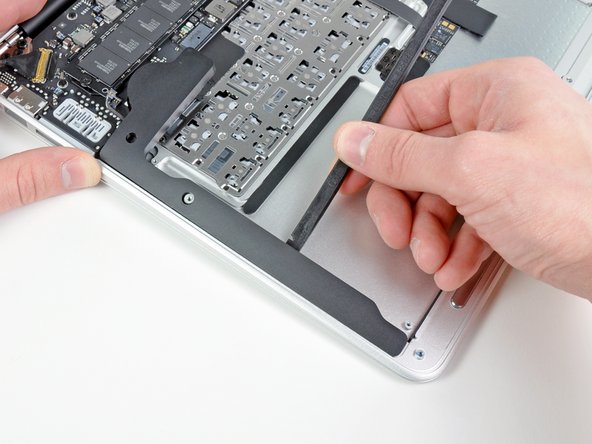

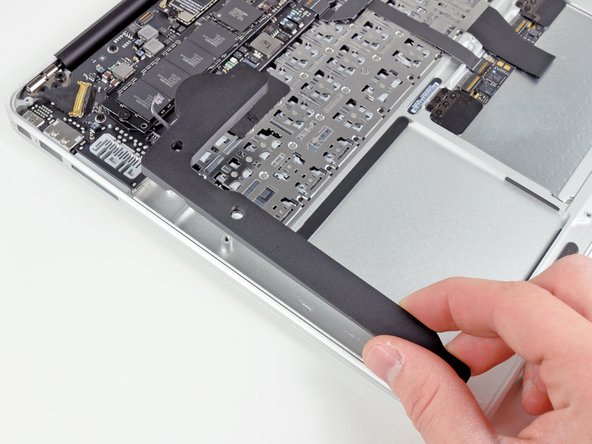

  9. MacBook Air 13" Late 2010 Right Speaker Replacement: step 8, image 1 of 2 MacBook Air 13" Late 2010 Right Speaker Replacement: step 8, image 2 of 2

    • Use the flat end of a spudger to pry the right speaker off the adhesive securing it to the upper case.

    • Remove the right speaker from the upper case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
