MacBook Air Models A1237 and A1304 AirPort/Bluetooth Board Replacement

Remove the following 10 screws securing the lower case to the Air:

Six 2.8 mm Phillips screws.

Two 3.8 mm Phillips screws.

Two 5.4 mm Phillips screws.

Slightly lift the lower case near the vents and push it toward the rear of the computer to free the mounting tabs.

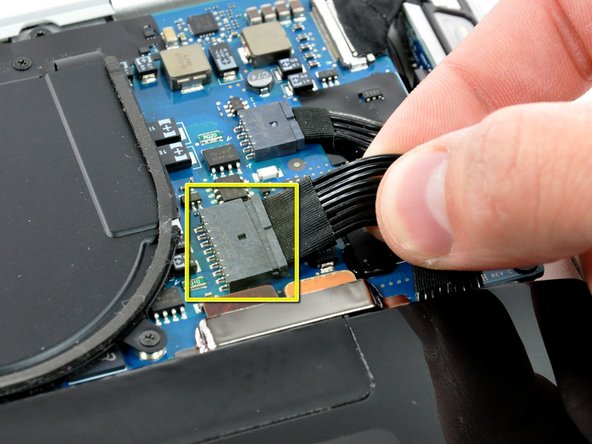

Disconnect the battery connector by pulling it straight out of its socket.

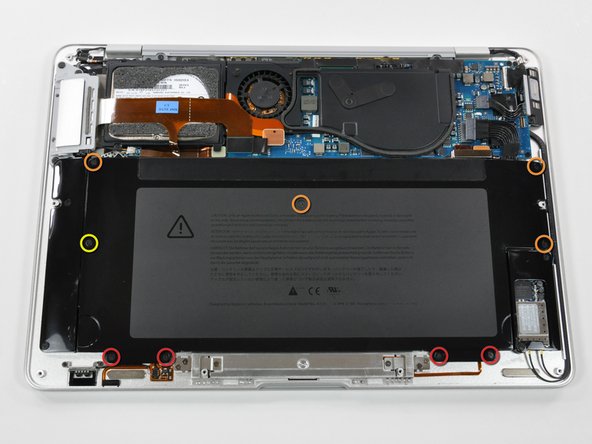

Remove the following nine screws securing the battery to the Air:

Four 2.9 mm Phillips.

Four 3.8 mm Phillips.

One 7.2 mm Phillips.

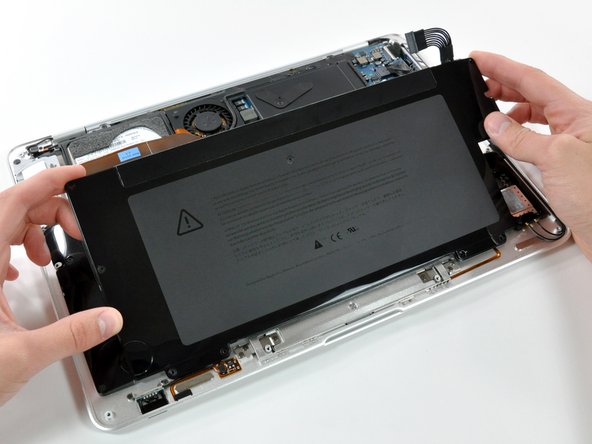

Lift the battery out of the Air.

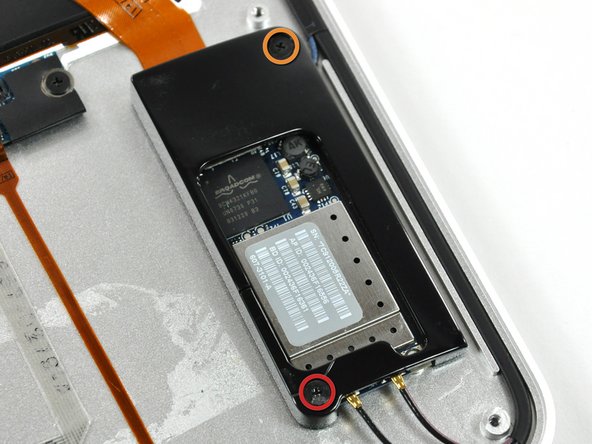

Remove the two following screws securing the AirPort/Bluetooth board bracket to the upper case:

One 4.7 mm Phillips.

One 3.9 mm Phillips.

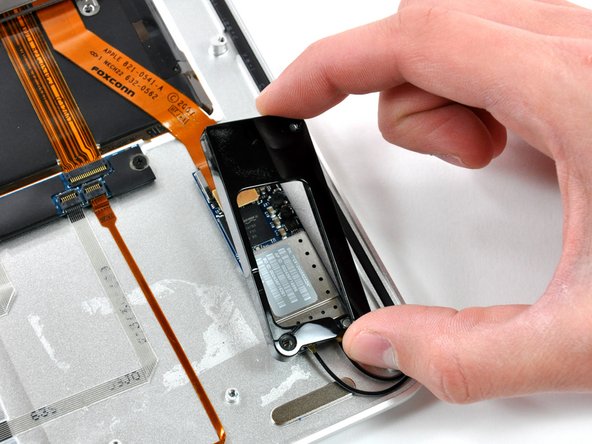

Lift the AirPort/Bluetooth bracket out of the upper case.

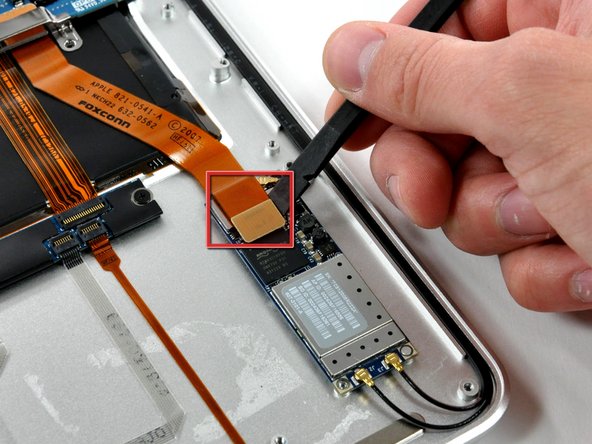

Using a spudger, pry the AirPort/Bluetooth ribbon cable connector straight up off the AirPort/Bluetooth board.

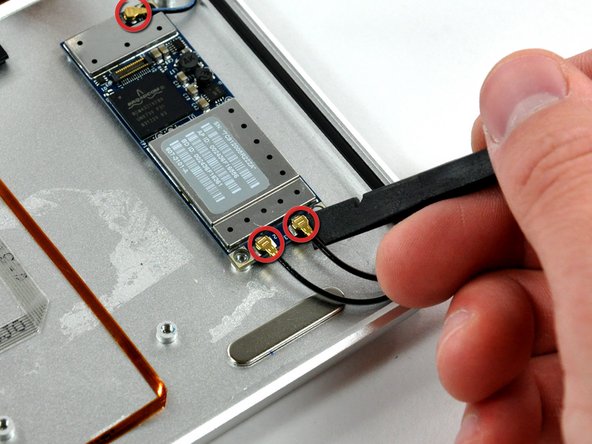

Use a spudger to pry the three antenna cables up off the AirPort/Bluetooth board.

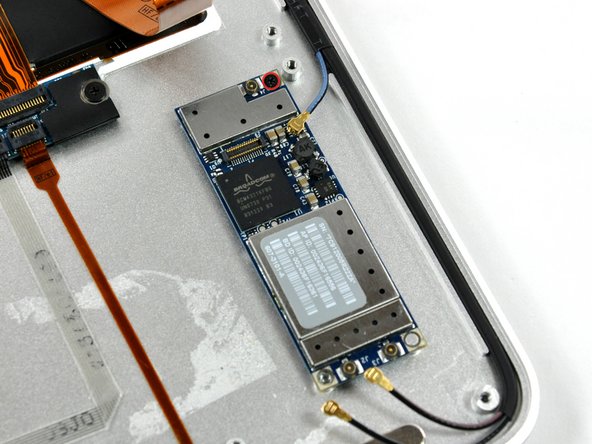

Remove the single 3.2 mm Phillips screw from the upper right corner of the AirPort/Bluetooth board.

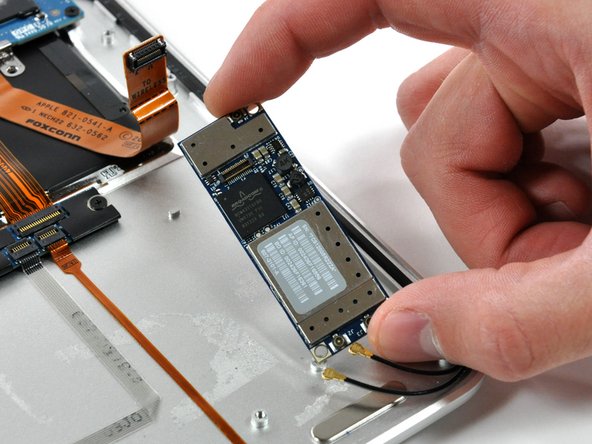

Lift the AirPort/Bluetooth board out of the upper case.
