Introduction
Go to step 1 ↓Replacing your lower case is easy! It only takes 10 screws.
-
-
-
Remove the following 10 screws securing the lower case to the Air:
-
Six 2.8 mm Phillips screws.
-
Two 3.8 mm Phillips screws.
-
Two 5.4 mm Phillips screws.
-
-
-

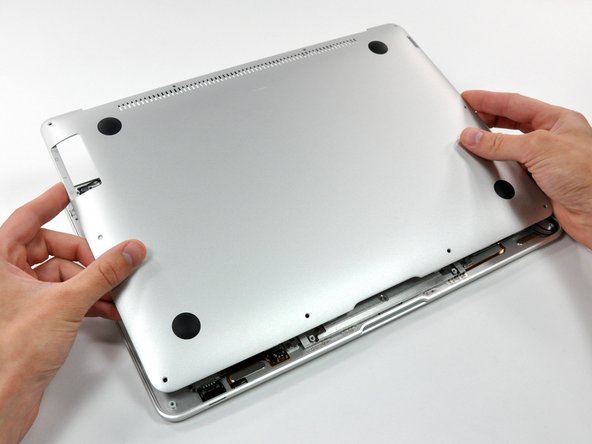

Slightly lift the lower case near the vents and push it toward the rear of the computer to free the mounting tabs.
-
-
To reassemble your device, follow these instructions in reverse order.
