Introduction
Use this guide to replace a noisy or burned-out fan.
What you need
-
-
Remove the following ten screws:
-
Three 14.4 mm Phillips #00 screws
-
Three 3.5 mm Phillips #00 screws
-
Four 3.5 mm shouldered Phillips #00 screws
-
-
-

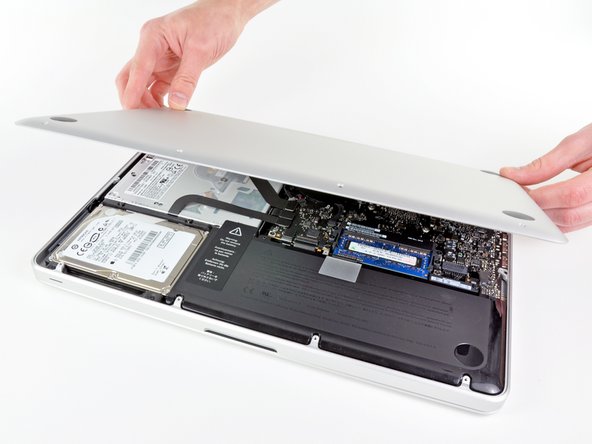

Use your fingers to pry the lower case away from the body of the MacBook near the vent.
-
Remove the lower case.
-
-
-

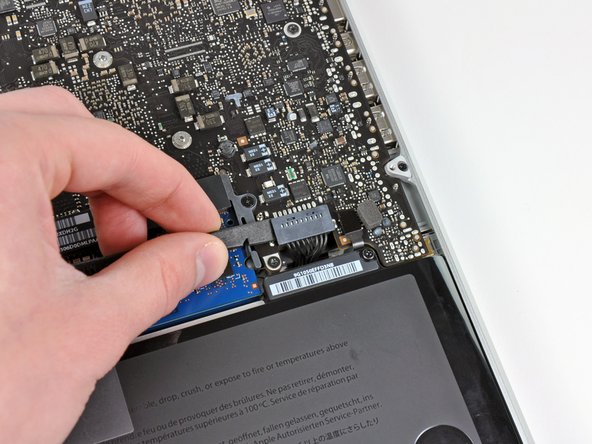

Use the edge of a spudger to pry the battery connector upwards from its socket on the logic board.
-
-
-

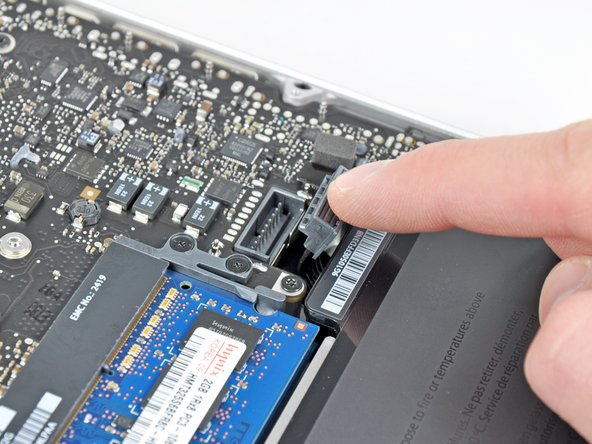

Bend the battery cable slightly away from its socket on the logic board so it does not accidentally connect itself while you work.
-
-
-

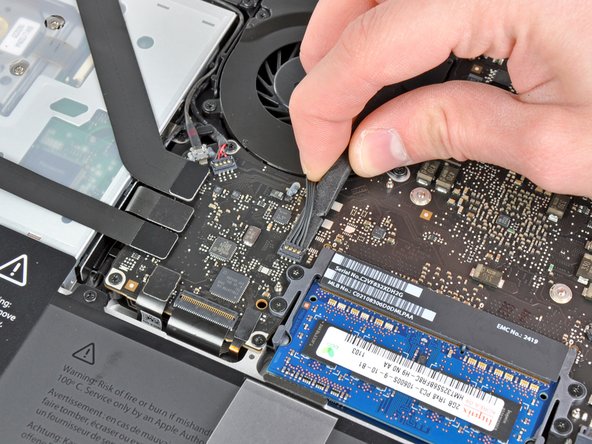

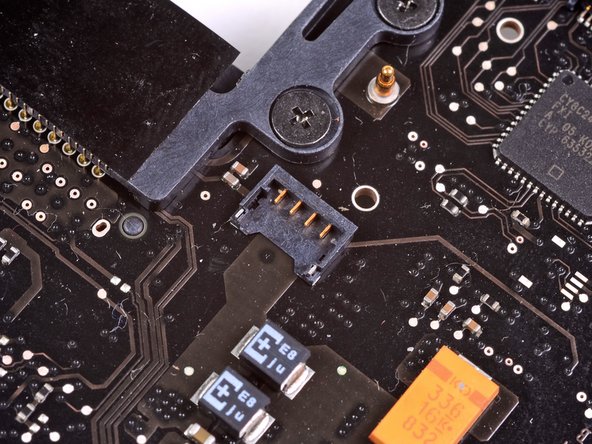

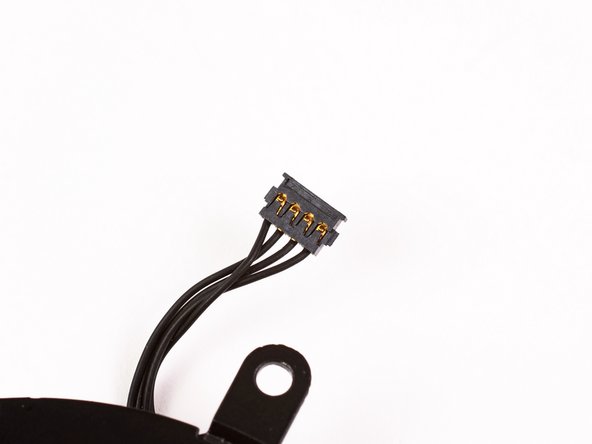

Use the edge of a spudger to gently pry the fan connector up and out of its socket on the logic board.
-
-
-

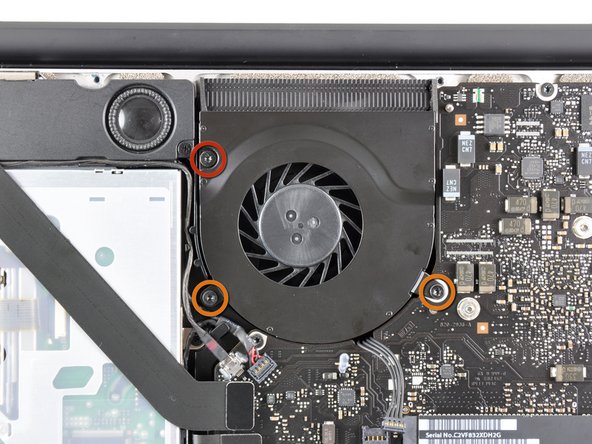

Remove the following three screws securing the fan to the logic board:
-
One 7.2 mm T6 Torx screw
-
Two 5.3 mm T6 Torx screws
-

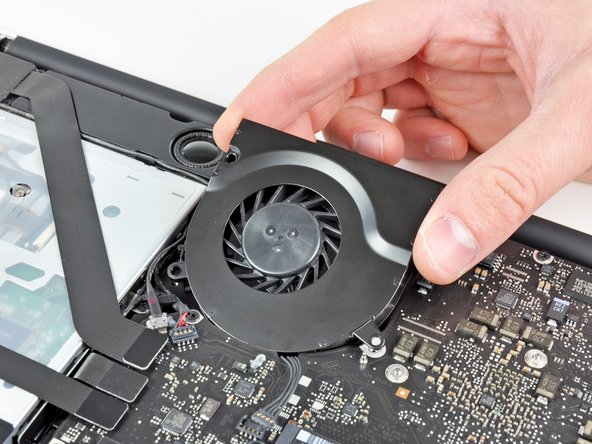

To reassemble your device, follow these instructions in reverse order.
