MacBook Pro 13" Unibody Early 2011 Right Speaker/Subwoofer Replacement

Step 1 MacBook Pro 13" Unibody Early 2011 Right Speaker/Subwoofer Replacement

• Remove the following ten screws:
• Three 14.4 mm Phillips #00 screws
• Three 3.5 mm Phillips #00 screws
• Four 3.5 mm shouldered Phillips #00 screws
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

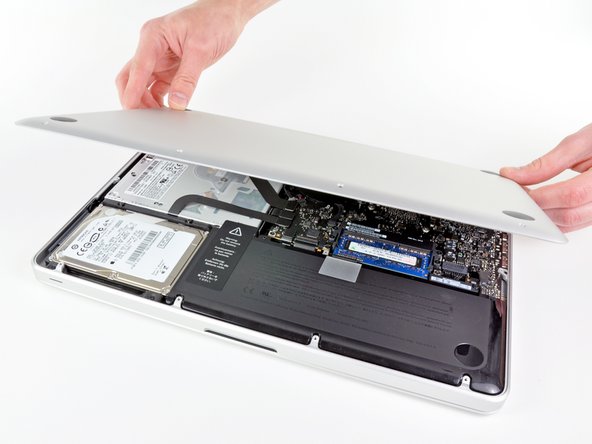

• Use your fingers to pry the lower case away from the body of the MacBook near the vent.
• Remove the lower case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

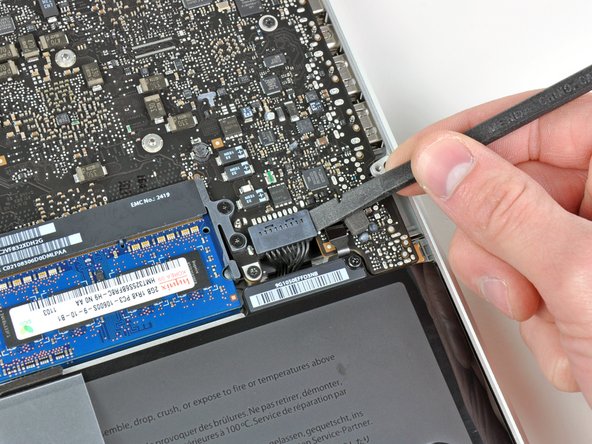

• Use the edge of a spudger to pry the battery connector upwards from its socket on the logic board.

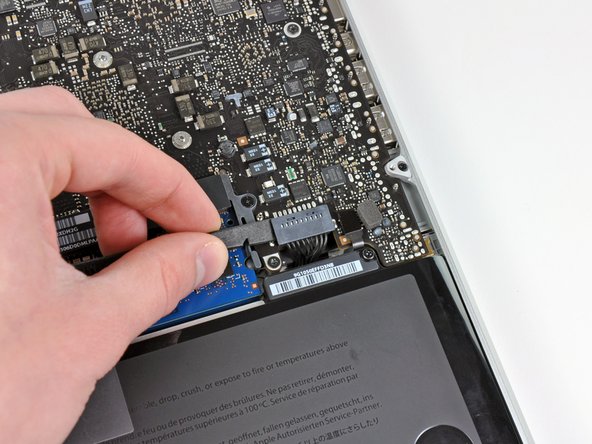

• It is useful to pry upward on both short sides of the connector to "walk" it out of its socket. Be careful with the corners of the connectors, they can be easily broken off.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

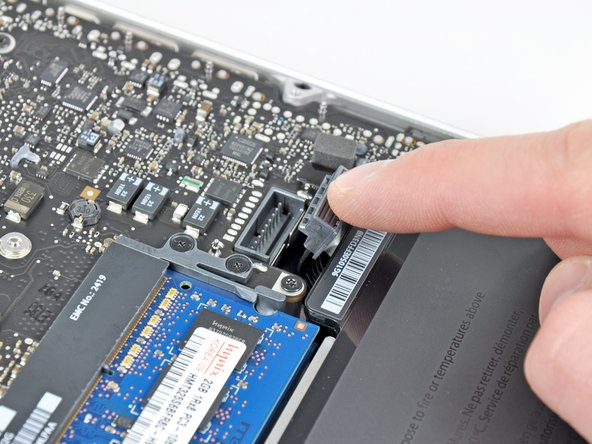

• Bend the battery cable slightly away from its socket on the logic board so it does not accidentally connect itself while you work.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

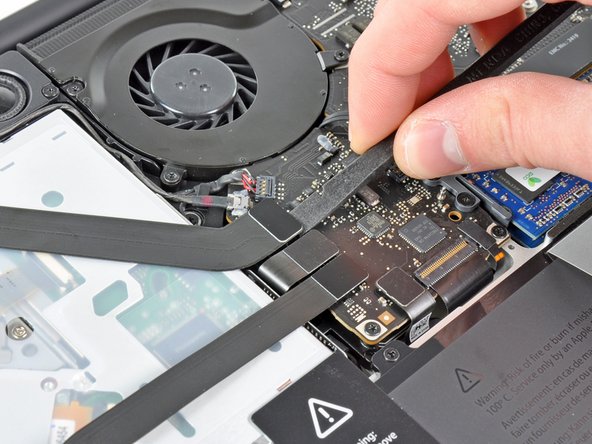

• Use the flat end of a spudger to pry the AirPort/Bluetooth ribbon cable connector up from its socket on the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

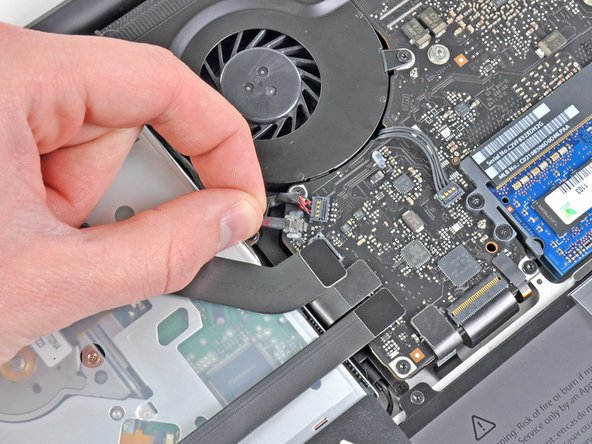

• Carefully pull the camera cable out of its socket on the logic board.
• Though not recommended by iFixit staff, some users opt to omit this step completely. For information on this, see the step comments.
• Pull the cable parallel to the face of the logic board. Pulling it upward may damage the logic board or the cable itself.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 7

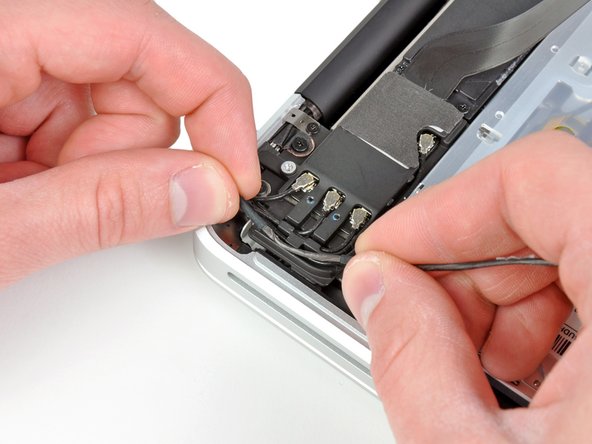

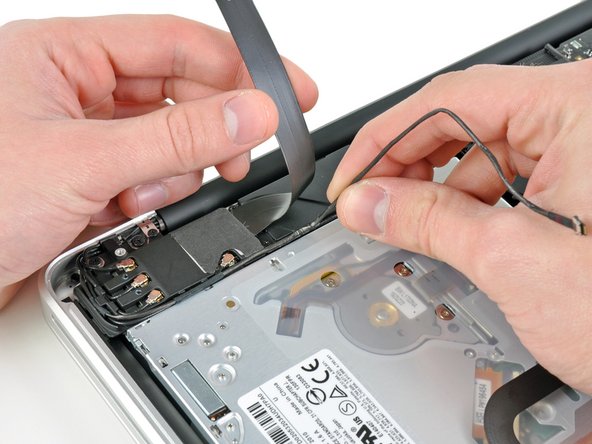

• Carefully move the AirPort/Bluetooth ribbon cable out of the way as you peel the camera cable off the adhesive securing it to the subwoofer and the AirPort/Bluetooth bracket.
• De-route the camera cable out from under the retaining finger molded into the AirPort/Bluetooth bracket.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 8

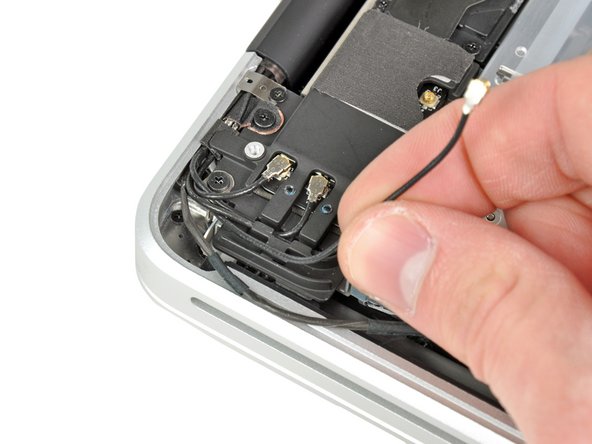

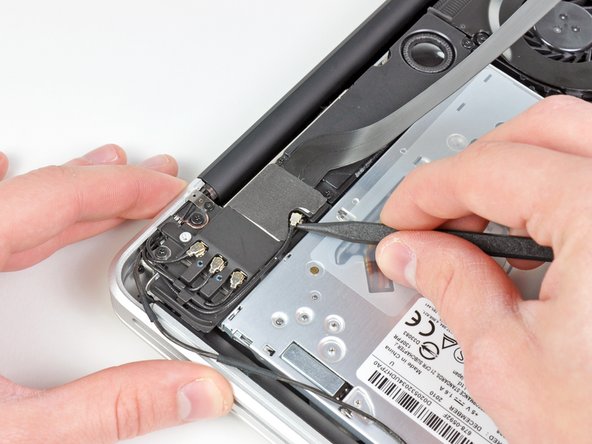

• Use the tip of a spudger to pry the antenna connector closest to the logic board up from its socket on the AirPort/Bluetooth board.
• De-route the antenna cable from under the finger molded into the AirPort/Bluetooth bracket.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 9

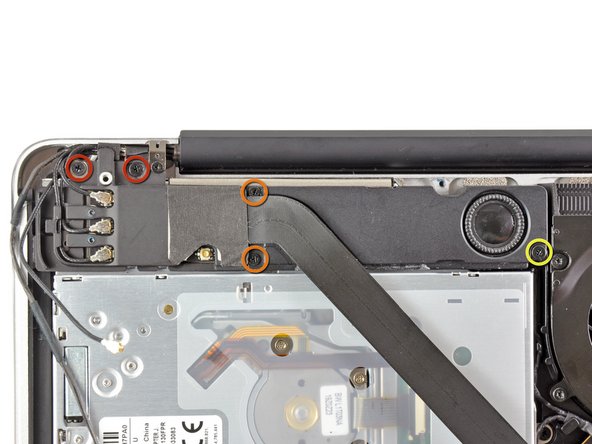

• Remove the following five screws:
• Two 10.3 mm Phillips screws
• Two 3.1 mm Phillips screws
• One 5 mm Phillips screw
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 10

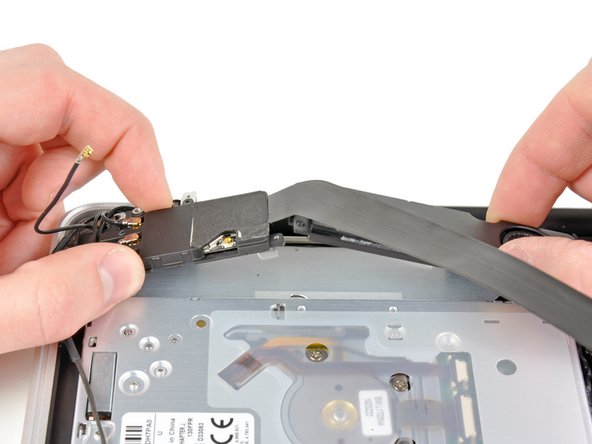

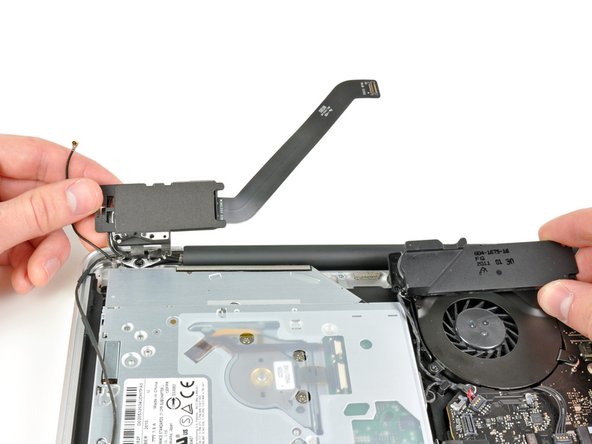

• Pull the AirPort/Bluetooth assembly and the Subwoofer upward near the center of the side of the optical drive until they clear each other.
• Move the AirPort/Bluetooth assembly and the subwoofer away from the top of the optical drive.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 11

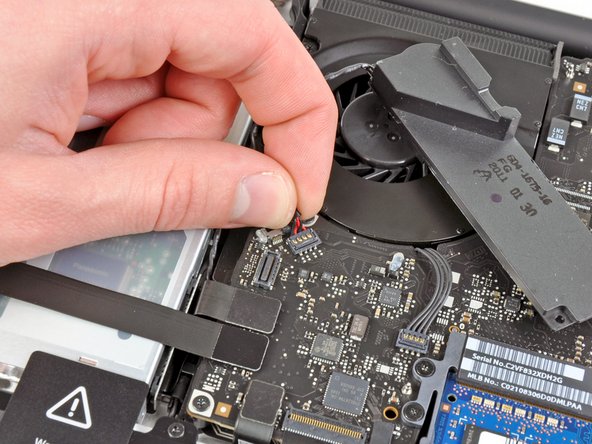

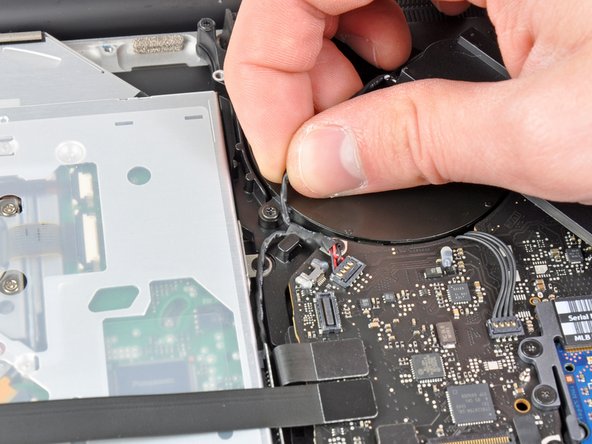

• Pull the right speaker/subwoofer cable out from under the retaining finger near the side of the optical drive.
• Pull the right speaker/subwoofer cable upward to disconnect it from the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 12

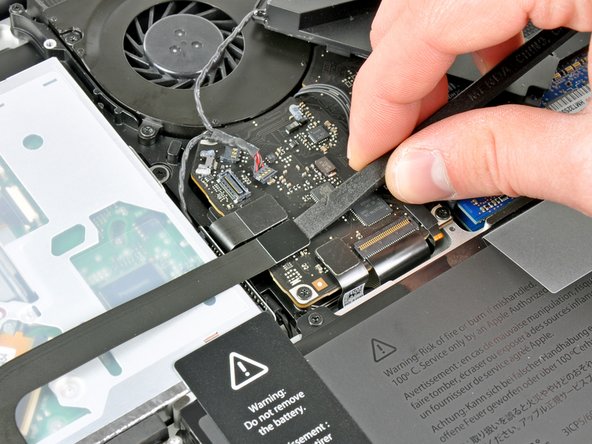

• Use the flat end of a spudger to pry the hard drive cable connector up from its socket on the logic board.
• Bend the hard drive cable away from the optical drive.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 13

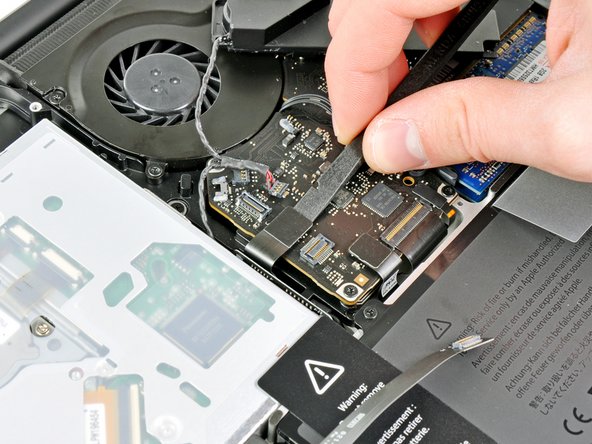

• Use the flat end of a spudger to pry the optical drive connector up from its socket on the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 14
• Remove the three 2.7 mm Phillips screws securing the optical drive to the upper case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 15

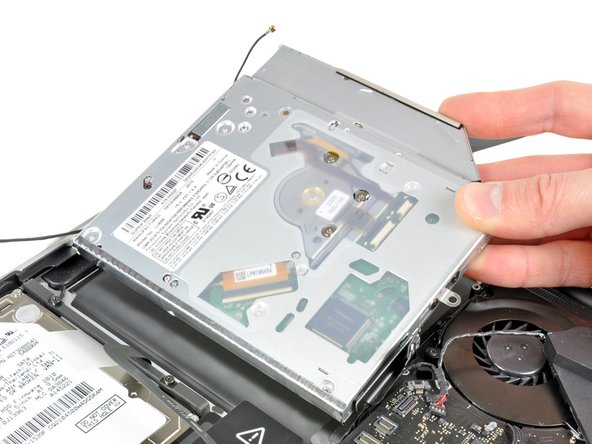

• Pull the optical drive upward from its edge closest to the display and remove it from the upper case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 16

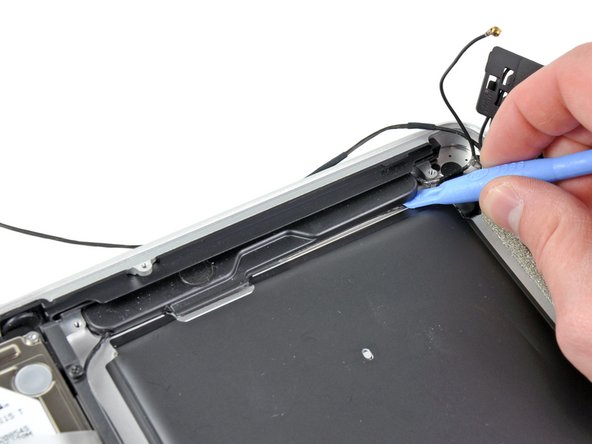

• Use a plastic opening tool or another thin prying object to carefully pry the right speaker up from the adhesive securing it to the upper case.
• Start prying up from the edge of the right speaker nearest the display. Starting from the other side may damage one of the antennas.
• Pry up along the edge of the right speaker until it is separated from the upper case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 17

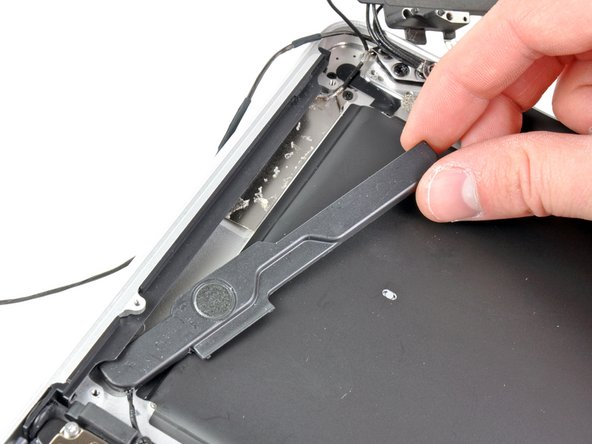

• Pull the right speaker away from the optical drive opening.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 18

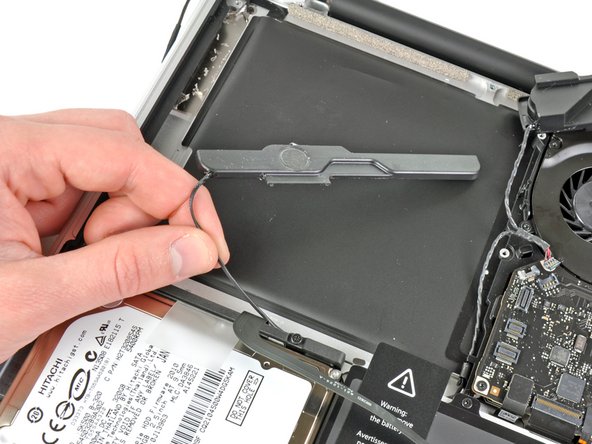

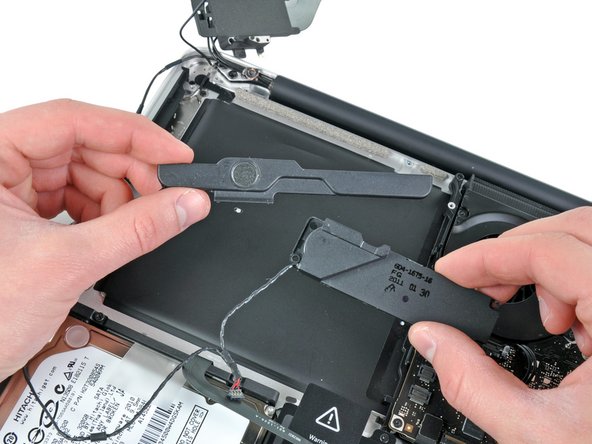

• Peel up the right speaker cable along the edge of the optical drive opening.
• De-route the cable from the clips near the edge of the logic board.
• Remove the right speaker/subwoofer assembly from the upper case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
