Introduction
Use this guide to replace the AirPort antenna assembly.
What you need
-
-
Remove the following 10 screws securing the lower case to the MacBook Pro 13" Unibody:
-
Seven 3 mm Phillips screws.
-
Three 13.5 mm Phillips screws.
-
-
-
Slightly lift the lower case and push it toward the rear of the computer to free the mounting tabs.
-
-
-

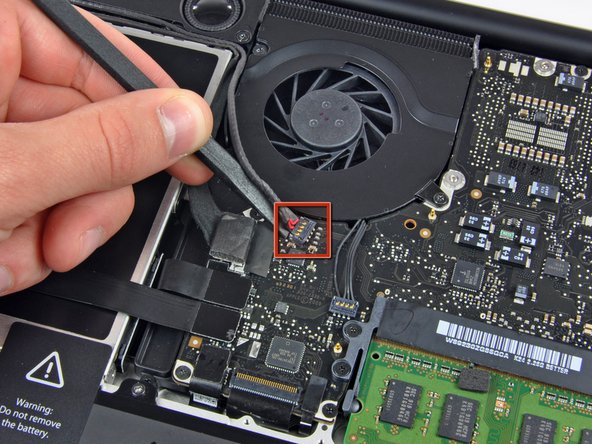

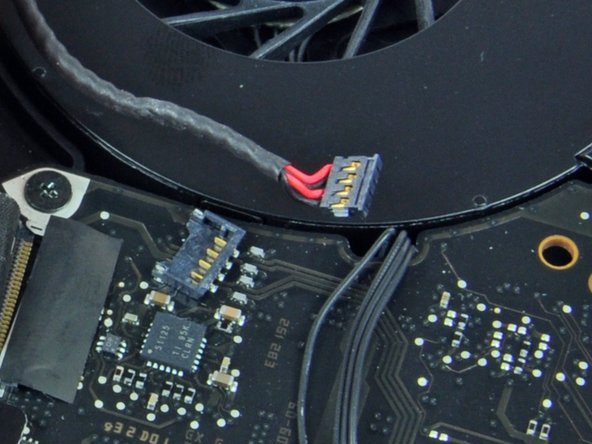

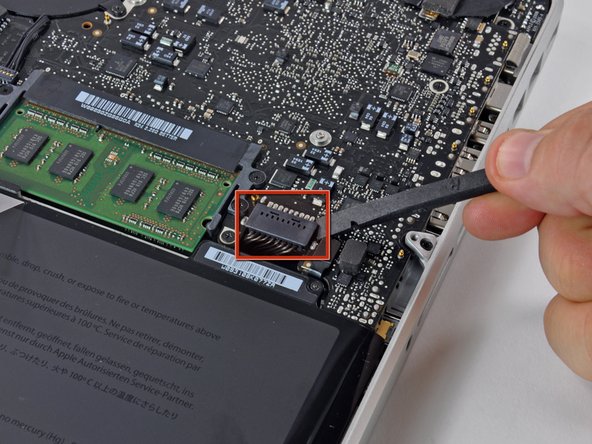

Use the flat end of a spudger to lift the battery connector up out of its socket on the logic board.
-
-
-
Use the flat end of a spudger to pry the subwoofer/right speaker cable connector up off its socket on the logic board.
-
-
-

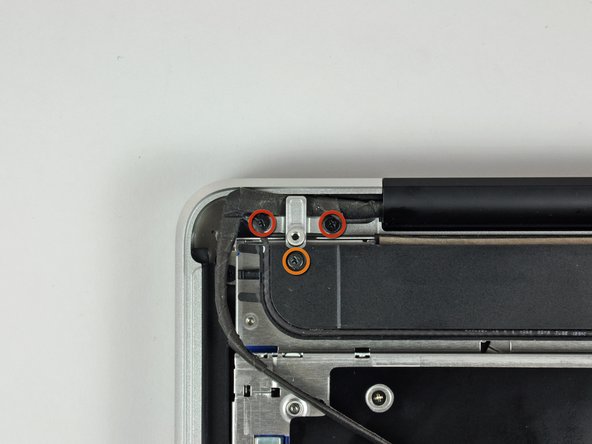

Remove the following screws securing the camera data cable and right speaker to the upper case:
-
Two 8 mm Phillips screws.
-
One 4mm Phillips screw.
-
Slide the camera cable bracket out from under the subwoofer and remove it from the computer.
-
-
-

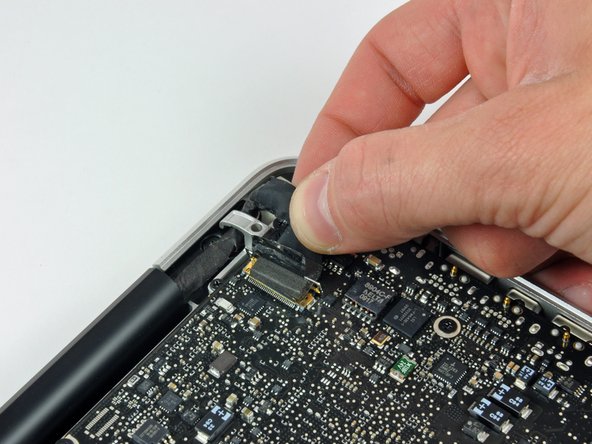

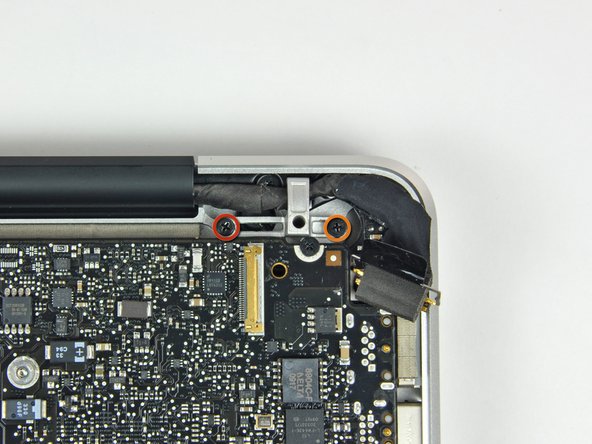

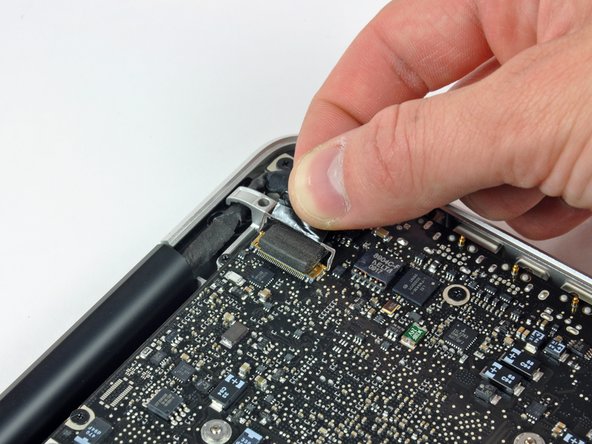

Grab the plastic pull tab secured to the display data cable lock and rotate it toward the DC-in side of the computer.
-
Pull the display data cable connector straight away from its socket.
-
-
-

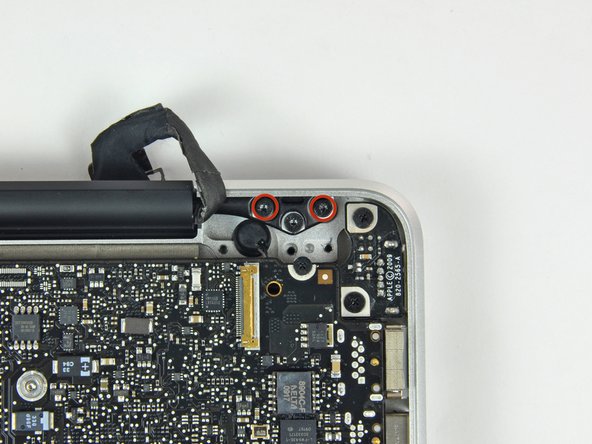

Remove the following two screws securing the display data cable bracket to the upper case:
-
One 7 mm Phillips screw.
-
One 5 mm Phillips screw.
-

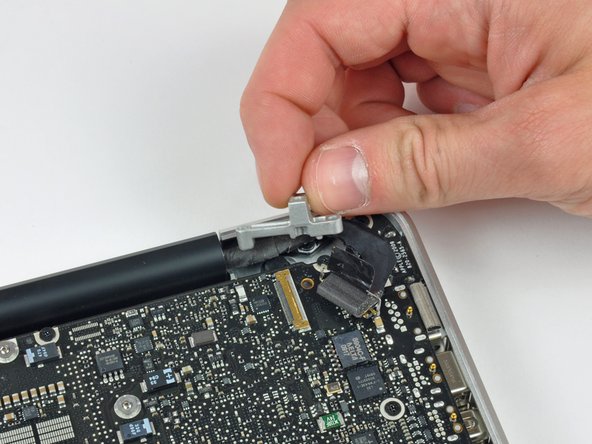

Lift the display data cable bracket out of the upper case.
-
-
-

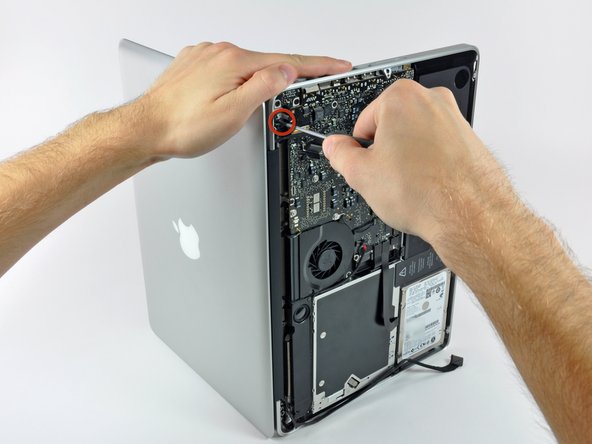

Remove the two outer 6.5 mm Torx screws securing each of the two display brackets to the upper case (4 screws total).
-
-
-
Open your MacBook so the display is perpendicular to the upper case.
-
Place your opened MacBook on a table as pictured.
-
While holding the display and upper case together with your left hand, remove the remaining 6.5 mm Torx screw from the lower display bracket.
-
-
-

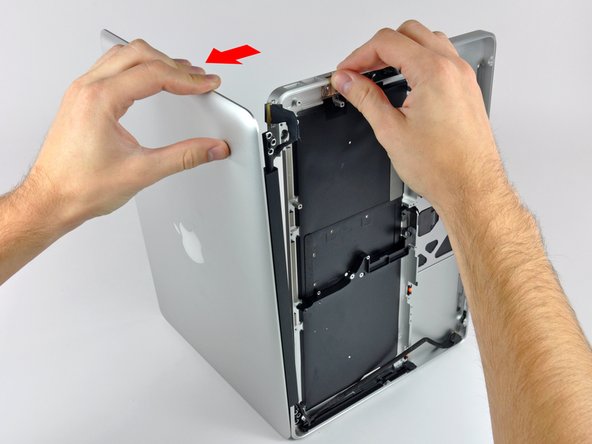

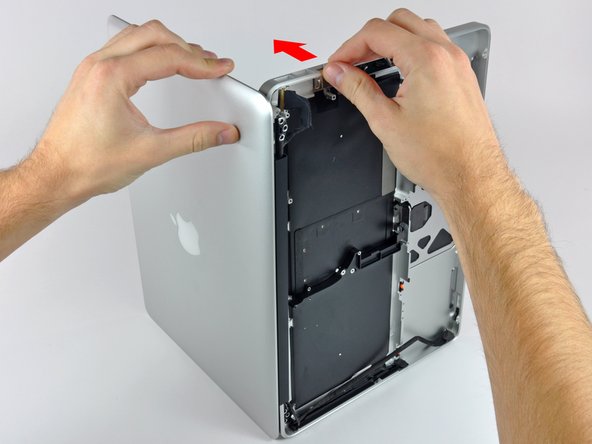

Grab the upper case with your right hand and rotate it slightly toward the top of the display so the upper display bracket clears the edge of the upper case.
-
Rotate the display slightly away from the upper case.
-
-
-

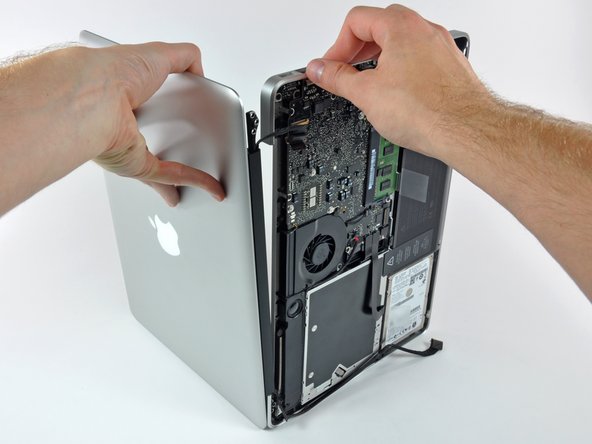

Lift the display up and away from the upper case, minding any brackets or cables that may get caught.
-
-
-

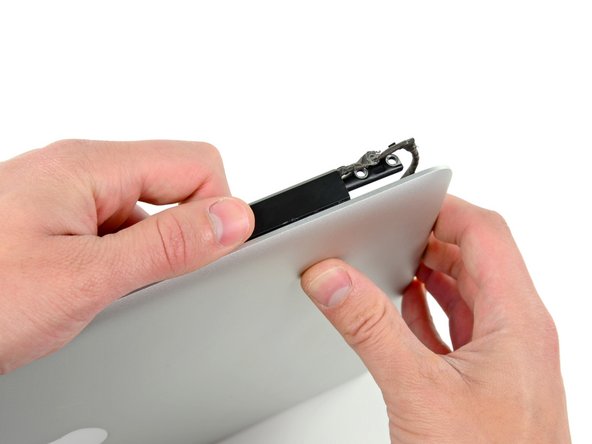

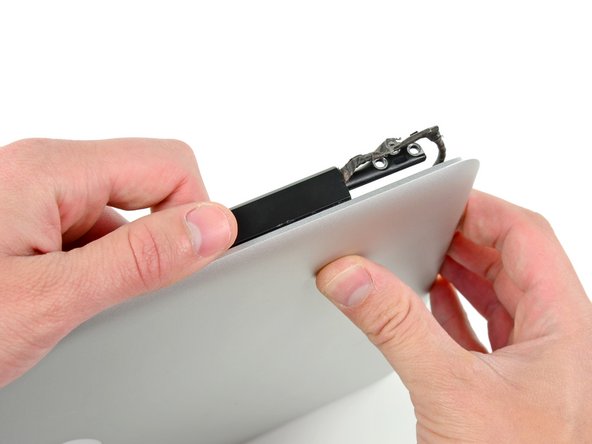

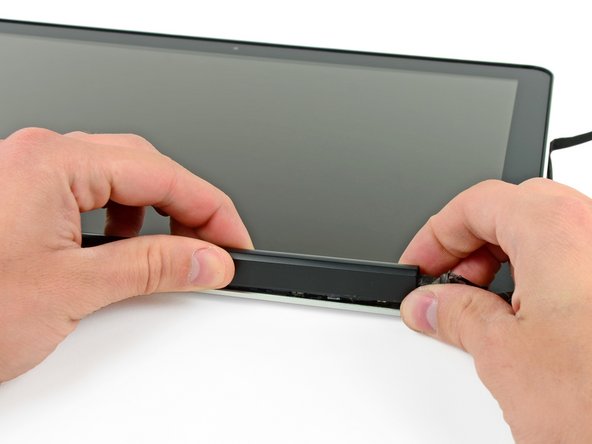

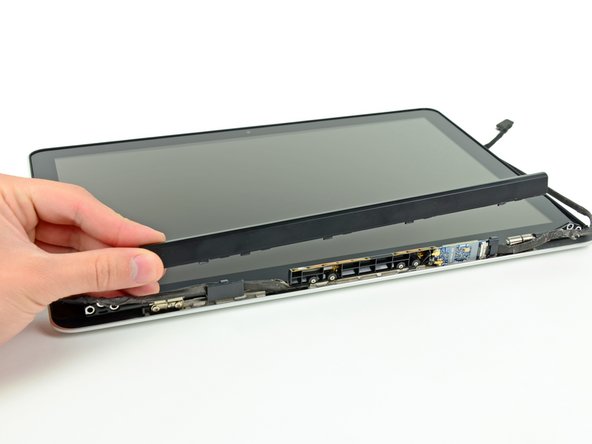

Gently rock the clutch cover back and forth on its long axis while pulling it away from the display.
-

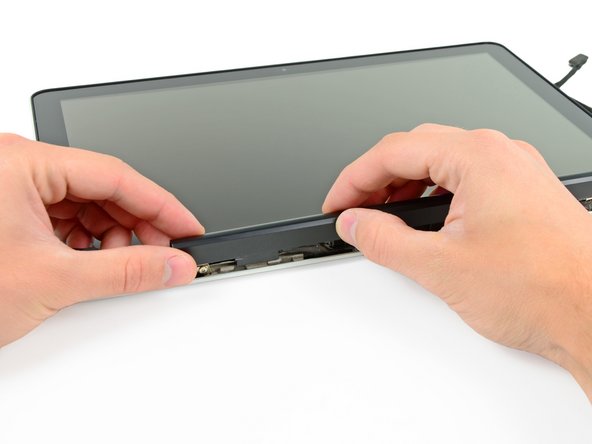

Do this action along the length of the clutch cover until you can lift it off the framework attaching it to the display.
-
-
-

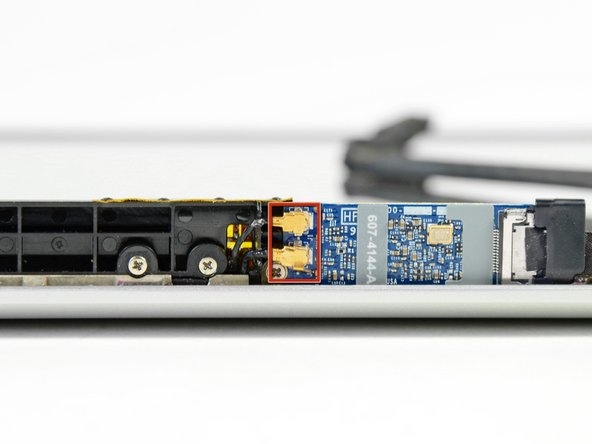

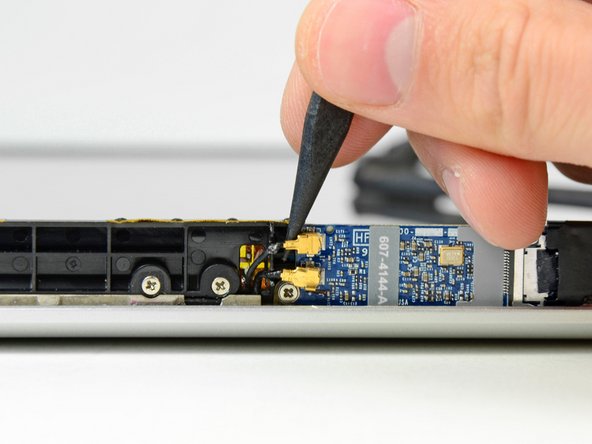

Use the tip of a spudger to pry both AirPort antenna connectors out of their sockets on the AirPort board.
-
-
-
Remove the AirPort antenna from the display, minding the antenna connectors that might get caught.
-
To reassemble your device, follow these instructions in reverse order.
To reassemble your device, follow these instructions in reverse order.
