Introduction

Go to step 1

Wireless connectivity issues? Use this guide to replace an inoperative AirPort/Bluetooth board.

What you need

Parts

• MacBook Pro 15" Unibody (Early 2011) Airport/Bluetooth BracketAvailable for sale on iFixit
  View
• MacBook Pro Unibody (Early 2011/Late 2011/Mid 2012) Airport/Bluetooth BoardAvailable for sale on iFixit
  View

Tools

• Phillips #00 ScrewdriverAvailable for sale on iFixit
  View
• SpudgerAvailable for sale on iFixit
  View

Show more…

Step 1 Lower Case

• Remove the following ten screws securing the lower case to the upper case:
• Three 13.5 mm (14.1 mm) Phillips screws.
• Seven 3 mm Phillips screws.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Using both hands, lift the lower case near the vent to pop it off two clips securing it to the upper case.
• Remove the lower case and set it aside.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

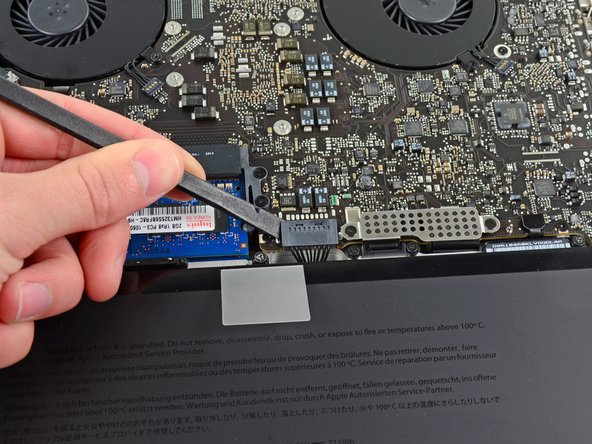

Step 3
• For certain repairs (e.g. hard drive), disconnecting the battery connector is not necessary but it prevents any accidental shorting of electronics on the motherboard. If you do not disconnect the battery connector, please be careful as parts of the motherboard might be electrified.
• Use the edge of a spudger to pry the battery connector upwards from its socket on the logic board.
• It is useful to pry upward on both short sides of the connector to "walk" it out of its socket.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

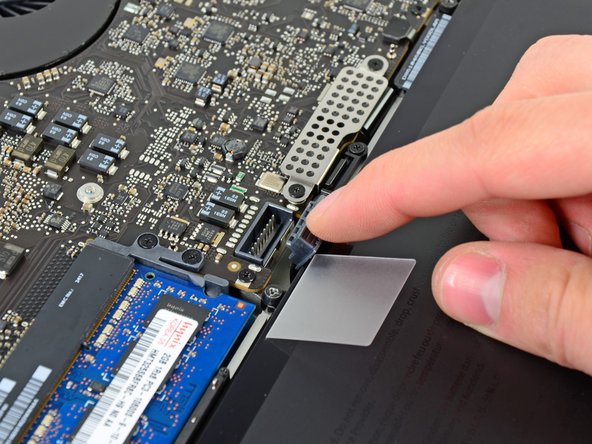

Step 4
• Bend the battery cable slightly away from its socket on the logic board so it does not accidentally connect itself while you work.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5
• Pull the camera cable connector straight out of its socket on the logic board.
• Pull the cable parallel to the face of the logic board toward the optical drive opening.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

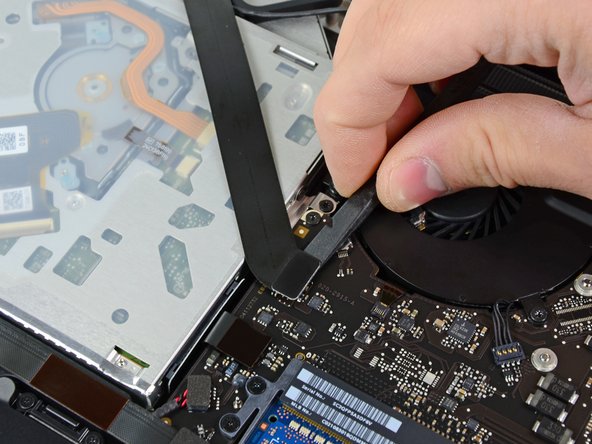

Step 6
• Use the flat end of a spudger to carefully pry the AirPort/Bluetooth ribbon cable up off its socket on the logic board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

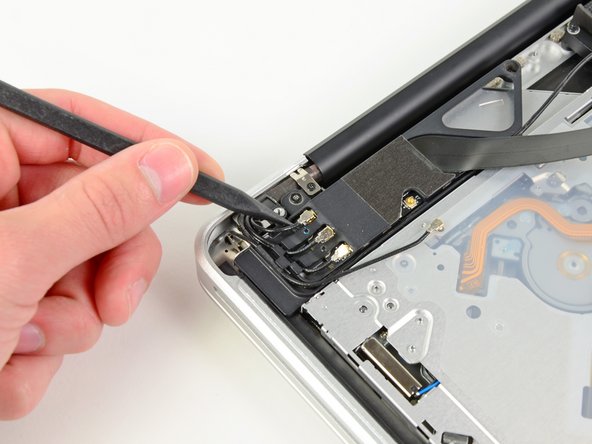

Step 7
• Use the tip of a spudger to pry the four antenna connectors up from their sockets on the AirPort/Bluetooth board.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

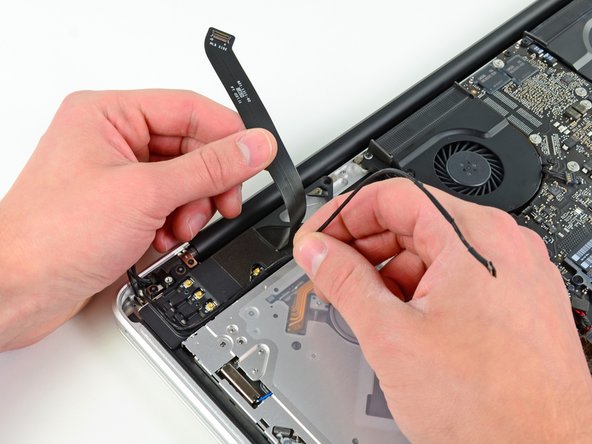

Step 8
• De-route all four antenna cables from their channels in the AirPort/Bluetooth housing.
• De-route the camera cable from its channel in the AirPort/Bluetooth housing.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

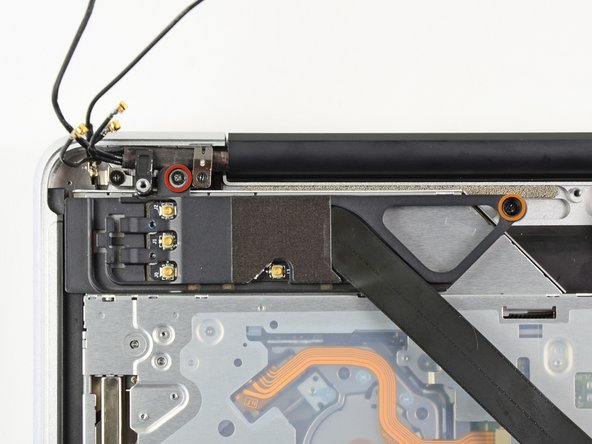

Step 9
• Remove the following two screws securing the AirPort/Bluetooth assembly to the upper case:
• One 8.6 mm Phillips screw
• One 3.9 mm Phillips screw
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

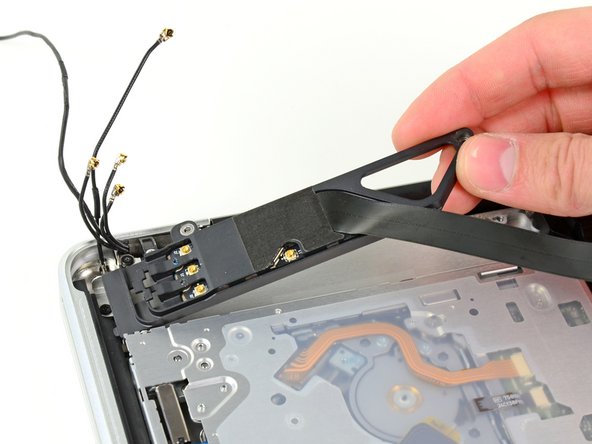

Step 10
• Remove the AirPort/Bluetooth assembly from the upper case, minding any cables that may get caught.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

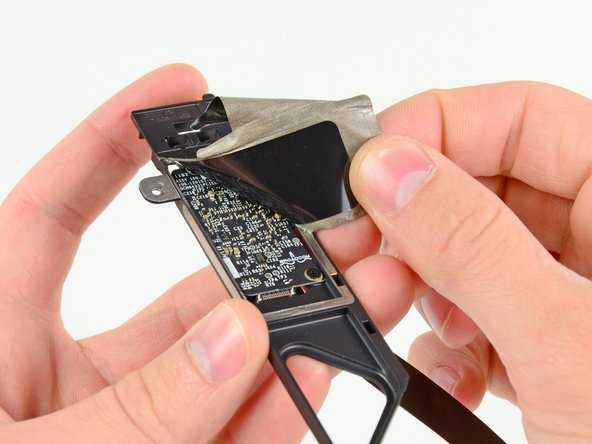

Step 11
• Peel and remove the piece of EMI tape wrapped around the AirPort/Bluetooth assembly.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 12
• Use the flat end of a spudger to pry the AirPort/Bluetooth cable away from its socket on the AirPort/Bluetooth board.
• Remove the AirPort/Bluetooth cable from the AirPort/Bluetooth assembly.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

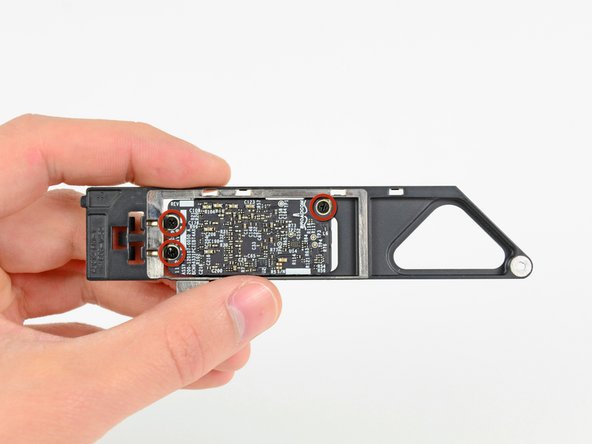

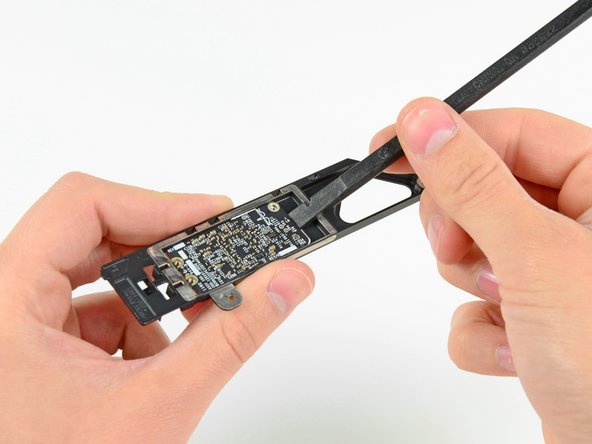

Step 13
• Remove the three Phillips screws securing the AirPort/Bluetooth board to the AirPort/Bluetooth board housing.
• Use the flat end of a spudger to dislodge the AirPort/Bluetooth board from its recess in the AirPort/Bluetooth board housing.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 14
• Remove the AirPort/Bluetooth board from its aluminum housing.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 15
• Before securing the AirPort/Bluetooth bracket to the upper case, be sure the small tab on its left edge is inserted into the small void cut into the black plastic optical drive opening.
