Introduction
Go to step 1 ↓Use this guide to replace a non-functioning Bluetooth board in the Anti-Glare option of the Mid 2009 MacBook Pro.
The Glossy display option does not have this display-mounted bluetooth card, it is found under the clutch cover.
-
-
-
Remove the following ten screws securing the lower case to the upper case:
-
Seven 3 mm Phillips screws.
-
Three 13.5 mm Phillips screws.
-
-
-
Using both hands, lift the lower case near the vent to pop it off two clips securing it to the upper case.
-
Remove the lower case and set it aside.
-
-
-

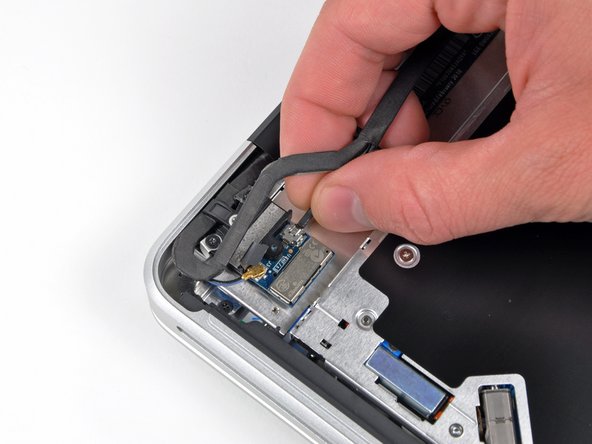

Disconnect the Bluetooth cable by pulling the male end straight away from its socket.
-

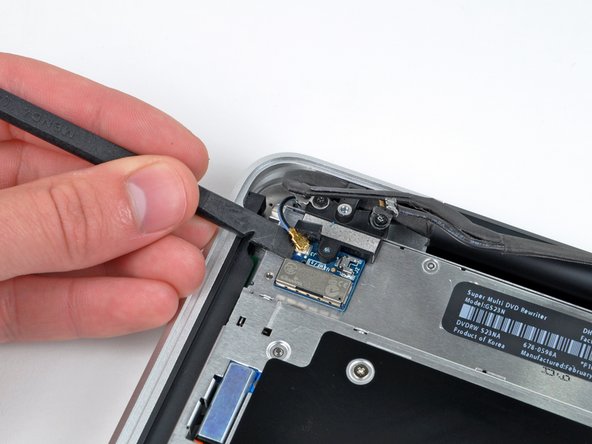

Use the flat end of a spudger to pry the Bluetooth antenna cable from its socket on the board.
-
-
-

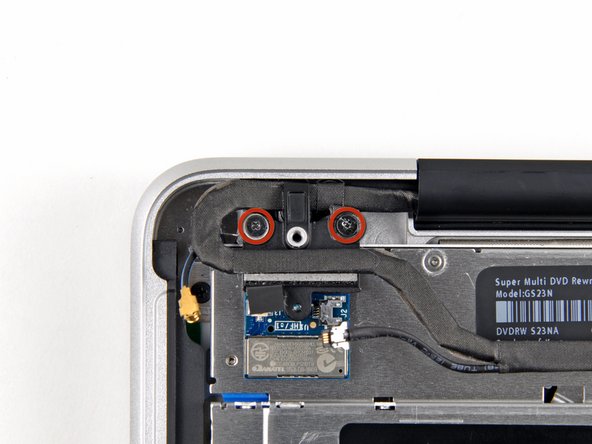

Remove the two 8 mm Phillips screws securing the Bluetooth/camera cable retainer to the upper case.
-

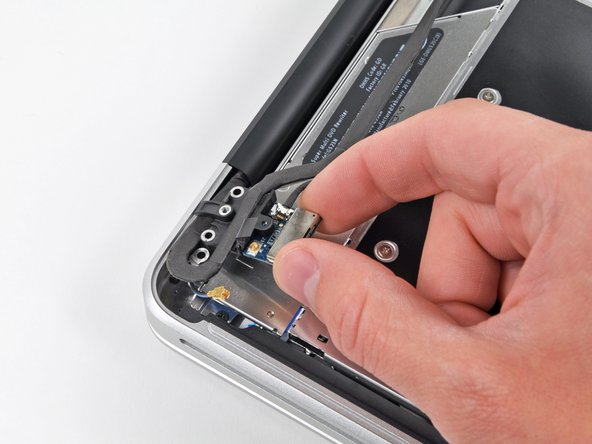

Lift the Bluetooth board/cable retainer assembly out of the upper case.
-
-
-

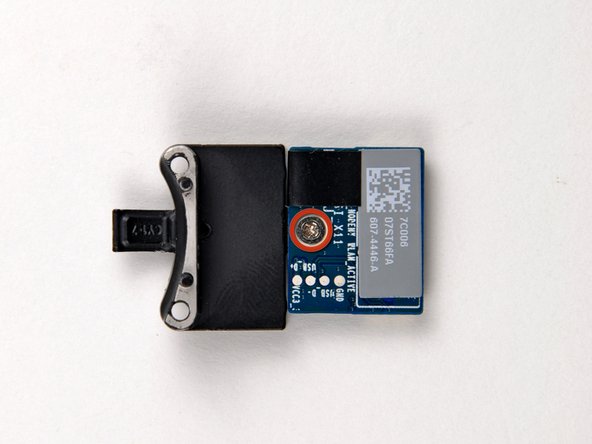

Remove the single Phillips screw securing the Bluetooth board to the retainer.
-
Lift the Bluetooth board off the retainer.
-
-
To reassemble your device, follow these instructions in reverse order.
