Introduction
Faulty Wi-Fi or Bluetooth connection? Replace the AirPort/Bluetooth cable.
What you need
-
-
Remove the following ten screws securing the lower case to the upper case:
-
Three 13.5 mm (14.1 mm) Phillips screws.
-
Seven 3 mm Phillips screws.
-
-
-
Using both hands, lift the lower case near the vent to pop it off two clips securing it to the upper case.
-
Remove the lower case and set it aside.
-
-
-

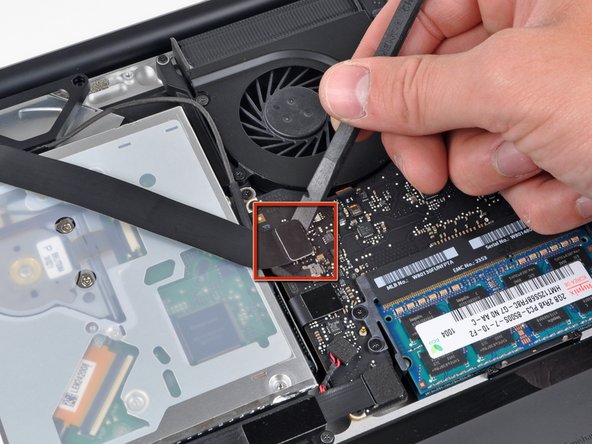

Use the flat end of a spudger to pry the AirPort/Bluetooth cable connector up off the logic board.
-

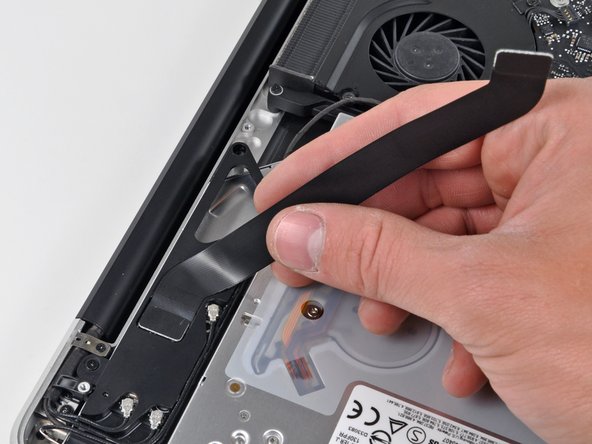

Carefully peel the AirPort/Bluetooth ribbon cable off the top of the black plastic AirPort/Bluetooth housing.
-
-
-

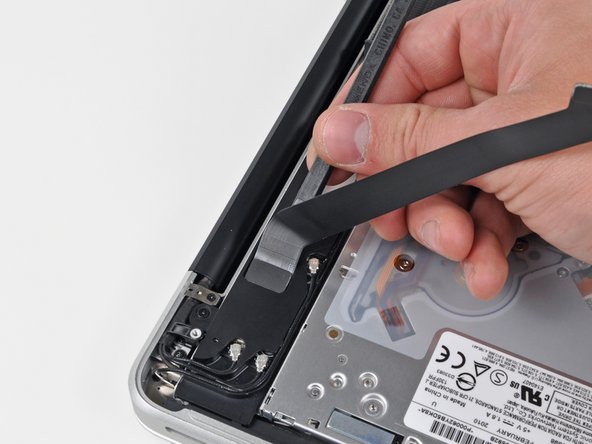

Use the flat end of a spudger to pry the AirPort/Bluetooth cable connector up off its socket on the AirPort/Bluetooth board.
-
To reassemble your device, follow these instructions in reverse order.
