Introduction
Go to step 1 ↓Remove the lower case to access most components in your MacBook Pro 17" Unibody.
-
-
-
Remove the following ten screws securing the lower case to the upper case:
-
Three 13.5 mm Phillips screws.
-
Seven 3 mm Phillips screws.
-
-
-

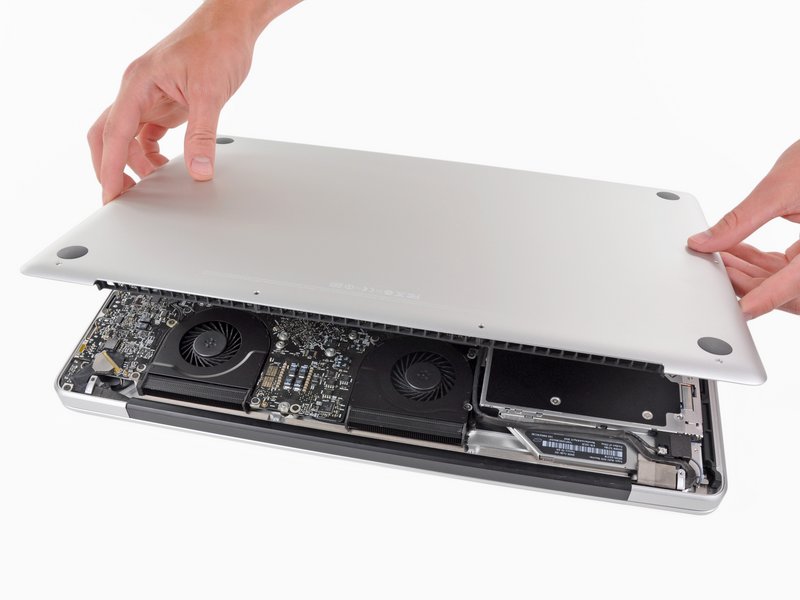

Wedge your fingers between the lower case and the vent, and lift upward to release the clips holding the lower case to the upper case.
-
Remove the lower case.
-
-
To reassemble your device, follow these instructions in reverse order.
