Introduction

Rock out too hard? Use this guide to replace a blown-out rear speaker.

What you need

1. Step 1 MacBook Unibody Model A1342 Rear Speaker Replacement
  Remove the eight 4 mm Phillips screws securing the lower case to the MacBook.
  Add Comment

  1024
2. Step 2
  The lower case is constructed of rubber-coated aluminum. Do not excessively bend the aluminum during removal, as any permanent deformation will cause tolerance issues after reassembly.

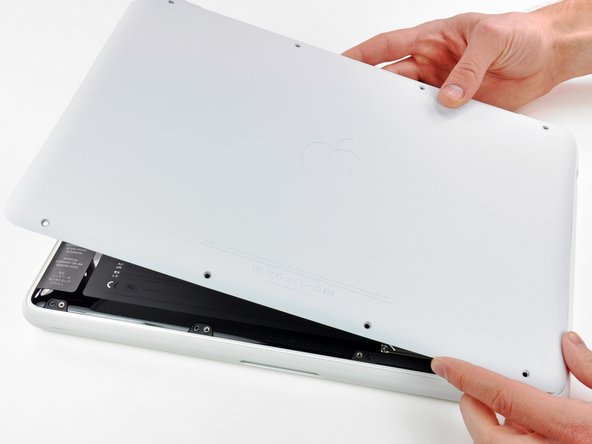

  Slightly lift the lower case near the vent opening.

  Continue running your fingers between the lower and upper cases until the upper case pops off its retaining clips.

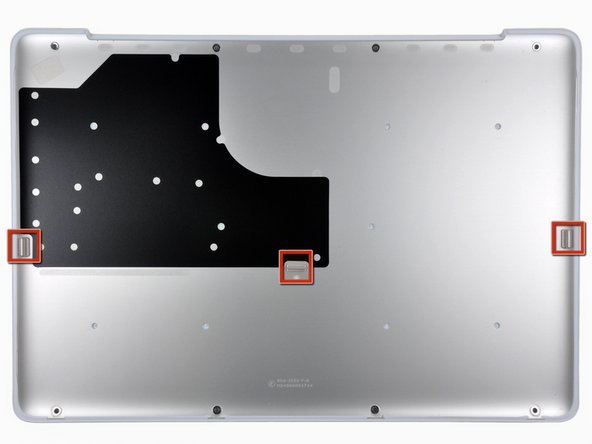

  The location of these three clips is shown in the third picture.
  Add Comment

  1024

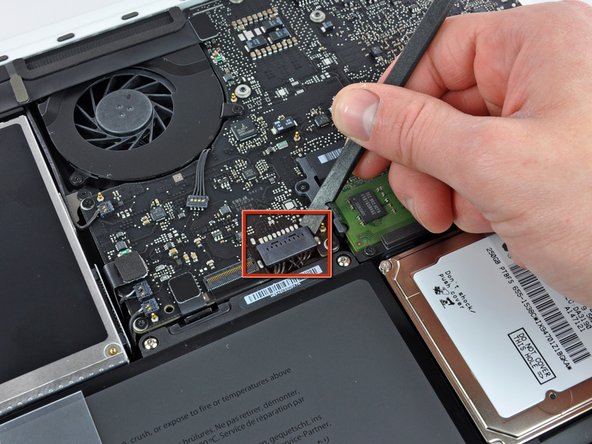

3. Step 3
  For precautionary purposes, we advise that you disconnect the battery connector from the logic board to avoid any electrical discharge. This step is optional and is not required.

  Use the flat end of a spudger to lift the battery connector up out of its socket on the logic board.

  It may be easier to use your fingernails to lift up on both sides of the connector.
  Add Comment

  1024
4. Step 4

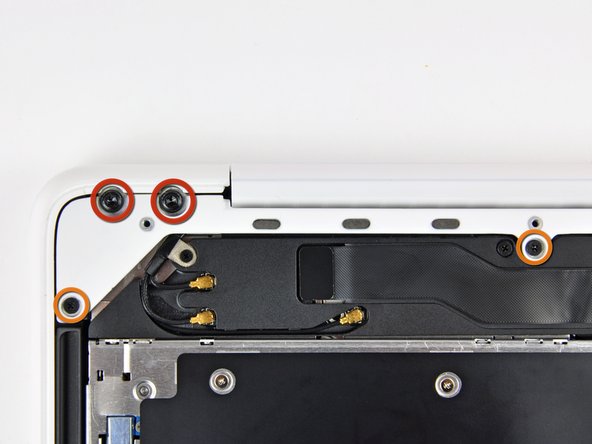

  Remove the following screws from the optical drive side of the rear vent:

  Two 10 mm T8 Torx

  Two 5.2 mm Phillips
  Add Comment

  1024
5. Step 5

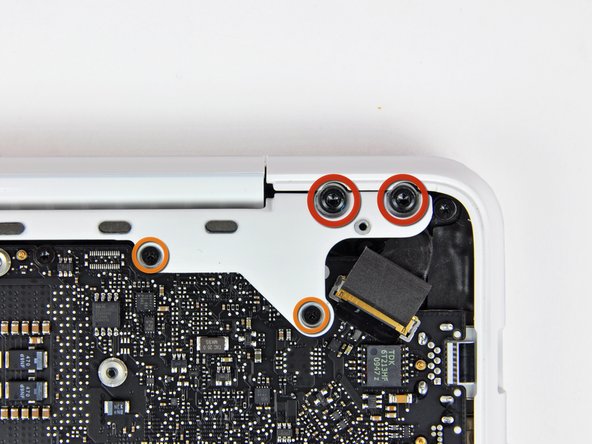

  Remove the following screws from the port side of rear vent:

  Two 10 mm T8 Torx

  Two 5.2 mm Phillips
  Add Comment

  1024
6. Step 6

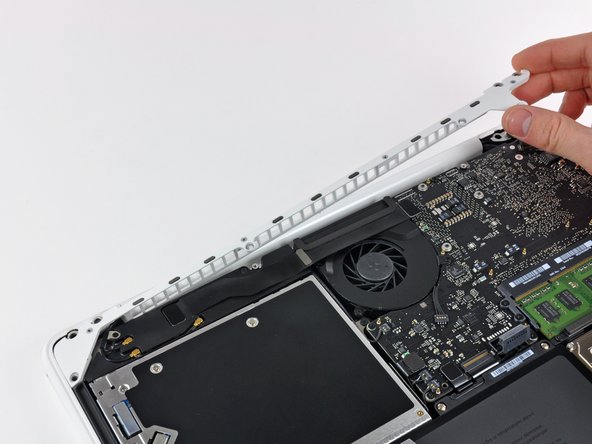

  Carefully lift the rear vent out of the upper case.
  Add Comment

  1024
8. Step 7

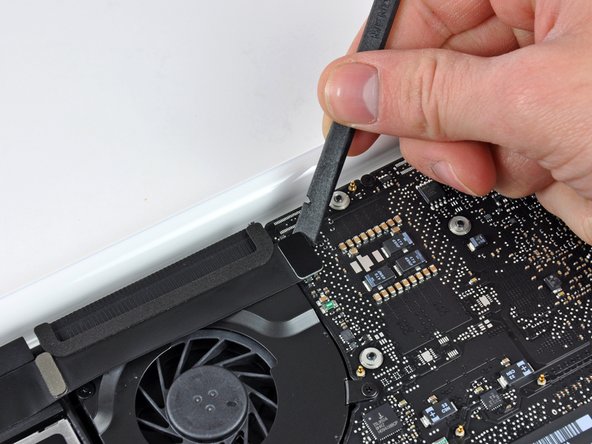

  Use the flat end of a spudger to pry the AirPort/Bluetooth cable connector up off the logic board.
  Add Comment

  1024
9. Step 8

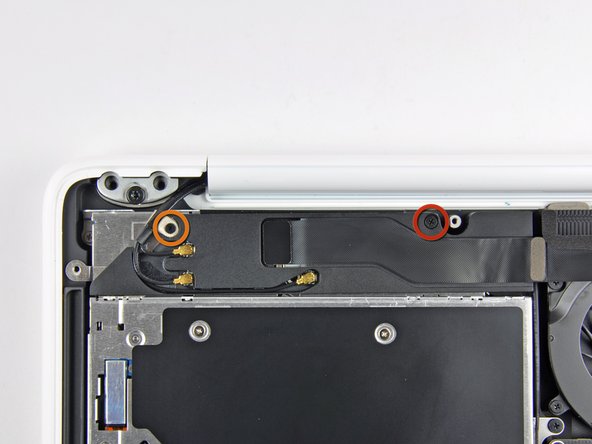

  Remove the following screws securing the right speaker assembly to the upper case:

  One 12 mm Phillips screw.

  One 3 mm Phillips screw.
  Add Comment

  1024
10. Step 9

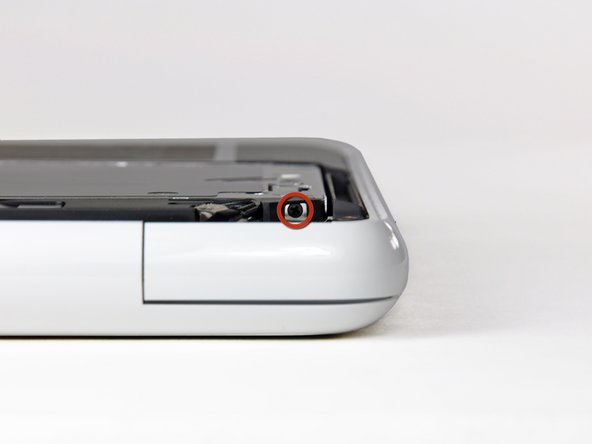

  Remove the single 2.2 mm Phillips screw inserted horizontally into the side of the optical drive.
  Add Comment

  1024
11. Step 10

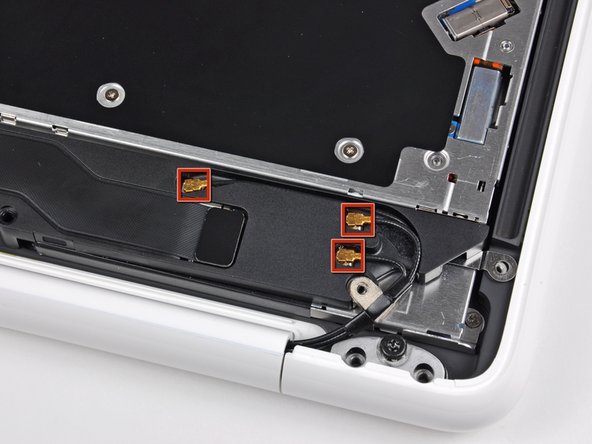

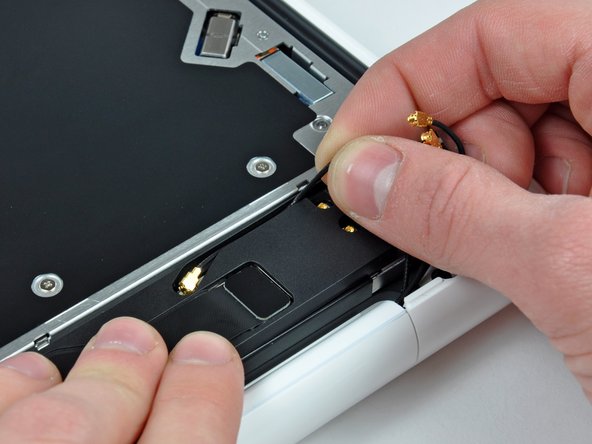

  Pry the AirPort and Bluetooth antenna connectors (3 total) up off the AirPort/Bluetooth card.

  De-route the long antenna from its channel in the rear speaker housing.
  Add Comment

  1024
12. Step 11

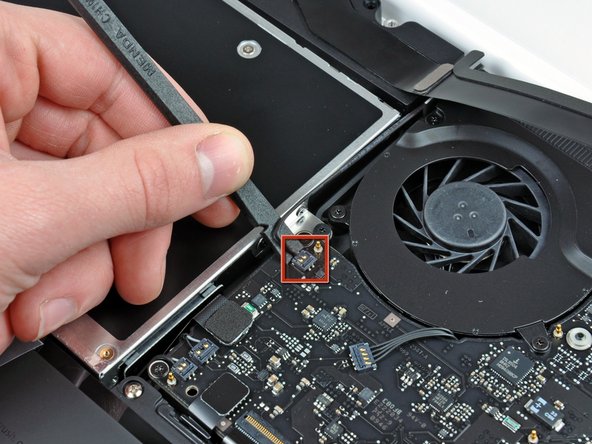

  Use the flat end of a spudger to pry the rear speaker cable connector up off the logic board.
  Add Comment

  1024
13. Step 12

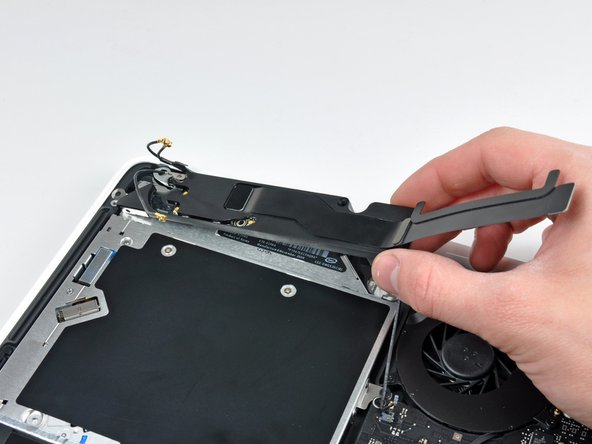

  Remove the rear speaker assembly from the upper case.
  Add Comment

  1024
14. Step 13

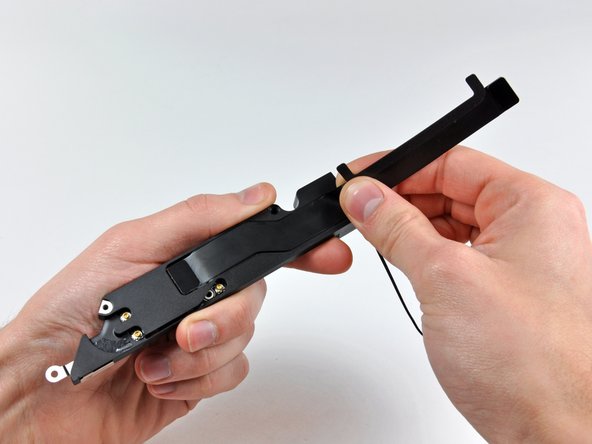

  Carefully peel the AirPort/Bluetooth cable from its channel within the rear speaker assembly.

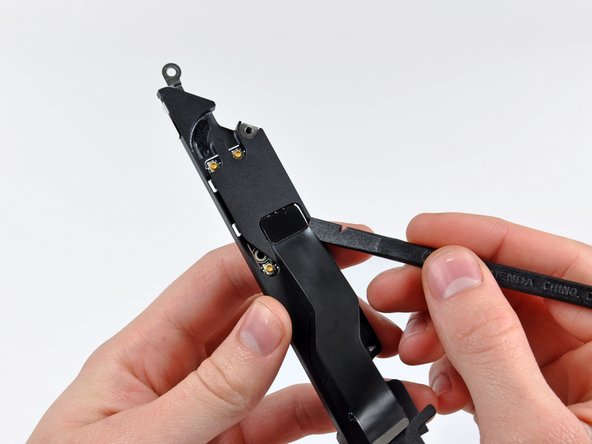

  Use the flat end of a spudger to pry the AirPort/Bluetooth cable up off the rear speaker.
  Add Comment

  1024

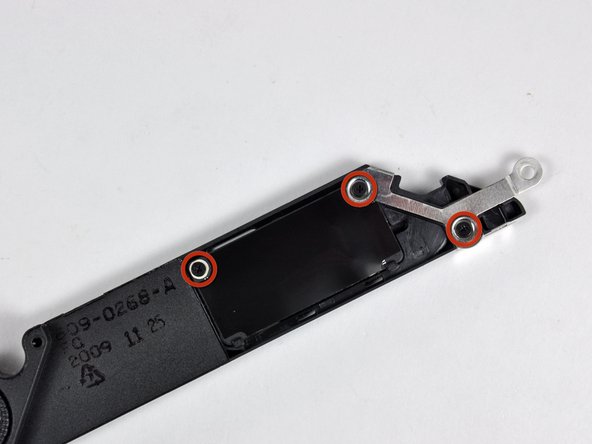

15. Step 14
  Remove three 3 mm Phillips screws securing the AirPort/Bluetooth board to the rear speaker assembly.
  Add Comment

  1024
16. Step 15

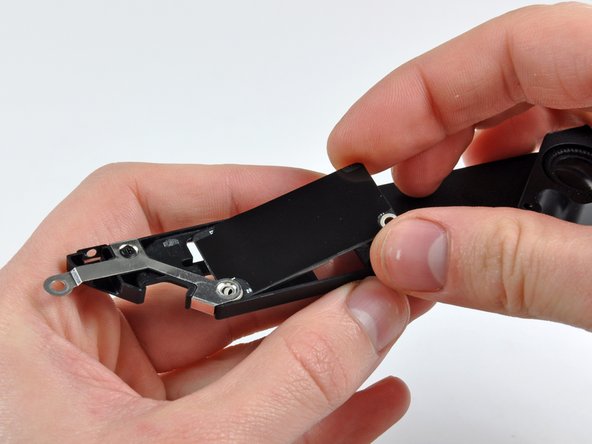

  Lift the AirPort/Bluetooth board up off the rear speaker assembly.
  Add Comment

  1024
17. Step 16

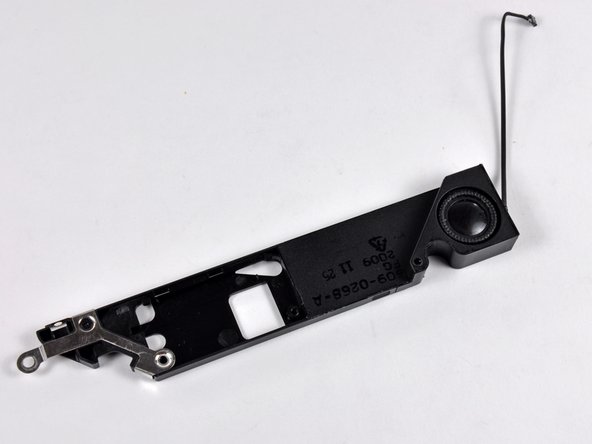

  Rear speaker remains.
  Add Comment

  1024

Conclusion

To reassemble your device, follow these instructions in reverse order.
