Macintosh PowerBook 1400 Series Battery Replacement

Introduction

Go to step 1 ↓

In this guide we will show you how to remove the battery from your Macintosh PowerBook 1400c.

    1. Macintosh PowerBook 1400 Series Battery Replacement, Macintosh PowerBook 1400 Series Battery Replacement: step 1, image 1 of 1

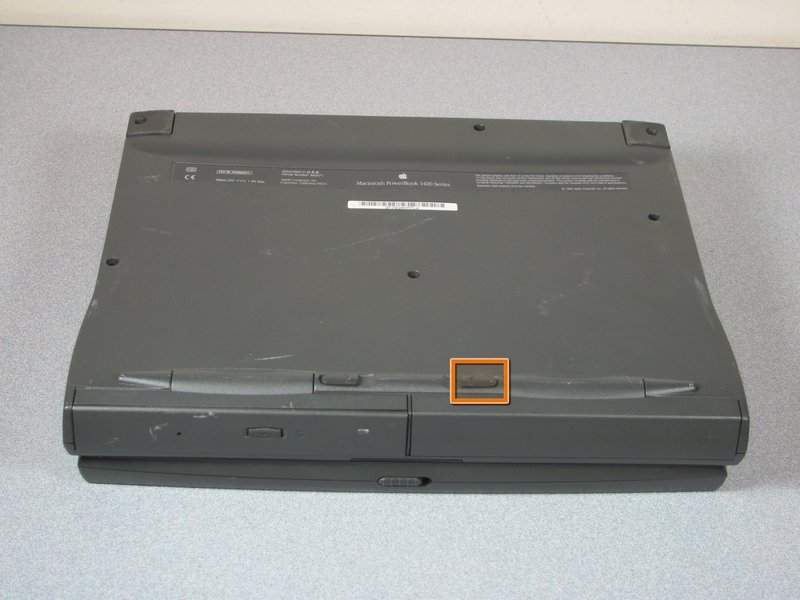

      • On the bottom of the device, locate the battery release latch near the front.

      Add Comment

    2. Macintosh PowerBook 1400 Series Battery Replacement: step 2, image 1 of 1
      • In order to release the batter, slide the latch to the left.

      Add Comment

    3. Macintosh PowerBook 1400 Series Battery Replacement: step 3, image 1 of 1

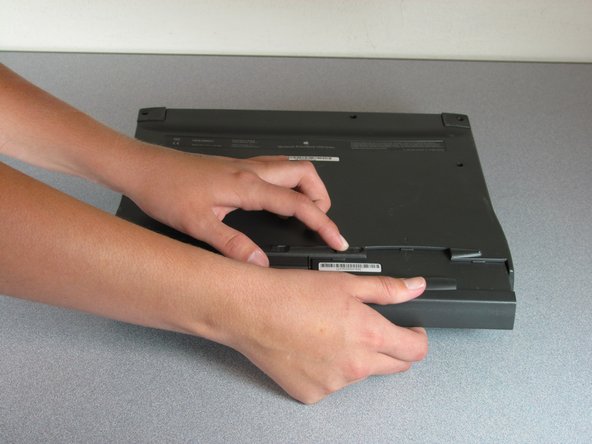

      • While still holding the latch, grasp the battery and gently pull on the battery enclosure until it begins to slide out from the front of the device.

      • Place the battery aside

      Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
