Introduction
Go to step 1 ↓Unable to raise or lower the volume? Replace the controls sidebar and restore balance to the force.
-
-
-
Remove the four Tri-Wing screws securing the upper rear panel to the inner chassis.
-
-
-

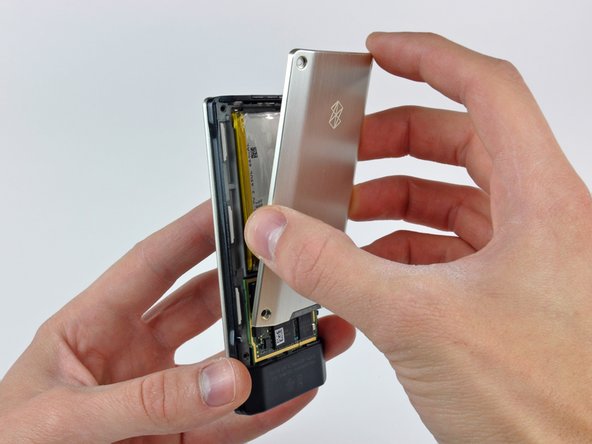

Slightly rotate the top edge of the upper rear panel away from the Zune.
-
Lift the upper rear panel straight up off the black plastic lower rear panel.
-
-
-

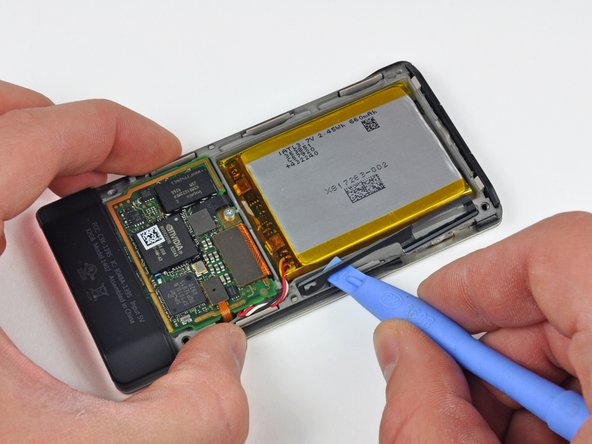

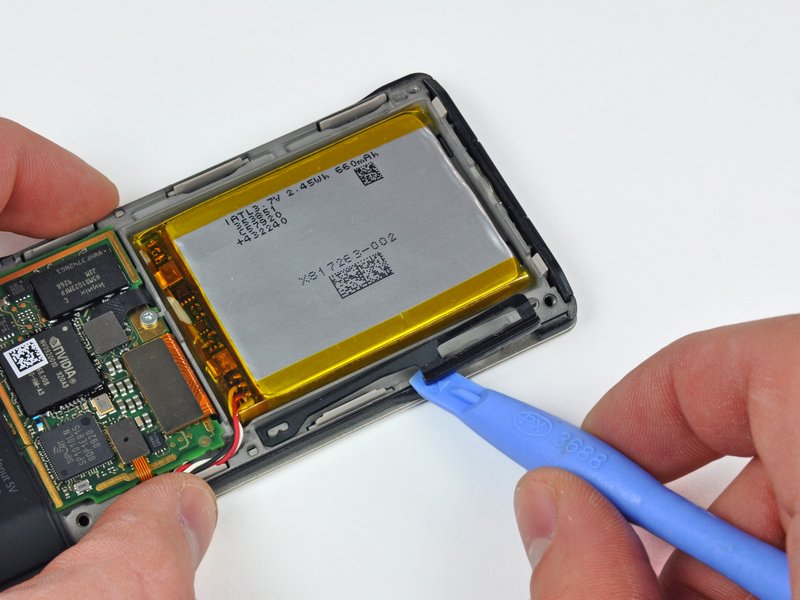

Use a Zune opening tool to gently lift the media button lever off the post cast into the inner chassis.
-
-
To reassemble your device, follow these instructions in reverse order.
