Microsoft Zune HD Lower Rear Panel Replacement

Introduction

Replace your Zune HD's lower rear panel.

What you need

  1. Microsoft Zune HD Lower Rear Panel Replacement, Microsoft Zune HD Lower Rear Panel Replacement: step 1, image 1 of 1

    • Remove the four Tri-Wing screws securing the upper rear panel to the inner chassis.

  2. Microsoft Zune HD Lower Rear Panel Replacement: step 2, image 1 of 2 Microsoft Zune HD Lower Rear Panel Replacement: step 2, image 2 of 2

    • Slightly rotate the top edge of the upper rear panel away from the Zune.

    • Lift the upper rear panel straight up off the black plastic lower rear panel.

  4. Microsoft Zune HD Lower Rear Panel Replacement: step 3, image 1 of 2 Microsoft Zune HD Lower Rear Panel Replacement: step 3, image 2 of 2

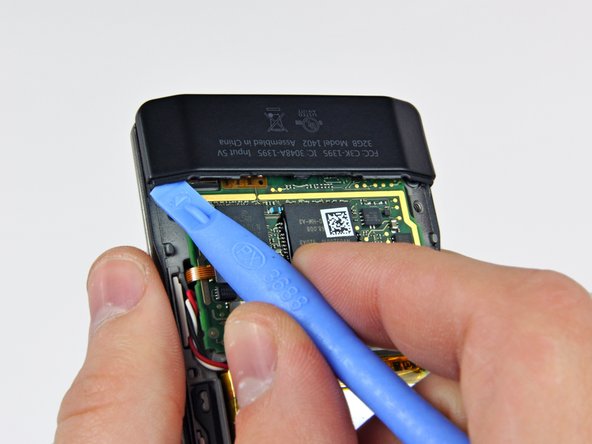

    • Insert a small Zune opening tool into the gap between the logic board and one side of the black plastic lower rear panel.

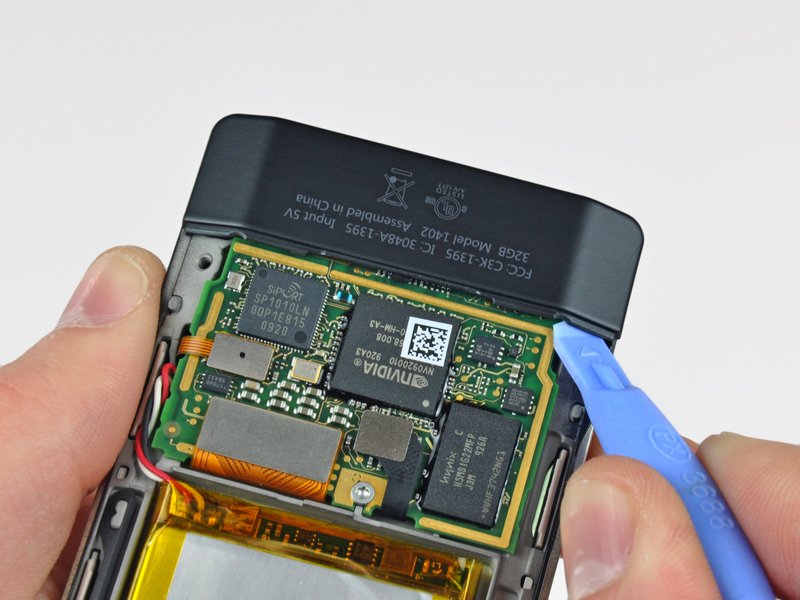

    • Carefully twist the Zune opening tool to pop the lower rear panel off the clips attaching it to the Zune.

    • Repeat this process for the other side of the lower rear panel.

  5. Microsoft Zune HD Lower Rear Panel Replacement: step 4, image 1 of 1

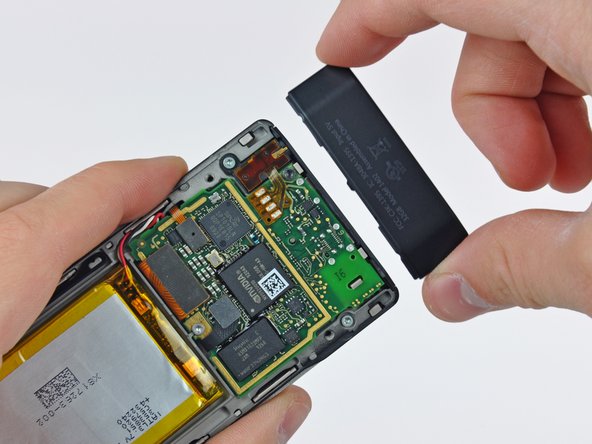

    • Carefully slide the lower rear panel away from the Zune.

Conclusion

To reassemble your device, follow these instructions in reverse order.
