Nikon Coolpix S220 LCD Replacement

Introduction

This guide will show the reader how to remove the LCD Screen in case it needs to be replaced.

What you need

Step 1 Nikon Coolpix S220 LCD Replacement

Nikon Coolpix S220 LCD Replacement, Nikon Coolpix S220 LCD Replacement: step 1, image 1 of 1

Remove the two 2.8 mm screws on the left side of the camera.

Step 2

Remove the four 2.8 mm screws on the right side of the camera.

Step 3

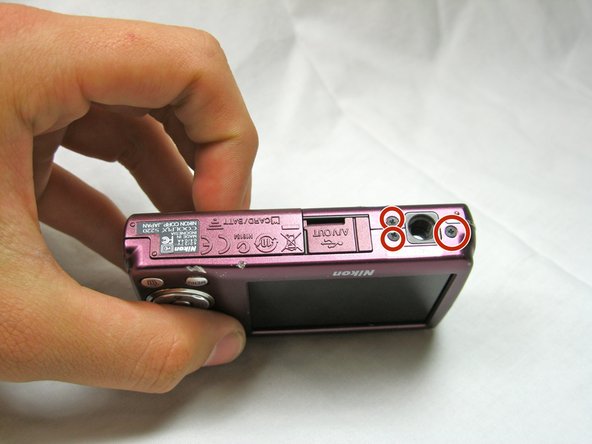

Remove the three 4.1 mm screws on the bottom of the camera.

Step 4

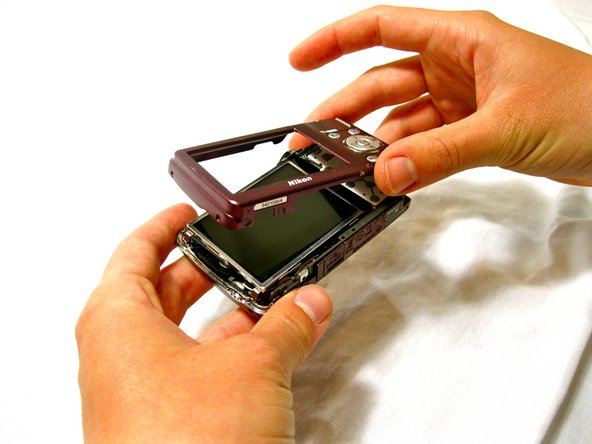

Gently lift the rear cover from the camera.

Step 5

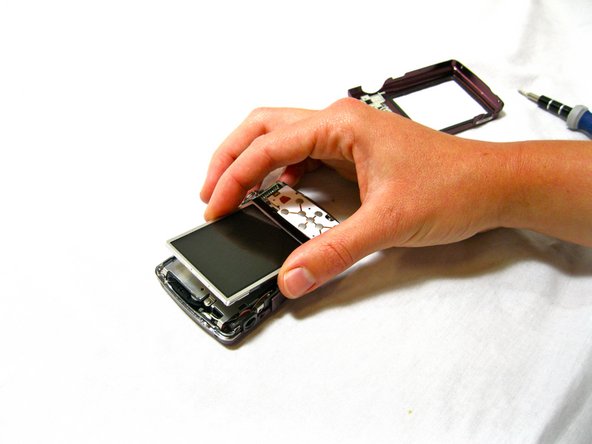

Gently lift the screen out of its place.
You will need to hold the screen slightly above the camera because it will still be attached to the camera by an orange ribbon cable.

Step 6

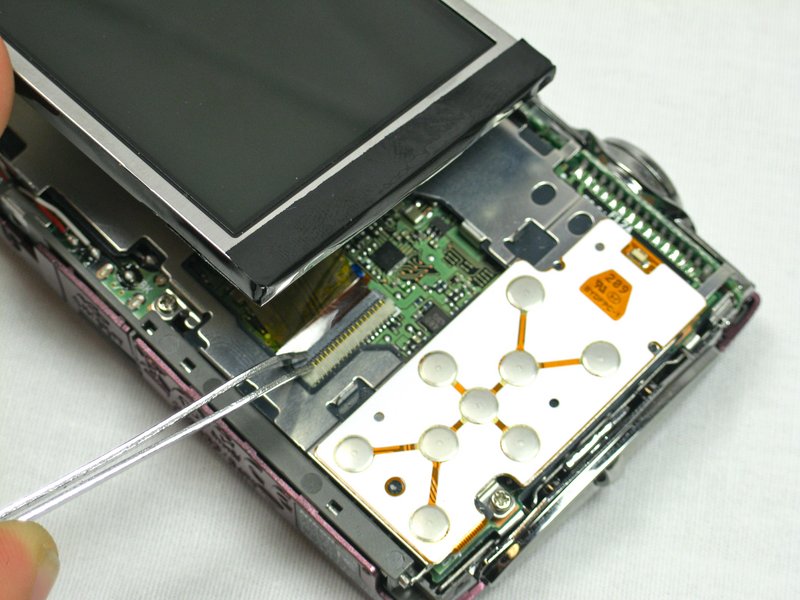

Use the tweezers to lift the ZIF connector which is holding the ribbon cables that connect the LCD screen to the motherboard.

Step 7

Slowly pull the screen from the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
