Nikon D70 Bottom Cover Replacement

Introduction

Remove the bottom cover to access most components inside the D70.

What you need

    1. Nikon D70 Bottom Cover Replacement, Nikon D70 Bottom Cover Replacement: step 1, image 1 of 1

      • Use your finger tip to pull the battery release tab toward the center of the D70.

      • Open the battery door and rotate it away from the bottom cover.

      Add Comment

    2. Nikon D70 Bottom Cover Replacement: step 2, image 1 of 1

      • Pull the battery out of the D70.

      • It may be necessary to wiggle the battery while pulling to free it from its pocket in the case.

      Add Comment

    4. Nikon D70 Bottom Cover Replacement: step 3, image 1 of 1

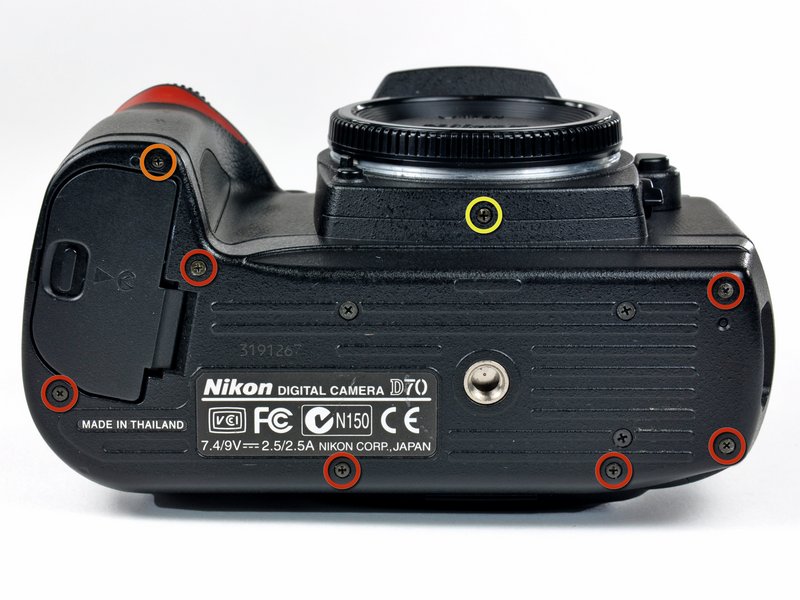

      • Remove the following eight screws securing the bottom cover to the D70:

      • Six 5.8 mm Phillips screws

      • One 10.7 mm Phillips screws

      • One 8.2 mm Phillips screws

      Add Comment

    5. Nikon D70 Bottom Cover Replacement: step 4, image 1 of 2 Nikon D70 Bottom Cover Replacement: step 4, image 2 of 2

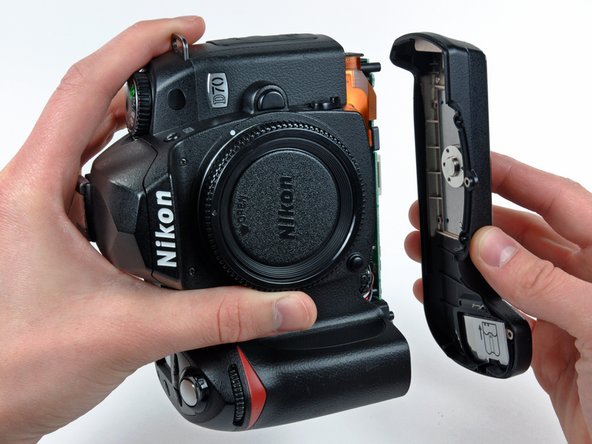

      • Carefully pull the bottom cover to separate it from the body of the D70.

      • Remove the bottom cover from the D70.

      Add Comment

Conclusion

To reassemble your device, follow these instructions in reverse order.
