Nintendo 3DS Battery Replacement

What you need

  1. Nintendo 3DS Battery Replacement, Nintendo 3DS Battery Replacement: step 1, image 1 of 1
    • Unscrew the four Phillips #00 screws along the top of the back cover.

    • The screws are held in place by locking washers, and will not come out of the back cover.

    • The comments section is full of unlucky souls who will tell you that the screws here through step 4 will strip incredibly easily. Press down fairly hard, and go slow.

  2. Nintendo 3DS Battery Replacement: step 2, image 1 of 2 Nintendo 3DS Battery Replacement: step 2, image 2 of 2
    • Hold the device in one hand and turn it over.

    • Grab the top edge of the back cover with your opposite hand so that the cover does not fall back into place.

    • Flip the 3DS over again so that the back cover is facing up.

    • Pull the back cover up and away from the rest of the device to remove it.

  3. Nintendo 3DS Battery Replacement: step 3, image 1 of 3 Nintendo 3DS Battery Replacement: step 3, image 2 of 3 Nintendo 3DS Battery Replacement: step 3, image 3 of 3

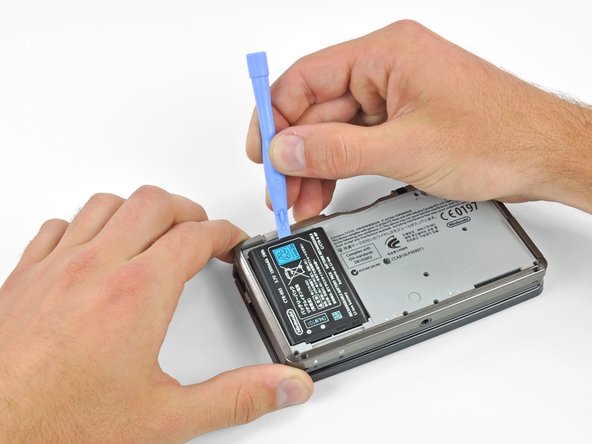

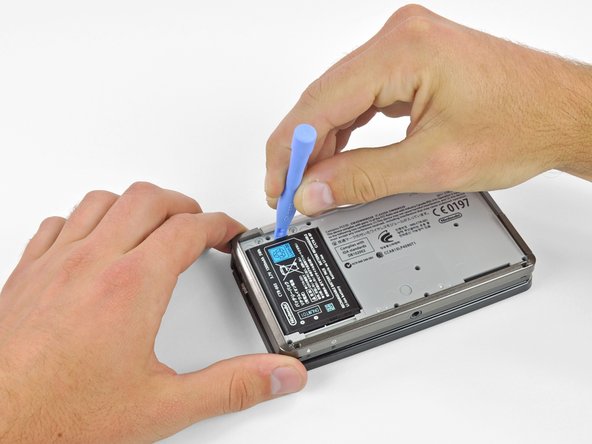

    • Insert a plastic opening tool into the notch in the lower case above the battery.

    • Pry the battery up with the plastic opening tool.

    • Grab the top edge of the battery and lift it out of the lower case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
