Nintendo 3DS Circle Pad Replacement
Introduction
Go to step 1Figure out a way to break your Circle Pad? Luckily, you can replace it with a new one.
-
-

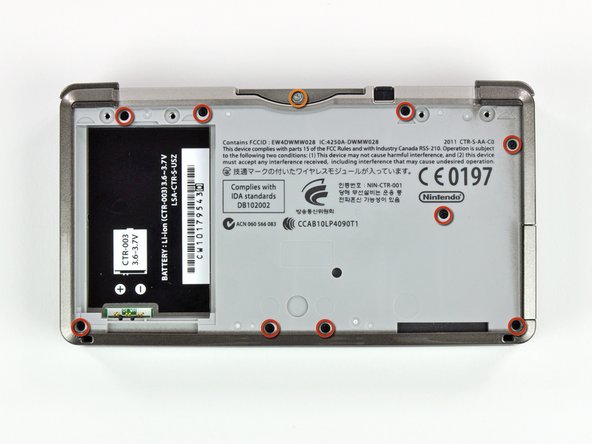

Unscrew the four Phillips #00 screws along the top of the back cover.
-
-
-

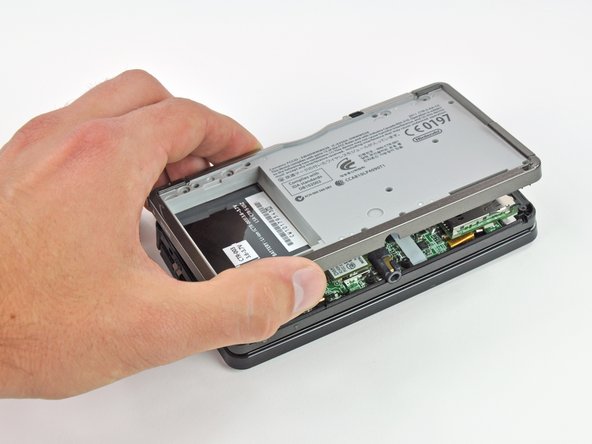

Grab the top edge of the back cover with your opposite hand so that the cover does not fall back into place.
-
Pull the back cover up and away from the rest of the device to remove it.
-
-
-

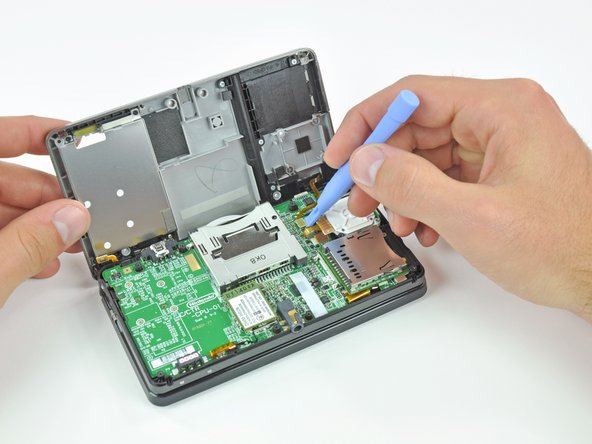

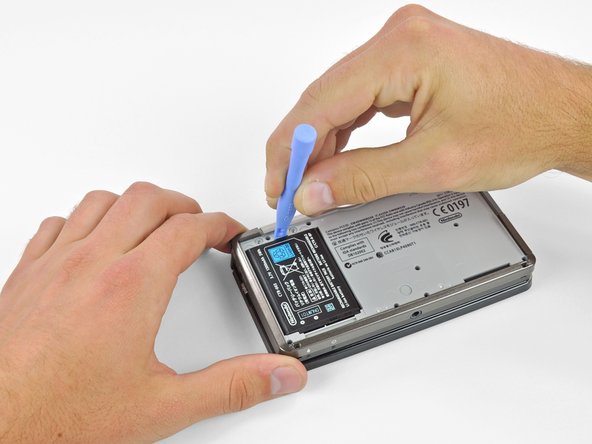

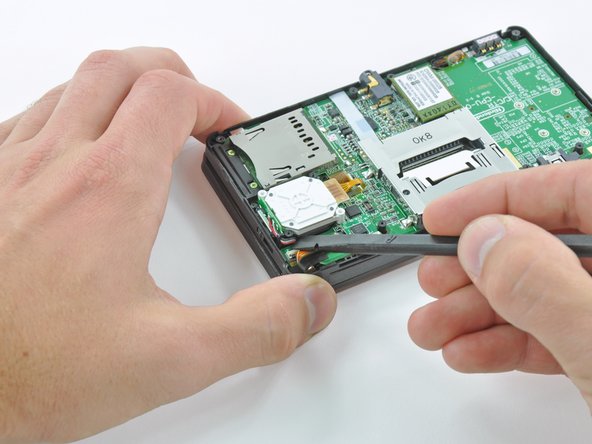

Insert a plastic opening tool into the notch in the lower case above the battery.
-

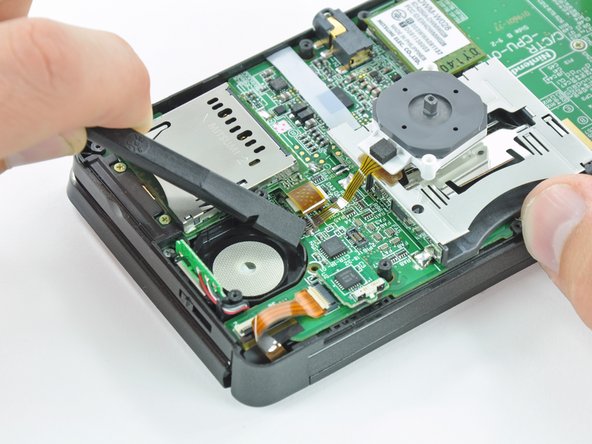

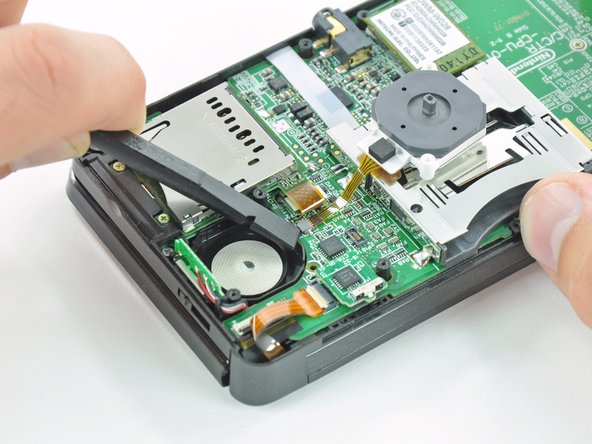

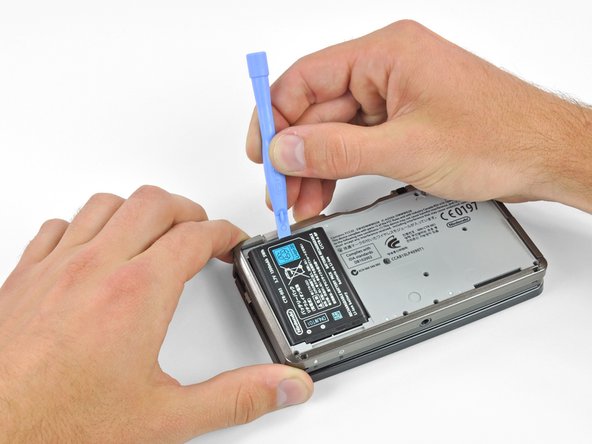

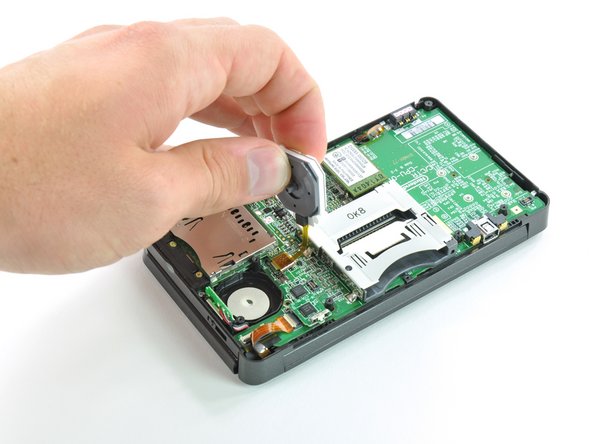

Pry the battery up with the plastic opening tool.
-

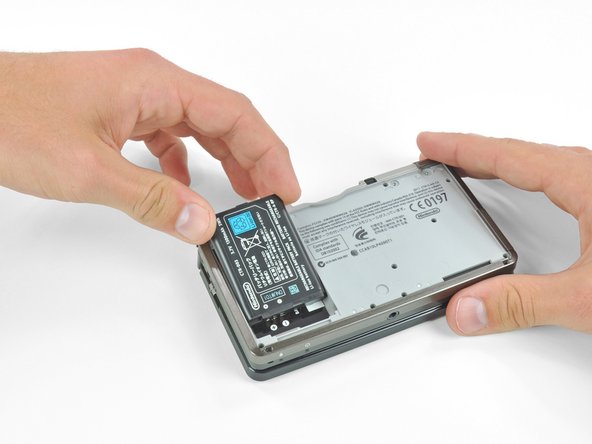

Grab the top edge of the battery and lift it out of the lower case.
-
-
-
Remove the nine 6.3 mm black Phillips screws from the lower case.
-
Remove the 2.4 mm silver Phillips screw above the game cartridge slot.
-
-
-
Lift the bottom edge of the lower case off the rest of the 3DS.
-

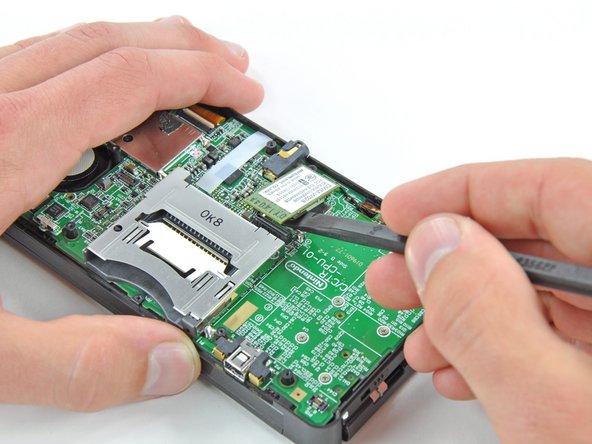

Use a plastic opening tool to pry the shoulder button ribbon cables off their sockets on the motherboard.
-
Remove the lower case from the device.
-
-
-

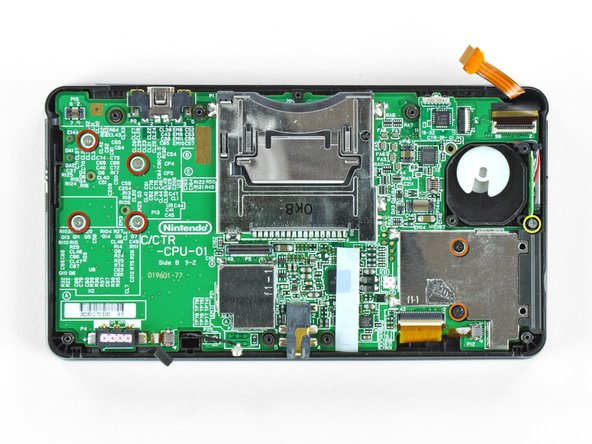

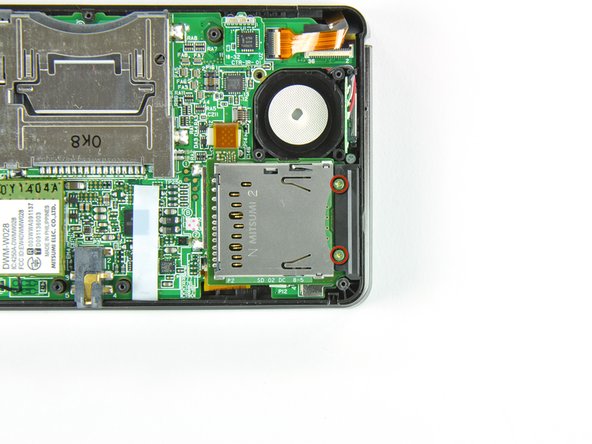

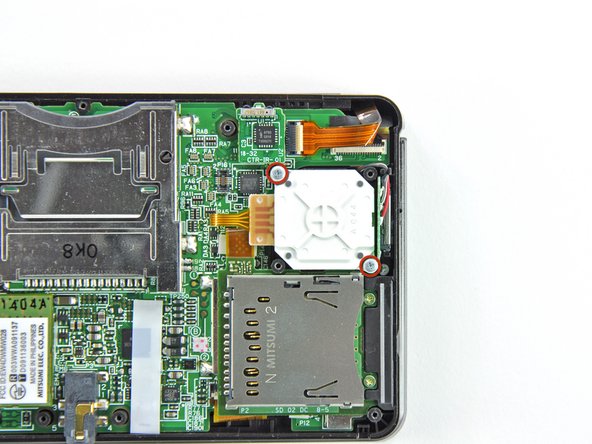

Remove the two 7.7 mm Phillips screws securing the back of the Circle Pad to the motherboard.
-
-
-

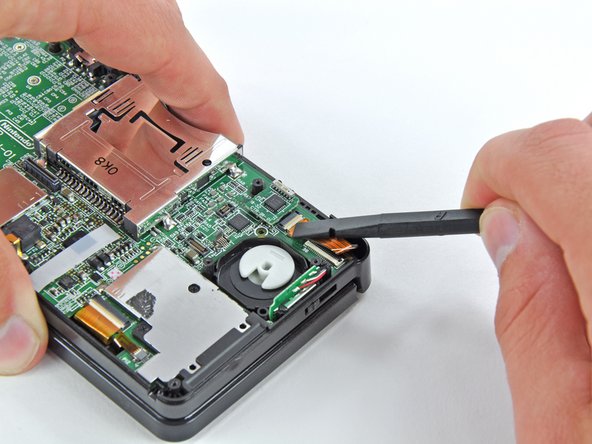

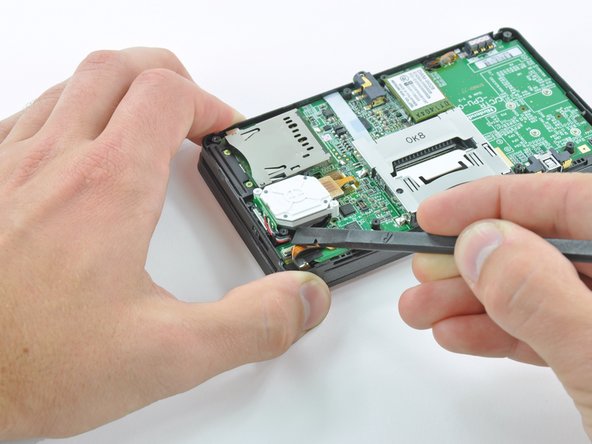

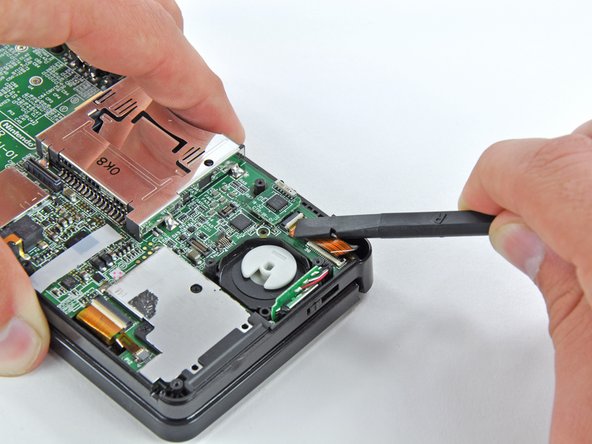

Use the flat end of a spudger to pry the back of the Circle Pad off the motherboard.
-

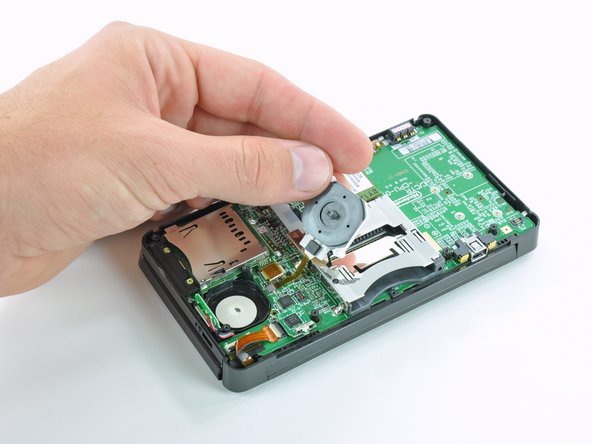

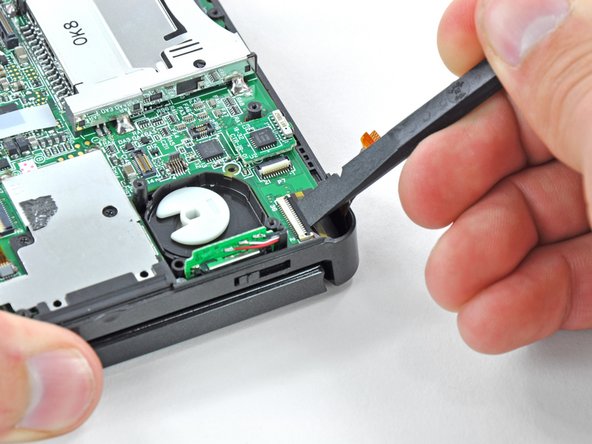

Lift the Circle Pad joystick off the motherboard and lay it on its back so that the ribbon cable connector is accessible.
-
-
-

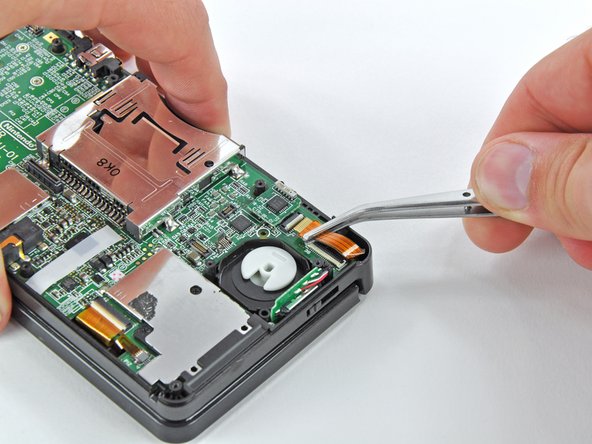

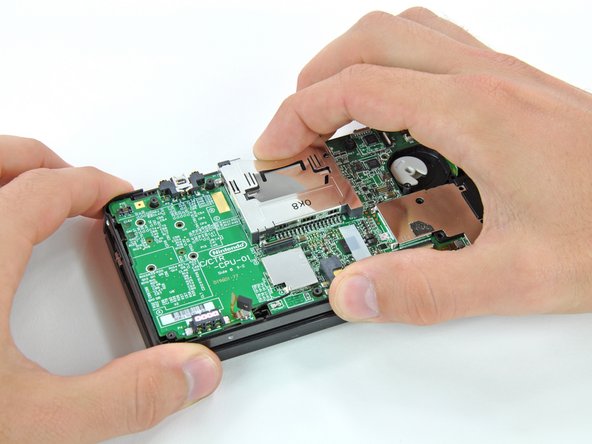

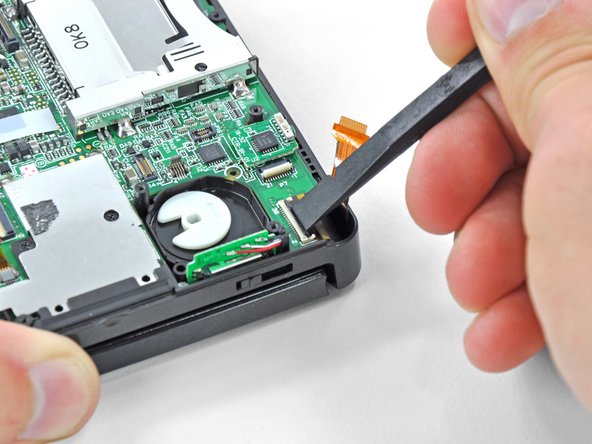

Use the flat end of a spudger or your fingernail to flip up the retaining flap on the Circle Pad ribbon cable ZIF socket.
-

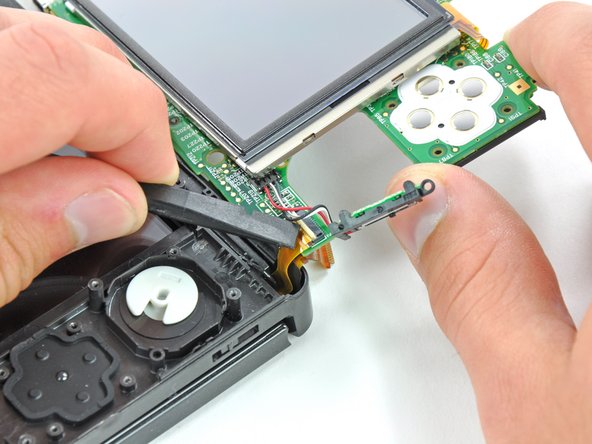

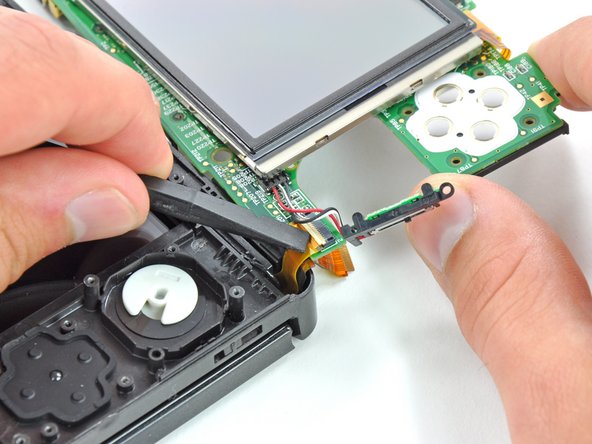

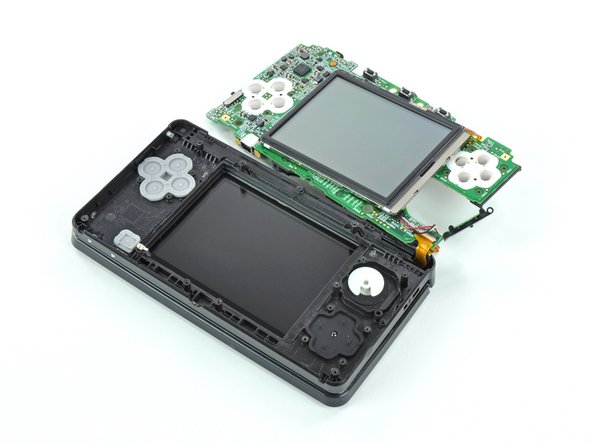

Lift the Circle Pad joystick off the motherboard.
-
-
-

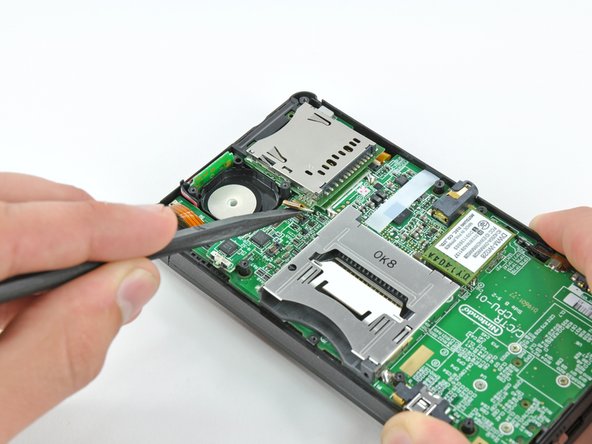

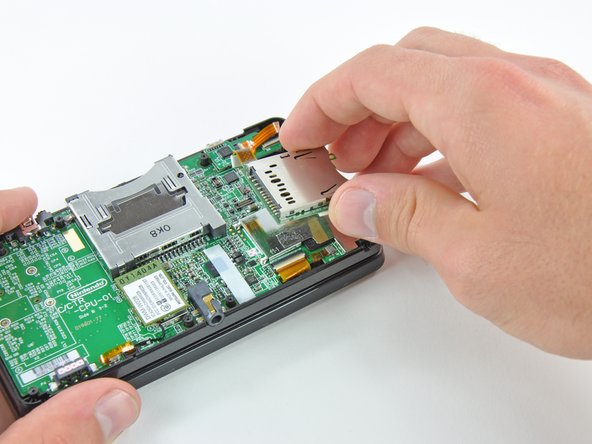

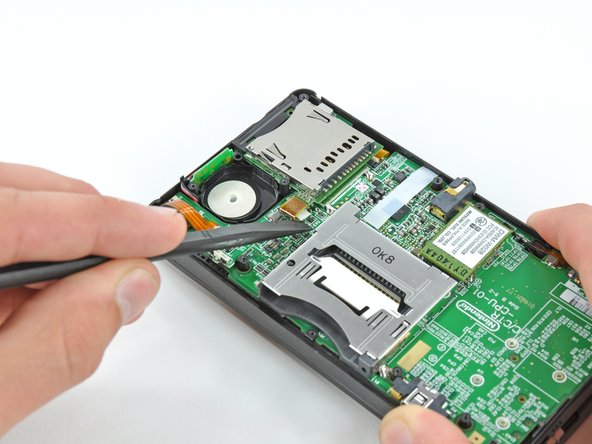

Use the flat end of a spudger to pry the SD board ribbon cable connector off its socket on the motherboard.
-
-
-

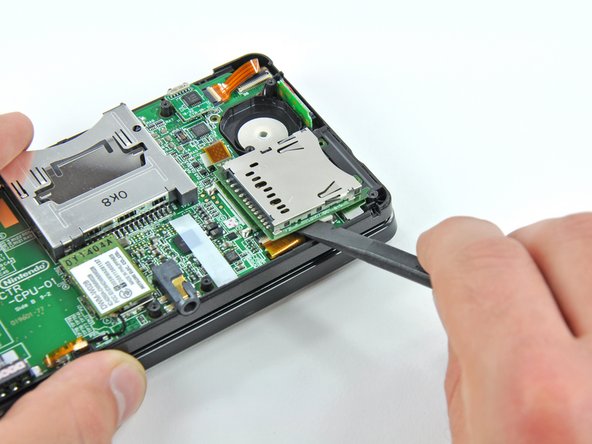

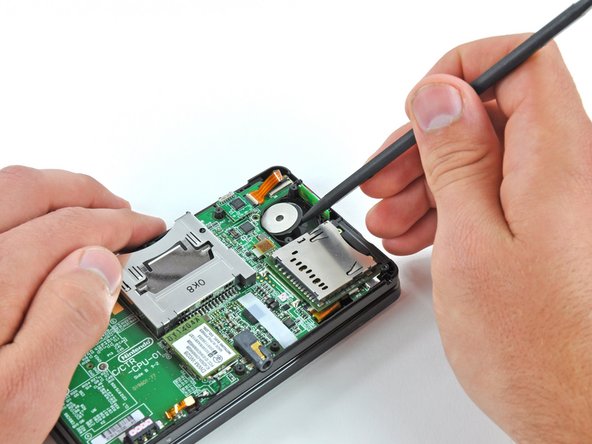

Insert the flat end of a spudger between the SD board and the motherboard.
-
Run the spudger along the sides of the SD board to free it from the adhesive pad holding it in place.
-

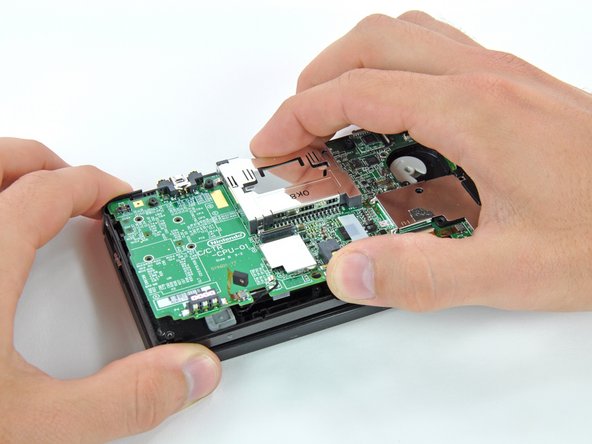

Once completely freed, lift the SD board straight off the motherboard.
-
-
-

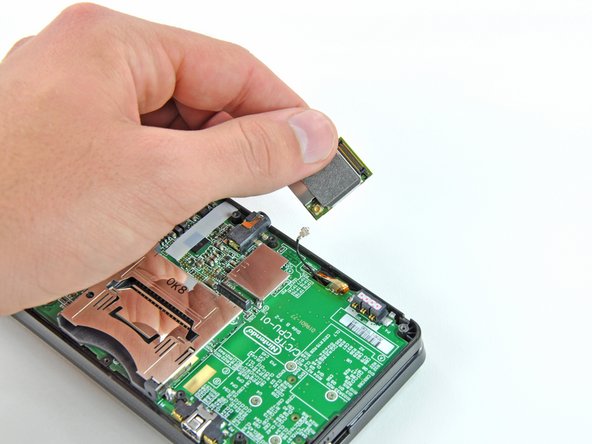

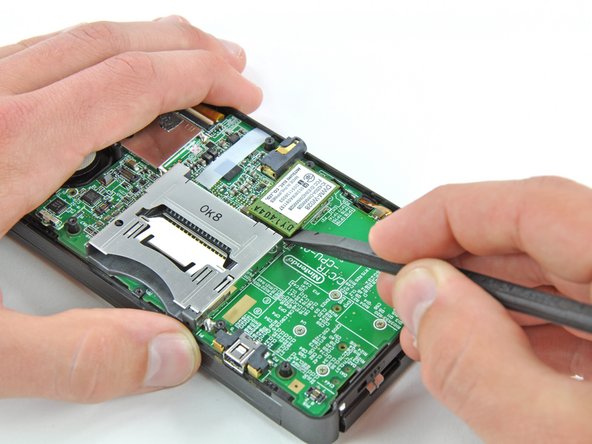

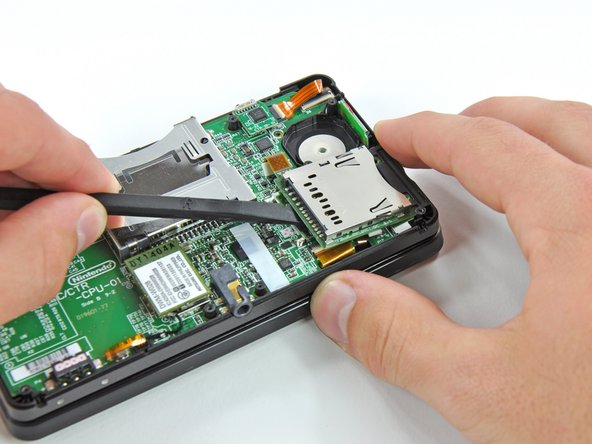

Slide the flat end of a spudger under the corner of the Wi-Fi board, and lift it away from the motherboard.
-
-
-

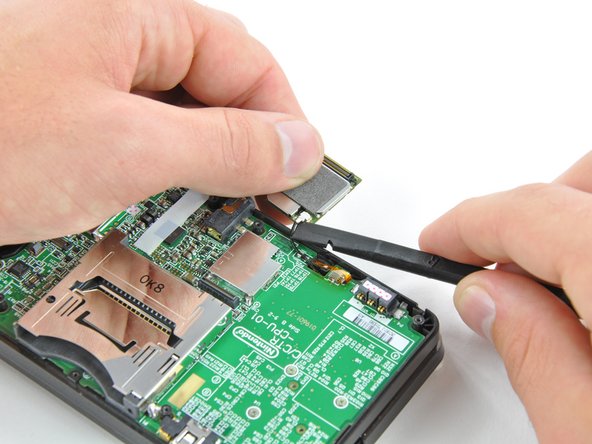

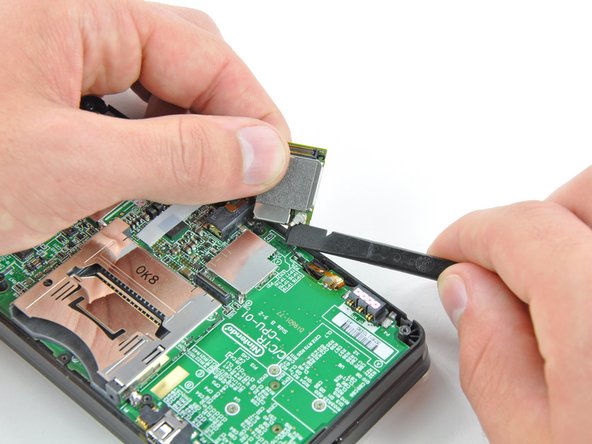

Use the flat end of a spudger to pry the Wi-Fi antenna cable connector off its socket on the Wi-Fi board.
-
Remove the Wi-Fi board from the device.
-
-
-

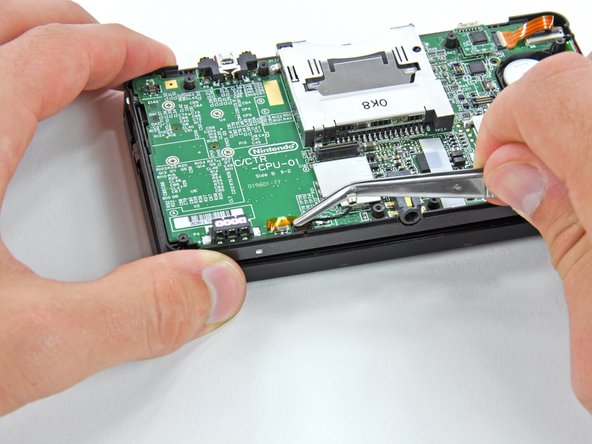

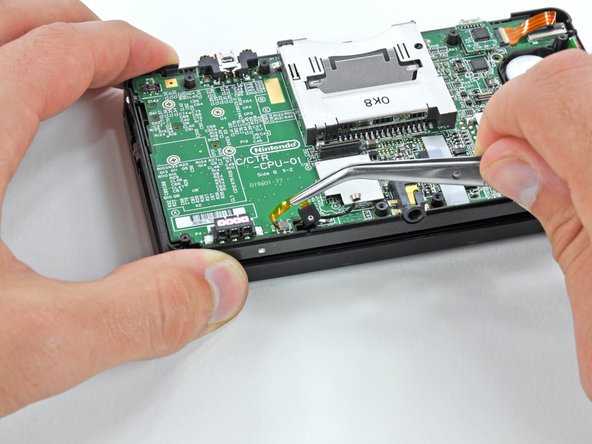

Grasp the microphone ribbon cable near the microphone with a pair of tweezers.
-
Pull the microphone straight up out of the upper case.
-
-
-
Use the flat end of a spudger or your fingernail to flip up the retaining flap on the speaker assembly ribbon cable ZIF socket.
-
Disconnect the speaker assembly ribbon cable with a pair of tweezers.
-
-
-
Use the flat end of a spudger or your fingernail to flip up the retaining flap on the camera ribbon cable ZIF socket.
-
-
-
Remove seven Phillips screws securing the motherboard to the upper case:
-
Four 2.5 mm gold screws
-
Two 3.5 mm black screws
-
One 2.5 mm silver screw
-

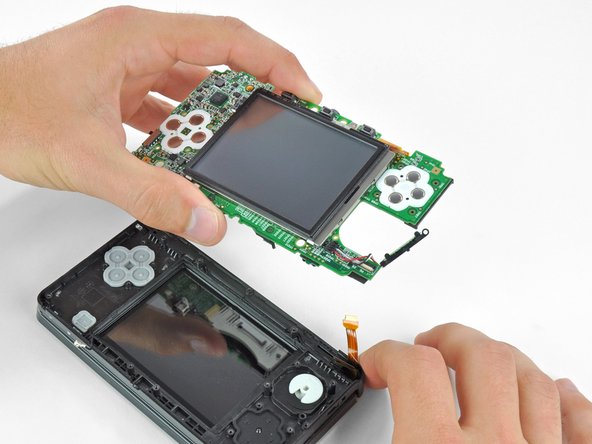

Lift the side of the motherboard that sits along the bottom edge of the 3DS.
-
-
-

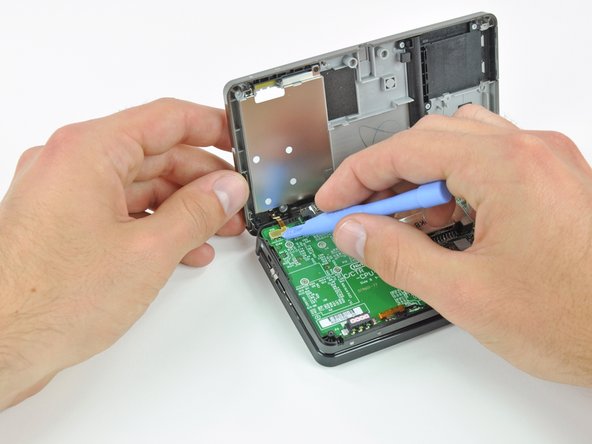

Use the flat end of a spudger or your fingernail to flip up the retaining flap on the LCD ribbon cable ZIF socket.
-
-
-

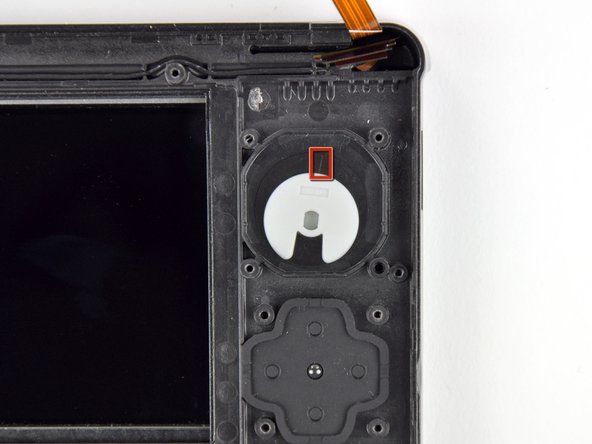

Use a spudger to orient the Circle Pad and plastic ring so that the slit in the ring is 180o from the opening in the bottom of the Circle Pad.
-
-
-

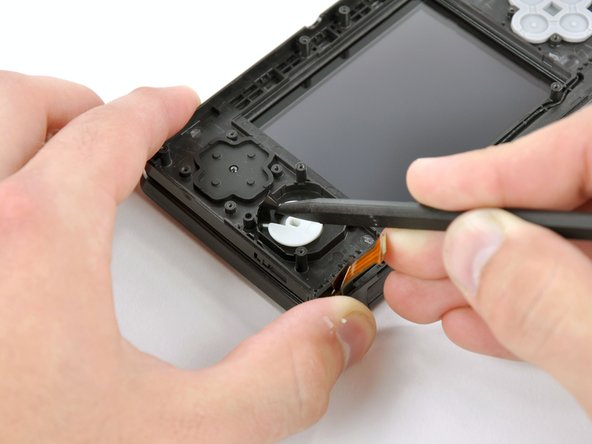

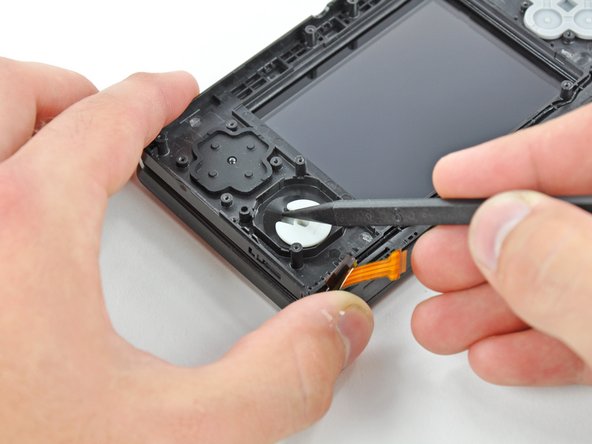

Insert the tip of a spudger into the slot in the bottom of the Circle Pad and under the plastic ring.
-

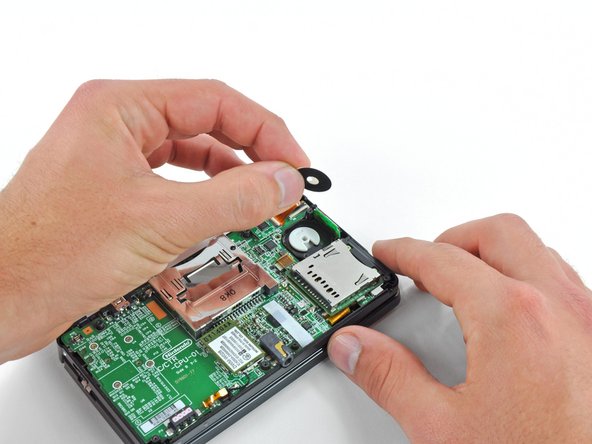

Use a prying motion to remove the plastic ring from underneath the bottom of the Circle Pad.
-
-
-

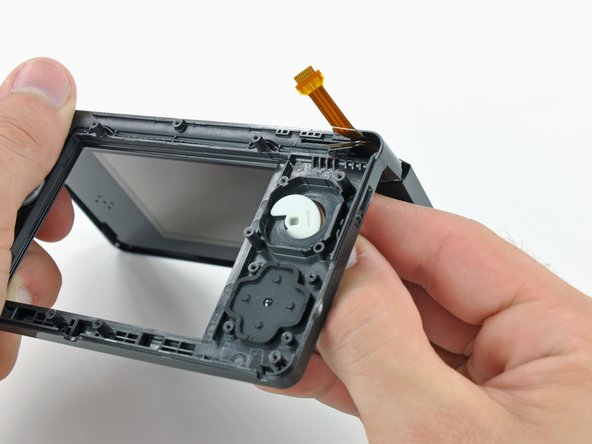

Grab the top of the Circle Pad and pull the tip of one of the "prongs" on the bottom of the Circle pad through the hole in the upper case.
-

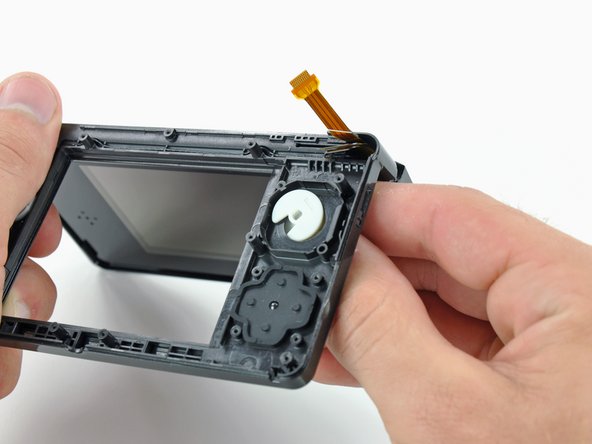

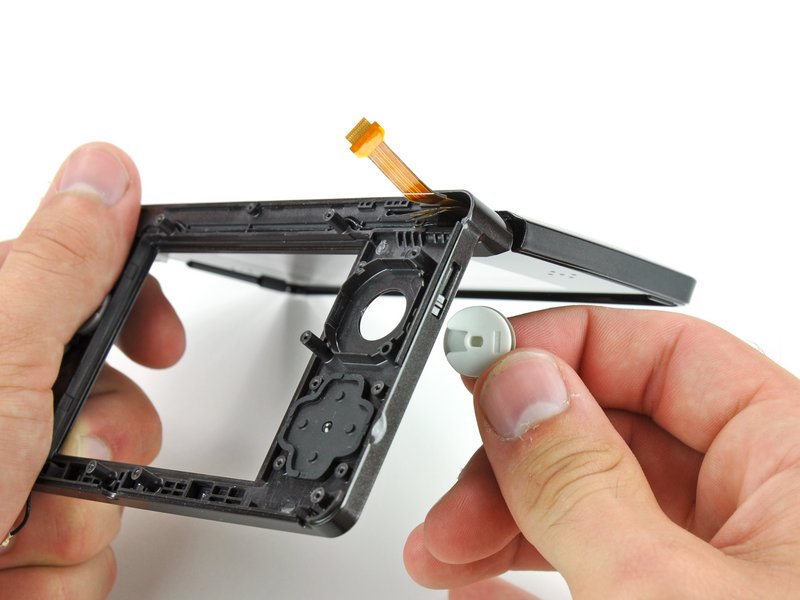

Continue pulling the bottom of the Circle Pad through the hole in the upper case while rotating the Circle Pad until it is free.
-
To reassemble your device, follow these instructions in reverse order.
To reassemble your device, follow these instructions in reverse order.
