What you need

  1. Nintendo 3DS Right Shoulder Button Replacement, Nintendo 3DS Right Shoulder Button Replacement: step 1, image 1 of 1
    • Unscrew the four Phillips #00 screws along the top of the back cover.

    • The screws are held in place by locking washers, and will not come out of the back cover.

    • The comments section is full of unlucky souls who will tell you that the screws here through step 4 will strip incredibly easily. Press down fairly hard, and go slow.

  2. Nintendo 3DS Right Shoulder Button Replacement: step 2, image 1 of 2 Nintendo 3DS Right Shoulder Button Replacement: step 2, image 2 of 2
    • Hold the device in one hand and turn it over.

    • Grab the top edge of the back cover with your opposite hand so that the cover does not fall back into place.

    • Flip the 3DS over again so that the back cover is facing up.

    • Pull the back cover up and away from the rest of the device to remove it.

  3. Nintendo 3DS Right Shoulder Button Replacement: step 3, image 1 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 3, image 2 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 3, image 3 of 3

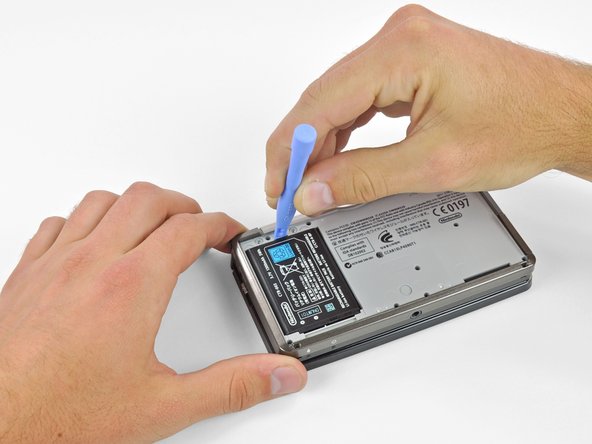

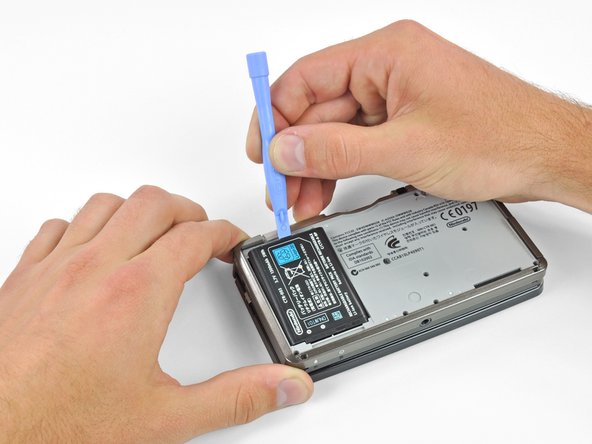

    • Insert a plastic opening tool into the notch in the lower case above the battery.

    • Pry the battery up with the plastic opening tool.

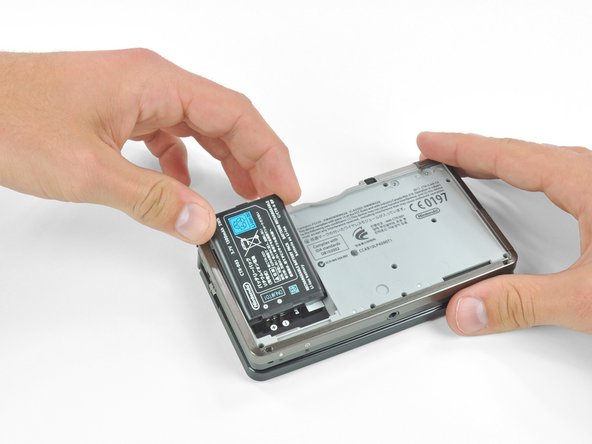

    • Grab the top edge of the battery and lift it out of the lower case.

  4. Nintendo 3DS Right Shoulder Button Replacement: step 4, image 1 of 1

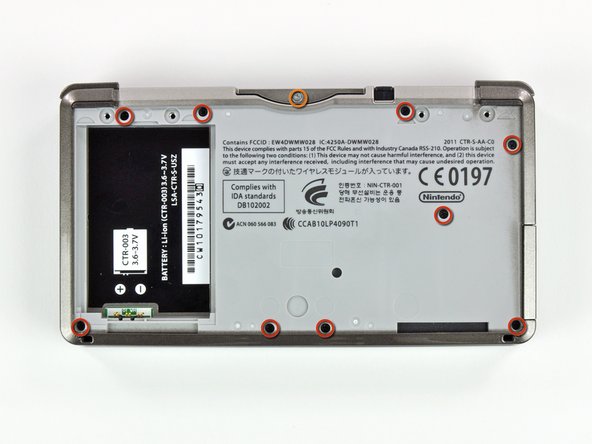

    • Remove the nine 6.3 mm black Phillips screws from the lower case.

    • Remove the 2.4 mm silver Phillips screw above the game cartridge slot.

  5. Nintendo 3DS Right Shoulder Button Replacement: step 5, image 1 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 5, image 2 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 5, image 3 of 3

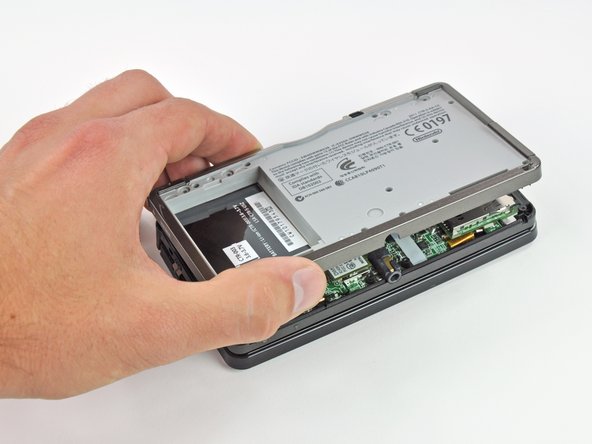

    • Lift the bottom edge of the lower case off the rest of the 3DS.

    • There are still two ribbon cables connecting the mother board to the case, so be sure not to pull the lower case all the way off.

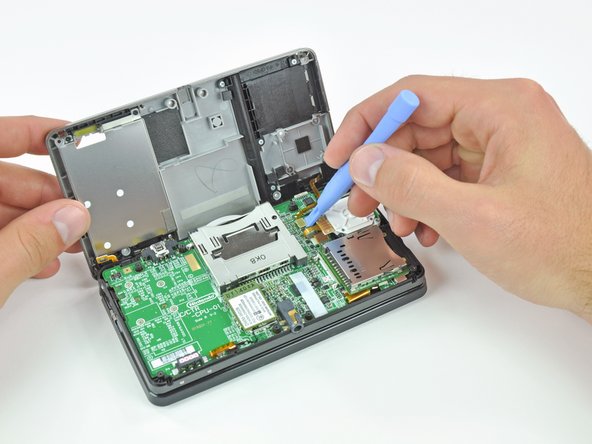

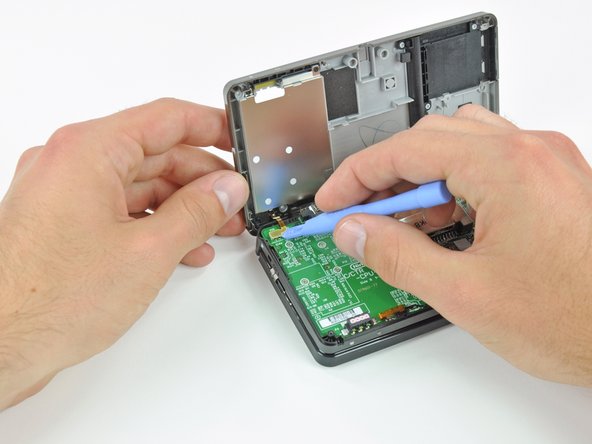

    • Use a plastic opening tool to pry the shoulder button ribbon cables off their sockets on the motherboard.

    • Remove the lower case from the device.

  6. Nintendo 3DS Right Shoulder Button Replacement: step 6, image 1 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 6, image 2 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 6, image 3 of 3

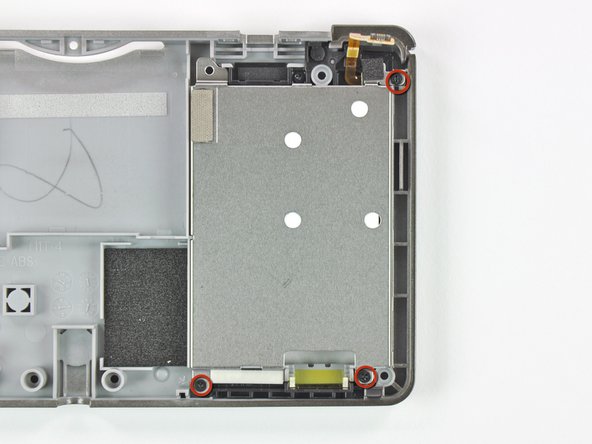

    • Remove the three 3.6 mm Phillips screws securing the metal battery shield to the lower case.

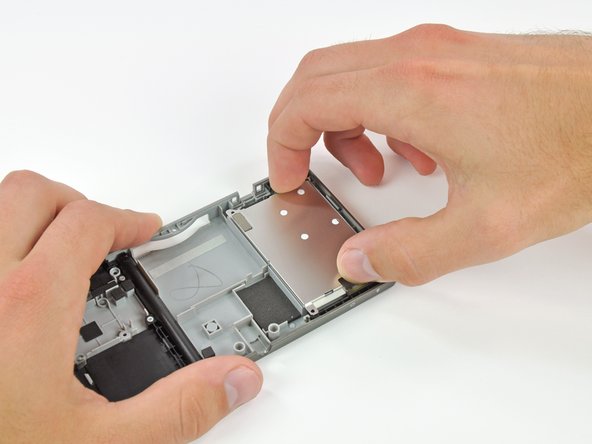

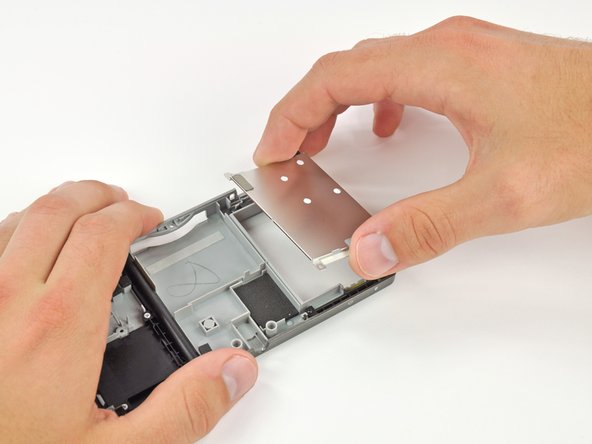

    • Lift the battery shield up and out of the lower case.

  7. Nintendo 3DS Right Shoulder Button Replacement: step 7, image 1 of 1

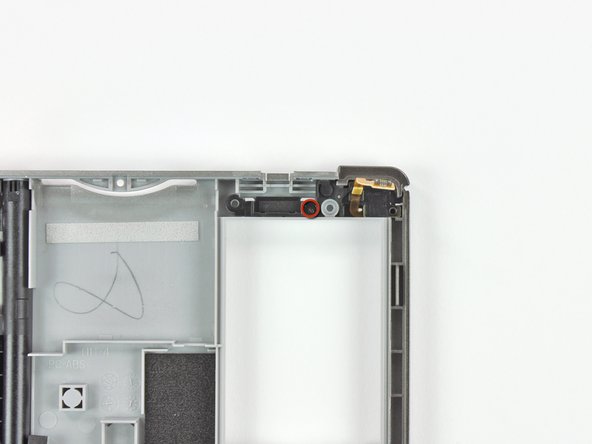

    • Remove the 3.6 mm Phillips screw from the right shoulder button cover.

  8. Nintendo 3DS Right Shoulder Button Replacement: step 8, image 1 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 8, image 2 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 8, image 3 of 3

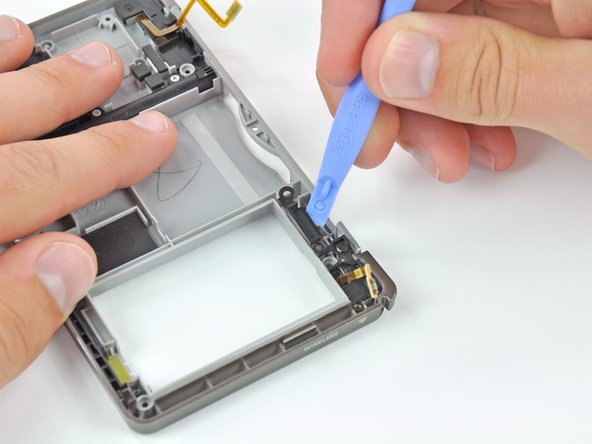

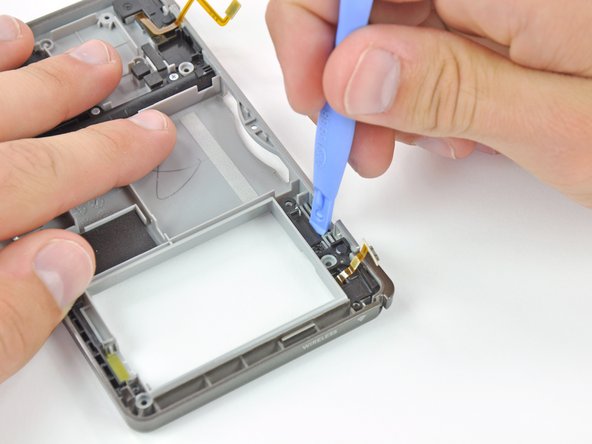

    • Insert a plastic opening tool under the left side of the right shoulder button cover.

    • Pry the black plastic cover up from the lower case.

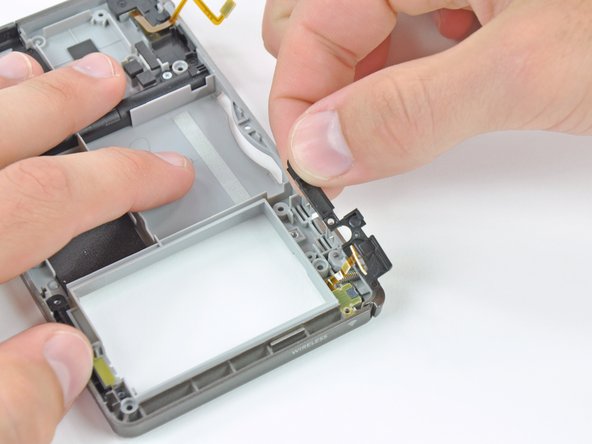

    • Grab the cover and lift it off of the lower case.

    • If the shoulder button contact and ribbon cable come off with the cover, be sure to reinstall them in the correct orientation.

  9. Nintendo 3DS Right Shoulder Button Replacement: step 9, image 1 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 9, image 2 of 3 Nintendo 3DS Right Shoulder Button Replacement: step 9, image 3 of 3

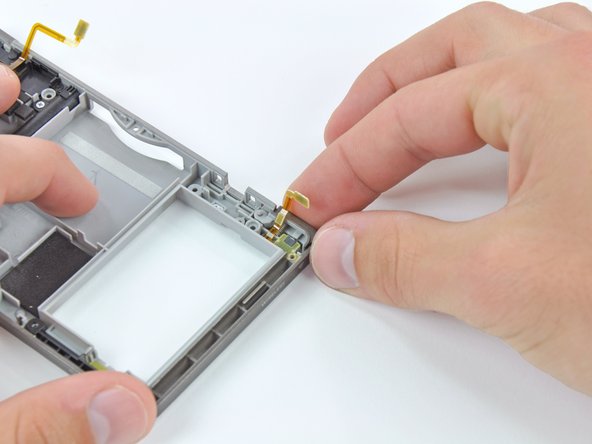

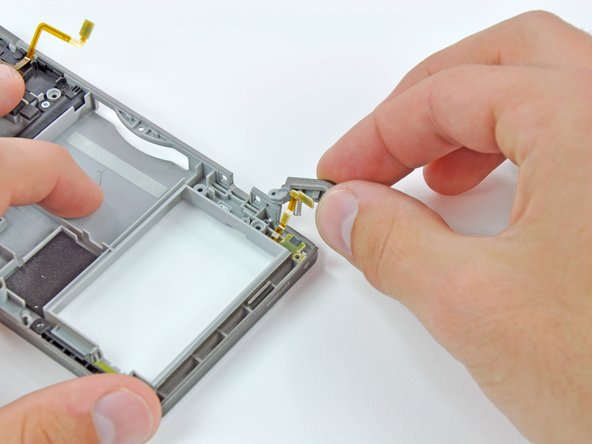

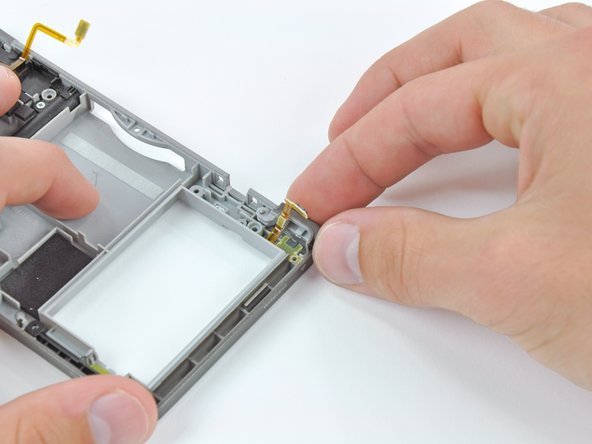

    • Lift the right shoulder button out of the lower case.

    • The shoulder button is held in place by a metal pin, and houses a small spring. Take care not to lose track of either of these pieces when removing the shoulder button.

Conclusion

To reassemble your device, follow these instructions in reverse order.
