Step 1 Nintendo 3DS Wi-Fi Board Replacement

• Unscrew the four Phillips #00 screws along the top of the back cover.
• The screws are held in place by locking washers, and will not come out of the back cover.
• The comments section is full of unlucky souls who will tell you that the screws here through step 4 will strip incredibly easily. Press down fairly hard, and go slow.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2



• Hold the device in one hand and turn it over.
• Grab the top edge of the back cover with your opposite hand so that the cover does not fall back into place.
• Flip the 3DS over again so that the back cover is facing up.
• Pull the back cover up and away from the rest of the device to remove it.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

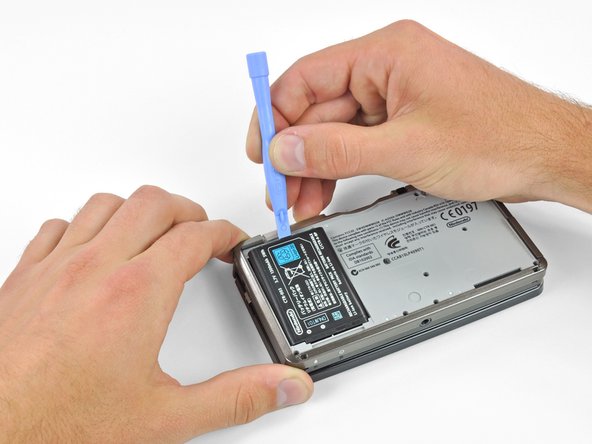

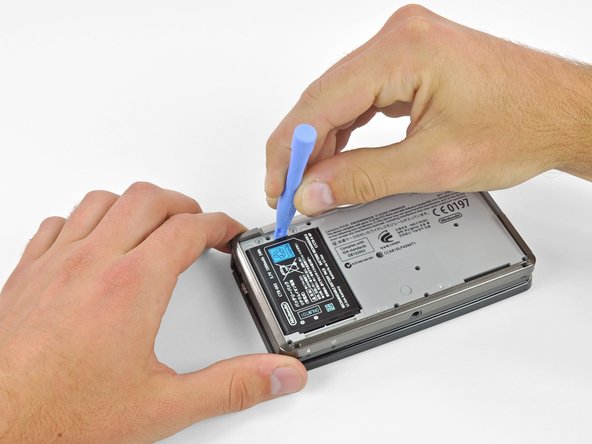

Step 3
• Insert a plastic opening tool into the notch in the lower case above the battery.
• Pry the battery up with the plastic opening tool.
• Grab the top edge of the battery and lift it out of the lower case.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

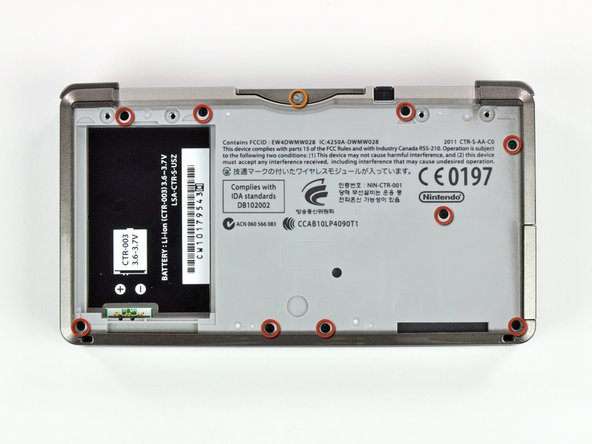

Step 4
• Remove the nine 6.3 mm black Phillips screws from the lower case.
• Remove the 2.4 mm silver Phillips screw above the game cartridge slot.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

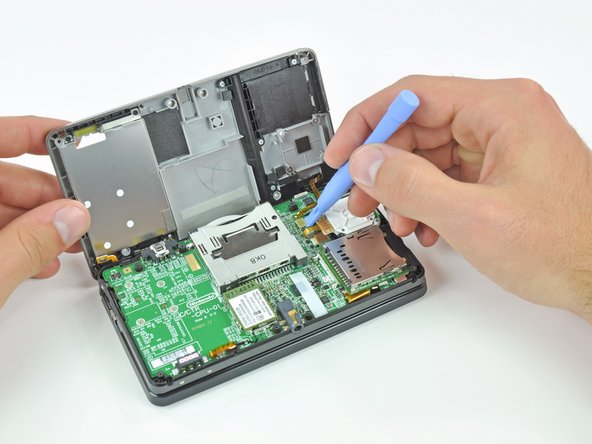

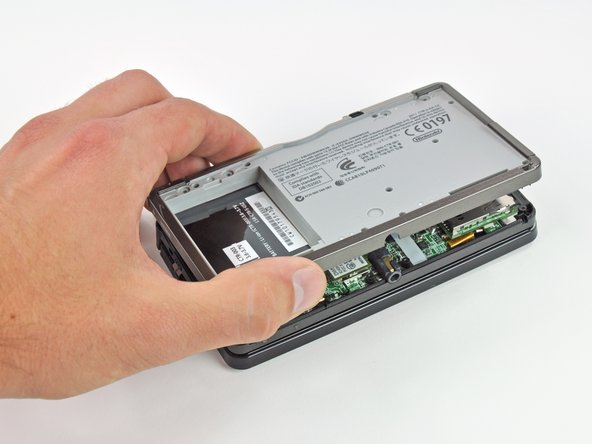

Step 5
• Lift the bottom edge of the lower case off the rest of the 3DS.
• There are still two ribbon cables connecting the mother board to the case, so be sure not to pull the lower case all the way off.
• Use a plastic opening tool to pry the shoulder button ribbon cables off their sockets on the motherboard.
• Remove the lower case from the device.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

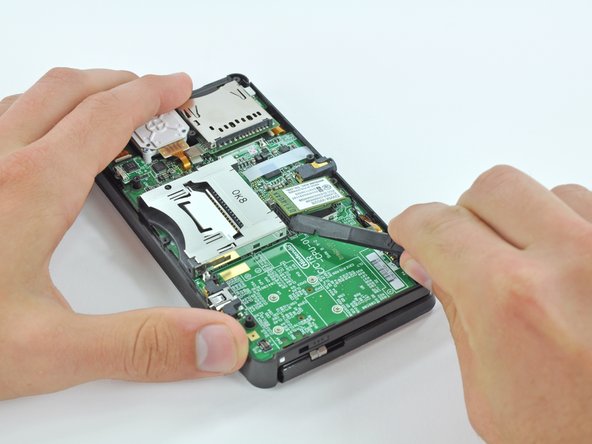

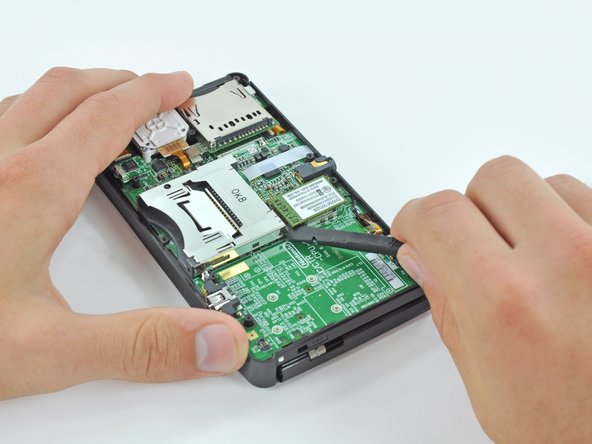

Step 6
• Slide the flat end of a spudger under the corner of the Wi-Fi board, and lift it away from the motherboard.
• The Wi-Fi antenna cable is still connected to the Wi-Fi board, so you cannot completely remove the Wi-Fi board yet.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

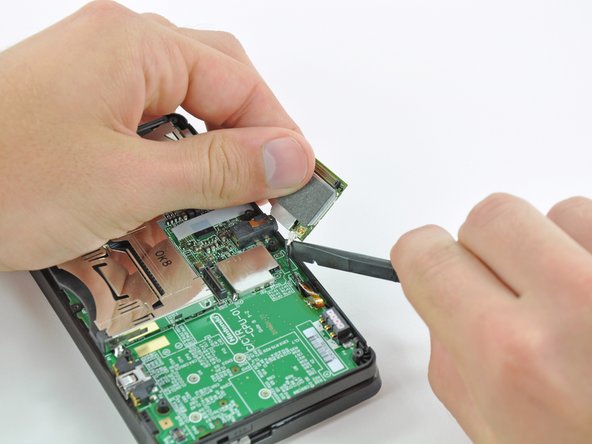

Step 7
• Lift the Wi-Fi board off the motherboard and rotate it so that the bottom side is facing up.
• Use the flat end of a spudger to pry the Wi-Fi antenna cable connector off its socket on the Wi-Fi board.
• Remove the Wi-Fi board from the 3DS.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
