Introduction
Use this guide to remove the white plastic outer case protecting the Wii's innards. Removing the outer case requires a Tri-wing screwdriver.
What you need
-
-

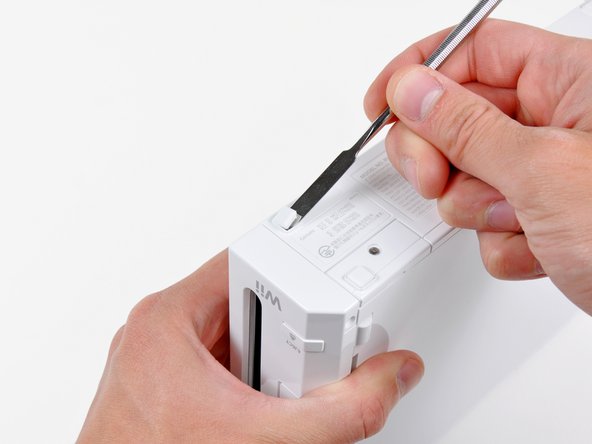

Use a metal spudger to remove the white plastic screw covers stuck to the lower case near the front of the Wii.
-
-
-

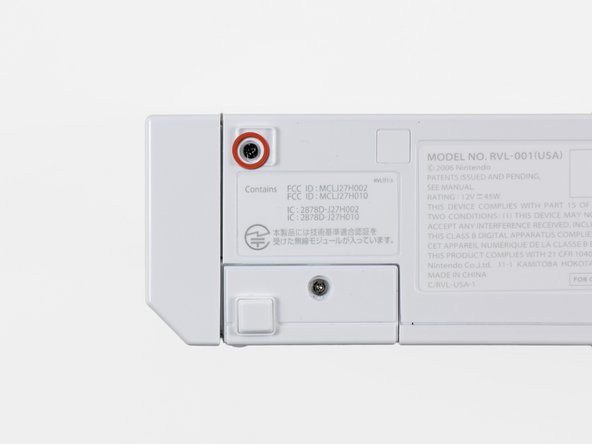

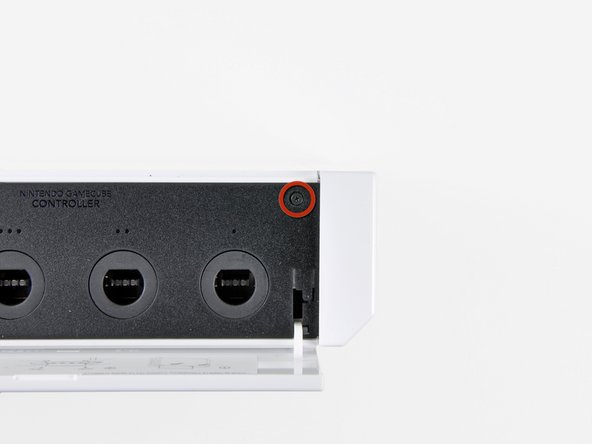

Remove the single 5.9 mm Phillips screw under the controller port door nearest the faceplate.
-
-
-
Use a metal spudger to remove the rubber foot stuck to the side of the Wii near the DVD drive opening.
-
-
-

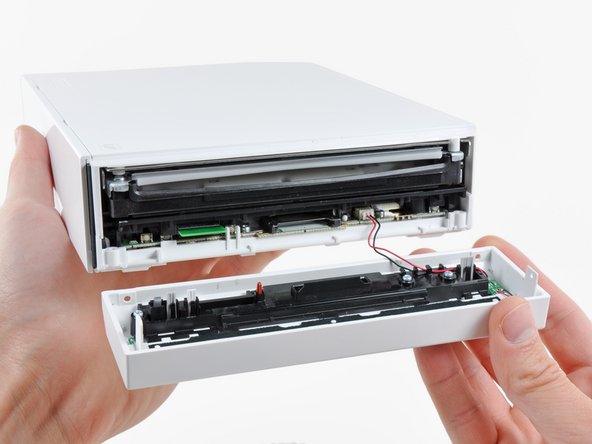

Carefully pull the faceplate away from the front of the Wii.
-

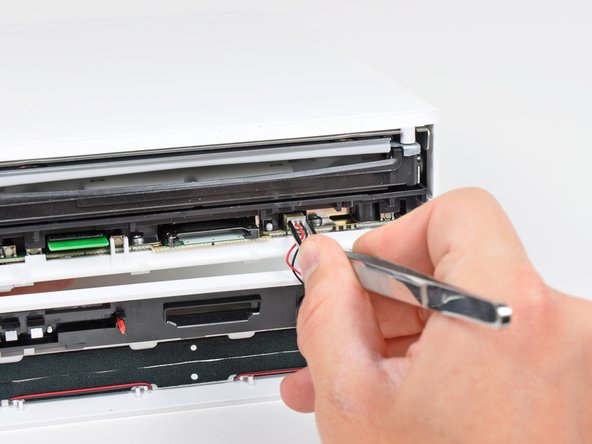

Use a pair of tweezers to disconnect the LED cable's plastic connector from the motherboard.
-
Remove the faceplate.
-
-
-

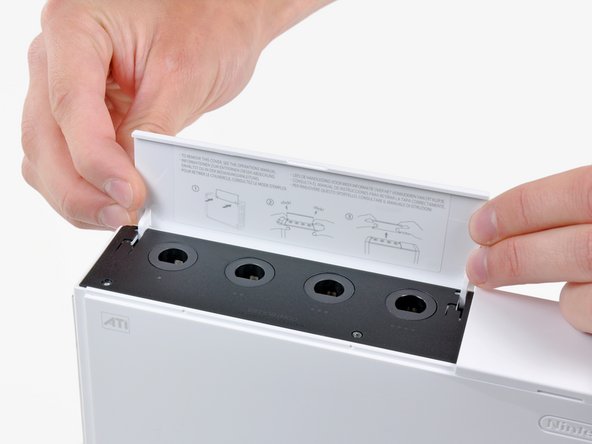

Open the controller port cover until it is perpendicular to the black controller port bezel.
-

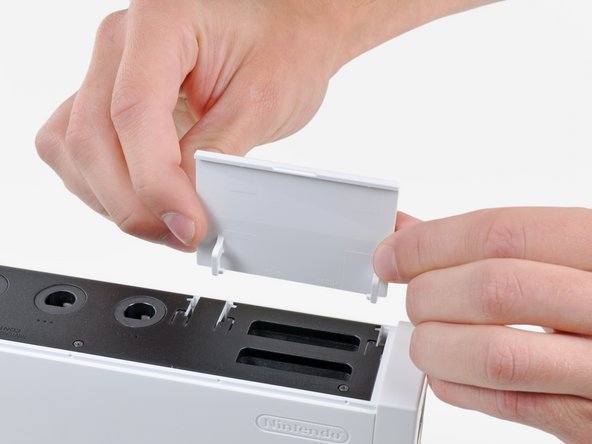

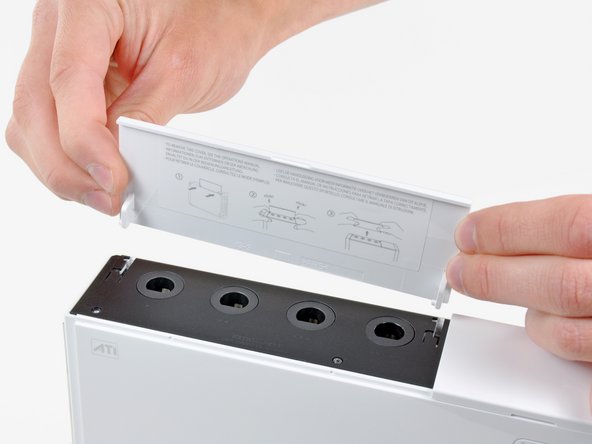

Pull the controller port cover straight up to release it from the outer case.
-
-
-

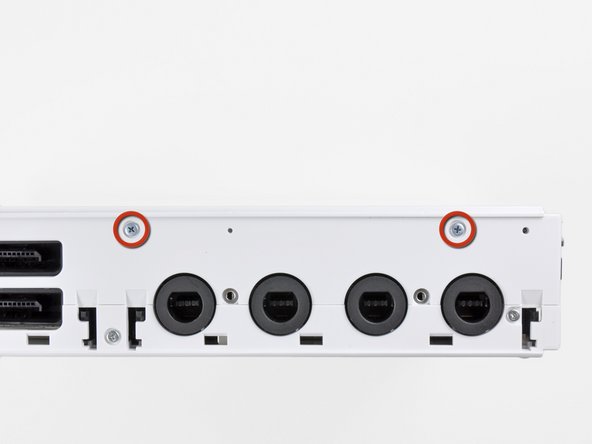

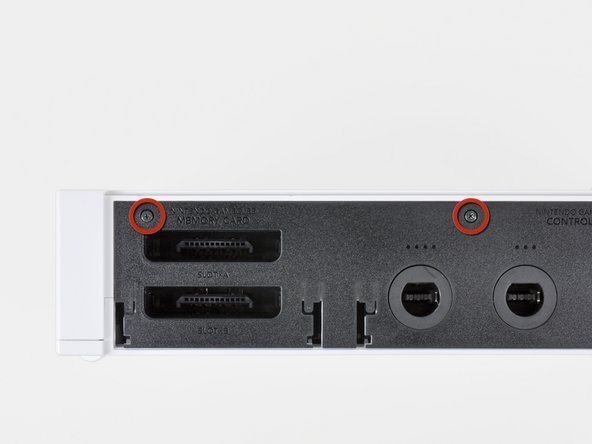

Remove the two remaining 4.1 mm Phillips screws along the top edge of the black plastic controller port bezel.
-

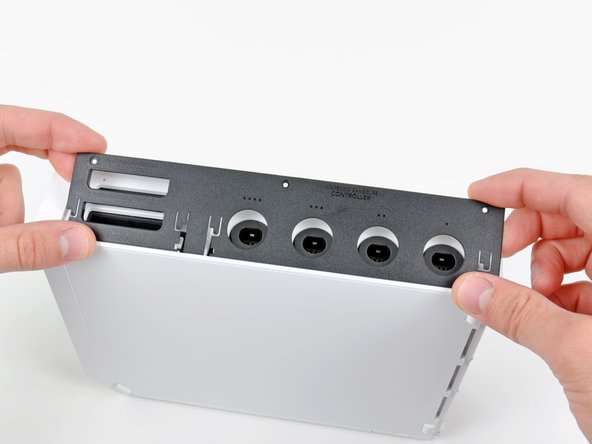

Lift the bezel from the long edge furthest away from the controller ports and remove it from the Wii.
-
-
-

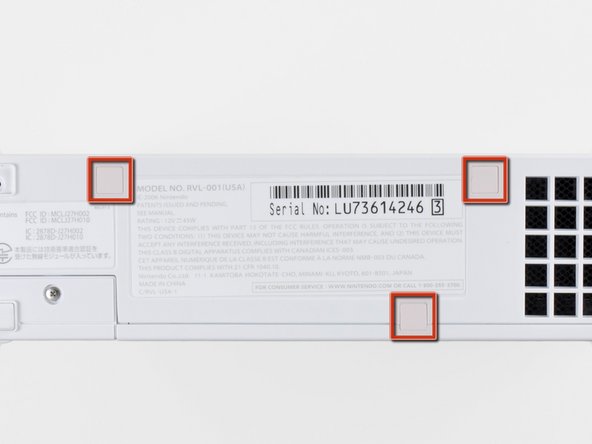

Use a metal spudger to remove the three highlighted screw covers stuck to the side of the Wii.
-
-
-

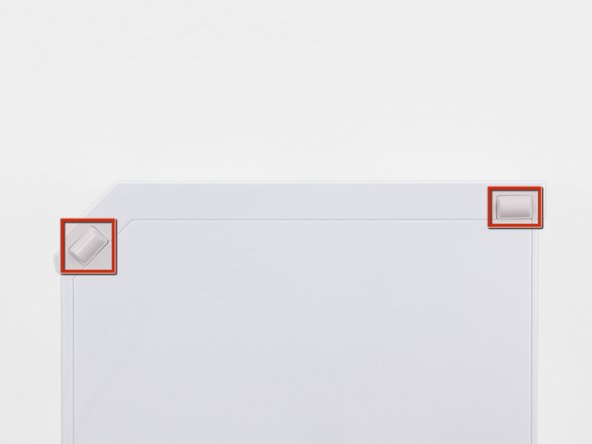

Use a metal spudger to remove the two rubber feet stuck to the bottom face of the Wii near the rear ports.
-
To reassemble your device, follow these instructions in reverse order.
