Orbital Sander

What you need

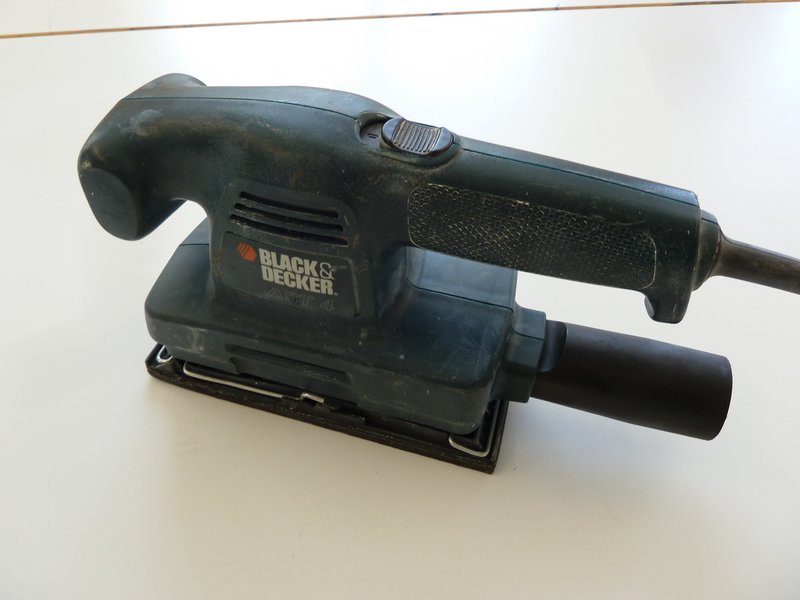

    1. Orbital Sander, Orbital Sander: step 1, image 1 of 3 Orbital Sander, Orbital Sander: step 1, image 2 of 3 Orbital Sander, Orbital Sander: step 1, image 3 of 3

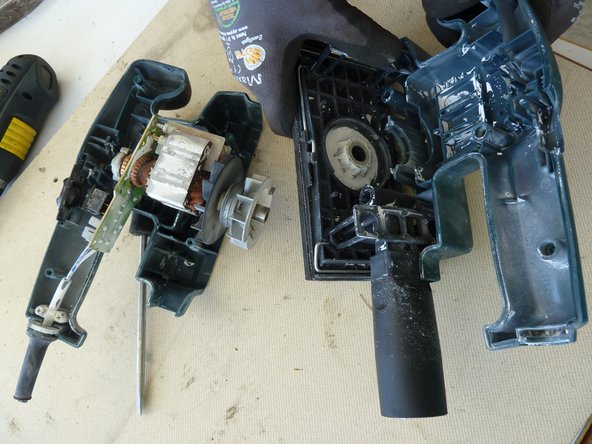

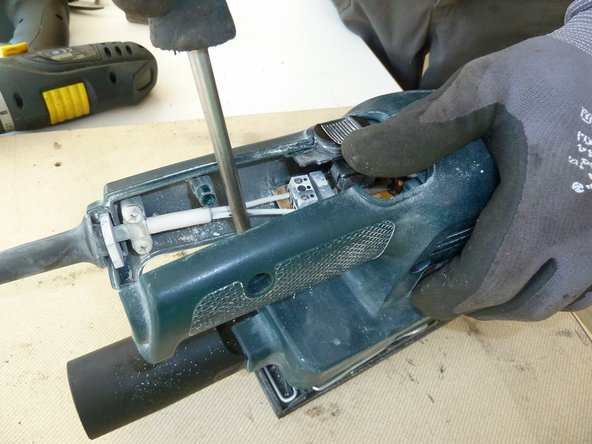

      • Unscrew and open the case.

      Add Comment

    2. Orbital Sander: step 2, image 1 of 2 Orbital Sander: step 2, image 2 of 2
      • Remove the metal parts.

      • Unscrew the power cable.

      Add Comment

    3. Orbital Sander: step 3, image 1 of 3 Orbital Sander: step 3, image 2 of 3 Orbital Sander: step 3, image 3 of 3

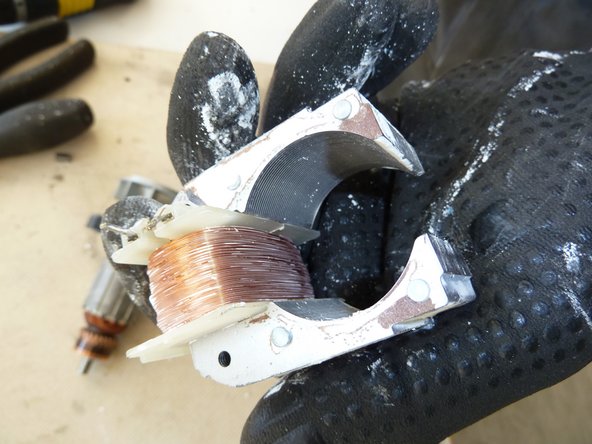

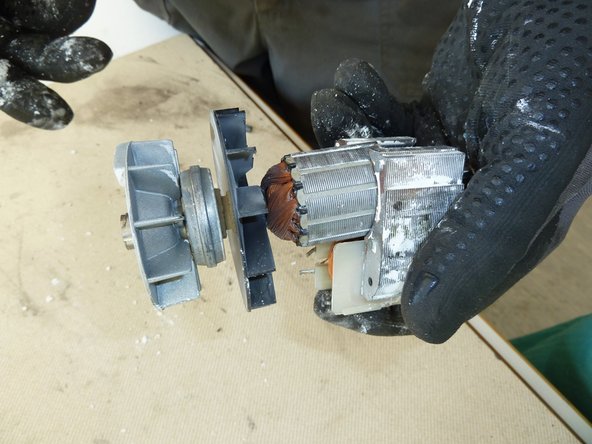

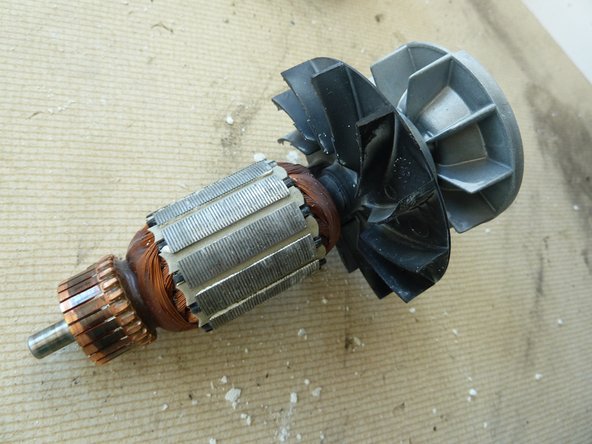

      • Remove the motor and the motor coil.

      Add Comment

    4. Orbital Sander: step 4, image 1 of 2 Orbital Sander: step 4, image 2 of 2

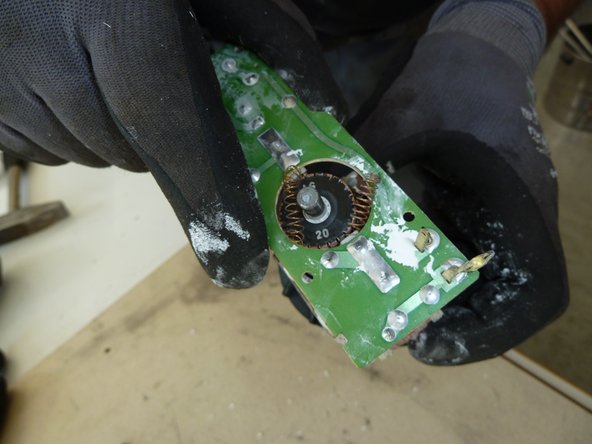

      • Remove the PWB.

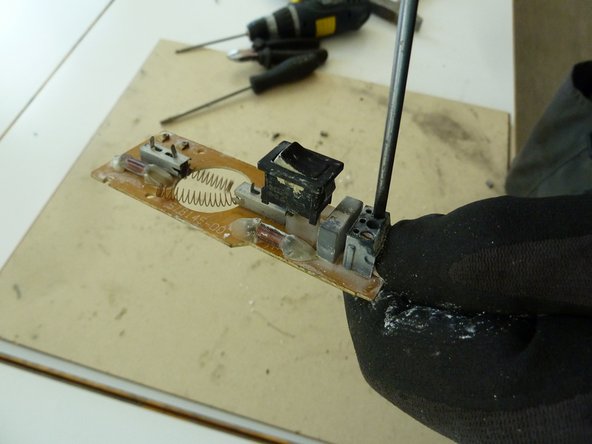

      • Remove the switch.

      Add Comment

    5. Orbital Sander: step 5, image 1 of 1

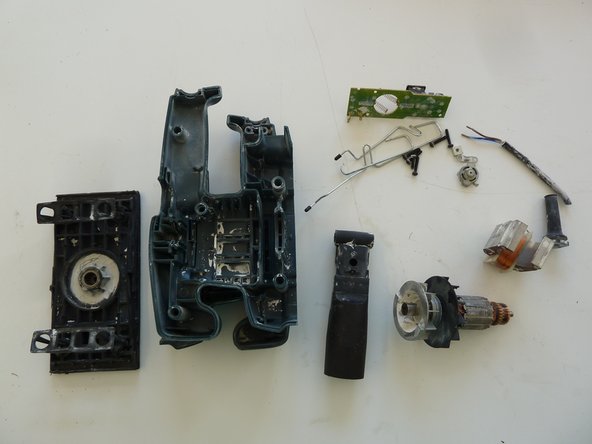

      • Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).

      • Make sure the plastic parts are completely free of metal pieces.

      Add Comment
