Introduction

Go to step 1 ↓

Dismantling and Recycling Centre (DRZ)

Katharina Lenz, Vienna / Austria

Health & Safety

Dismantling doesn't include any harmful steps. Nonetheless workers should wear personal protection equipment like gloves, goggles, apron and robust shoes.

Note: This is a general guide for most ovens. As the construction can differ, the dismantling steps mentioned below can vary in their order. However, the described steps show what parts the removal should focus on.

What you need

Tools

1. Step 1 Oven

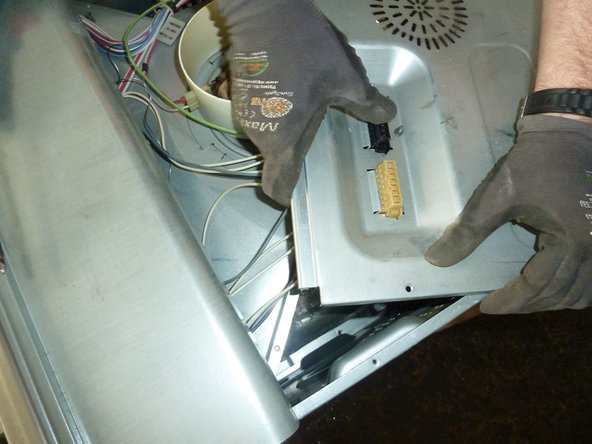

  Remove the screws on the top cover.

  Remove the top cover.
  Add Comment

  1024
2. Step 2

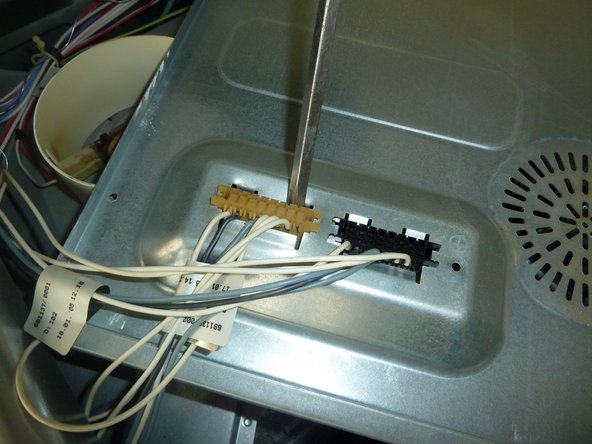

  Remove the grounding wire.

  Pry off the plugs.
  Add Comment

  1024
3. Step 3

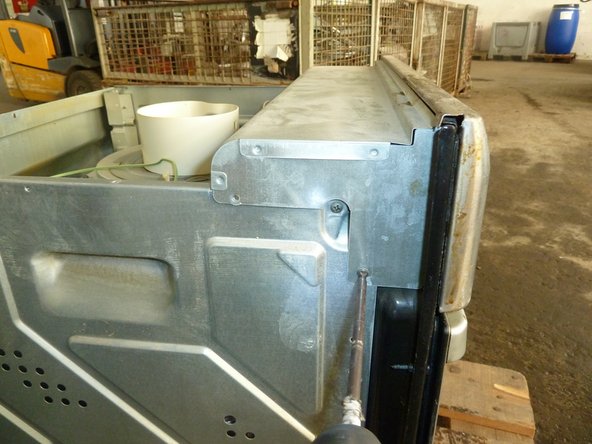

  Remove the screws of the cover.

  Remove the cover.
  Add Comment

  1024
4. Step 4

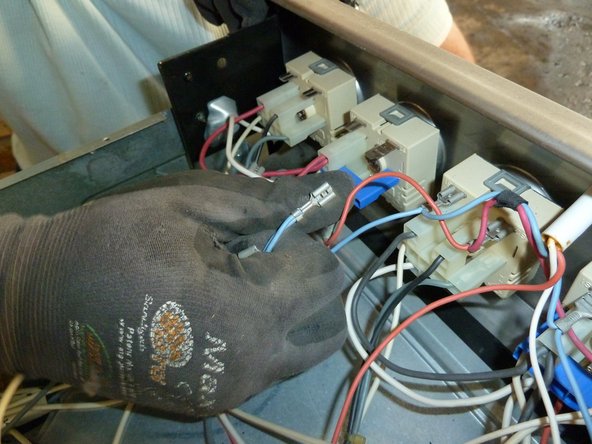

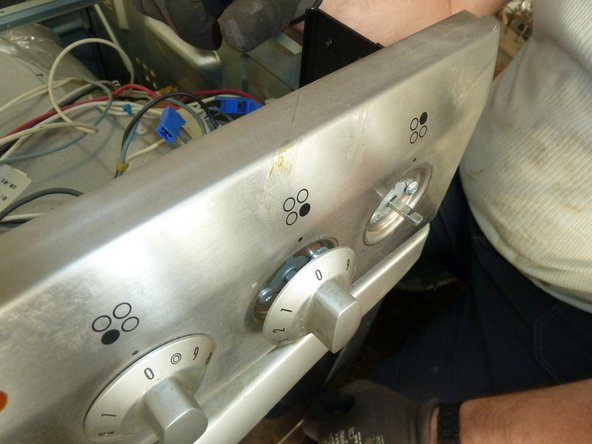

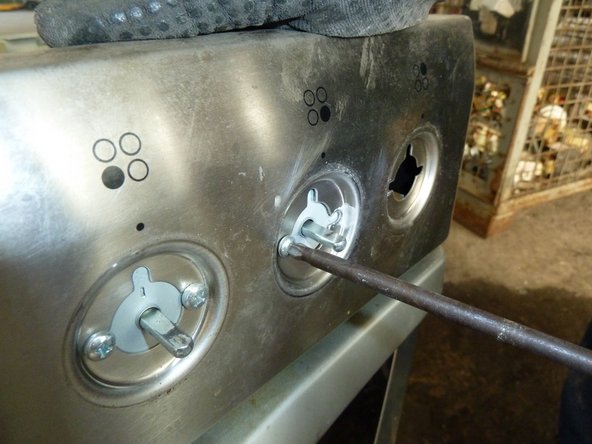

  Unplug the switches.

  Remove the controll buttons

  Remove the screws on the button fixtures.
  Add Comment

  1024
5. Step 5

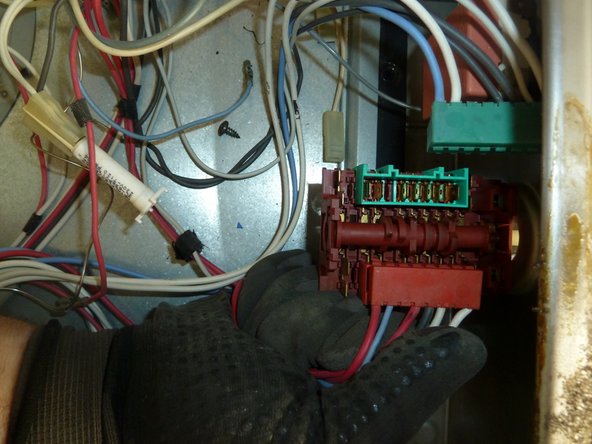

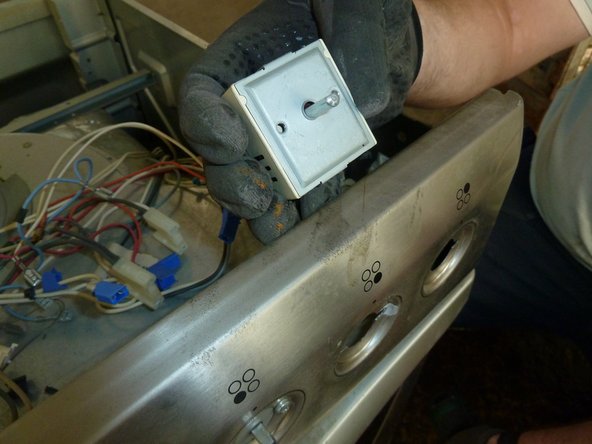

  Unplug the adjusting controllers.

  Remove all the adjusting controllers.
  Add Comment

  1024
6. Step 6

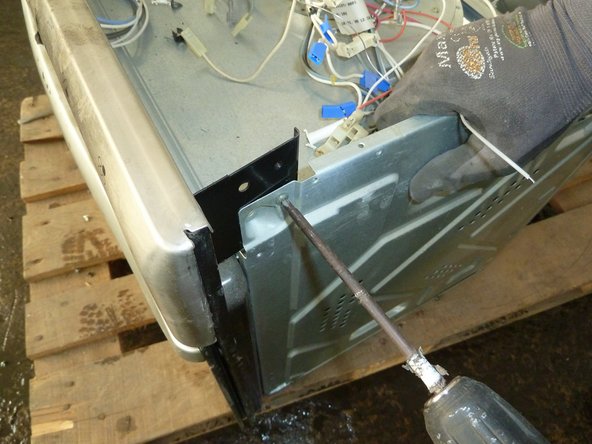

  Remove all the screws from the bottom case.
  Add Comment

  1024
7. Step 7

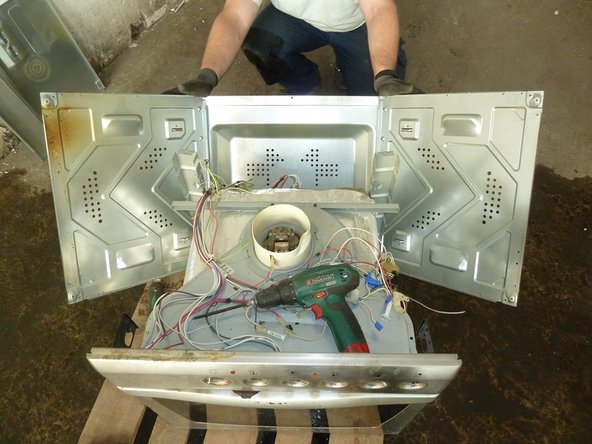

  Remove the metal case.
  Add Comment

  1024
9. Step 8

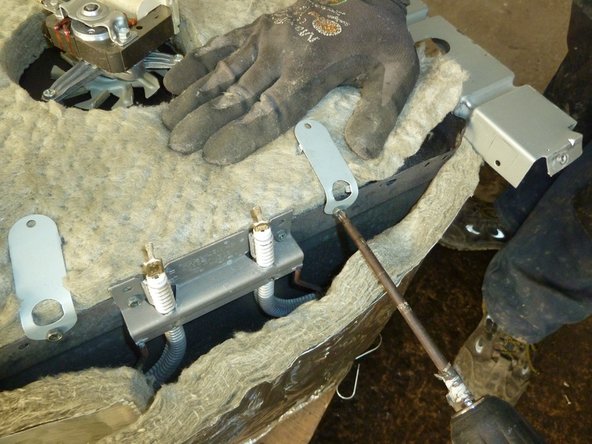

  Unscrew and remove the fixtures insulation.
  Add Comment

  1024
10. Step 9

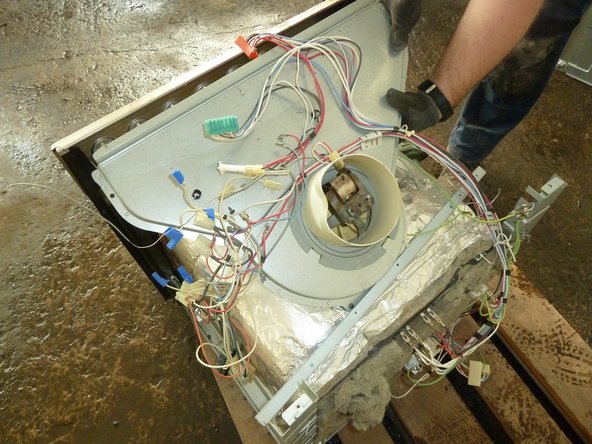

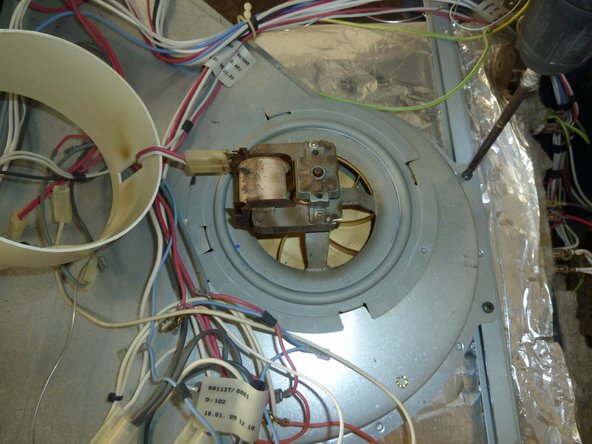

  Remove the screws from the fan assembly.

  Lift off the fan wires.
  Add Comment

  1024
11. Step 10

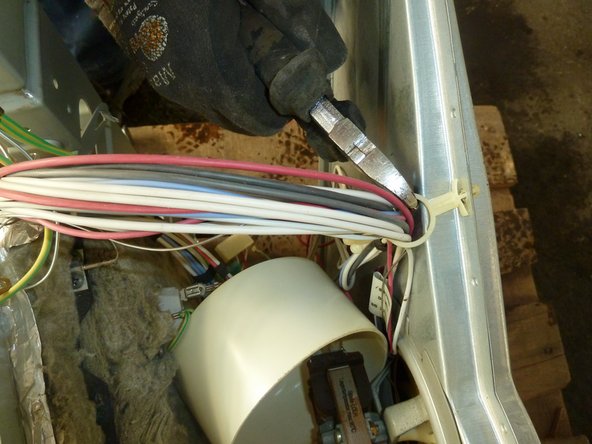

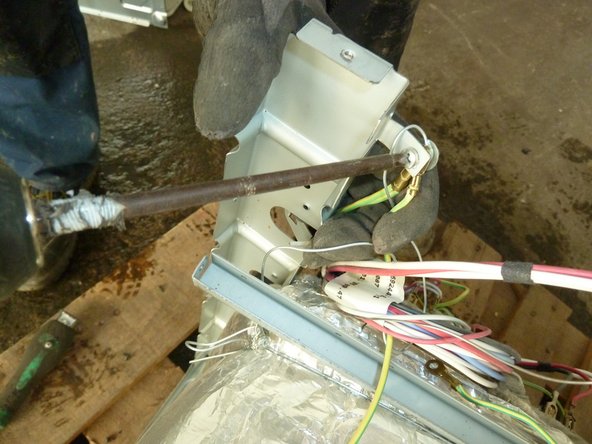

  Cut the plastic rings holding the the wires.

  Unscrew the ground cables.
  Add Comment

  1024
12. Step 11

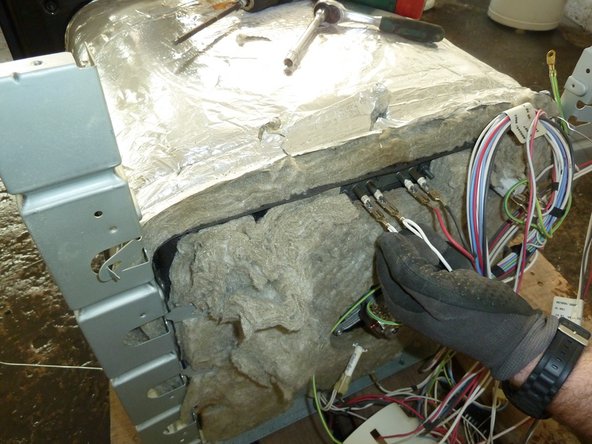

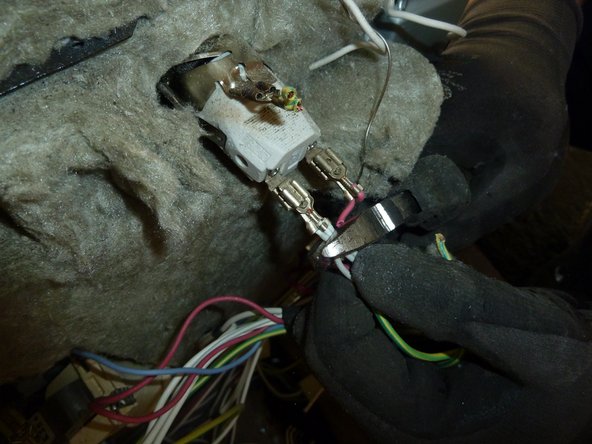

  Pull off the connections.

  Cut the wires.
  Add Comment

  1024
13. Step 12

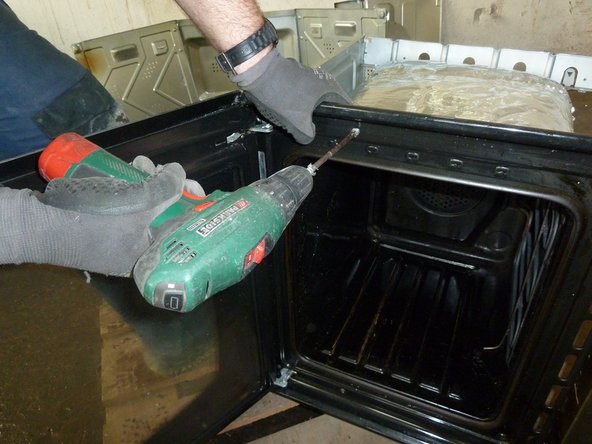

  Remove the screws from the case.
  Add Comment

  1024
14. Step 13

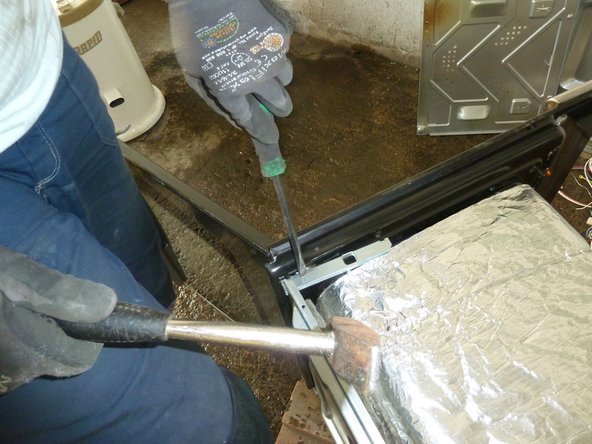

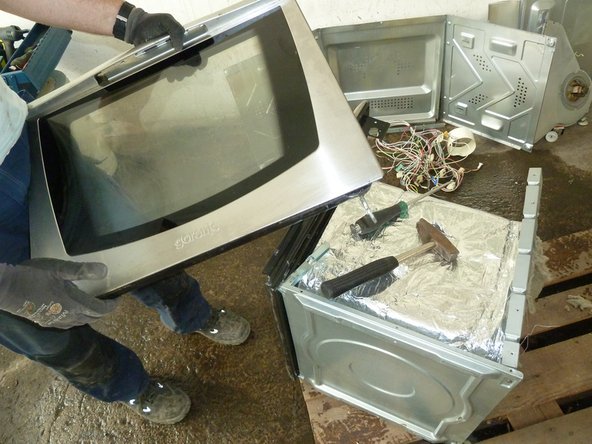

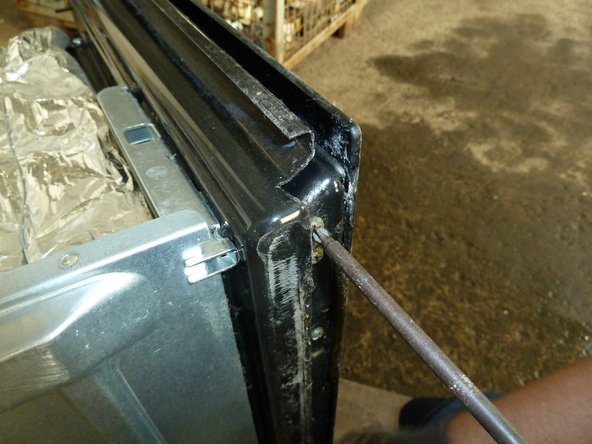

  Remove the screws from the door.

  Pry off the hinge.

  Remove the door.
  Add Comment

  1024
15. Step 14

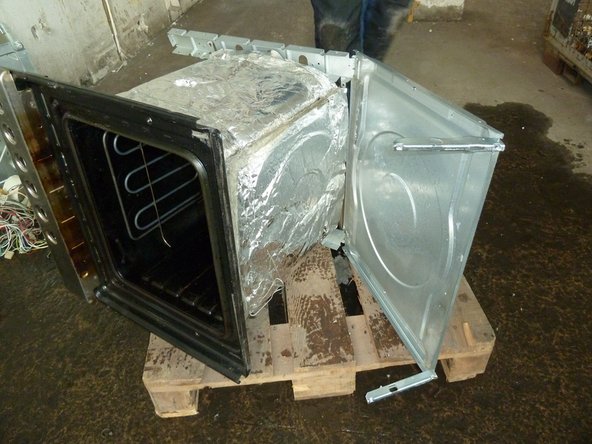

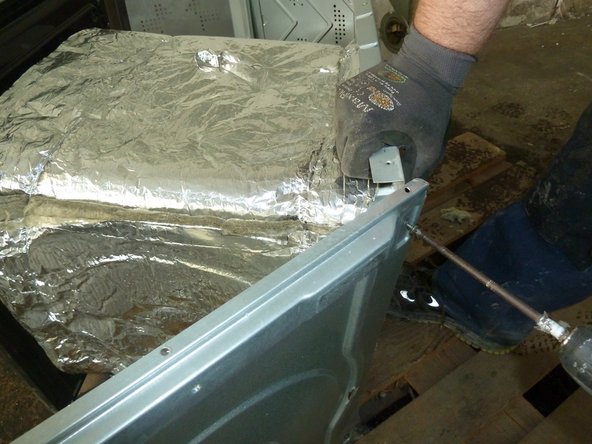

  Unscrew and remove the bottom.
  Add Comment

  1024
17. Step 15

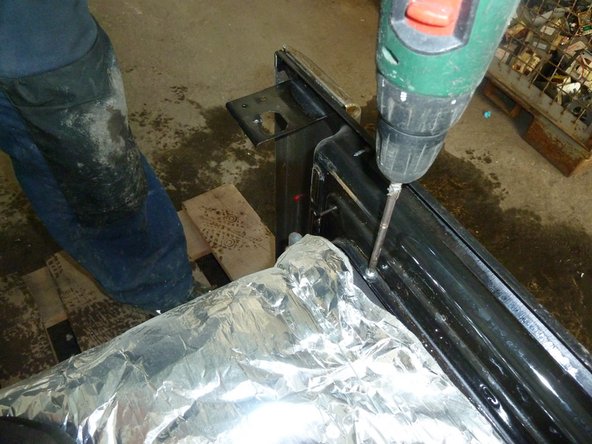

  Remove the screws from the front.
  Add Comment

  1024
18. Step 16

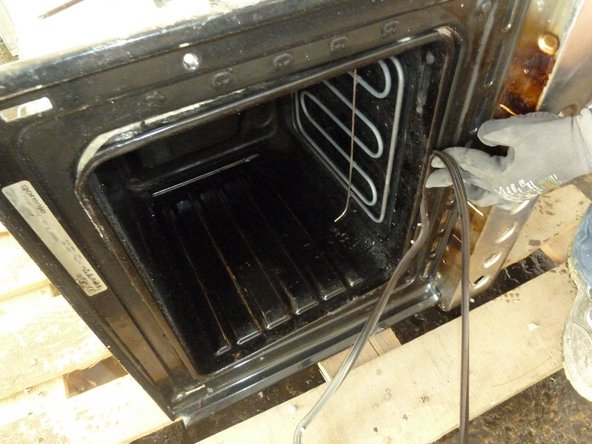

  Peel off the rubber sealing.
  Add Comment

  1024
19. Step 17

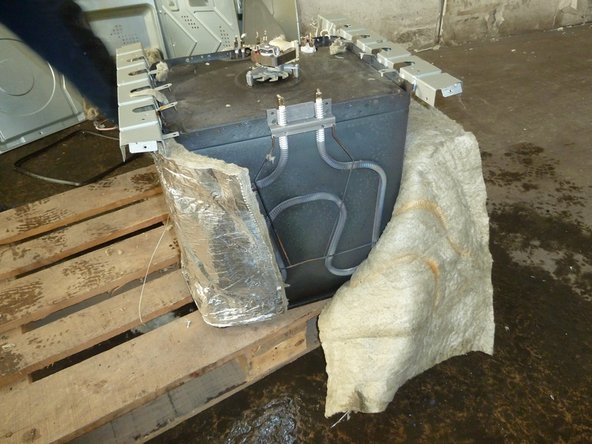

  Remove the insulation wool.
  Add Comment

  1024
20. Step 18

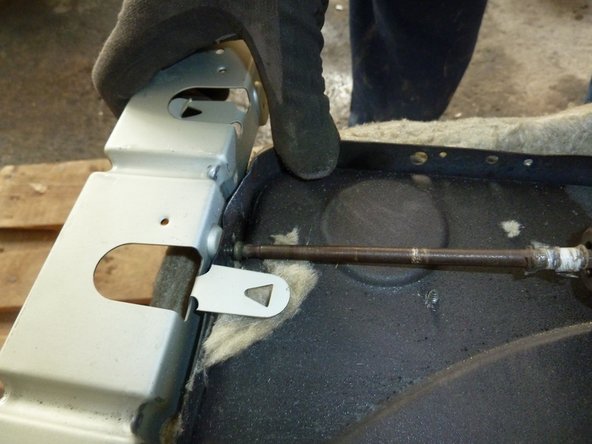

  Remove the metal rails that held the insulation wool.
  Add Comment

  1024
21. Step 19

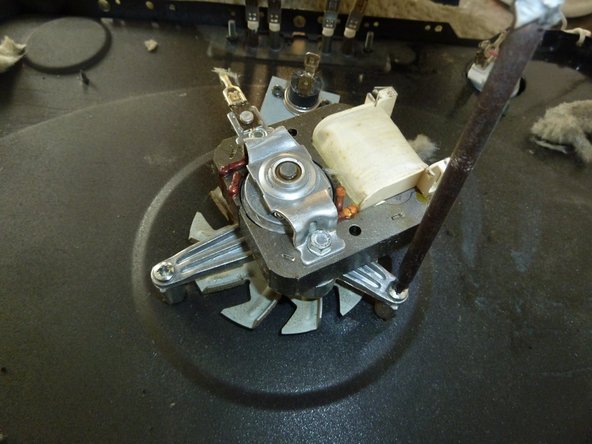

  Remove the screws from the fan.
  Add Comment

  1024
22. Step 20

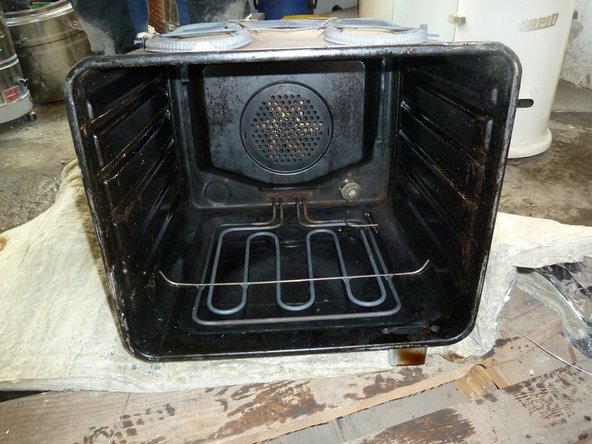

  Empty the case.
  Add Comment

  1024
23. Step 21

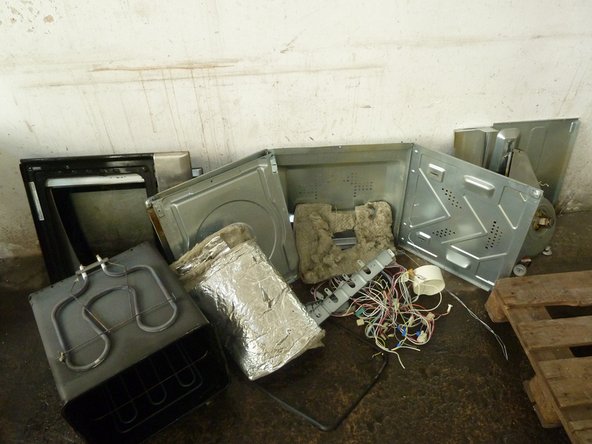

  Separate the remaining materials according to their type and go on with the appropriate data sheet (e.g. aluminium, ferrous metals, plastic, further PWBs, etc.).
