PEAQ TFT32NUMUNE TV set

What you need

  1. PEAQ TFT32NUMUNE TV set, Opening: step 1, image 1 of 1
    • Place the TV screen side-down.

    • Using the PH#1 screwdriver, begin to loose the two screws located in the external connectors' square (highlighted in green boxes).

    • Then, with the PH#2 screwdriver, continue to loose the sixteen screws of the back-casing (highlighted in green boxes).

    • Work your way around the TV until you can pull the back cover off.

  2. PEAQ TFT32NUMUNE TV set, Removal of Printed Circuit Boards (PCB): step 2, image 1 of 2 PEAQ TFT32NUMUNE TV set, Removal of Printed Circuit Boards (PCB): step 2, image 2 of 2
    • Remove cables: Disconnect all sixteen connectors (highlighted in red boxes) and separate the tapes (highlighted in the blue box) used to fix cables to the metal casing.

    • Remove Printed Circuit Boards (PCB):

    • Using PH#1 screwdriver, begin to loose the twenty-one screws (highlighted in green boxes).

    • Using J1 screwdriver, continue to loose the last two screws located in the bottom PCB protected with a double metal casing.

  3. PEAQ TFT32NUMUNE TV set, Removal of Speakers: step 3, image 1 of 1

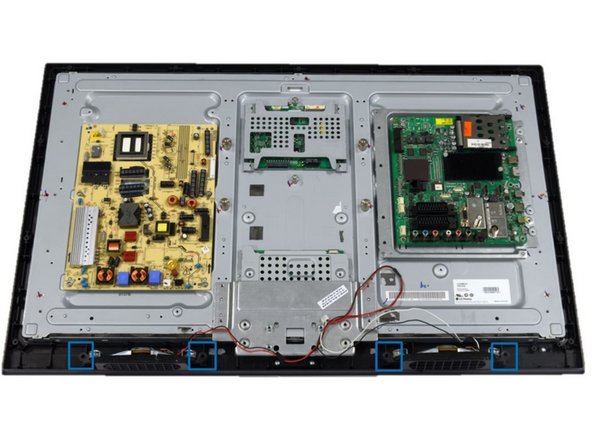

    • Remove the speakers by extracting them manually from their mountings (blue boxes).

  4. PEAQ TFT32NUMUNE TV set, Removal of Liquid Crystal Display (LCD): step 4, image 1 of 3 PEAQ TFT32NUMUNE TV set, Removal of Liquid Crystal Display (LCD): step 4, image 2 of 3 PEAQ TFT32NUMUNE TV set, Removal of Liquid Crystal Display (LCD): step 4, image 3 of 3
    • Place the TV screen up and remove the front frame which is already exposed.

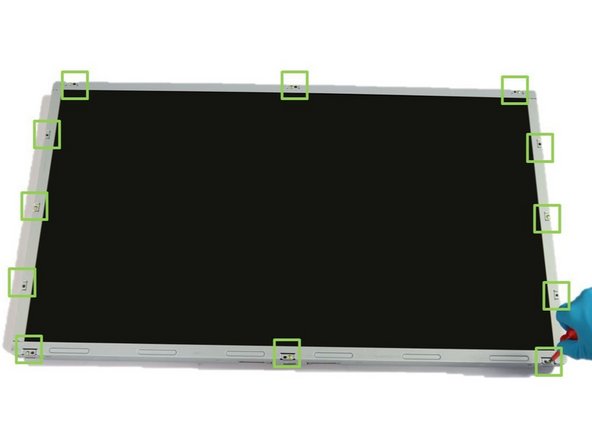

    • Using PH#1 screwdriver, begin to loose the twelve screws of the inner frame.

    • Starting at the bottom-right corner, continue to work your way around the frame counterclockwise until you can pull the frame off.

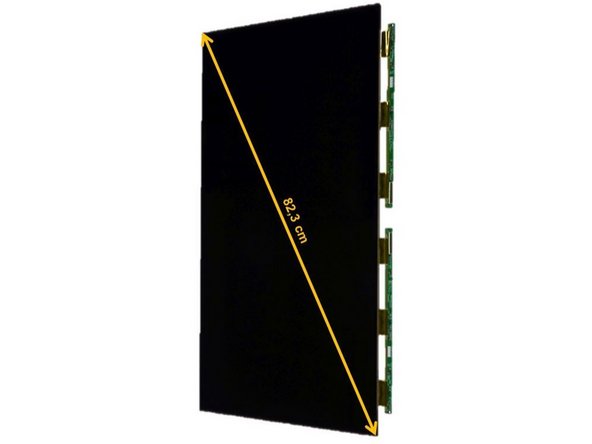

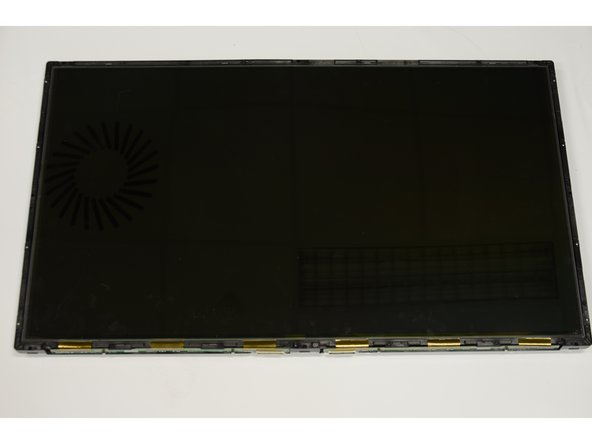

    • Remove the LCD panel which is already free.

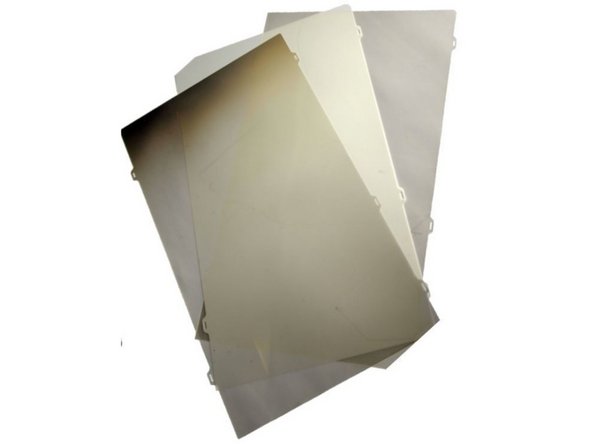

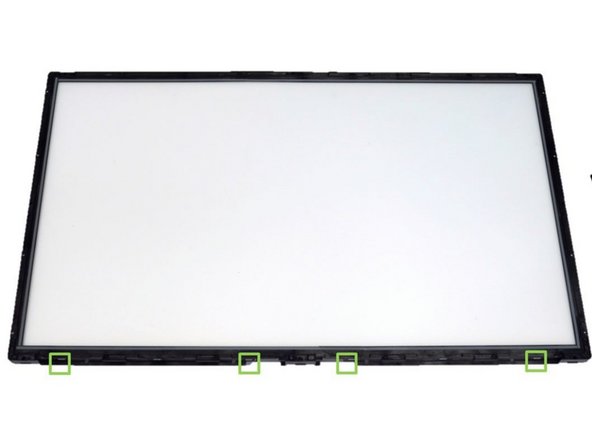

  5. PEAQ TFT32NUMUNE TV set, Removal of Polarized Foils: step 5, image 1 of 2 PEAQ TFT32NUMUNE TV set, Removal of Polarized Foils: step 5, image 2 of 2
    • First, using a PH#1 screwdriver, loose the four screws located in the bottom of the frame (green boxes).

    • Then, with slotted screwdriver, begin to lever the fourteen clips of the inner frame starting at the bottom of the TV.

    • Continue to work your way around the frame counterclockwise until you can pull the frame off.

    • Remove the already exposed polarized foils.

  6. PEAQ TFT32NUMUNE TV set, Removal of Backlights (LED): step 6, image 1 of 3 PEAQ TFT32NUMUNE TV set, Removal of Backlights (LED): step 6, image 2 of 3 PEAQ TFT32NUMUNE TV set, Removal of Backlights (LED): step 6, image 3 of 3

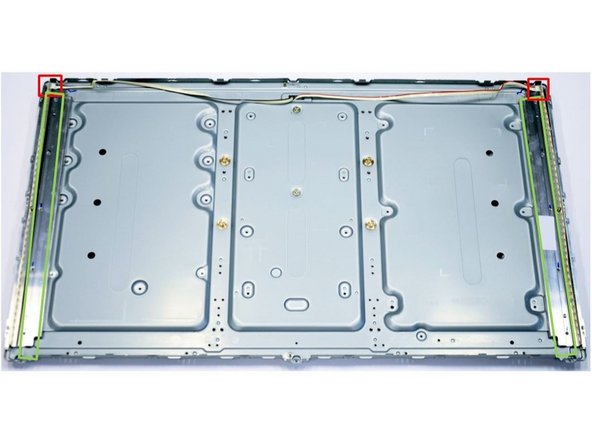

    • Use your fingers to pry open the two connectors of the PCBs.

    • Using PH#1 screwdriver, loose the ten screws used to fix the LEDs containing metal components.

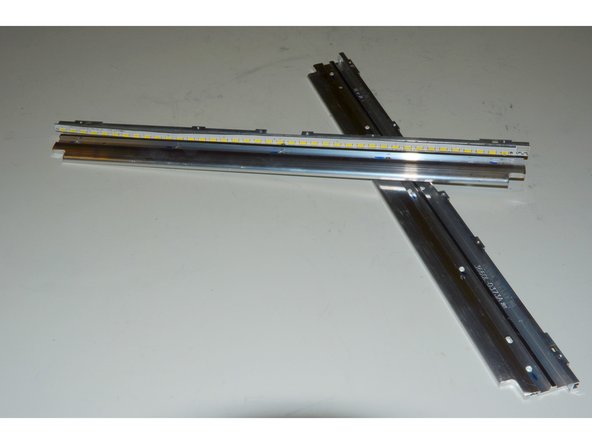

    • Take the two metal parts where the LED PCBs are located.

    • Using PH#1 screwdriver, loose the two side screws used to fix the PCBs to the metal part.

    • Use a slotted screwdriver to separate the PCB that is glued to the mounting.

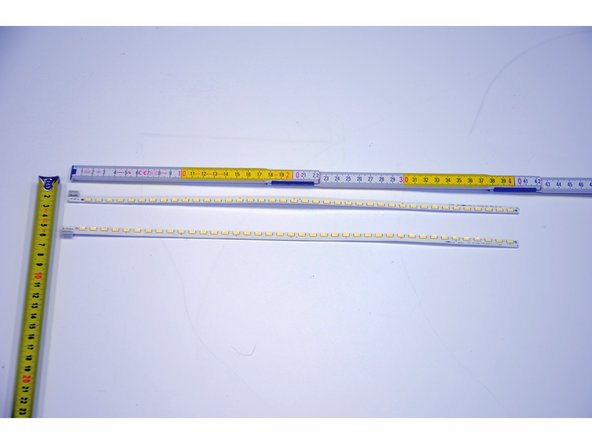

    • Repeat the previous couple of steps with the other metal part.

  7. PEAQ TFT32NUMUNE TV set, TV Dismantling Fractions: step 7, image 1 of 1

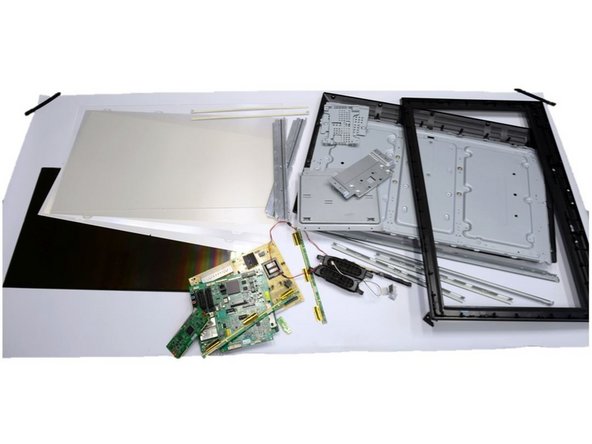

    • All fractions obtained after TV dismantling.
