PSP 2000 Front Casing Replacement

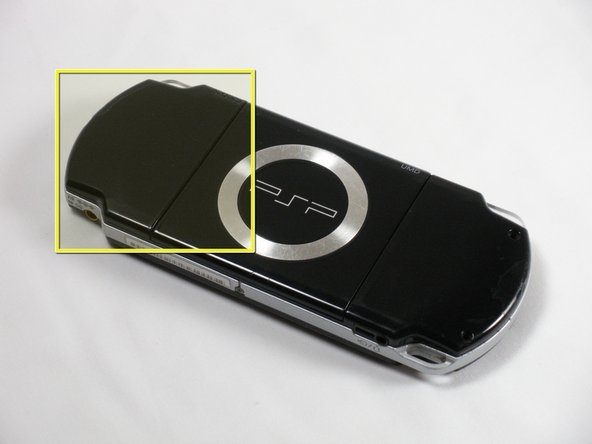

Step 1 PSP 2000 Front Casing Replacement




• Place PSP face down, so that the UMD Drive is facing upwards.
• Locate the battery door and open.
• Remove the battery from inside.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

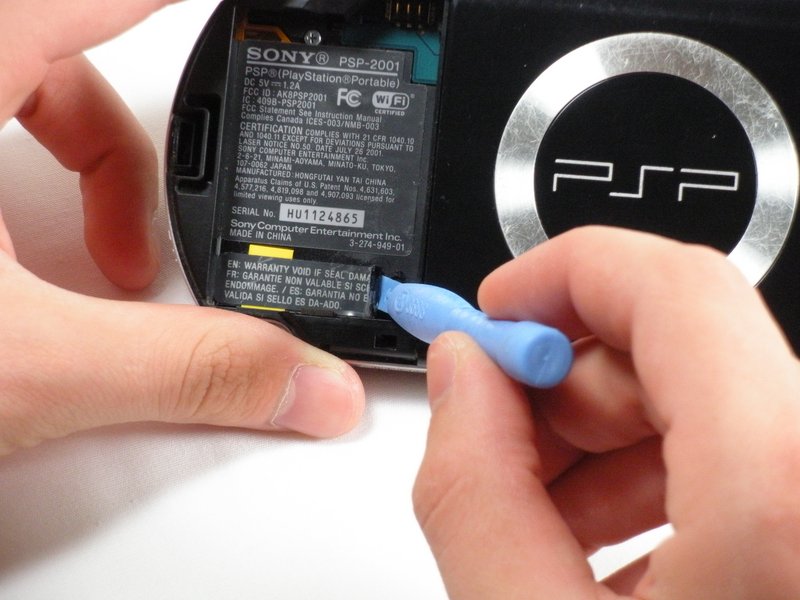

Step 2

• This step requires the removal of the warranty sticker. Removing the sticker will void the warranty.
• Locate the sticker in the battery compartment labeled: "En: Warranty Void if Seal Damaged."
• Remove the sticker using the PSP Opening Tools.
• Under the sticker is a 5mm Phillips screw needed in the next step.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

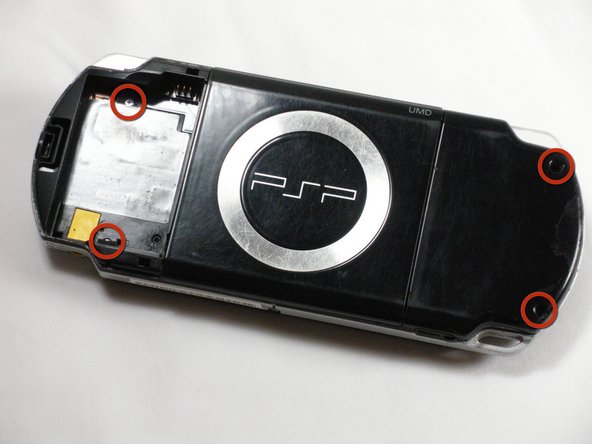

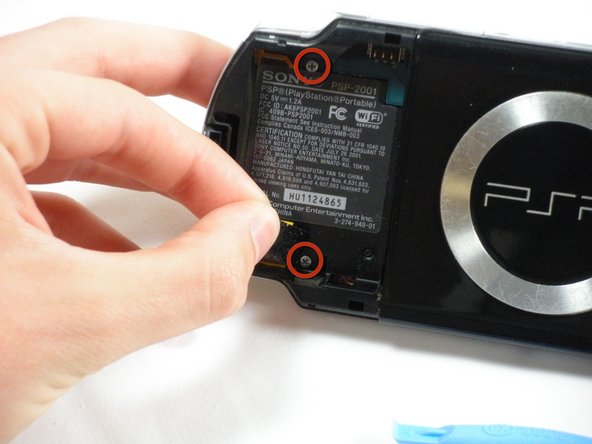

Step 3
• Remove four 5 mm Phillips from the case.
• If the screws stick in the case, you can use a magnetized screwdriver to draw them out.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

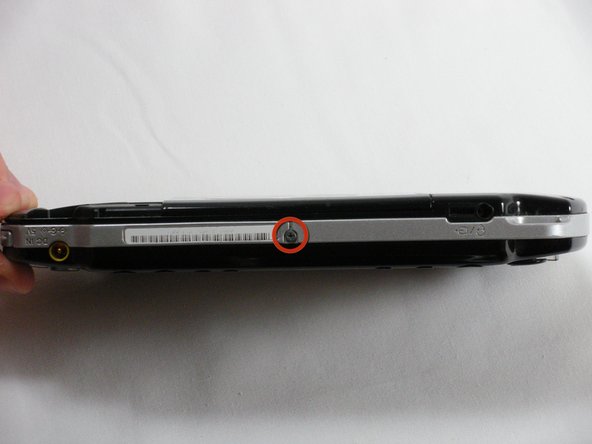

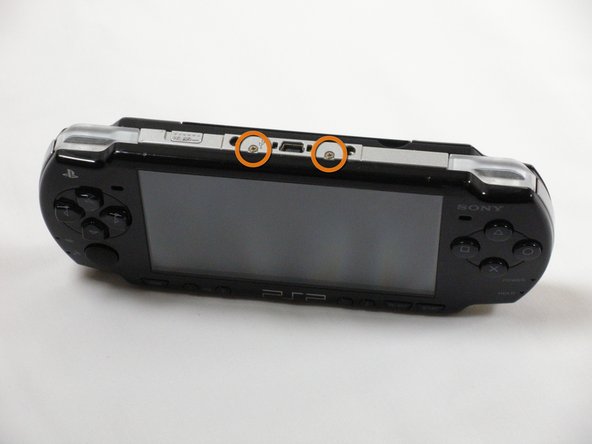

Step 4
• Remove the following screws from around the bezel:
• Two 4 mm Phillips
• One 5 mm Phillips
• The two shorter 4 mm screws are on the top of the PSP; the longer 5 mm screw is on the bottom.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment

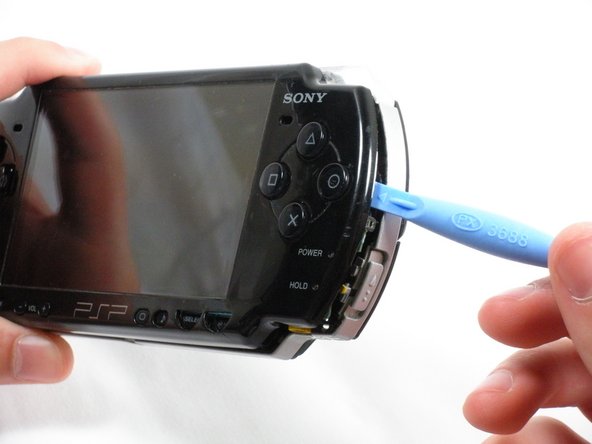

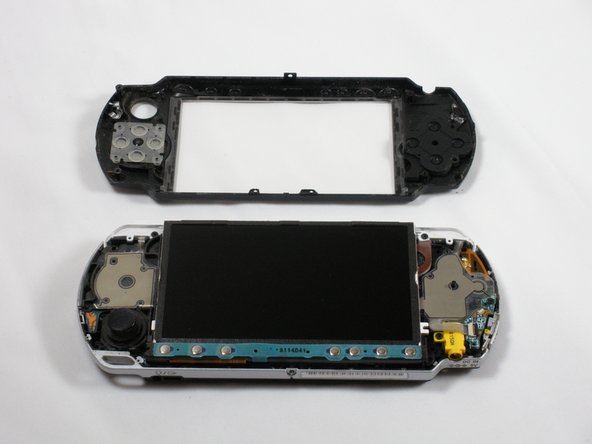

Step 5
• Gently pry the front bezel away from the casing using a PSP opening tool.
• Start on the right hand side of the PSP bezel, and carefully work the tool around the side.
• If you want to clean the control buttons or D-pad, you can easily pop them out once the faceplate is off and wipe them clean.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
