PSP 300x Button Pad Replacement

Introduction

Steps for replacing the button pad in a Sony PSP 3000

What you need

  1. PSP 300x Button Pad Replacement, PSP 300x Button Pad Replacement: step 1, image 1 of 3 PSP 300x Button Pad Replacement, PSP 300x Button Pad Replacement: step 1, image 2 of 3 PSP 300x Button Pad Replacement, PSP 300x Button Pad Replacement: step 1, image 3 of 3

    • Place the PSP face down and locate the battery cover on the left side of the device.

    • Lift and remove the battery cover to reveal the battery.

    • Remove the battery.

  2. PSP 300x Button Pad Replacement: step 2, image 1 of 1

    • Peel back the warranty sticker that is behind the battery with a spudger or your fingernail.

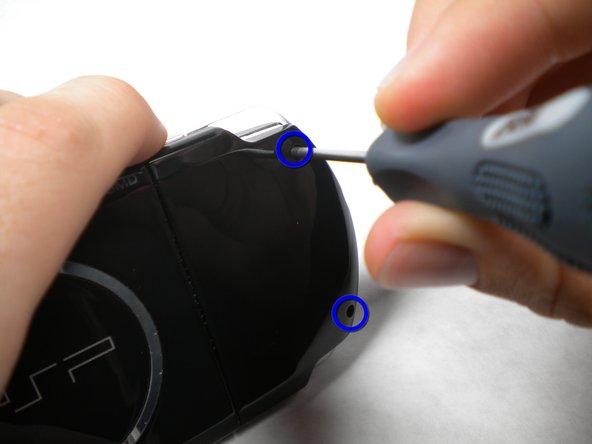

  3. PSP 300x Button Pad Replacement: step 3, image 1 of 2 PSP 300x Button Pad Replacement: step 3, image 2 of 2

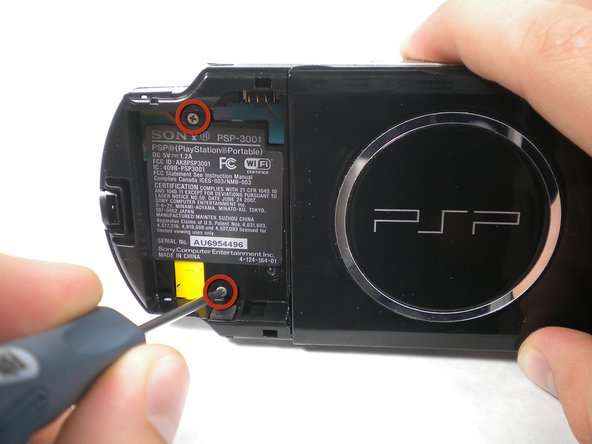

    • Unscrew all four screws from the back of the PSP with the Phillips #00 Screwdriver.

    • Two behind the battery's warranty sticker.

    • Two on the right side of the PSP.

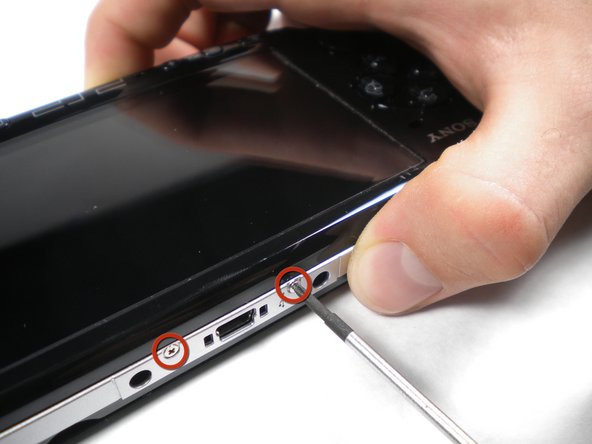

  4. PSP 300x Button Pad Replacement: step 4, image 1 of 1

    • Next, unscrew the two screws located at the top of the PSP.

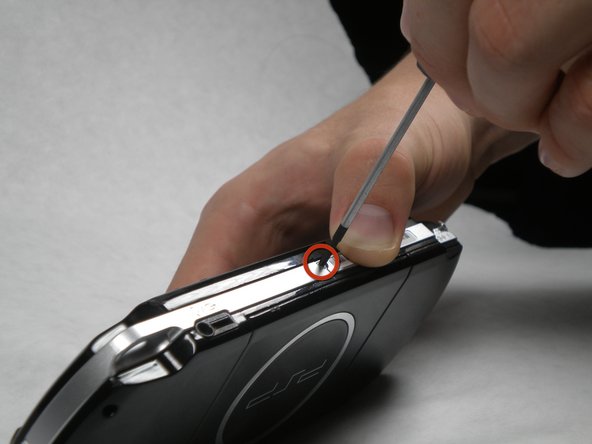

  6. PSP 300x Button Pad Replacement: step 5, image 1 of 1

    • Then, remove the single screw from the bottom edge of the PSP (which is positioned next to the barcode).

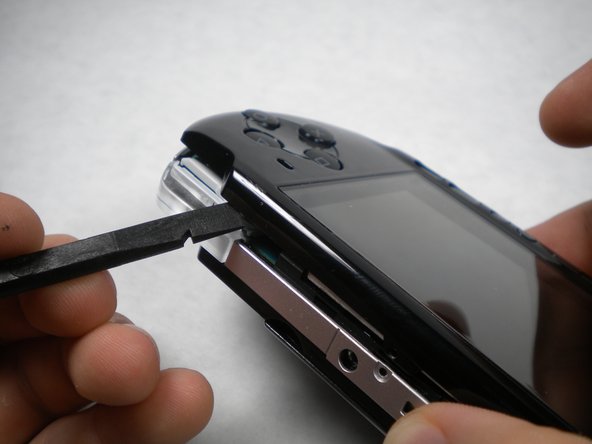

  7. PSP 300x Button Pad Replacement: step 6, image 1 of 2 PSP 300x Button Pad Replacement: step 6, image 2 of 2

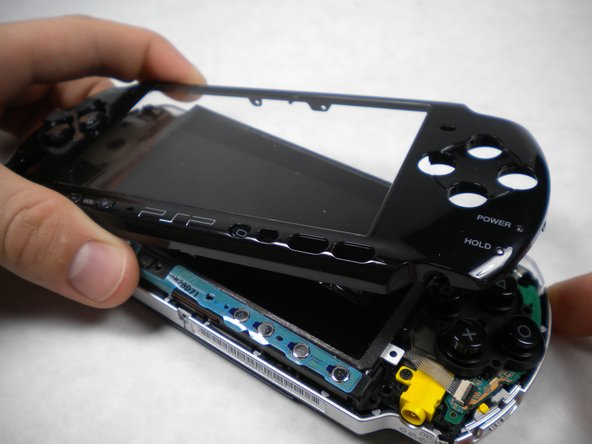

    • Slide the spudger in between the outer casing of the PSP, beginning at the "R" shoulder button, and gently pry off the casing.


    • Remove the front casing completely.

  8. PSP 300x Button Pad Replacement: step 7, image 1 of 1

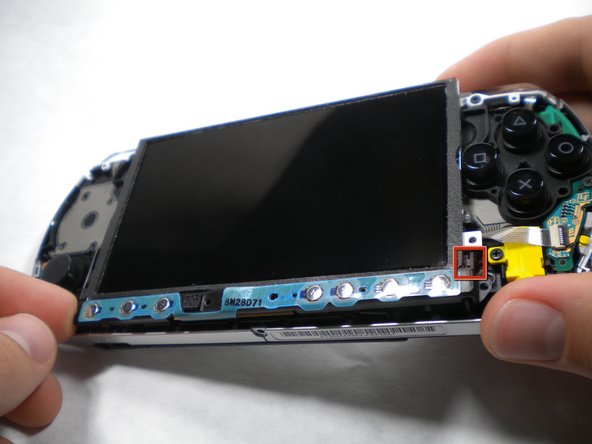

    • Push the homebar to the right to release the tab located on the right side of the LCD screen.

    • DO NOT completely remove the homebar, as it is still connected by ribbon cables.

  9. PSP 300x Button Pad Replacement: step 8, image 1 of 2 PSP 300x Button Pad Replacement: step 8, image 2 of 2

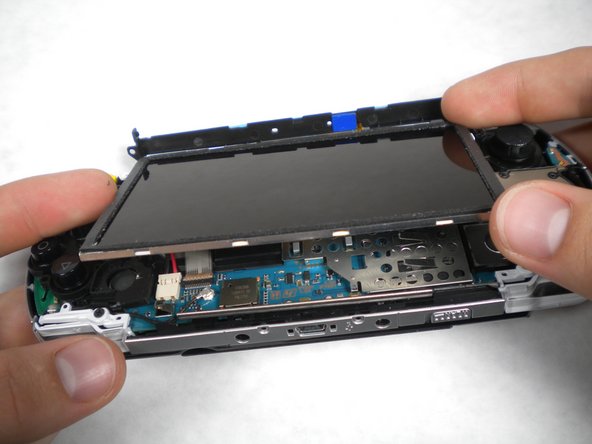

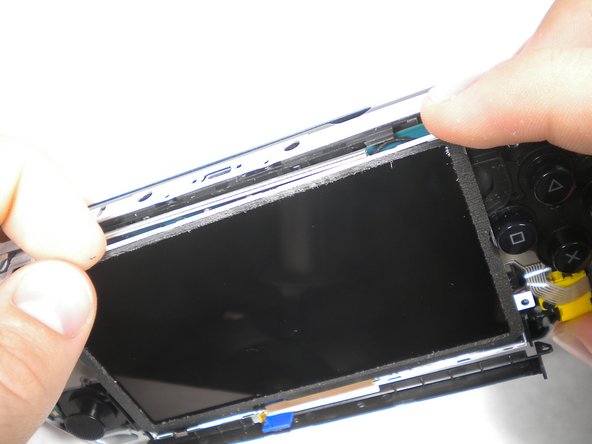

    • Slowly lift the LCD screen off the PSP starting at the top edge corner.

    • Again, the LCD screen is attached by ribbon cables, so do not remove it completely.

    • Orientation of PSP is flipped in photo.

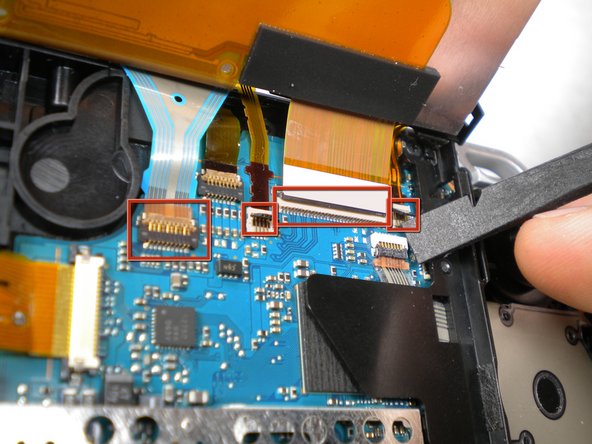

  10. PSP 300x Button Pad Replacement: step 9, image 1 of 2 PSP 300x Button Pad Replacement: step 9, image 2 of 2

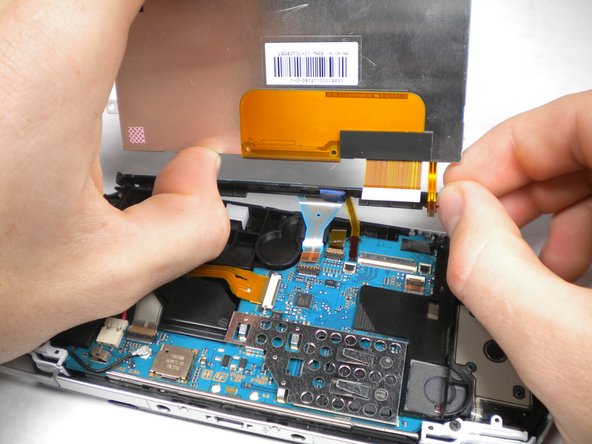

    • Flip the small brown locks on the four ribbon cable connectors up using a spudger or fingernail.

    • Pull all four ribbon cables out.

    • Now remove the LCD screen and homebar from the PSP.

  11. PSP 300x Button Pad Replacement: step 10, image 1 of 1

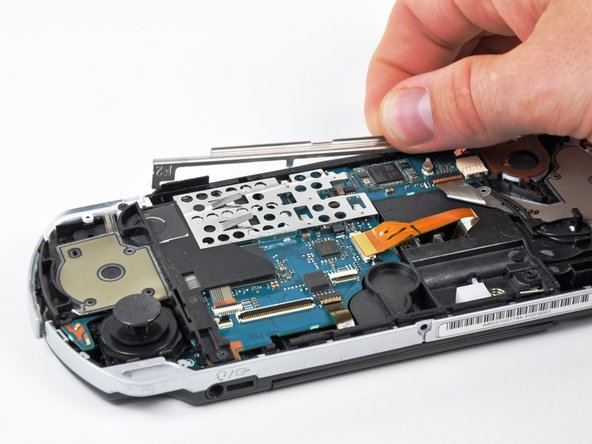

    • Remove the metal tab that lies above the LCD screen.

    • Upon reassembly, make note that the stamped lettering faces down, and the large tab fits just above the motherboard to the right hand side of the left trigger.

  12. PSP 300x Button Pad Replacement: step 11, image 1 of 1

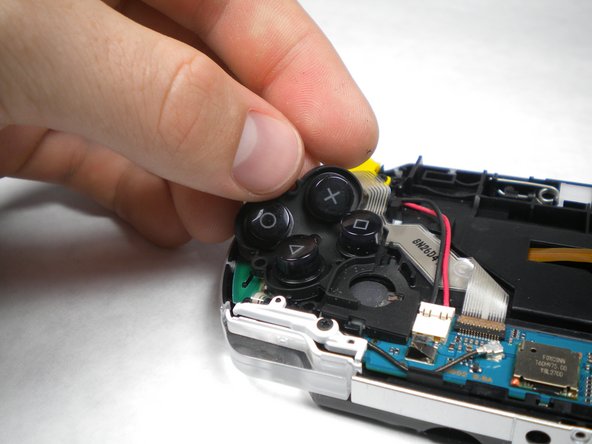

    • After removing the LCD Screen, the Button Pad should be easy to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
