PSP 300x Casing Replacement

Step 1 PSP 300x Casing Replacement

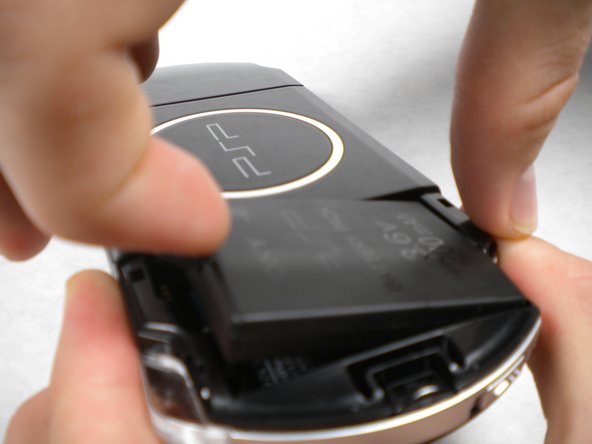

• Place the PSP face down and locate the battery cover on the left side of the device.
• Lift and remove the battery cover to reveal the battery.
• Remove the battery.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 2

• Peel back the warranty sticker that is behind the battery with a spudger or your fingernail.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 3

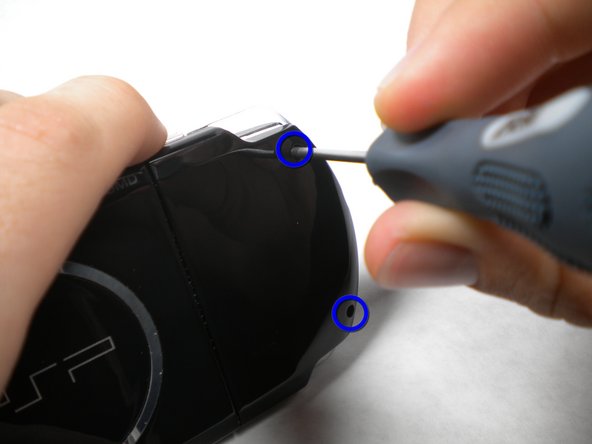

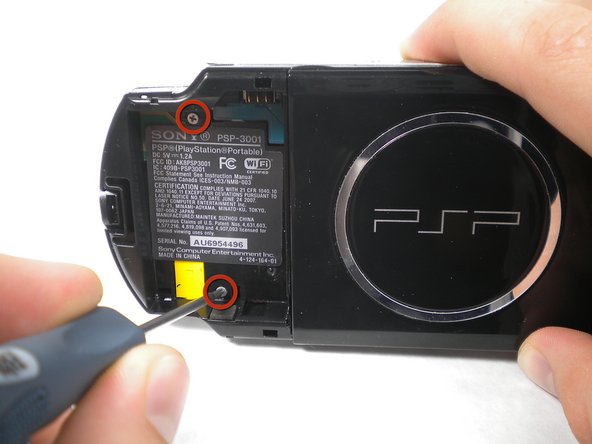

• Unscrew all four screws from the back of the PSP with the Phillips #00 Screwdriver.
• Two behind the battery's warranty sticker.
• Two on the right side of the PSP.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 4

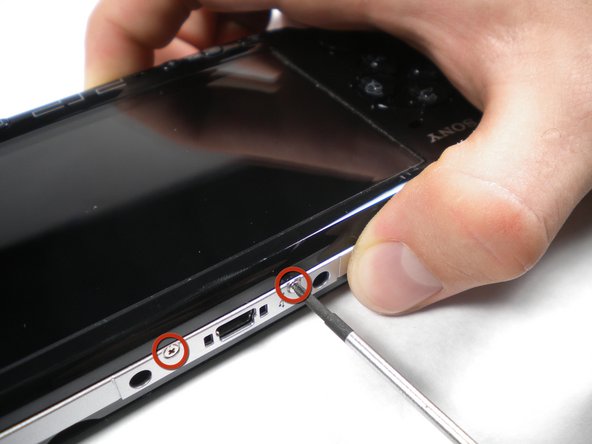

• Next, unscrew the two screws located at the top of the PSP.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 5

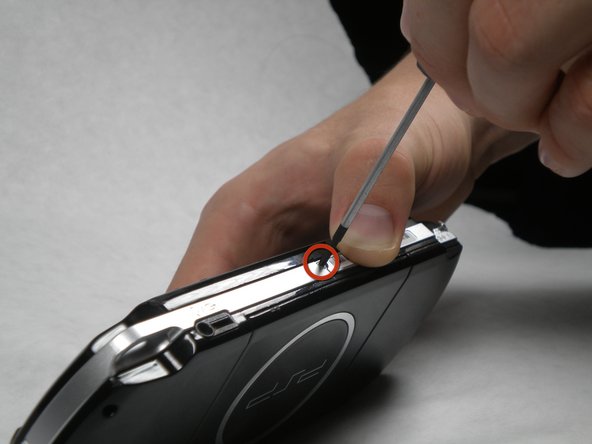

• Then, remove the single screw from the bottom edge of the PSP (which is positioned next to the barcode).
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
Step 6

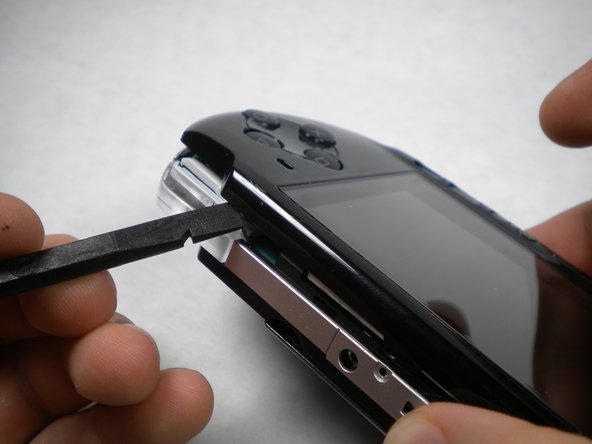

• Slide the spudger in between the outer casing of the PSP, beginning at the "R" shoulder button, and gently pry off the casing.

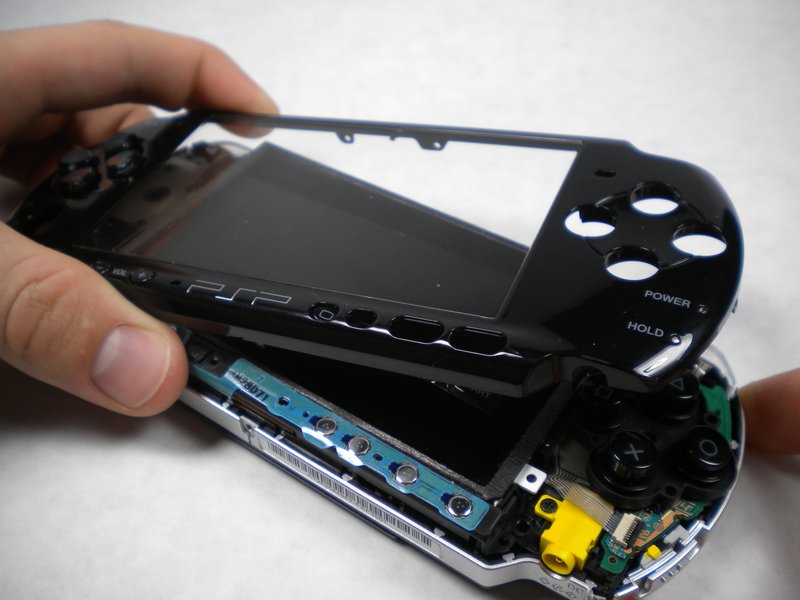

• Remove the front casing completely.
Add a comment
Add a comment
Add Comment
1024
Cancel Post comment
